Fasttel FT600W Manuel utilisateur
Instruction manual
FT600W IP monitor
(From softwareversion 113.78.6.23)
(only for Wizard Serie+FT600SIP but not for the FT600KIT)
Fasttel reserves the right to change the content without prior notice.
Fasttel België, Klipsenstraat 18A, 9160 Lokeren. Tel +32 (0)9 244 65 20 info@fasttel.be
Fasttel Nederland, Heiligenboom 3, 5066 CB Moergestel. Tel +31 (0)13 513 65 14 info@fasttel.nl
This guide was created based on Visuals to simplify your work.
The FastteL FT600W is an IP monitor that is directly connected to a POE connection of your
network.
The FT600W must be equipped with at least 2 items:
1 –SIP account with which to register on a SIP server
2 –Monitor information based on Wizard registration and associated rtsp string
1. Inlog
Login details by default: admin / AdminFasttel123!
After the login you will enter the main menu where you can choose from the tabs on the left of
the screen
Note: this manual only applies if you do NOT connect it to the FT600VK(K)
2 –Tabblad Status
You cannot change anything on this tab, but this page mainly provides information about
some statuses such as: Version number of the software
–check our website for the latest version under downloads/software Network connection
Account registration. Without “registered” the FT600 will not work
3 –Tabblad Account / basis
This tab is only about the data of your sip account which you have to enter here. If you only
use the monitor as an internal station of a Wizard Elite, you do not need to enter outbound
4 –Tabblad Account Advanced
This data is already preprogrammed in the basic configuration. Do not perform a factory default
because then these will be deleted.
5 –Network basic
You can choose to give your monitor a fixed IP address. If you don't understand this, it's
better to leave it that way. If you go with an IP scanner, you will find the device with the
name: smartdoorphones.
6 –Network Advanced
You do not make any changes on this page

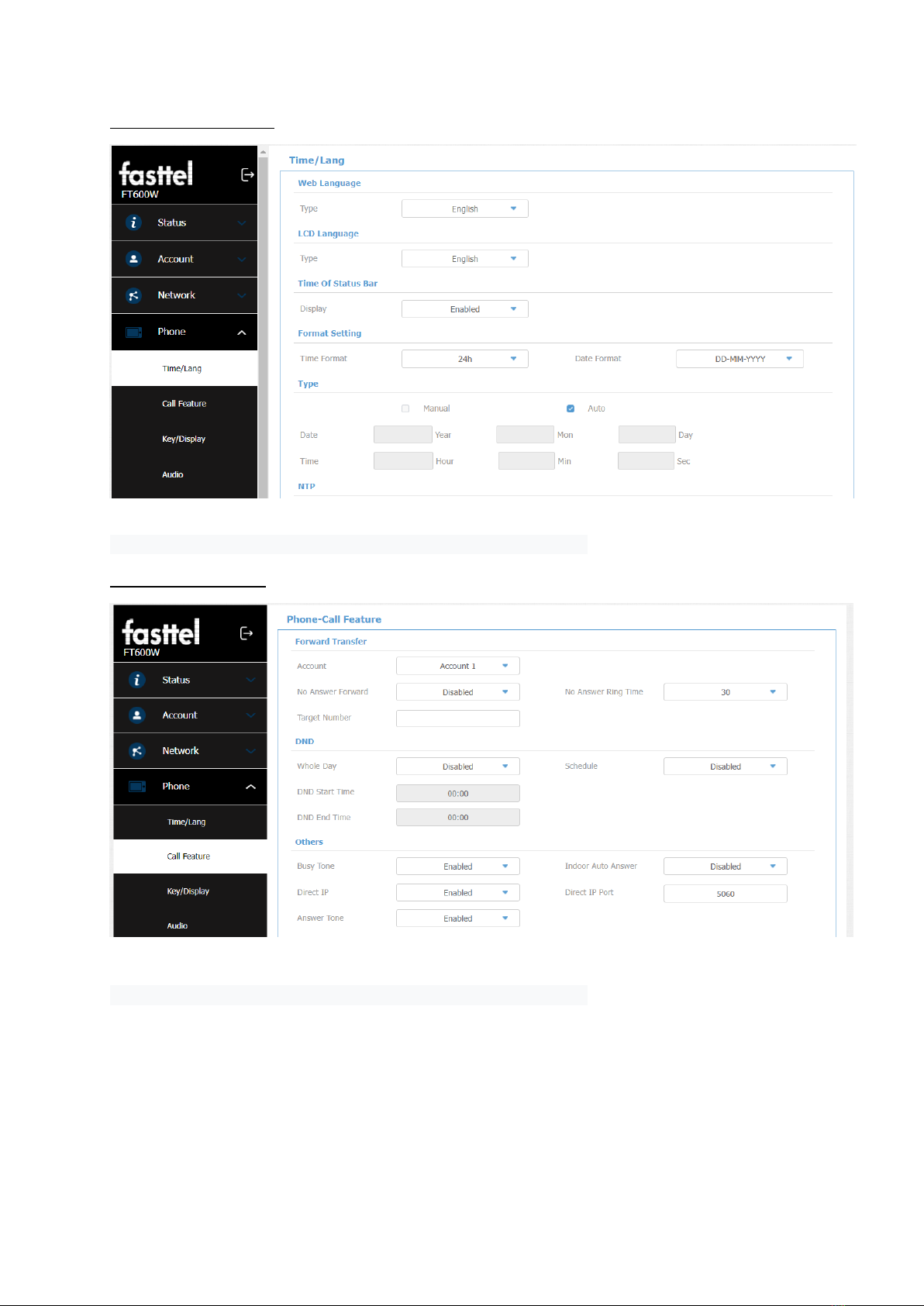

7 –Monitor-Time/Lang
We have already set this up correctly in the basic configuration.
8 –Phone Call feature
We have already set this up correctly in the basic configuration.
9 –Key/Display
We have already set this up correctly in the basic configuration.
10-Audio
The audio settings are so correct. It is possible that the environment gives rise to more or less volume or
microphone noise. Then you can adjust it here or on the screen at “Sound”
Just skip the Multicast tab
.
11 –Display Setting
We have already set this up correctly in the basic configuration.
Tabblad
XX –Phone - Intercom and
XX –Phone Logo
have no function is this configuration. So don't do anything with it
12- Phone-Monitor
On this page you will enter the camera data that are required to use your intercom
to communicate.
In all cases except when using the Wizard Apartment you must use the above RTSP link. The
correct data can be found on the camera tab of the intercom you are using.
As well as the name and password you entered there.
We strongly advise you not to leave this blank.
If you want to change something in an account, check the correct index and adjust a few things at
the bottom and save it.
13 –Phone Relay
Without Web Relay, we already have all the settings here correctly. If you use a WEB relay,
enter the data of the web relay
Tabblad
XX –Phone Lift &
XX –Phone smartliving
nothing is done with this configuration
