Manual creasing machine
FASTBIND C400
Manufacturer of Fastbind binding machines
Manufacturer:
Maping Co
Atomitie 5F, 00370 Helsinki, Finland
tel: +358 9 562 6022
fax: +358 9 562 6215
e-mail: [email protected]
http://www.maping.com
5.8. Move handle (3) down.
5.9.Move the sheet and align it agains the lower part of guide 5Â.
5.10.Perform next creasing.
5.11.Move handle (3) up.
5.12. Repeat the steps 5.7-5.11 with guide 5A.
(fig. 3).
Your creasing machine is designed to work for a long time.
Creasing machine does not require professional maintenance and greasing.
To adjust the gap between the creasing blade and the table use nuts Ì10 at the bottom
of the table (1).
To adjust the gap between the creasing blade and the table at th e central part of the
blade use screw M8 at the bottom of the table (1) between the nuts Ì10.
5. Maintenance
IMPORTANT!
Do not release four M5 nuts marked with red paint.
Your creasing machine will serve longer if you move the handle (3) into upper
position after the work is finished.
Ì10
Ì8
Ì5
Ì5
Ì5
Ì5
Ì10

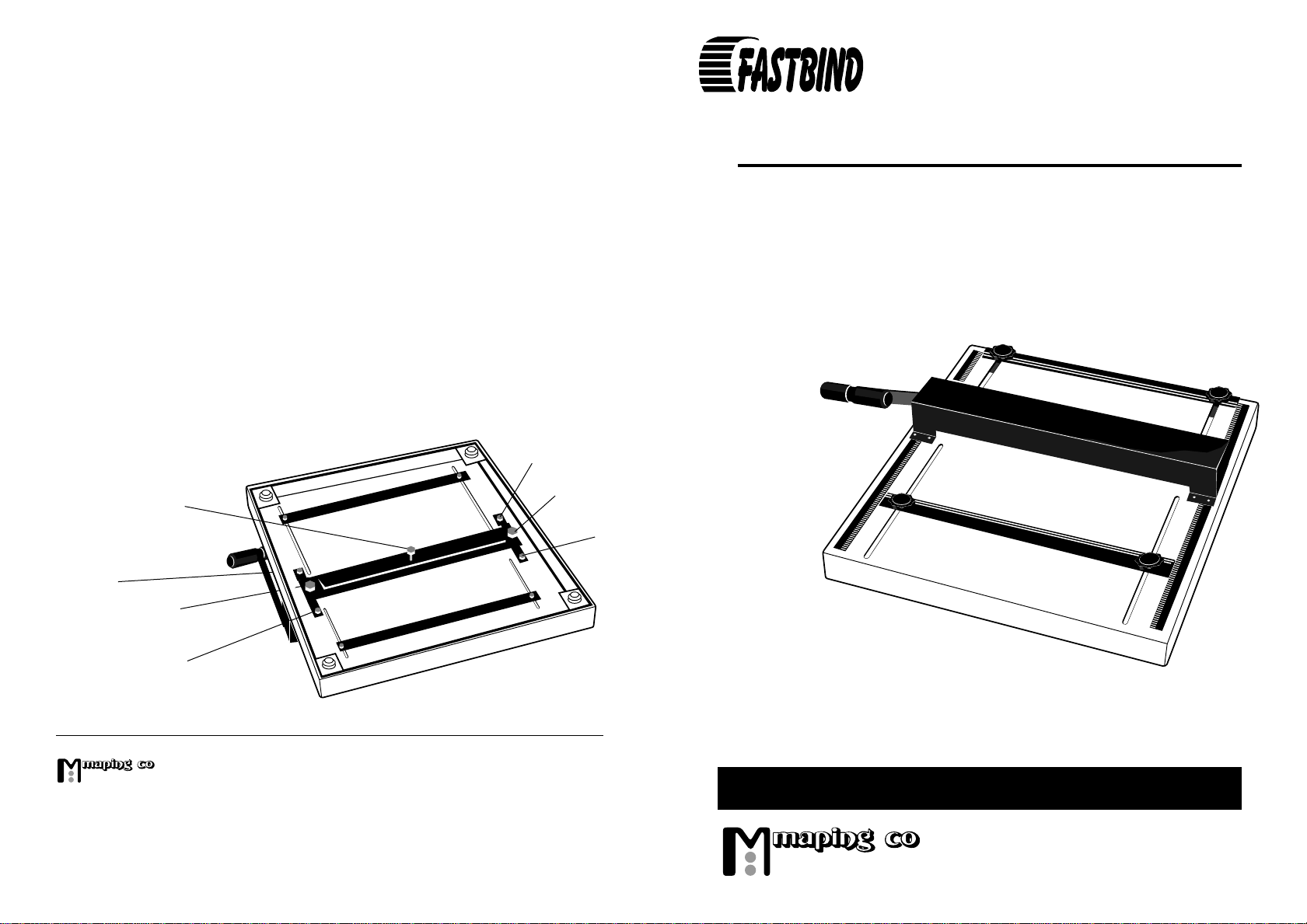

fig. 3
USER'S MANUAL
1 — table
2 — safety cover
3 — handle
4 — rulers
5À — guide À
5B — guide B
6 — clamping screw
FASTBIND CREASER C400
1
2
6
65A
5B
4
4
4
3
6
6
1. Main parts of the creasing machine (fig. 1)
handle
fig. 1
fig. 2
creasing
mechanism
screw screw
2. Features
With manual creasing machine FASTBIND Creaser C400 you can prepare a
cover to use with thermal binding machine.
FASTBIND Creaser C400 allows to make four scores up to 400 mm long using
paper or cardboard up to 1.3 mm without 1.3 ìì readjusting the machine.
3. How the machine works
To perform creasing the handle goes from basic lower into working upper position.
4. Installation
The machine uses tension of the string to perform the creasing.
Manual creasing machine FASTBIND Creaser C400 is delivered to the customer with the
handle taken apart.
Assemble the handle to the creasing mechanism with two screws
IMPORTANT!
(fig. 2).
5. Adjusting the machine to make four scores
IMPORTANT! Do not push handle up.
5.1.Measure the size of the sheet.
5.2.Adjust guide 5B to the size of the front cover.
5.3.Adjust guide 5A to the size of the back cover.
5.4.Tighten the clamping screws (6) of the guides 5A and 5B.
5.5.Move handle (3) into the lower position.
5.6.Insert a sheet of cardboard and align it agains the upper part of guide 5Â.
5.7.Move handle (3) into the upper position.
