ELITE XT - HOW TO INCREASE CLAMPING FORCE

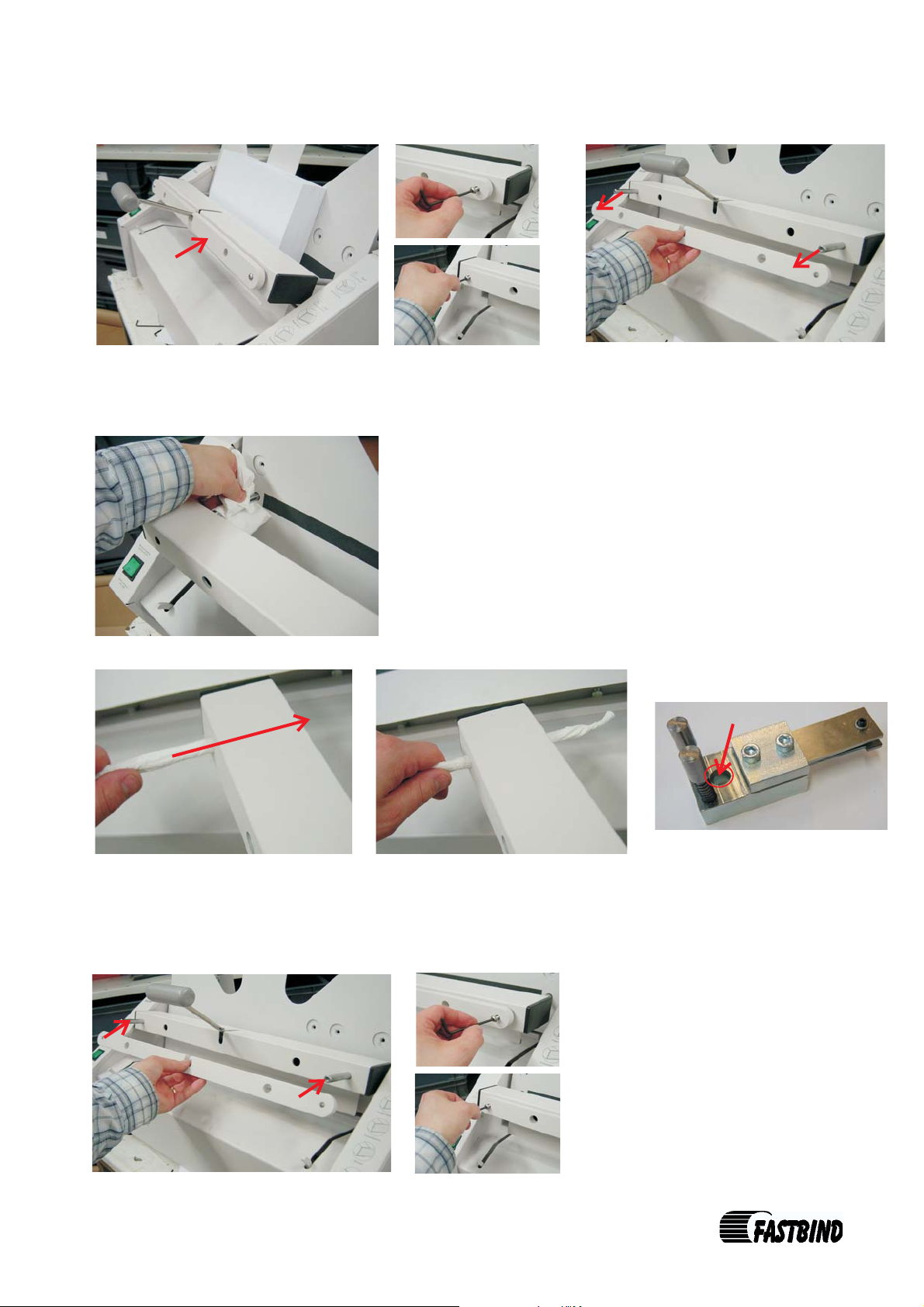

INSTRUCTIONS
2) from oil or lubricants.
Remove clamp from guides if necessary.
Clamp works optimally with VERY little amount
of oil. Use solvent for cleaning if necessary.
CLEAN GUIDE RODS
3) from oil
and lubricants. Clamp works the best with none or VERY little
amount of oil. Use solvent if necessary.
CLEAN BOTH LOCKING UNITS (inside the clamp)
4) ATTACH SUPPORT ROD and fasten screws.
Area to be cleaned is
shown here: precision
hole.
1) REMOVE SUPPORT rod. Open to screws with hexagonal key.
(Inside the clamp)
Locking unit
Page1of3 www.maping.com
PREPARATIONS
CLEANING
CLEANING
RE-ASSEMBLYRE-ASSEMBLY
ELITE XT - HOW TO INCREASE CLAMPING FORCE
INSTRUCTIONS
Page2of3 www.maping.com
Retaining screw
to adjust clamping
strength. Use
2,5 mm hex key.
Tighten clamp: turn clockwise
Loose clamp: turn counter
clockwise.
5) Clamp strength adjustment:
both left and right locking has to
be adjusted!!!
6) Clamp strength test: take a 30 - 50 mm thick
80g normal copy paper. Place the block
to the clamp. Lock and close the clamp.
block of
8) Press the paper block down from left side, center and ride side.
9) Turn table back down and check if there is any gap between table and papers.
The larger the gap, the more clamp yields (not strong enough).
7) Turn table up.
+
-
ADJUSTMENT
TESTING
TESTING
TESTING
Page3of3 www.maping.com
ELITE XT - HOW TO INCREASE CLAMPING FORCE
INSTRUCTIONS
10) Check that clamp moves smoothly from down to up position. If clamp is too tight,
it does not move smoothly up. Then loosen adjustment screws.
If clamp moves smoothly from down to up
position with handle slightly upward, it means
that one can tighten clamp more .if necessary
If clamp moves smoothly from down to up
position with handle large angle, it means
that one can tighten clamp much more
IF NECESSARY.
TESTING
TESTING
Down Up
