Thank you for choosing the FAR AV-2(C) active two way
monitor.
In order to obtain the best performance from this active
monitor, please be sure to read this owner’s manual and
use your speaker only in accordance with its instruction.
CONTENTS
• Applications 2
• Installation 3
• Technical description 4
• Technical drawing 7;8
• Fine frequency tuning 9
• Limitor function 10
• Rear panel level 10
• Troubleshooting 11
• Optional curves 13
• Optional remote control 14
AV-2(C)
Applications
Video and film post production
Music industry
All near field and close field applications
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
3
Thank you for choosing a FAR active monitor. This unit is
an exceptional product that will give you years of superb
performance.
Do Not Open The Cabinet.
Do not attempt to service this unit. Tampering with internal
components can cause fire or shock, and may void your
guarantee. If water or small objets enter the unit, unplug
the power cord immediately and consult an authorized
FAR dealer. Using the unit under such condition may
cause a fire or shock hazard.
Installation
Mains
Attach the plug to the IEC socket. And connect it to the
mains.
A green LED on front face indicates when the power is
switched on.
Signal
The input signal is available in XRL or Jack plugs, both
are electronically symmetric inputs.
The link functions the same as both of the inputs. Use the
link to connect one speaker to another.
pins connections
• Maximum length of the link cables
symmetric :15 meters
asymmetric : 8 meters
• Maximum linked AV-2(C) ’s : 4
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
4
TECHNICAL DESCRIPTION
AV-2(C)
Sensitivity dB SPL
Maximum pressure level (2 cabinets @ 1 m) 117
Frequency Range Hz
± 3 dB 50-22000
Low pass section
Crossover frequency 3500 Hz 24 dB/Octave
Control -1dB/flat/+1dB/+2dB
High pass section
Crossover frequency 7500 Hz 24 dB/Octave
Control -3dB/-2dB/-1dB/flat/+1dB/+2dB
Bandpass filter 20-20000 Hz 6 dB/Octave
Limitor (on/off) +2dB
Components
Woofer 17 cm / 6,5 inch
Tweeter soft dome 1 inch
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
5
Listening position cm
50-120
Amplifier Specifications
Power (PEAK) W
Tweeter: Power 100
Woofer: Power 150
Power (NOMINAL) W
Tweeter: Power @ 8 Ohm 70
Woofer: Power @ 4 Ohm 100
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
6
Characteristics
Power bandwidth 20 - 25000 Hz
Slew rate 35 V/µs
SN ratio > 100 dB
Distortion
Intermodulation 0,01%
Total 0,05%
Input
Sensitivity 0 dB
Impedance > 10 kOhm
Connectors
Input (symmetric) XLR & Jack
Link XLR
Remote RJ-45
External dimensions mm
Height 300
Width 210
Depth 320
Weight kg 12
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
7
TECHNICAL DRAWING
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
8
LOW FREQUENCY
CONTROL
HIGH FREQUENCY
CONTROL
FLAT
-1 dB
-2 dB
-3 dB
+1 dB
+2 dB
FLAT
+1 dB
+2 dB
-1 dB
PRESET CURVES
ACADEMY
ACADEMY CURVE
0
10k
-3
Hz
dB
0
200 500
5
8k
-3
Hz
dB
TV CURVE
TV
MAINS
FOR CO NTIN UED PRO TECT ION
AGAINST RISK OF FIRE REPLACE
ONLY WITH THE SAME TYPE OF FUSE
CAUTION
REMOTE
LINK
Hz
LOW PASSFILTER
0
dB
Hz
HIGH PASSFILTER
dB
2
1
10
34
5
6
7
8
9
LEGEND
1. Main level tuning
2. Limitor function
3. Link
4. Input XLR
5. Low pass section settings
6. Pre-set curves
7. Cooling system
8. Mains
9. Power
10.High pass section settings
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
9

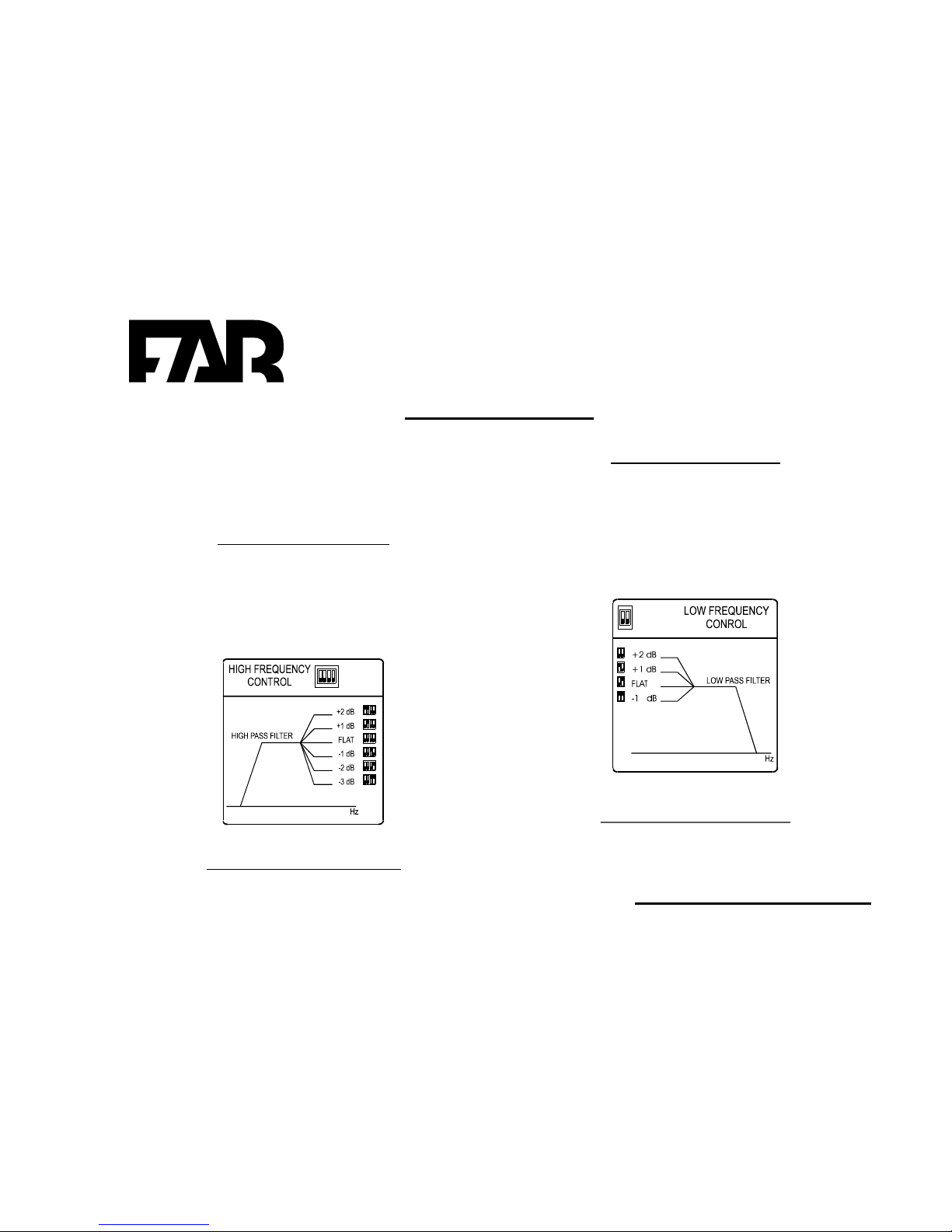

Fine frequency tuning
For fine frequency tuning use the dip switches on the rear
panel. One for high frequencies (Figure 1) and one for the
low frequencies (Figure 2).
High pass section settings
The dip switch can be set to one of the six dB level
positions for an optimum high frequencies setting
Positions available: -3, -2, -1, flat, +1, +2 dB
Figure 1 : high frequency control
Low pass section settings
The dip switch can be set to one of the four dB level
positions for an optimum low frequencies setting
Positions available: -1, flat, +1, +2 dB
Figure 2: Low frequency control
F
U
NDAMENTAL A
C
O
U
S
TI
C
RE
S
EAR
C
H
OWNERS MANUAL AV-2(C)
10
Limiter function
The AV-2(C) has a built in limiter developed to protect the
drivers against harmful signals. The limiter acts directly on
the input signal by decreasing it when it reaches the
clipping level.
To activate the limiter turn it to the on or off position using
the dip switch on the rear panel.
Figure 3: limiter switch
The overload LED indicates whether or not the limiter is in
operation.
LED comes :
• Red when the limiter is not in use.
• Orange when the limiter is in use.
Rear panel level.
Adjust the sound level by turning the main level knob to
the desired position.
The range of tuning is from 0 (maximum attenuation) to
max (no attenuation).
Adjust the knob (Figure4) to the necessary to attain a
perfect stereo image.
Figure 4 : main level control
