Fantom FANTOM FM743H Manuel utilisateur

REPLACEMENT PARTS

HOUSEHOLD USE ONLY

IMPORTANT SAFETY INSTRUCTIONS

NAME OF EACH PART

PREPARATION BEFORE USE

USING THE VACUUM CLEANER

USING THE ATTACHMENTS

EMPTYING THE DUST COMPARTMENT

CLEANING THE FILTERS

CLEARING BLOCKAGES IN THE

SUCTION HOSE AND CLEANING THE

AGITATOR ASSEMBLY

REPLACEMENT INSTRUCTIONS

TROUBLESHOOTING

LIMITED WARRANTY

Contents

FM743H

INSTRUCTION MANUAL

VACUUM CLEANER

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THIS VACUUM CLEANER

WARNING -To reduce the risk of fire, electric shock or injury:

1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet

when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow vacuum cleaner to be used as a toy. Close attention is necessary

when used by or near children or infirmed persons.

4. Use only as described in this manual. Use only the manufacturer's

recommended attachments.

5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working

as it should, or if it has been dropped, damaged, left outdoors or dropped into

water, return to FANTOM at 94 Main Mill Street, Door 16, Plattsburgh,NY 12901.

6. Do not pull or carry by the cord, use the cord as a handle, close a door on the

cord, or pull the cord around sharp edges or corners. Do not run the vacuum

cleaner over the cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle the plug or the vacuum cleaner with wet hands.

9. Do not put any objects into the openings. Do not use with any opening

blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all the parts of your body away from

openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes,

matches or hot ashes.

12. Do not use without dust compartment and filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline, or

use in areas where they may be present.

111Rev.02/04B

Note to user concerning attachment plug:

16. Do not touch the agitator while it is spinning.

17. Do not place any heavy items on top of the vacuum cleaner.

18. Do not step on the hose or pull it too strongly.

19. Do not pick up items such as pieces of waste paper or cloth which look as

though they may cause the hose to become blocked.

20. Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21. Store the vacuum cleaner away from excessive humidity.

22. When carrying the vacuum cleaner, hold it by the carrying handle.

23. Before servicing the vacuum cleaner, allow all internal metal parts to cool first.

24. Always place foot on handle release when adjusting the handle position

25. If the supply cord of this appliance is damaged, it must only be replaced by

FANTOM, because special purpose tools are required.

of the vacuum cleaner.

SAVE THESE INSTRUCTIONS

This vacuum cleaner is intended for household use only.

To reduce the risk of electric shock, this appliance has a polarized plug (one

blade is wider than the other). This plug will fit in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to install the proper outlet. Do not

change the plug in any way.

Set the ON/OFF switch

to " ON " to light the

headlight.

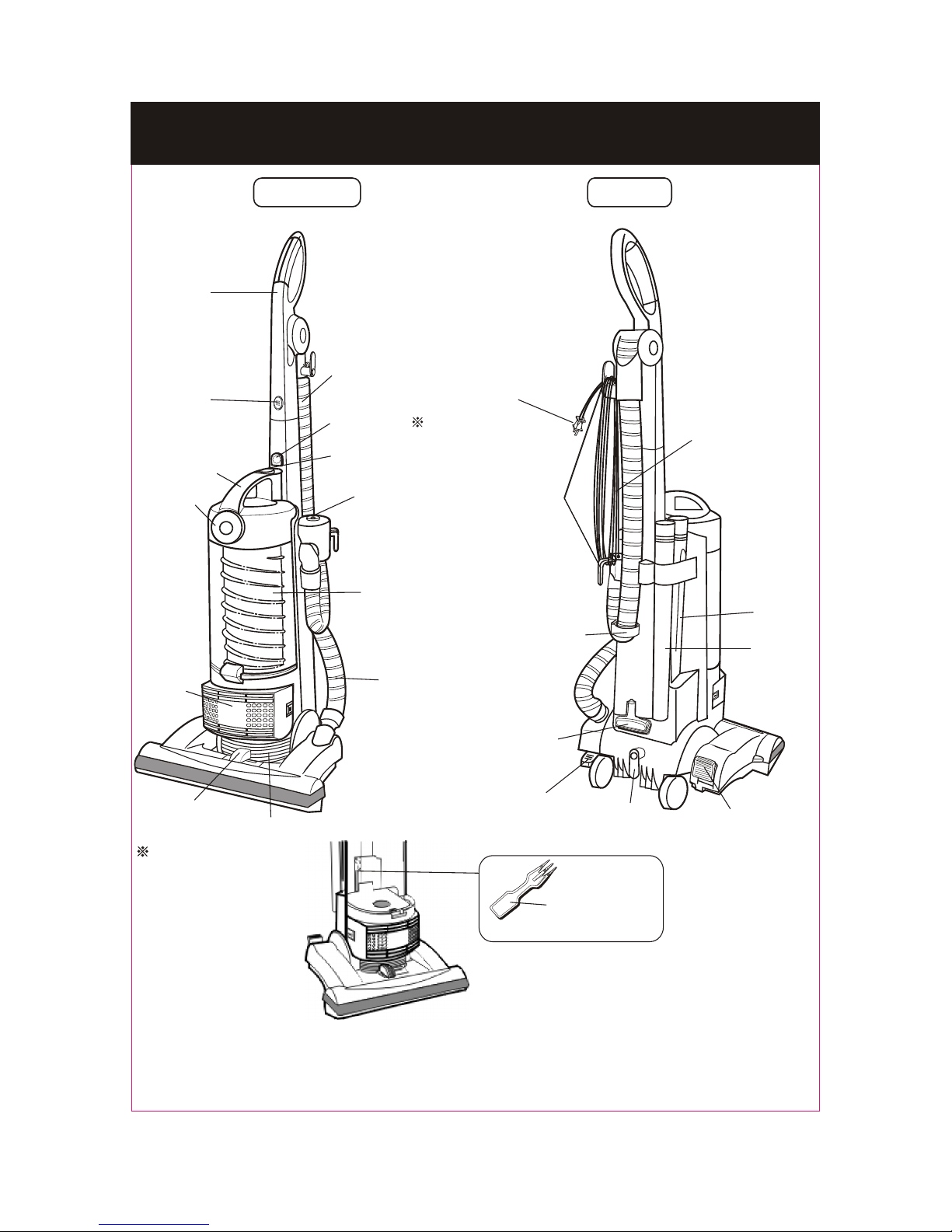

NAMES OF EACH PART

WARNING:

Operate vacuum cleaner only at the voltage specified on name plate.

FRONT REAR

Cleaning Utensil

Headlight

Handle

Suction

Hose A

Dust

Compartment

Carrying Handle

Duster Knob

ON/OFF Switch

Release

Button A

Release

Button B

Release

Button C

Suction

Hose B

Filter

Cover

Wand

Handle Release

Lever

Power Cord

Upholstery Tool &

Dusting Brush

Power Cord

Plug

Crevice Tool

Hose

Holder

Rug/Floor (Tools)

SELECTOR

Holder

Mount

Cord Storage

Hooks

Plug shown in figure

may differ from actual

plug attached to unit

for your area.

Height Adjustment

Lever

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

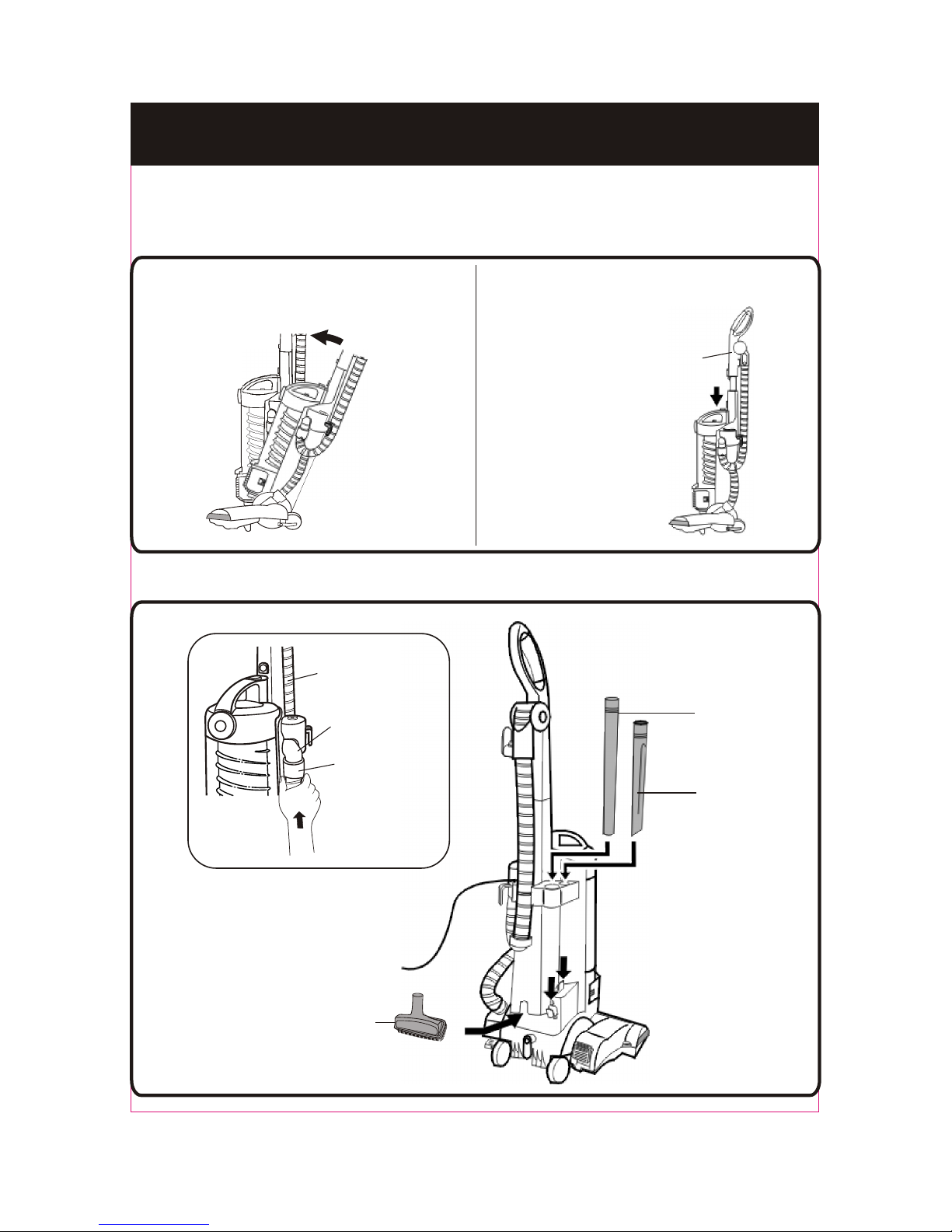

Attaching the handle

PREPARATIONS BEFORE USE

Attaching the suction hose A & attachments

Set the vacuum cleaner

to the upright position.

lnsert the handle

as shown in the illustration.

Handle

Wand

Crevice Tool

Upholstery Tool

& Dusting Brush

Hose Cuff

Suction Inlet

Suction Hose A

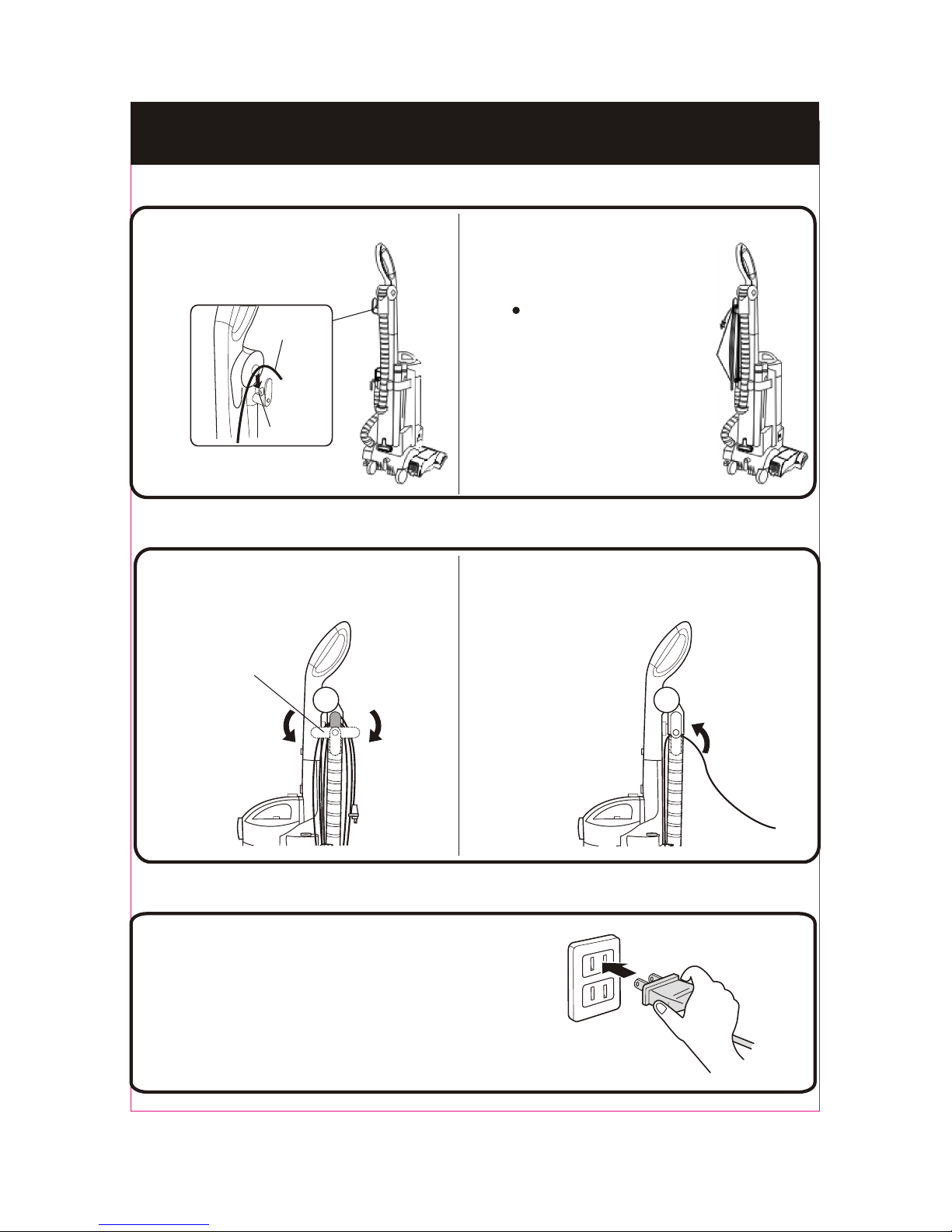

RELEASING THE POWER CORD

Secure the power

cord plug on the

power cord.

WARNING: To reduce the risk of electric shock, this

appliance has a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet

only one way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact

a qualified electrician to install the proper outlet. Do

not modify the plug in any way.

PREPARATIONS BEFORE USE

WINDING THE POWER CORD

Hook the power cord over

the clip which is located on

the upper cord storage hook

as shown.

Wind the power cord around the cord

storage hooks.

Rotate the upper cord storage hook

downward.

Return the hook to the

upright position before

attempting to rewind the

power cord.

INSERTING THE POWER CORD PLUG

Upper Cord

Storage Hook

Plug Side

Clip

Cord Storage

Hooks

ON/OFF Switch

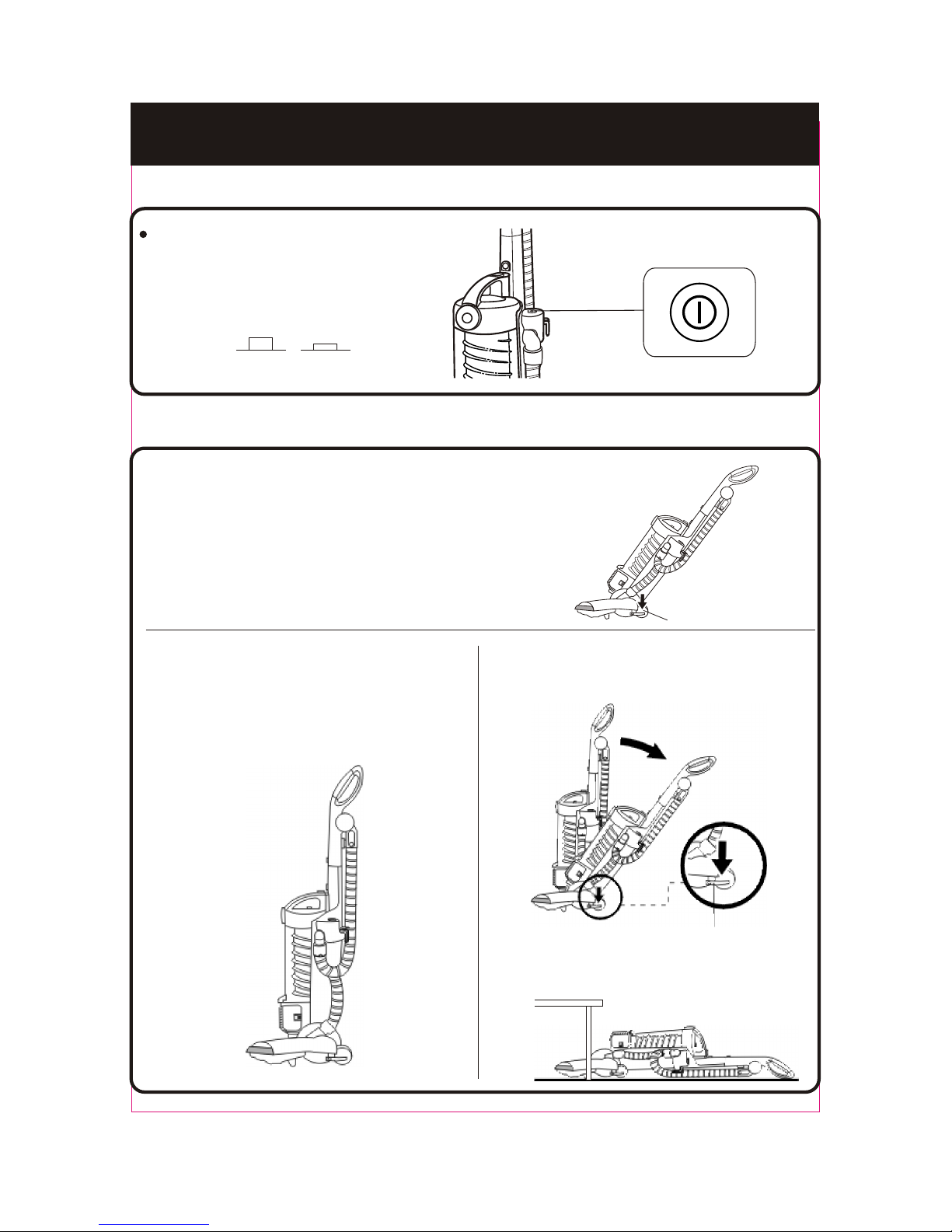

USING THE VACUUM CLEANER

ON/OFF SWITCH

Start or stop vacuum cleaner by pushing

on the switch.

ADJUSTING THE HANDLE

Upright position

The handle is normally locked in this

The handle of this vacuum cleaner can be setto one of

three positions -Upright, Normal, Parallel. Place your foot

on handle release lever as shown and pull back on the handle

until it releases from its upright position.

position for storage or when using the

attachments.

Push the handle forward

until it locks.

Normal position

This position is used for normal cleaning.

Parallel position

This position is used for cleaning under

furniture.

OFF ON

Handle Release Lever

USING THE VACUUM CLEANER

EDGE CLEANING

This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges

near baseboards and stationary furniture.

RUG/FLOOR (TOOLS)SELECTOR

The RUG/FLOOR(TOOLS)selector should only be

adjusted while the vacuum cleaner is turned on

and in the upright position.

When cleaning a rug or carpet,first

turn the ON/OFF switch to the ON

position,and then set the RUG/

FLOOR(TOOLS)selector to the

RUG position.

When cleaning a bare floor or when using

one of the attachments,set the RUG/FLOOR

(TOOLS)selector to the FLOOR position.

Caution: Do not change the setting of the RUG/FLOOR(TOOLS)selector while the vacuum

cleaner is turned off.

Rug/Floor (Tools)

SELECTOR

RUG

FLOOR

(TOOLS)

RUG

Nozzle Head

Height AdjustmentLever

HEIGHT ADJUSTMENT LEVER

The nozzle head can be

adjusted to four different

height settings.

Set the height adjustment to the

appropriate carpet length.

Use the 3 ( )height

setting.

TURN OFF BRUSH ROLL

WHEN USING TOOLS.

Before using the height adj-

ustment lever,please make

sure the nozzle head is tilted

backward from the floor.

Caution:

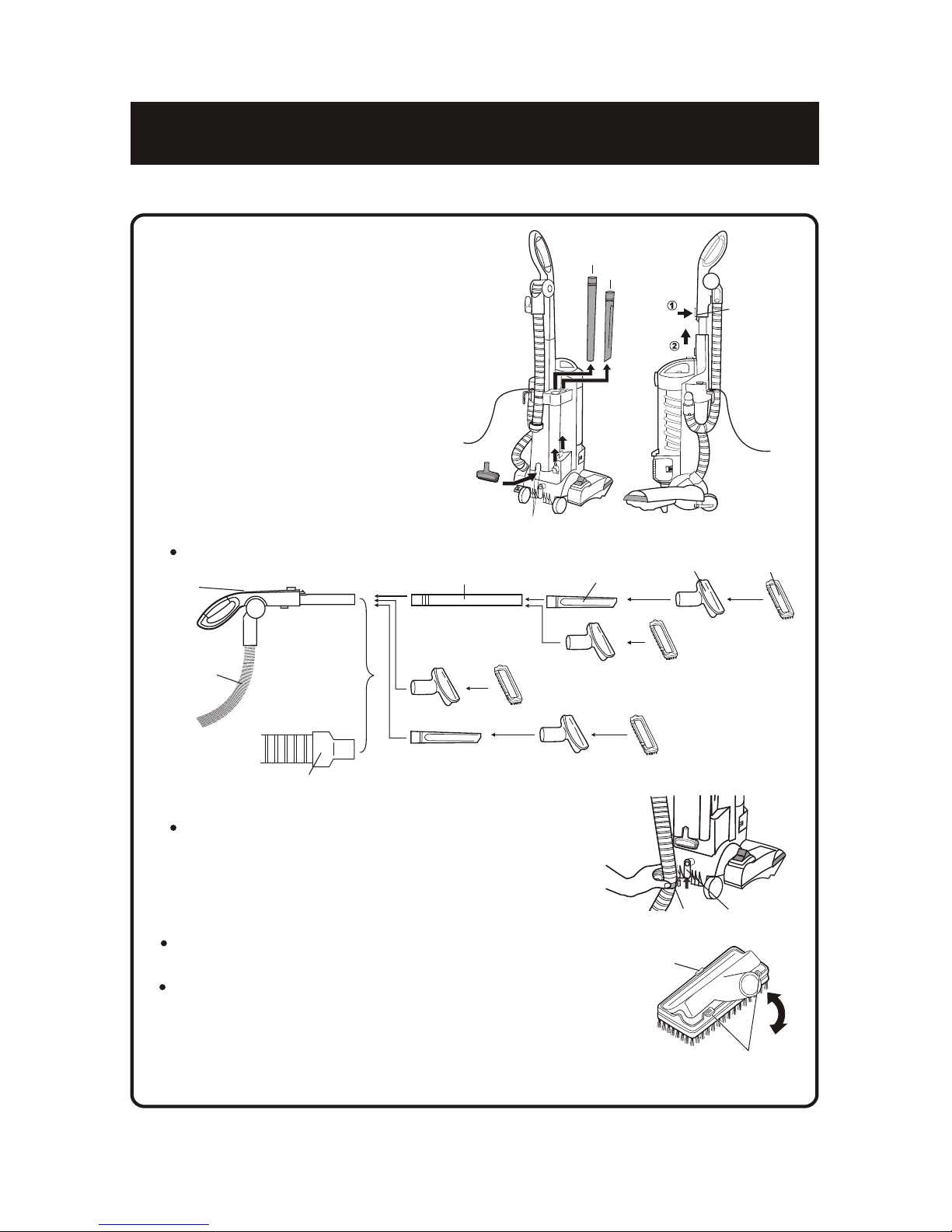

USING THE ATTACHMENTS

Caution: When using one of the attachments during cleaning, set the vacuum

cleaner to the upright position.

Press the release button C to

disconnect the handle from the

vacuum cleaner.

Remove the attachments from the

vacuum cleaner.

Caution:

When removing the attachments, pull

them in the directions shown in the

illustration.Pulling them in the wrong

direction or pulling them forcefully may

cause damage to the attachment clamp.

Attach the attachments as shown below.

Hook the hose holder onto the holder mount.

Caution:

Before using the attachments, please make sure

the hose is hooked on the holder mount.

Holder

Mount

Hose

Holder

When you have finished using the attachments,replace them

in their original positions as shown on page 4.

Tabs

Groove

Attachment Clamp

Wand

Crevice Tool

Release

Button C

Upholstery tool & Dusting brush

To detach the dusting brush from the upholstery tool: Press the

tabs on the brush downward to remove it.

To reattach the dusting brush to the upholstery tool: Insert

the front of the upholstery tool under the hook on the front of the

dusting brush. Press down on the back of the upholstery tool to

snap it into place under the dusting brush tabs.

Suction Hose A

Wand Crevice Tool

Upholstery

Tool

Dusting

Brush

Suction Hose B

Attach the attachments on the handle or

the suction hose B.

Handle

Caution: Before using the suction hose B,

please make sure the handle is

reattached on the body.

Trapdoor

Release Lever

Duster Handle

Turn the duster handle several times in the

direction shown to empty the dust

compartment.

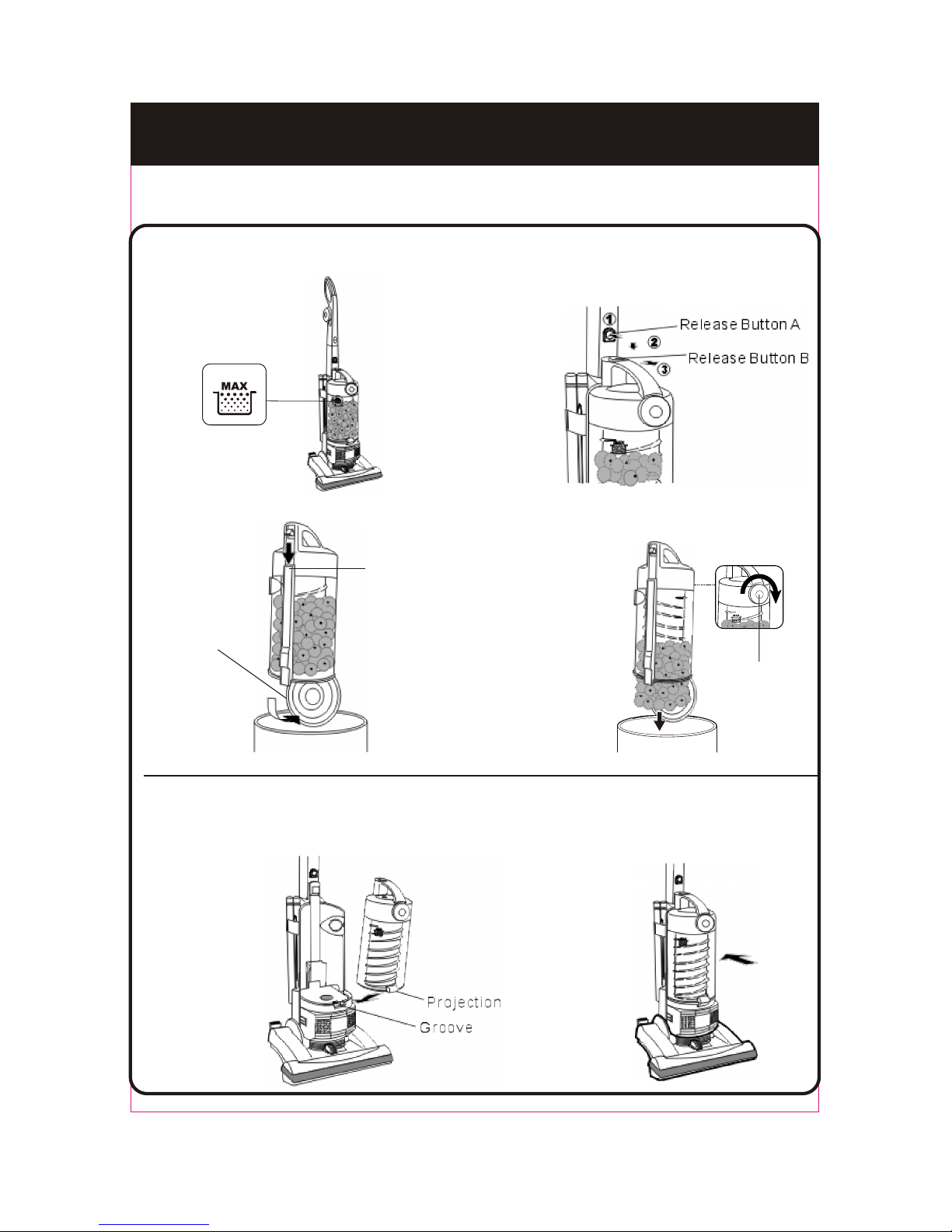

EMPTYING THE DUST COMPARTMENT

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect the

power cord from the wall outlet before cleaning.

Empty the dust compartment when

contents reach the MAX mark.

Press the release button Ameanwhile

press the release button B to remove

the dust compartment.

Press the release lever to open the

trapdoor.

Reattaching the Dust Compartment

Close the trapdoor and insert the projection on the

dust compartment into the groove on the main body.

Push the dust compartment into

the main body as shown to

reattach.

MAX mark

Table des matières

Autres manuels Fantom Aspirateur

Fantom

Fantom CV242H Manuel utilisateur

Fantom

Fantom PROMAX 800M3 Manuel utilisateur

Fantom

Fantom FANTOM FM760K Manuel utilisateur

Fantom

Fantom FM742C Manuel utilisateur

Fantom

Fantom PROMIDI 600M2 Manuel utilisateur

Fantom

Fantom FM718 Manuel utilisateur

Fantom

Fantom Magic WF 4000 Manuel utilisateur

Fantom

Fantom FM744HY Mode d’emploi

Fantom

Fantom FM741C Manuel utilisateur

Fantom

Fantom FM401 Manuel utilisateur

Fantom

Fantom VACUUM CLEANER FM744HY Manuel utilisateur

Fantom

Fantom XF732H Manuel utilisateur

Fantom

Fantom F1420CD Manuel utilisateur

Fantom

Fantom FANTOM FM430K Manuel utilisateur

Fantom

Fantom Falcon FC251 Manuel utilisateur

Fantom

Fantom FM310K Manuel utilisateur

Fantom

Fantom FM625H Manuel utilisateur

Fantom

Fantom VACUUM CLEANER FM766 Manuel utilisateur

Fantom

Fantom PROVAC P 5000 Manuel utilisateur

Fantom

Fantom FM788HB Manuel utilisateur

Fantom

Fantom BAGLESS STICK VAC FS800 Manuel utilisateur

Fantom

Fantom FM405 Manuel utilisateur

Fantom

Fantom FM727C Manuel utilisateur

Fantom

Fantom FS801 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
