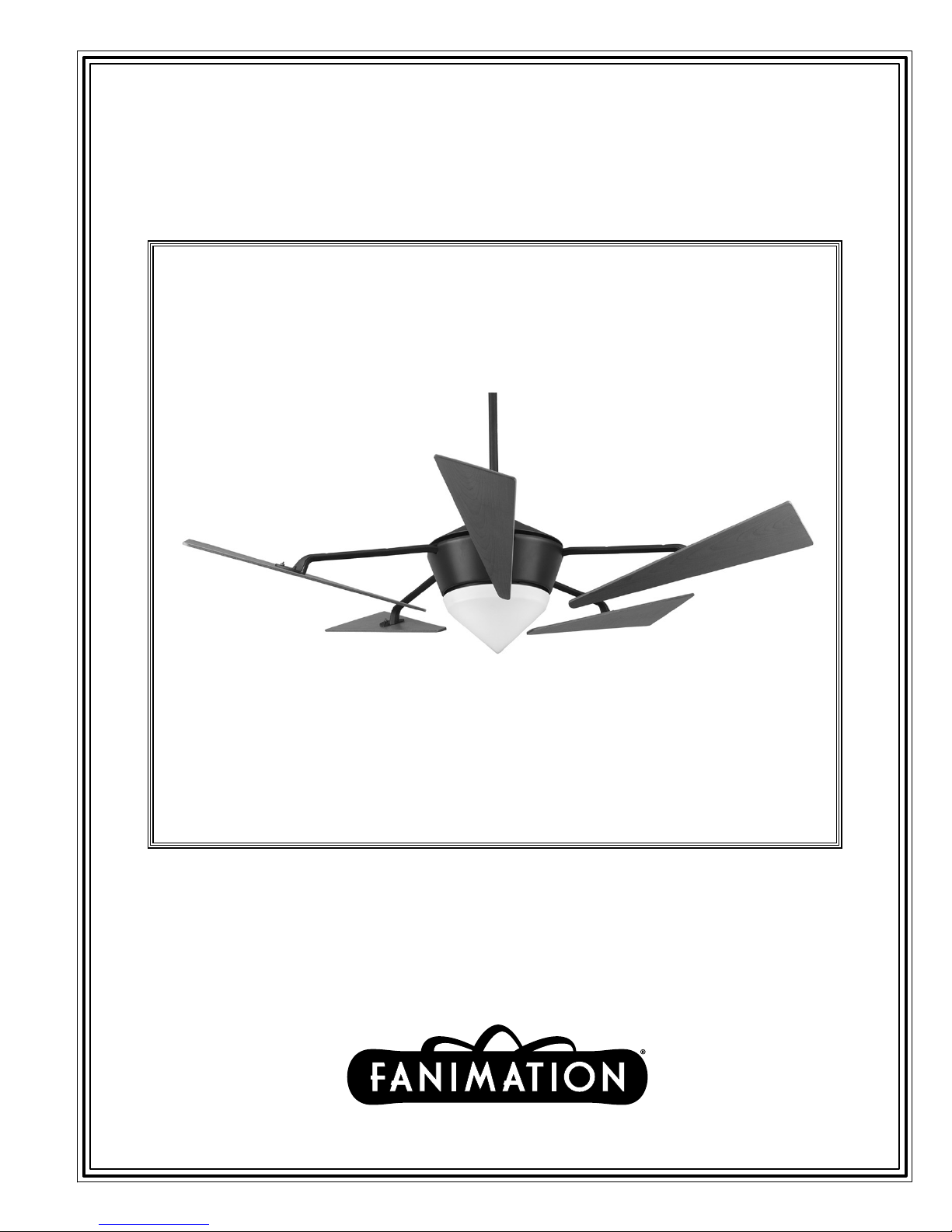

The Volare®

FP4210 Series

Product Speciﬁcations subject to change

SPECIFICATION SHEET

7´ min

Floor

Ceiling

14° Blade Pitch

Blade Sweep = 60˝

Net Hanging Weight: 41 lbs

5¾˝dia

15˝

(w/6˝dr)

11˝

13½˝dia

The Volare®Fan Assembly – FP4210**

Available Finishes

CH Chrome with

Mahogany Blades

OB Oil-Rubbed Bronze

with Cherry Blades

SN Satin Nickel with

Maple Blades

Distance from Ceiling

to Bottom of Fan A

Fan w/6˝downrod 19˝

Fan w/12˝downrod 25˝

Fan w/18˝downrod 31˝

Fan w/24˝downrod 37˝

Fan w/36˝downrod 49˝

Fan w/48˝downrod 61˝

Fan w/60˝downrod 73˝

Fan w/72˝downrod 85˝

Dimensions shown in inches

10983 Bennett Parkway

Zionsville, IN 46077

Toll Free (888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

INSTALLATION REQUIREMENTS:

Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.

ELECTRICAL REQUIREMENTS:

Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. 220 VAC, 50 Hz version

available.

FAN SPEEDS:

3 fan speeds with reversing feature built into control. High – 100 rpm; Med – 75 rpm; Low – 50 rpm

CONTROL OPTIONS:

The hand-held, reversing remote control (C20) and canopy-style receiver unit (RECAN68) are included. Push button

control with frequency code settings located on both the transmitter and the receiver units. Each push button unit will

consist of 3 separate fan speeds, inﬁnite light levels, reverse and off buttons. Optional wall control (C21) is available (to

be used in conjunction with fan receiver). Installation and operating instructions provided with control.

LIGHTING OPTIONS:

The 3-bulb downlight ﬁxture is included with this fan assembly (candelabra bulbs, 40 watt max - not included). Maximum

downlight wattage not to exceed 120 watts.

DOWN ROD OPTIONS:

The Volare®fan comes with a standard 6” down rod. Optional down rods are available in 12”, 18”, 24”, 36”, 48”, 60”, and

72”. For installations requiring a longer down rod, a down rod coupler is available. The Volare®fan can be mounted on

a sloped ceiling up to 30°. Most sloped ceiling installations require a down rod longer than the standard 6˝down rod.

Optional sloped ceiling ball kits (SCB52) are available for up to 52°. Call tech support for more information.

BLADE SETS:

A set of 5 wood blades are included with this fan. Optional accessory wood blades are BW4210BL-Black and BW4210WH-

White. See catalog or visit our website, www.fanimation.com or call tech support for more information.

DAMP LOCATION:

Fan not rated for Damp Location usage.
