Fanimation FARGO FP3320 Series Manuel utilisateur

The FARGO™Fan

Set-Up and Maintenance Instructions Sheet

Figure 1

1. Carefully remove from

package.

Figure 2

ELECTRICAL REQUIREMENTS

Table fan requires a grounded electrical supply line of

120 volts AC, 60 Hz, 15 amp circuit. 8 ft power cord

included. NOT for Damp Location Use.

Set Up:

2. Plug directly into the

socket.

Figure 3

3. Select the desired airflow,

located on back of fan base by

rotating switch clockwise

Maintenance — To Clean Your Fan:

Periodic cleaning of your new fan is the only maintenance

that is needed.

When cleaning, use only a soft brush or lint free cloth to

avoid scratching the ﬁnish.

Abrasive cleaning agents are not required and should be

avoided to prevent damage to ﬁnish.

CAUTION

Do not use water when cleaning your fan. It could

damage the motor or the finish and create the possibility

of electrical shock.

▲

WARNING

To Avoid Fire Or Electrical Shock, Do NOT Use This Fan

With Any Solid-State Speed Control Device And Do NOT

Use By Open Window.

10983 Bennett Parkway

Zionsville, IN 46077

(888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

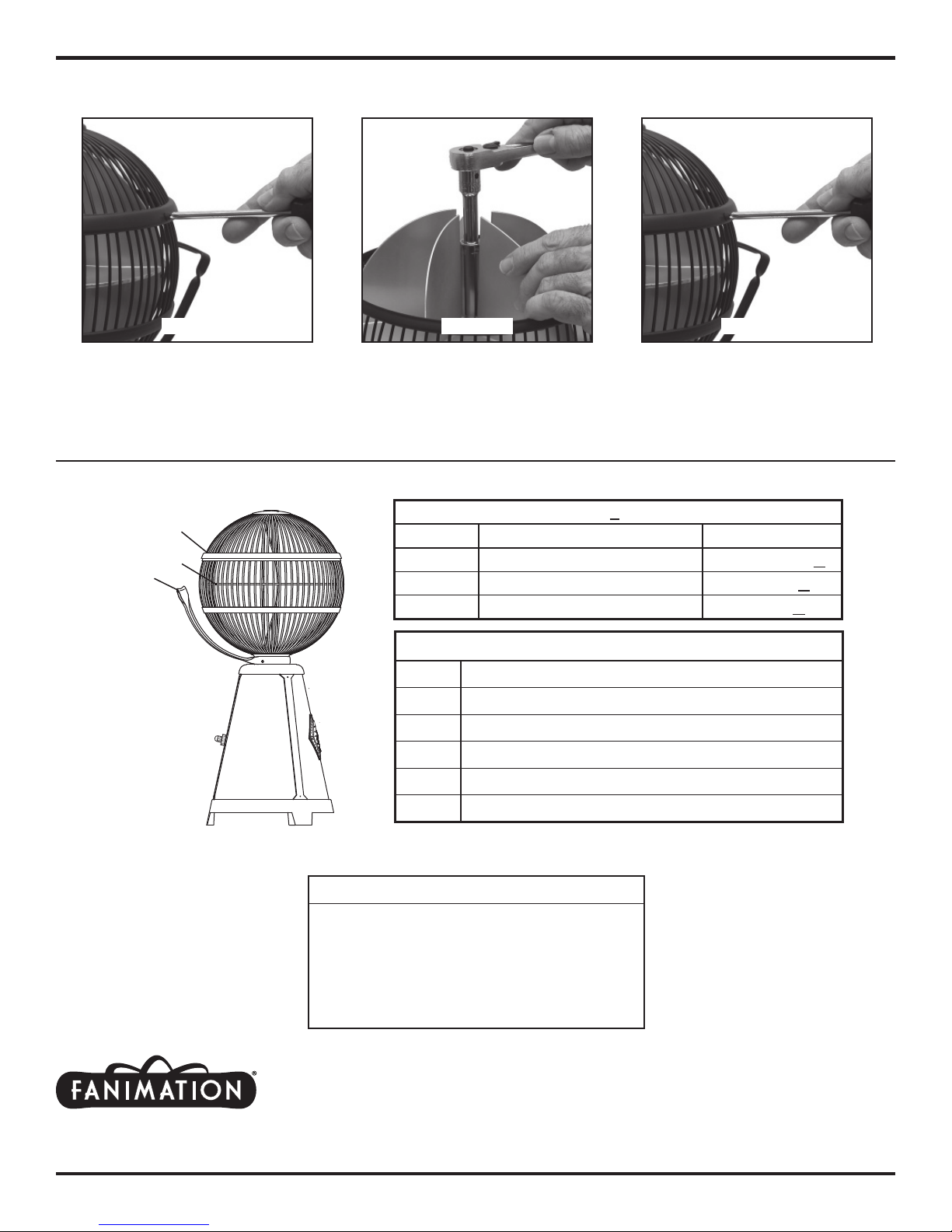

Figure 1

1. Carefully remove screws

and top of cage.

Figure 2

2. Carefully remove nut and

blade. After cleaning and re-

installing the blade, carefully

install the nut, do NOT

overtighten.

Figure 3

3. Assemble the top cage with

the screws, do not overtighten.

Maintenance (cont’d) — To Clean Your Fan Blade:

Before discarding packaging materials, be certain all parts have been removed

How To Order Parts

When ordering repair parts, always

give the following information:

• Part Number

• Part Description

• Fan Model Number

Contact your retail store for repair parts.

Service Parts:

Fargo™Fan – Model #FP3320** (BG, BL, CL, CR, OB, or SN codes)

Ref # Description Part #

1 Cage Set Assembly w/Screws AP33211SER**

2 Blade AP33215**

3 Handle P33220**

** Insert Finish Codes (for service parts)

AB Antique Brass – Cage Set Assembly, Handle

BB Brushed Brass – Cage Set Assembly, Handle

BL Black – Cage Set Assembly, Handle

CH Chrome – Cage Set Assembly, Handle

OB Oil-Rubbed Bronze – Blade

SN Satin Nickel – Blade
