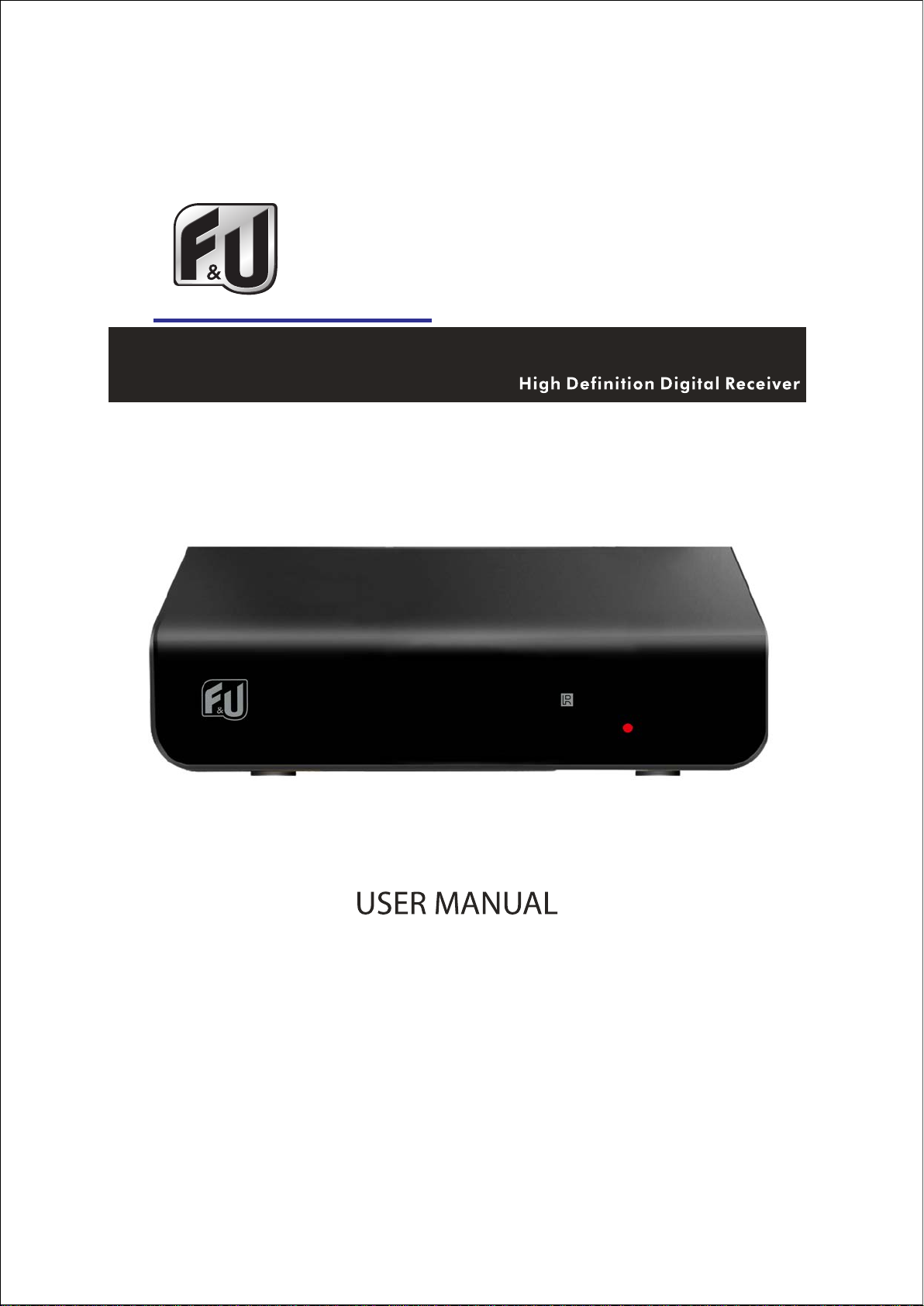

F&U MPF3468H Manuel utilisateur

MPF3468H

CONTENT

IMPORTANT SAFETY INSTRUCTIONS....................................................................................2

FRONTAND REAR PANEL..........................................................................................................4

Front Panel/Rear Panel........................................................................................................4

REMOTE CONTROL.....................................................................................................................5

Installing the Batteries...................................................................................................................6

Using the Remote Control.............................................................................................................6

Connections....................................................................................................................................7

First time installation......................................................................................................................8

Basic Operation..............................................................................................................................8

Program Manage Settings............................................................................................................8

Program Edit...........................................................................................................................9

EPG (Electronic program guide)/Sort/LCN ...................................................................10

Picture Setting...............................................................................................................................11

Aspect Ratio/Resolution/TV format/Video output.........................................................11

Channel Search............................................................................................................................12

Auto Search/Manual Search..............................................................................................12

Country/Antenna power......................................................................................................13

Time Setting..................................................................................................................................13

Time offset/Country Region/Time Zone/Timer for Power On/Off................................13

Option.............................................................................................................................................14

OSD Language/Subtitle Language/Audio Language....................................................14

Digital Audio ..........................................................................................................................15

System Setting..............................................................................................................................15

Parental Guidance/Set Password/Restore Factory Default.........................................15

Information/Software upgrade...........................................................................................15

USB................................................................................................................................................16

Multimedia/Photo configure ...............................................................................................16

Movie Configure/USB PVR Configure..............................................................................17

Timeshift.................................................................................................................................18

Recording..............................................................................................................................19

TROUBLESHOOTING................................................................................................................20

TECHNICAL SPECIFICATION...................................................................................................21

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions. Keep these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water

6. Clean only with dry cloth.

7. Do not block any ventilation openings, install in accordance with the instructions.

8. Do not install near any heat sources stoves, or other apparatus (including amplifiers)

that produce heat.

9. Do not defeat the safety purpose of the polarized plug. If the Provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protected the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lighting storms o r when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in anyway. Such as power- supply cord or plug is

damaged I liquid have been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

14. Mains plug is used as the disconnect device, the disconnect device shall remain

readily operable.

15. The ventilation should not be impeded by cove ring the ventilation openings with items:

such as newspapers, table-cloth, curtains, etc

16. No naked flame sources, such as lighted candles, should be placed on the apparatus.

17. Attention should be drawn to the environmental aspects of battery disposal.

18. The use of apparatus in moderate climate.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

moisture.

WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the

like.

Warning：

•The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids. Such as vases. Shall be placed on the apparatus.

•The MAINS plug or an appliance coupler is used as the disconnect device, the

disconnect device shall remain readily operable.

•The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

The symbol indicates that dangerous voltages constituting a risk of electric shock are

present within this unit.

The symbol instructions indicate that there are important operating and maintenance

the literature accompanying this unit.

This symbol indicates that this product incorporates double insulation between

hazardous mains voltage and user accessible parts. When servicing use only

identical replacement parts.

CAUTION:

When the apparatus was in electrostatic circumstance, it may be malfunction and

need to reset by user.

Package Contents

Before installation. Please check the contents of the package.

The package should contain the following items:

DVBT TV Receiver X1 pc

Remote Control X1 pc

AAA Battery For Remote control X1 pair

User Manual X1 pc

FRONT AND REAR PANEL

Front Pa

nel

1. IR: Receive the signal from the remote control

2. USB: Data input from USB storage devices

Rear Panel

1. ANT IN: The aerial input connector

2. LOOP OUT: To TV Loop Out connector

3. COAXIAL: Connect to Amplifier Coaxial input terminal

4. HDMI: Connect to TV set HDMI input terminal

5. SCART: Connect to TV set Video input terminal

6. DC IN: 5V 2A

REMOTE CONTROL

STANDBY: Switch the product to on or standby Mode

MUTE: Mute or Restore Audio Output

EPG: (Electronic Program Guide) Call up the

EPG

INFO: Show information of the current program

TTX: Display Teletext contents

9 PIC: Select to 9 picture Mode

REC: Record TV program (Personal video

record)

SUB-T: Select Subtitles Language

MENU: Press this button to run menu on screen

and call command box

EXIT: Exit the current Menu or returns to the

previous menu

UP/DOWN: Navigate through the Menus.

CH-/CH+: Select the next or previous Channel

OK: Select the highlighted item

RIGHT/LEFT：Navigate through the Menus

VOL-/VOL+: Increase or decrease sound volume

FAVOURITE：Display or edit the favourite program list

TV/RADIO: Switch between TV and Radio mode

0-9(Numeric Buttons): Select a channel or setting

RECALL: Return to the last selected channel

USB: Shortcut to USB Menu

REV: Search backward during media play

FWD: Search forward during media play.

PREV: Skip to previous stage when play media file

NEXT: Skip to next stage when play media file

PLAY/PAUSE: starts or resume media play

STOP: Stop media play

REPEAT: Turn on/off repeat mode

Color buttons：Operate different functions in screen TEXT

Installing the Batteries

Remove the battery cover from the Remote Control and put 2pcs size batteries 1.5 V AAA

inside the compartment.

The diagram inside the Battery Compartment shows the correct way to install the batteries.

Using the Remote Control

To use the Remote Control, point it towards the front of the Digital Set Top Box

The Remote Control has a range of up to 7 meters from the Set Top Box at an angle of up to

60 degrees.

The Remote Control will not operate if its path is blocked.

Sunlight or very bright light will decrease the sensitivity of the Remote Control

Connections

For a basic connection from your SET TOP BOX to your TV set, you can use SCART

connection, For a higher quality connection; use a direct HDMI connection as shown below.

Connect to an audio amplifier use coaxial is an optional.

First time installation

After all connections have been made properly, switch on TV and make sure the receiver is

connected to the Main Power. Press Power button to switch on restoring receiver.

if you are using the receiver for the first time or have restored the unit to Factory Default, the

Installation Guide will appear on your TV screen.

1. [OSD Language] :press the RIGHT/LEFT button to select a language

2. [Country] press the RIGHT/LEFT button to select your country of residence

3. [Channel Search] press the RIGHT/LEFT or OK button to begin Automatic channel

search.

4. Once channel tuning is complete, you can start watching TV programs.

Basic Operation

Program Manage Settings

To access the Menu, Press the MENU button and select [Program]. Using the RIGHT/LEFT

keys to navigate through the menu.The Menu provides options to adjust the Program Manage

Settings. Press the EXIT button to exit the Menu

Program Edit

To edit your program preferences (lock, skip, favourite, move or delete) you will need to enter

the Program Edit Menu.

Set Favourite Program

You can create a shortlist of favourite program that you can easily access.

Set Favourite TV or Radio program:

1. Select the your desire program then press the FAVOURITE button,

2. A heart-shaped symbol will appear and the program is marked as a favourite

3. Repeat the previous steps to select more Favourite programs

4. To confirm and exit the Menu, press the EXIT button

Disable Favourite TV or Radio Channel:

Select the Favourite channel and press Favourite button on the remote control to cannel.

View Favourite Program

1. Press the Favourite button and the Favourite Menu will appear.

2. Press the UP/DOWN button to highlight the program that you want to mark as

favourite

3. Press the OK button to select your favourite program

Delete a TV or Radio Program

1. Select the program and then press the BLUE button

A warning message will appear. Press OK to delete the channel.

2. Repeat the previous steps to select more programs to delete.

Skip TV or Radio Program

1. Select the program you would like to skip and press the GREEN button.

A skip symbol will appear. The channel is marked as a skip.

2. Repeat the previous step to skip more channels.

3. To save your settings and exit the menu, press EXIT key.

Disable the skip channel function::

Select the Skip channel and press the GREEN button on the remote control to cancel

Move a TV or Radio Program

1. Select the preferred channel then press the RED button. A move symbol will appear
