EYEZONE P070-7 Manuel utilisateur

EYEZONE P070-7

User Manual

Oct 26, 07

34406F006

1. Package Contents……………………..……………………..

2. Introduction………………………………….……………...

3. Features…………………………………..…………………

4. Hardware Overview…………………………….…………...

5. Remote Control……………………………………………..

6. Setting Up……………………………………..……..……..

6.1 SLIDE SETUP……………………………………..….

6.2 MUSIC SETUP…………….…………………………

6.3 MOVIE SETUP…………….…………………………

6.4 SLIDESHOW SETUP…………….…………………….

6.5 PREFERENCE……………….…………………………

6.6 TIMER FUNCTION………….………………………

7. Using the P070-7…….……………………………………...

7.1 Play Picture File……………………………………..….

7.2 Play Music File……….…………………………………

7.3 Play Movie File……………..………………………..…

7.4 File Library…………………………….…….……….…

7.5 Hot Key……….………………………………….……..

8. Schedule Function…...……………………………………...

8.1 Install the Schedule Software………………………..….

8.2 Set up the Schedule Software….………………………

8.3 Apply the Schedule on the P070-7….………………..…

9. Troubleshooting…………….……………………………….

CONTENTS

1. P070-7 5. S-Video Cable

2. User Manual 6. Audio Cable

3. Remote Control 7. Power Adapter

4. CD Driver 8. Protect Cover

The Eyezone P070-7 is a digital signage that plays picture, music and video without a

computer. It uses media files from CF, SD, MMC and MS (Pro) memory card and displays them on

a 7” TFT-LCD with audio-out from the built-in speakers. It also has S-Video and Audio input as

for the display.

With schedule function, the Eyezone P070-7 will auto play the designated file at the

designated time. The portable Eyezone P070-7 is an ideal Digital Signage Display solution for

advertising, presentations, training, and other media applications.

2. INTRODUCTION

1. PACKAGE

CONTENT



Supports multiple file formats: Picture, Music and Video.



Supports CF, SD, MMC and MS (Pro) memory card.



Built-in 7” TFT-LCD display and stereo speakers.



Supports S-Video and Audio input to connect to DVD player or video game player.



External color and brightness adjustment control buttons.



Includes a full-function infrared remote control.



Supports Timer Function: Eyezone P070-7 will power on/ off automatically at the designated

time.



Supports Schedule Function: Eyezone P070-7 will auto play the designated file at the

designated time.



Multi-Language OSD：English, French, German, Italian, Portuguese, Spanish, Netherlands,

Japanese and Chinese.



Supports SLIDE SHOW Function: With 14 kinds of transition effects.



Supports SLIDE TIME (INTERVAL) Mode：Interval time with 1, 3, 5, 10, 30, 60 seconds.



Supports MUSIC SLIDE Show：Music and pictures play at the same time.



Supports ZOOM IN (ON) 4x & PAN, ROTATE, MIRROR, PREVIEW and REPEAT.

4. HARDWARE OVERVIEW

3. FEATURES

Power on/ off

Mute sound

Open the setup menu

Memory card selection

Timer Setup

Volume up/ down

Move the cursor

Confirm the selection/ entry

Go to the previous/ next page or image

Display all photo files

Display all music files

Display all movie files

Go to file library (all files)

Pause/ resume playback

Stop playback

Play the selected file

Select the repeat mode

Rewind/ forward movies

View the previous/ next file

Play the previous/ next file if in playback

Set the slideshow interval to 1, 3, 5, 10, 30,

60 seconds

Set the transition effect

Rotate photo 90 degrees clockwise on the

screen

Play music and pictures at the same time

Zoom in the image up to 4x magnification

Mirror the image horizontally

Select the output mode

5. REMOTE CONTROL

Press the “SETUP” button on the remote control to open the

“SETUP MENU – MAIN PAGE” shown in the following

figure. There are five groups of sub-menu in the setup menu.

Use the “▲、▼、

▲

、

▼

” buttons to select an item or to

adjust values, and use the “ENTER” button to go into the

function or to confirm the command.

6.1 SLIDE SETUP

THUMBNAIL DIGEST：

：：

：Thumbnails load faster and

allow you to browse photos easily.

DIGEST STYLE：

：：

：Choose the slide preview mode. (2x2 /

3x3)

6.2 MUSIC SETUP

REPEAT MODE

• ONE：

：：

：Repeat the selected song.

• ALL：

：：

：Repeat all the songs on the memory card.

• OFF：

：：

：Turn off the repeat function.

6.3 MOVIE SETUP

REPEAT MODE

• ONE：

：：

：Repeat the selected movie.

• OFF：

：：

：Turn off the repeat function.

• ALL：

：：

：Plays all the movies on the memory card.

DIGEST STYLE：

：：

：Choose the movie preview mode. (2x2 / 3x3)

6. SETTING UP

6.4 SLIDESHOW SETUP

SLIDESHOW MODE：

：：

：Set the slideshow to start

automatically.

FOLDER REPEAT：

：：

：Set all files (picture, music or movie) in

the folder to show only once or continuously (loop).

INTERVAL TIME：

：：

：Set the time each photo is shown to 1, 3,

5, 10, 30 or 60 seconds.

TRANSITION (EFFECT)：

：：

：Set the transition effect and auto slide with sequential or random

playback.

TIME MESSAGE：

：：

：Set the time message is shown on the screen

AUTO START：

：：

：Enable/ disable auto playing media files on the memory card when the device

is turned on.

6.5 PREFERENCE

TV TYPE: Choose the TV TYPE.

• MULTI . SYSTEM：

：：

：Set the TV type automatically.

• NTSC: Set the TV type to NTSC.

• PAL: Set the TV type to PAL.

VIDEO OUTPUT：

：：

：Select the video output mode.

SCREEN TYPE：

：：

：Set the screen type to 16：9 or 4：3.

OSD LANG: Select the OSD language (ENGLISH, FRENCH, GERMAN, ITALIAN,

JAPANESE, PORTUGUESE, SPANISH and NEDERLANDS).

OSD MESSAGE: Turn the OSD message function on/ off.

RESET: Reset all settings to the original (factory) settings.

FIRMWARE : New F/W can upgraded from the memory card.

• EDITION : Show the F/W versions of the .

• SC EDITION : Show the F/W versions

• UPDATE : Used to update the F/W.

6.6 TIMER FUNCTION

NOTE：

：：

：Make sure the insulating slice has already been taken out.

Press the “EDIT” button on remote control to open the timer setup window.

Use the Left and Right buttons on the remote control to select each item.

Use the Up and Down buttons on the remote control to change the value.

Press EDIT button on remote control to save and quit the timer setup screen.

“Date / Time and Timer Setup” Window

Date/ Time Setup: Set the current date (year/ month/ day) and time (hour/ minute/ second)

Timer Setup:

- Power On Time: Set the time of auto power on.

- Power Off Time: Set the time of auto power off.

Copy files (music, picture and movie) to the memory card first.

7.1 PLAY PICTURE FILE

Step 1: Press the “SLIDE” button on the remote control from any menu.

Step 2: The preview mode will show all the picture files on the memory card.

Use the “▲、▼、

▲

、

▼

” buttons to select the picture file, and press the “ENTER”

button to play the picture file.

Step 3: If the “SLIDESHOW MODE” is disabled, press the “NEXT” button to play the next

picture file, the “PREV” button to play the previous file.

7. USING THE P

070

7.2 PLAY MUSIC FILE

Step 1: Press the “MUSIC” button on the remote control from any menu.

Step 2: The “MUSIC LIBRARY” will show all the music files on the memory card.

Use the “▲、▼” buttons to select the music file, and press the “ENTER” button to play

the music file.

Step 3: Press the “NEXT” button to play the next music file, the “PREV” button to play the

previous file.

7.3 PLAY MOVIE FILE

Step 1: Press the “MOVIE” button on the remote control from any menu.

Step 2: The preview mode will show all the video files on the memory card.

Use the “▲、▼、

▲

、

▼

” buttons to select the movie file, and press the “ENTER”

button to play the movie file.

Step 3：

：：

：Press the “NEXT” button to play the next movie file, the “PREV” button to play the

previous file.

7.4 FILE LIBRARY

Step 1：

：：

：Press the “FILE” button on the remote control from any menu.

Step 2：

：：

：You can see all the files (including picture, music and movie) on the left panel of the “FILE

LIBRARY”. Press the “▲、▼” buttons to select a file, and the information of the file will

be shown on the right panel.

7.5 HOT KEY

You can use the “S-TIME”, “S-MODE” or “S-MUSIC” hot key on the remote control without

selecting from the “Setup Menu”. (These functions are only used for playing picture files.)

S-TIME：

：：

：Interval time with 1,3, 5,10, 30, 60 seconds.

S-MODE：

：：

：With sequential, random auto slide shows etc 14 kind of selections

S-MUSIC：

：：

：Play the picture and music files at the same time.

8.1 INSTALL THE SCHEDULE SOFTWARE

Execute “setup.exe” to install the Schedule software in the CD driver, and finish the installation

procedure in accordance with the illustration below.

8.2 SET UP THE SCHEDULE SOFTWARE



Execute the program “FJ Display” to open the “FJ Schedule Generator” window on your PC.



There are two parts: “Basic Schedule” and “Advance Schedule” in the window.

8. SCHEDULE FUNCTION

8.2.1 Basic Schedule

In the “Basic Schedule” mode, you can select files that you want to play and set up the volume and

the play times of each file.

Add：

：：

：Click this button to add a file. The following diagram appears：

Click the “Browser” button to search for files that you want to add. You can also set up the

“Play Times” and “Volume” of the file in the window. Click the “OK” button to complete the

setup.

Click the “Add” button again to add other file.

COPY Function：Click the “Copy to…” button to copy directly the added file to the memory

card.

Modify：

：：

：Click this button to modify the file in the list.

Select the file that you want to modify in the list, and press the “Modify” button.

Remove：

：：

：Click this button to remove the file from the list.

Select the file that you want to remove from the list, and press the “Remove” button to

delete.

Move Up / Move Down：

：：

：Click these buttons to change the order that the files are played.

After the setup, press the “SAVE” button, and a pop-up window will appear. Select the path,

then click the “SAVE” button to save your setup.

NOTE：

：：

：Do not rename the file (eyezone.ini), otherwise the P070-7 will not be able to read the file.

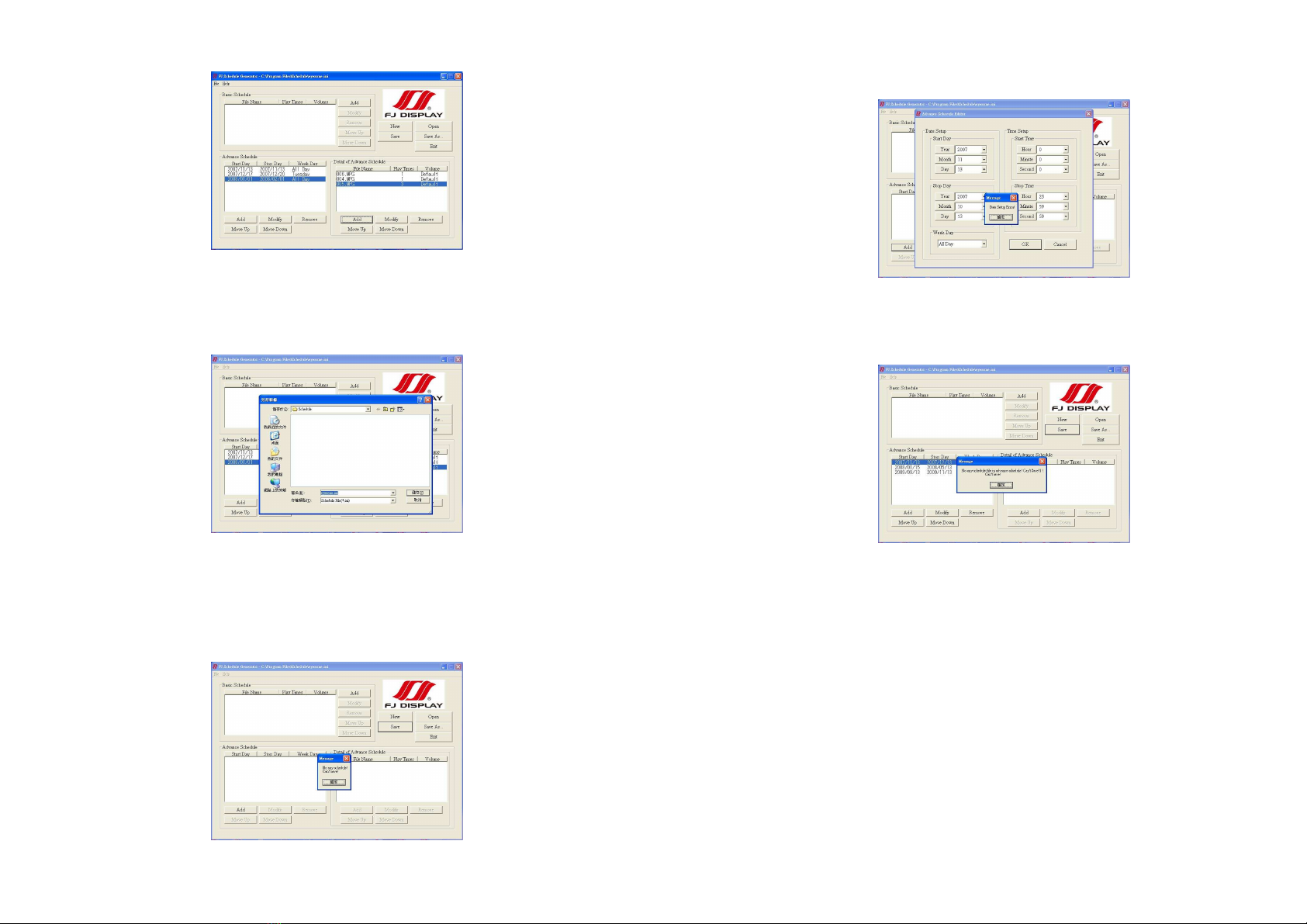

8.2.2 Advance Schedule

In the “Advance Schedule” mode, you can select files that you want to play, and can also set up the

volume, the play times, and the initial and end times of each file. There are “Time Setup “ and “File

Setup” in the “Advance Schedule”.

Step 1：

：：

：Click the “Add” button in the “Time Setup” section to open the “Advance Schedule Editor”

window. Set up the Start and Stop Date, Start and Stop Time and the Week Day, then click “OK” to

quit the window.

Step 2：

：：

：Click the “Add” button in the “File Setup” section to open the “Schedule File Editor”

window. Click the “Browser” button to select a file that you want to play. You can also set up the

“Play Times” and “Volume” of the file in the window. Click the “OK” button to complete the setup.

Step 3：

：：

：Repeat the steps 1〜2 to add other files.

Step 4：

：：

：After finishing all setup, press the “SAVE” button, and a pop-up window will appear. Select

the path, then click the “SAVE” button to save.

NOTE：

：：

：Do not rename the file (eyezone.ini), otherwise the P070-7 will not be able to read the file.

8.2.3 Explanation of the Warning Message

No any schedule！

！！

！Can’t Save！

！！

！

There is no schedule file in the “Basic Schedule” or “Advance Schedule” can be saved. Please add

and edit a new schedule file first.

Data Setup Error！

！！

！

There are some errors in the “Advance Schedule”. Check the date/ time of the schedule for conflict

or error.

No any schedule file in advance schedule！

！！

！Can’t Save！

！！

！

There is no schedule file in the advance schedule. Please add files that you want to play in the

advance schedule.

8.3 APPLY THE SCHEDULE ON THE P070-7

Put the “eyezone.ini” file and the associated media files on the memory card, and insert the memory

card to the P070-7. The P070-7 will auto play the files at the designated time.

Situation Check Point

No Picture

1. Check if the power supply is connected.

2. Make sure the P070-7 is turned on.

No response from

the remote control

1. Make sure there is a clear view between the remote

control and the device.

2. Change the remote control’s batteries.

Memory card

1. Push cards gently and securely.

2. If the card does not insert easily, check the direction.

3. Confirm format of the card.

P070-7 supports CF, SD, MMC and MS (Pro) memory card.

No sound 1. Check if the mute function is on.

2. Check if the volume is turned up.

Timer inaccuracy

Press “ EDIT ” key to

open the timer setup window

, confirm

whether time is correct.

If using the “ Timer Function ”, it is suggested to

check

whether the time is correct every three months.

. TROUBLESHOOTING

Table des matières

Autres manuels EYEZONE Lecteur multimédia

EYEZONE

EYEZONE B1080P-1 Manuel utilisateur

EYEZONE

EYEZONE B1080P-3 Manuel utilisateur

EYEZONE

EYEZONE B1080PX-3 Manuel utilisateur

EYEZONE

EYEZONE B1080P-5 Manuel utilisateur

EYEZONE

EYEZONE P070-2 Manuel utilisateur

EYEZONE

EYEZONE Gallery Box Manuel utilisateur

EYEZONE

EYEZONE B1080P-2 Manuel utilisateur

EYEZONE

EYEZONE PA17B1080P-5m Manuel utilisateur

EYEZONE

EYEZONE B1080P-4 Manuel utilisateur

EYEZONE

EYEZONE PA22B1080PX Series Manuel utilisateur

EYEZONE

EYEZONE B1080P-5 Manuel utilisateur

EYEZONE

EYEZONE B1080P-3 Manuel utilisateur

EYEZONE

EYEZONE P102-3 Manuel utilisateur

EYEZONE

EYEZONE P050-1 Manuel utilisateur

EYEZONE

EYEZONE B500B Manuel utilisateur

EYEZONE

EYEZONE B1080PW-2 Manuel utilisateur

EYEZONE

EYEZONE B1080PX-3 Manuel utilisateur

EYEZONE

EYEZONE 1080PXX-LED Button Manuel utilisateur

EYEZONE

EYEZONE B500C Manuel utilisateur

EYEZONE

EYEZONE B500C Manuel utilisateur

Manuels Lecteur multimédia populaires d'autres marques

Visual Land

Visual Land Impulse Manuel utilisateur

limHD

limHD 200i Manuel utilisateur

Transcend

Transcend DMP10 Manuel utilisateur

Philips

Philips GoGear Muse SA2MUS08 Manuel utilisateur

Fantec

Fantec MM-HDRL Manuel utilisateur

Dune HD

Dune HD Duo 4K Manuel utilisateur

IAdea

IAdea HMP-505S Manuel utilisateur

Camos

Camos MMS-1000 Manuel utilisateur

Energy

Energy 75 Series Manuel utilisateur

Z3 Technology

Z3 Technology DME-03 Manuel utilisateur

Sony

Sony SVR-2000 Guide de l'utilisateur

Meicheng

Meicheng HD-1080K12 Manuel utilisateur

DENAFRIPS

DENAFRIPS ARCE Manuel utilisateur

Topaz

Topaz CMS Media Player Instructions d'utilisation

InFocus

InFocus LightCast Manuel utilisateur

IconBiT

IconBiT XDS1003D Manuel utilisateur

Quanmax

Quanmax QDSP-2090 Series Manuel utilisateur

Samsung

Samsung MP-80S Manuel utilisateur
