Extron electronics DSC 301 HD Manuel utilisateur

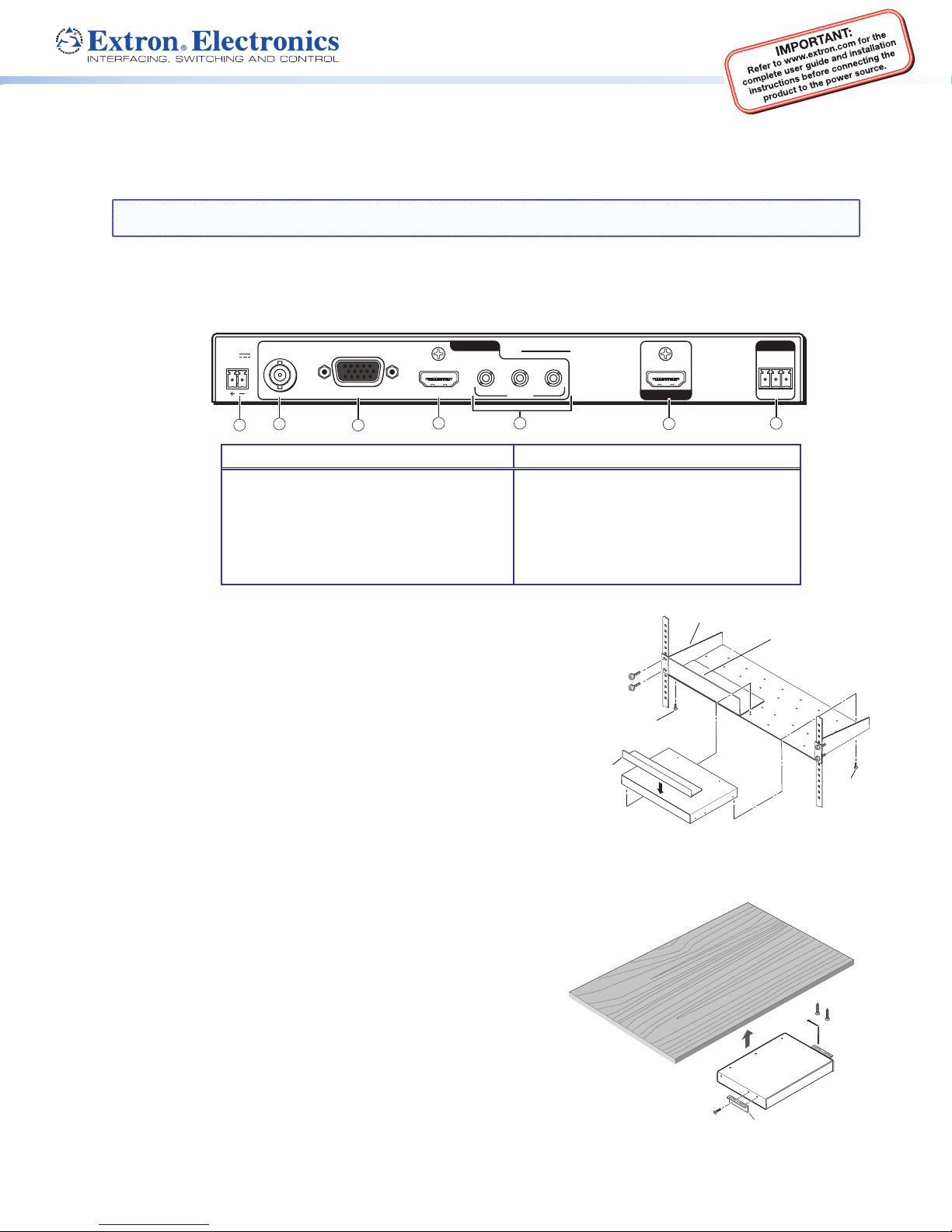

Mounting and Cabling

Step 1 — Mounting

Turn off or disconnect all equipment power sources and rack mount the

DSC 301 HD unit with either an optional shelf mounting brackets (RSU 126 or

129, RSB 126 or 129) or optional furniture mounting brackets (MBU 125); see

ﬁgures 1 and 2 at right. When rack mounting, an optional rack false face plate

(RFF 052) can be ﬁtted on top of the low proﬁle DSC, improving the overall look

within the rack.

Step 2 — Connecting inputs

Connect inputs from video sources to the applicable connectors marked “Inputs”:

bComposite video, cRGB, R-Y, Y, B-Y, dHDMI (with or without embedded

digital audio).

Connect inputs from analog audio sources to the TRS inputs e.

Step 3 — Connecting outputs

Connect a suitable output display device to the connector marked “Output”

(see fabove) for HDMI output with embedded audio.

Step 4 — Connecting control devices

RS-232 — For serial RS-232 control, connect a host computer or control

system to the 3-pole captive screw connector g.

RS-232 protocol (default values): 9600 baud, 1 stop bit, no parity, 8 data bits,

no ﬂow control.

USB — Connect a host computer or control system to the front panel mini USB

port for conﬁguration and control via Extron Conﬁgurator software.

Step 5 — Connecting power

DC power connector — Plug in a 12 VDC, 1A max power source into this

2-pole captive screw connector a.

DSC 301 HD • Setup Guide

The Extron DSC 301 HD Digital Scaling Converter is a scaling product that accepts the most common video signal formats to be

processed, scaled, and output as HDMI. This setup guide allows an experienced user to easily and quickly set up and conﬁgure a

DSC 301 HD using step by step instructions. It covers how to perform basic operations using the front panel controls and selected

Simple Instruction Set (SIS™) commands.

NOTE: For full installation, configuration, menus, connector wiring, and operation details, see the DSC 301 HD User Guide, available

at www.extron.com

Universal Rack Shelf

Front false

faceplate

uses 2 screws.

1/2 Rack Width

Front False

Faceplate

Use 2 mounting holes on

opposite corners.

(2) 4-40 x 3/16"

Screws

RFF 052

1.0A MAX

POWER

12V 1

VIDEO RGB/R-Y,Y,B-Y HDMI

DSC 301 HD

AUDIO

1RS-232

Tx Rx G

INPUTS

OUTPUT

REMOTE

1.0A MAX

POWER

12V 1

VIDEO RGB/R-Y,Y,B-Y HDMI

DSC 301 HD

AUDIO

1RS-232

Tx Rx G

INPUTS

OUTPUT

REMOTE

DSC 301 HD

1267

Installation

Rear Panel Features

Power and video input connections Output and control connections

aDC power connector

bComposite video connector

cRGB, R-Y, Y, B-Y via 15-pin HD connector

dHDMI connector

eAudio 3.5 mm TRS (tip-ring-sleeve) connectors

fHDMI connector

gRS-232 captive screw connector

MBU 125

Mounting Bracket

#8 Screw

(4) Places

Each Side

Mounting Screws

(2) Places

Each Side

Figure 1. Rack mount

Figure 2. Furniture Mount

DSC 301 HD • Setup Guide (Continued)

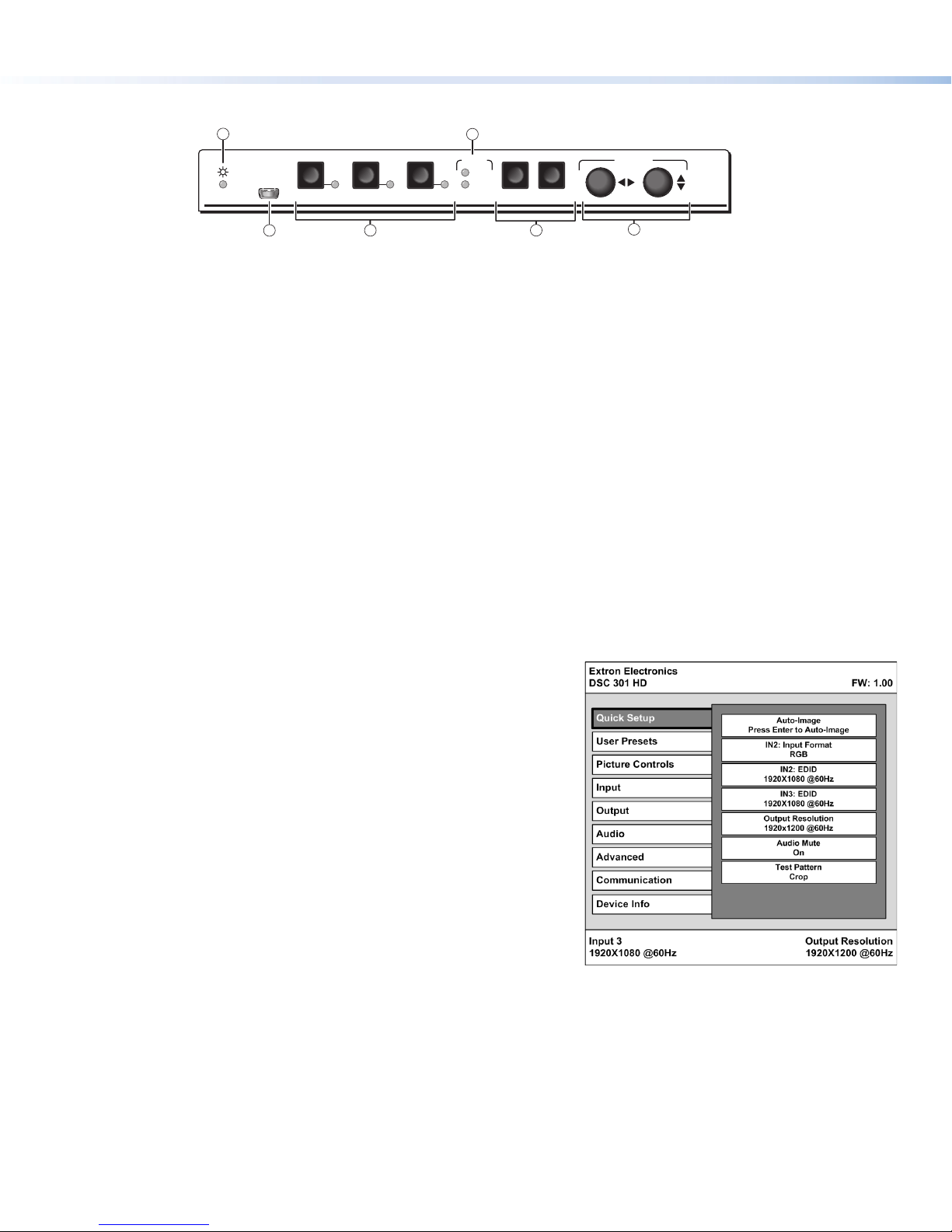

Front Panel Overview

ADJUST

DSC 301 HD

CONFIG

132HDCP

MENU ENTER

INPUT

OUTPUT

Extron

ADJUST

DSC 301 HD

CONFIG

132HDCP

MENU ENTER

INPUT

OUTPUT

Extron

236

aStatus LED — This LED lights amber when there is power but no signal, and green when power and signal are both present.

bFront panel mini USB conﬁguration port — Connect a control system or computer to this mini USB port (cable not supplied), for

device conﬁguration, control, and ﬁrmware upgrading.

cInput selection buttons and LEDs (1-3) — Select/switch inputs; LEDs indicate which input is active (current input lights green).

dHDCP content LEDs — These LEDs indicate HDCP status for input and output signals;

•Light green when an input or output signal is HDCP encrypted.

•Remain unlit when a current input or HDMI output is not HDCP encrypted.

•Flash amber when the video output has been disabled (such as when in sync mute of screen saver mode).

eMenu navigation buttons (Menu, Enter) — These buttons allow navigation through the OSD menu system of the DSC 301 HD.

fAdjust knobs — These are used with the menu navigation buttons to adjust the device settings and picture controls.

Setting the Front Panel Locks (Executive Modes)

The DSC 301 HD has three modes of front panel security lock that limit the operation of the unit from the front panel.

Executive mode 0 (disabled) — The front panel is fully unlocked. This is the default setting.

Executive mode 1 (enabled) — The front panel is completely locked. Can only be enabled and disabled using SIS commands, or

Extron Conﬁgurator software. See the online DSC 301 HD User Guide or the rear page of this guide for SIS commands.

Executive mode 2 (enabled) — The front panel is locked except for input switching.

Configuring the DSC 301 HD

DSC 301 HD devices can be conﬁgured through a host connected via RS-232 or USB and using Extron Conﬁgurator software or Extron

Simple Instruction Set (SIS) commands (see rear page for a selection of basic commands).

On-Screen Display (OSD) Menu System

The scaler has an OSD menu consisting of nine submenus that can be accessed

using the front panel Menu and Enter buttons. The Communication menu and the

Device Info menu are read-only menus. The menus are:

• Quick Setup • User Presets • Picture Controls • Input • Output

• Audio • Advanced • Communication • Device Info.

To use any menu:

1. Press the Menu button to access the main menu.

2. Rotate either Adjust knob to cycle through to the desired menu.

3. Press the Enter button to access the submenu.

4. Rotate either Adjust knob to cycle through the submenu to the

desired option.

5. Press the Enter button to adjust a submenu variable.

Using the OSD menu to configure the DSC 301 HD

zUse the Quick Setup menu to Auto-Image the current input, set video input format, input EDID settings, set output resolution,

audio mute and video test patterns.

zUse the User Presets menu to save the picture control adjustments to each input for later manual recall.

zUse the Picture Controls menu to adjust the image horizontal and vertical position and size, the brightness and contrast

settings, the color and tint levels, and the detail settings as needed.

zUse the Input menu to perform an Auto-Image on the current input, set the video input format and film mode, horizontal and

vertical start, the number of active horizontal pixels and vertical lines, set the total pixels and phase, set HDCP authorization to on or

off, and set the EDID for the current input.

zUse the Output menu to set output resolution, set the HDMI output format, set HDCP notification, and set the Accu-RATE Frame

Lock™ (AFL™) to on or off.

zUse the Audio menu to set and control the

audio mute, the audio input format for the

selected input, and set the analog gain and

attenuation levels.

zUse the Advanced Configuration menu

to select a test pattern, adjust screen saver

settings, turn on or off Auto Image, set aspect

ratio (Fill or Follow), turn the auto memory on

or off, adjust the overscan settings, choose the

auto switch priorities, and reset the unit back to

factory defaults.

zUse the Communication menu to view the

RS-232 baud rate.

zUse the Device Info menu to view the status such as temperature, firmware build, input, output, AFL, HDCP, and display details.

This is a read-only menu.

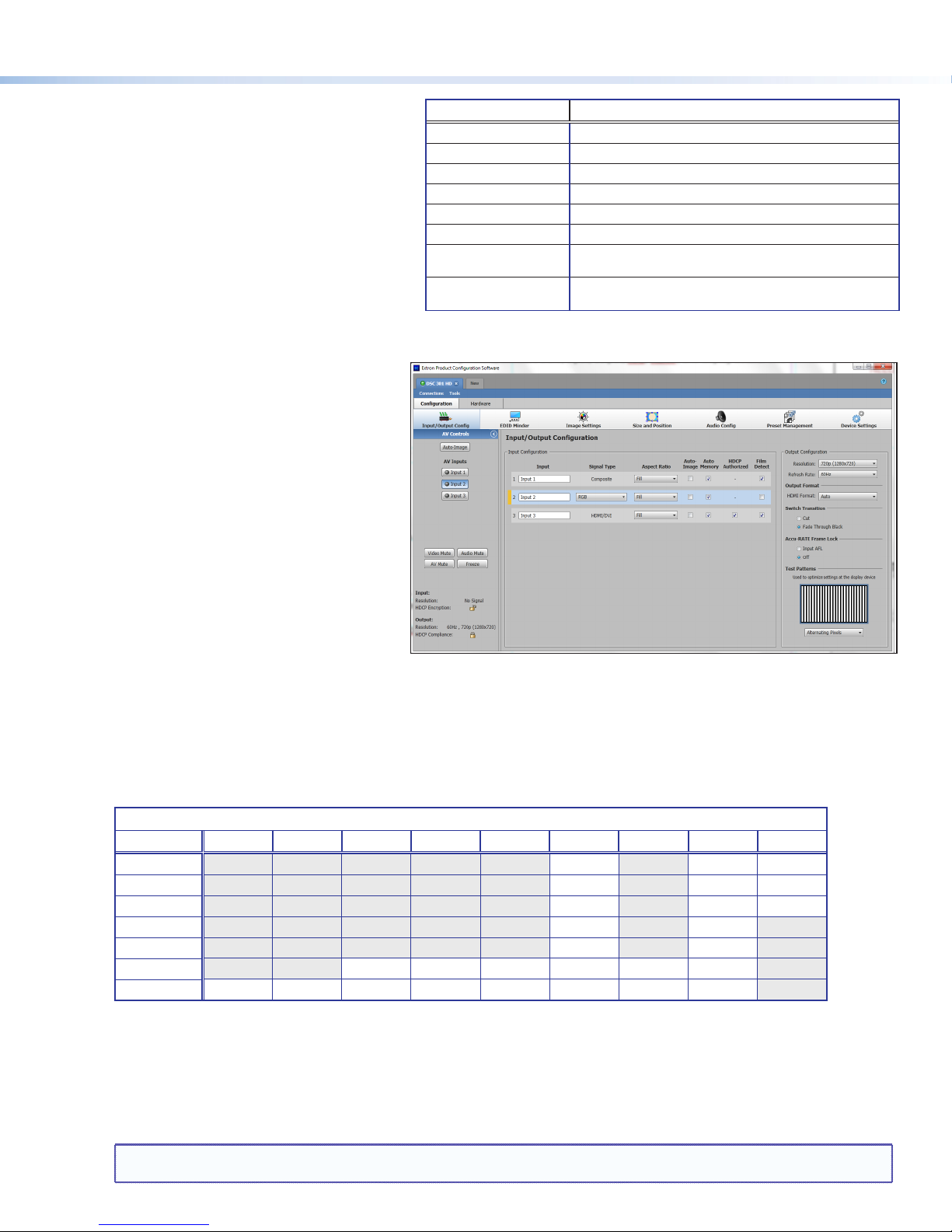

DSC 301 HD Configuration Software

To conﬁgure the unit using the DSC 301 HD

Conﬁguration software, the software must be

installed (from the included DVD or from

www.extron.com) on a PC connected to the

DSC 301 HD via an RS-232 or via the front panel

USB conﬁg port. Installation creates a

C:\Program Files\Extron\DSC 301 HD

folder and installs the program, a help ﬁle, and an

uninstall utility. After installation, start the program

and either connect via the comm (RS-232) port or

by USB. For full instructions press <F1> or click on

Help>Contents.

Upgrading the Firmware

The onboard ﬁrmware of the DSC 301 HD unit can

be upgraded via the conﬁguration software when

connected via the front panel USB port.

Alternatively upgrades can be made using the Extron Firmware Loader program, which is available online at www.extron.com.

SIS variable X2! for EDID or output resolution/refresh rate combination (where X2! = 10 through 92)

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz 75 Hz

1024x768 19 20 21

1280x800 31 32 33

1280x1024 34 35 36

1680x1050 59 60

1920x1200 63 64

720p 68 69 70 71 72 73*

1080p 77 78 79 80 81 82 83 84

Output Rate Reset

If an output image cannot be displayed due to an incompatible output rate, the DSC 301 HD can be reset via the front panel to either

1024x768 @ 60 Hz or 720p @ 60 Hz.

To set the rate, or to toggle between 1024x768 @ 60 Hz and 720p @ 60 Hz:

Press and hold input buttons 1 and 3 simultaneously for approximately 3 seconds. The output rate becomes 1024x768 @ 60 Hz. Again

press and hold input buttons 1 and 3 simultaneously for another 3 seconds and the output rate becomes 720p @ 60 Hz.

NOTES: The output rate will subsequently toggle between 1024x768 @ 60 Hz and 720p @ 60 Hz every 3 seconds each time inputs 1

and 3 are simultaneously pressed and held for 3 seconds.

Output Scaler Rates

Output rates can be set using the OSD menu or SIS commands. The table below gives the most commonly used rates and the

corresponding SIS variables. See rear page for SIS command input.

The command to set the output rate is EX2!RATE}, where X2! is the output scaler rate as given in the example table below (* = default).

See the DSC 301 HD User Guide (available at www.extron.com) for the full SIS and output scaler rate details.

Audio Input Format Details

None Mutes all audio for selected input

Analog TRS 1 Sets selected input to analog TRS 1 (default for input 1).

Analog TRS 2 Sets selected input to analog TRS 2 (default for input 2)

Analog TRS 3 Sets selected input to analog TRS 3.

LPCM-2Ch Digital Sets selected input to LPCM-2Ch digital audio (default for input 3).

Multi-Ch Digital Sets selected input to Multi-Ch digital audio.

LPCM-2Ch Auto (TRS 3) Sets selected input to use LPCM-2Ch digital audio (when present),

else use analog TRS 3.

Multi-Ch Auto (TRS 3) Sets selected input to use Multi-Ch digital audio (when present),

else use analog TRS 3.

DSC 301 HD • Setup Guide (Continued)

Basic SIS Commands Table

The DSC 301 HD can be conﬁgured with speciﬁc SIS commands via RS-232 or USB connection. This table lists a selection of the

commands. For a full list of SIS commands and variables see the DSC 301 HD User Guide, online at www.extron.com.

NOTE: X! = Input number (1 – 3).

X2! = Output scaler rate (see the resolution and refresh rate table on page 3 for details).

X2% = Screen saver mode, (1 = black, 2 = blue)

X2* = Screen saver time out duration in seconds; (1-500 in 1 second increments, default is 501 = never), 0 = Instant timeout

X3@ = Auto switch setting, (0 = manual, 1 = high to low, 2 = low to high)

X3^ = Power save setting, (0 = full power, 1 = low power state)

X3& = Screen saver status (0 = active, 1 = no active input, timer running, output sync still active, 2 = No active input, timer expired, output sync disabled)

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron Asia

+65.6383.4400

Extron China

+86.21.3760.1568

Extron Korea

+82.2.3444.1571

Extron Europe

+31.33.453.4040

Extron Japan

+81.3.3511.7655

Extron Middle East

+971.4.2991800

Extron India

+91.80.3055.3777

Command ASCII command

(host to scaler)

Response

(scaler to host)

Additional description

Select video and audio input X!! InX!•All]Selects video and audio from input X!.

Audio input format — selects between analog (3.5 mm TRS) and digital (HDMI embedded) audio sources

Set to None EIX!*0AFMT}AfmtIX!*0]Mutes all audio for input X!.

Set to Analog TRS 1 EIX!*1AFMT}AfmtIX!*1]Selects analog TRS 1 for input X!. (default for input 1)

Set to Analog TRS 2 EIX!*2AFMT}AfmtIX!*2]Selects analog TRS 2 for input X!. (default for input 2)

Set to Analog TRS 3 EIX!*3AFMT}AfmtIX!*3]Selects analog TRS 3 for input X!.

Set to LPCM-2Ch Digital EIX!*4AFMT}AfmtIX!*4]Selects LPCM-2Ch digital audio for input X!. (default for input 3)

Sets EDID to LPCM-2Ch digital audio (valid for input 3 only).

Set to Multi-Ch Digital EIX!*5AFMT}AfmtIX!*5]Selects Multi-Ch digital audio for input X!.

Sets EDID to Multi-Ch digital audio (valid for input 3 only).

Set to LPCM-2Ch Auto EIX!*6AFMT}AfmtIX!*6]Selects auto detect audio for input X!.

Sets EDID to LPCM-2Ch (valid for input 3 only).

Set to Multi-Ch Auto EIX!*7AFMT}AfmtIX!*7]Selects auto detect audio for input X!.

Sets EDID to Multi-Ch (valid for input 3 only).

Execute Auto-Image A Img]Executes Auto-Image on current input.

Disable auto switch mode E0AUSW}Ausw0]Manual input switching only.

Set auto switch high to low (3 to 1) E1AUSW}Ausw1]Gives priority to highest numbered active input.

Set auto switch low to high (1 to 3) E2AUSW}Ausw2]Gives priority to lowest numbered active input.

View auto switch mode EAUSW}X3@] View current setting.

Set output scaler rate EX2!RATE}RateX2!] Select output resolution and refresh rate X2!.

View output scaler rate ERATE}X2!] View current output resolution and refresh rate X2!.

Mute video to black 1B Vmt1]Mutes video and displays a black screen.

Mute video and output sync 2B Vmt2]Mutes video and sync output.

Unmute video 0BVmt0]Unmutes video.

Enable Executive mode 1 1X Exe1]Locks out entire front panel.

Enable Executive mode 2 2X Exe2]Allows input selection only.

Disable Executive mode 0X Exe0]Allows all front panel adjustments and selections.

View front panel lock status X 0]

(

2])Shows executive mode status.

Set screen saver mode EMX2%SSAV}SsavMX2%] Sets the screen saver mode to X2% (default: 1 = black).

View screen saver mode EMSSAV}X2%] View current screen saver mode X2%.

Set screen saver time out duration ETX2*SSAV}SsavTX2*] Sets the screen saver time out duration to X2* seconds

(default: 501 = never).

View screen saver time out duration ETSSAV}X2*] View the screen saver time out duration X2*.

View screen saver status ESSSAV}X3&] View the screen saver status X3&.

Reset device to factory settings EZXXX}Zpx]Resets all device settings to factory default.

Power save off E0PSAV}Psav0]DSC runs in full power mode (default).

Power save on E1PSAV}Psav1]DSC enters low power mode. Exit using E0PSAV} command.

View setting EPSAV}X3^] View power save status.

68-2338-50

Rev. A

01 13

Autres manuels pour DSC 301 HD

Table des matières

Autres manuels Extron electronics Convertisseur de média

Extron electronics

Extron electronics Scan Converter VSC 700 Manuel utilisateur

Extron electronics

Extron electronics QGE 100 Manuel utilisateur

Extron electronics

Extron electronics DVC RGB-HD A Manuel utilisateur

Extron electronics

Extron electronics NAV E 501 Manuel utilisateur

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Manuel utilisateur

Extron electronics

Extron electronics DVS 304 Series Manuel utilisateur

Extron electronics

Extron electronics VSC 100 Manuel utilisateur

Extron electronics

Extron electronics Sync Converter/Stabilizer SCS 300 Manuel utilisateur

Extron electronics

Extron electronics TLI Pro 201 Manuel utilisateur

Extron electronics

Extron electronics DVS 150 Manuel utilisateur

Extron electronics

Extron electronics IN1606 Manuel utilisateur

Extron electronics

Extron electronics IN1404XT Manuel utilisateur

Extron electronics

Extron electronics NAV SD 511 Manuel utilisateur

Extron electronics

Extron electronics Quantum Elite Series Manuel utilisateur

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Manuel utilisateur

Extron electronics

Extron electronics DSC 3G-HD A Manuel utilisateur

Extron electronics

Extron electronics SENTOSAxi Manuel utilisateur

Extron electronics

Extron electronics IN1804 Series Manuel utilisateur

Extron electronics

Extron electronics DVS 406 Manuel utilisateur

Extron electronics

Extron electronics QSD 204 Manuel utilisateur

Extron electronics

Extron electronics CLK 100 Manuel utilisateur

Extron electronics

Extron electronics Four Input Video and RGB Scaler DVS 304 Manuel utilisateur

Extron electronics

Extron electronics QGE 100 Manuel utilisateur

Extron electronics

Extron electronics Multi Video Processor MVP 104GX Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
