Extron electronics Annotator Manuel utilisateur

The Extron Annotator has a series of optional output boards:

Scan converter, HD-SDI, and DVI-D. The boards mount

in the optional output slot, above the RGB and MTP ports,

at the rear of the Annotator. For full operating details of the

Annotator refer to the Annotator User’s Manual, available

at www.extron.com.

To install an output board in the Annotator unit,

1. Turn off the Annotator, and remove the power cord.

Repeat for all connected devices.

2. Remove eight cover securing screws from the top, and

three from each side. Slide the top cover off.

Retain the fourteen screws.

3a. At the rear optional output slot, remove the two

securing screws afrom either side of the blank plate.

Lift the plate away. Retain the screws.

NRe-use the screws to secure the new output board in place. Retain the blank plate.

3b. If a board is already installed in the output slot, remove any cables and the two outer screws a.

Then remove a third retaining screw that secures it to the post on the Annotator motherboard.

Carefully lift the board away from the socket.

4. Remove the new board from its box and anti-ESD bag, holding the board by the front frame.

5. Turn the board over and insert the supplied connector pins into the sockets on

the board.

6. Turn the board over. With the pin connectors now facing down, carefully align

the pins with the appropriate sockets on the motherboard. Push the board

ﬁrmly down into the sockets.

7. Secure the board to the frame with the two retaining screws aand to

the post on the motherboard using either the original or the supplied screw.

8. Replace the cover, securing it with the fourteen screws removed in step 2.

9. Reconnect any input and output devices including connection to the new board.

10. Connect any control devices.

11. Power on the Annotator and all the connected devices.

(Continued on reverse side)

RGB/R-Y,Y,B-Y MTP

LO-

RES

OUT R-Y/

VID

B-Y/

1 1

HDSDI

OUT

DVI-D

OUT

LO-

RES

OUT

R-Y/

VID

B-Y/

Annotator Optional Output Board Installation Notes

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

68-1661-60

Rev A

09 09

Annotator Output Board Installation Notes, cont’d

Conﬁguring the boards using the front panel menu system

To conﬁgure the HD-SDI and DVI-D boards using the menu system, refer to the Annotator

User’s Manual available at www.extron.com.

The Annotator has a separate front panel menu for conﬁguring the scan converter board.

This menu is accessible only after the board has been installed.

Scan Converter board conﬁguration menu

1. Press the Menu button repeatedly until the Scan Converter Settings

menu appears.

2. Press the Next button to reach each submenu as desired (see the

image at right) and use the front panel adjustment knobs ([ {) to

change the settings.

Conﬁguring the boards using Annotator software

1. Open the Signal Processing Products Control Program on a PC that is

connected to the Annotator via LAN or RS-232 port.

2. Connect to the Annotator, click on the I/O Configuration tab (or the

Scan Converter tab for the scan converter board) and conﬁgure

the settings accordingly.

Refer to the SPPCP’s Help File for further details.

NHD-SDI and DVI-D outputs boards are buffered, so resolution and

refresh rates match all other outputs.

Conﬁguring the boards using internal Web pages

1. Using a LAN connection, open an internet browser and connect to

the Annotator.

2. Click on the Configuration tab and conﬁgure the settings as needed.

Refer to the Annotator User’s Manual at www.extron.com for details.

Conﬁguring the boards using SIS™commands

Alternatively, the output boards can be conﬁgured with speciﬁc SIS

commands. Refer to the Annotator User’s Manual at www.extron.com for

full SIS command listing.

H Size V

2048 2048

Scan Converter

Settings

Rotate to adjust

H value. Rotate

to adjust V value.

Output Format

S-video/Comp

Output Standard

NTSC

Flicker Filter

H Center V

2048 2048

Rotate to adjust

H value. Rotate

to adjust V value.

Rotate either to

select output format.

Rotate either to

select output standard.

H Filter

Encoder Filter

Rotate either to

adjust encoder filter.

Rotate either to

adjust flicker filter.

Rotate either to

adjust H filter.

Autres manuels pour Annotator

Autres manuels Extron electronics Convertisseur de média

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Manuel utilisateur

Extron electronics

Extron electronics DVS 150 Manuel utilisateur

Extron electronics

Extron electronics CD 900 Manuel utilisateur

Extron electronics

Extron electronics mediaport 200 Manuel utilisateur

Extron electronics

Extron electronics DSC HD-HD Manuel utilisateur

Extron electronics

Extron electronics CLK 100 Manuel utilisateur

Extron electronics

Extron electronics Digital Video Scalers DVS 204 Series Manuel utilisateur

Extron electronics

Extron electronics CVC 200 Manuel utilisateur

Extron electronics

Extron electronics Two InpuT VIdeo Scaler IN1502 Manuel utilisateur

Extron electronics

Extron electronics NAV E 101 DTP Manuel utilisateur

Extron electronics

Extron electronics NAV 10SD 101 Manuel utilisateur

Extron electronics

Extron electronics VSC 700 Manuel utilisateur

Extron electronics

Extron electronics SME 100 Manuel utilisateur

Extron electronics

Extron electronics Inertia Manuel utilisateur

Extron electronics

Extron electronics Multi Video Processor MVP 104GX Manuel utilisateur

Extron electronics

Extron electronics DVS 510 Manuel utilisateur

Extron electronics

Extron electronics VN-Matrix 300 Manuel utilisateur

Extron electronics

Extron electronics ISS 506 Series Manuel utilisateur

Extron electronics

Extron electronics SME 100 Manuel utilisateur

Extron electronics

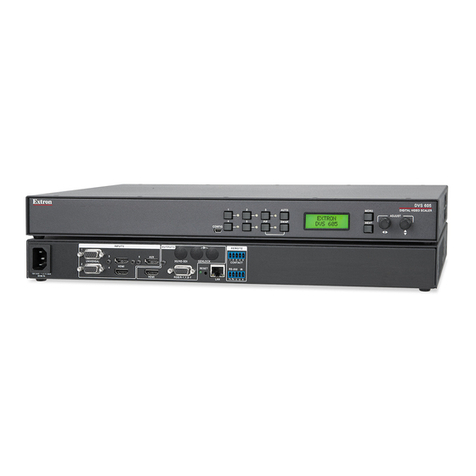

Extron electronics DVS 605 Manuel utilisateur
