Extron electronics FOX II T DP 4K Manuel utilisateur

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications bef

ore connecting the

oduct to the po

wer source.

FOX II T/R DP 4K • Setup Guide

This guide provides quick start instructions for an experienced installer to set up and operate the

Extron FOX II T/R DP 4K Fiber Optic Extenders.

WARNING:The FOX II T/R DP 4K outputs continuous invisible light (Class 1 rated), which may be harmful to the eyes; use with

caution. Plug the attached dust caps into the optical transceivers when the ber cable is unplugged.

CLASS 1 LASER PRODUCT, see the FOX II T/R DP 4K User Guide, at www.extron.com.

AVERTISSEMENT : Le FOX II T/R DP 4K émet une lumière invisible en continu (conforme à la classe1) qui peut être dangereux

pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l’ensemble émetteur/récepteur lorsque

le câble bre optique est débranché.

Produit laser de classe1, voir le FOX II T/R DP 4K User Guide sur www.extron.com (en anglais).

Installation

FOX II DP 4K Transmitter Rear Panel

FOX II DP 4K Receiver Rear Panel

100-240V ~ -.-A MAX

50-60 Hz

DISPLAYPORT LOOP THRU

LRRS-232

OPTICAL

RESET

LINK

RS-232 IR

ALARM

Tx Rx G1 2

Tx Rx Tx RxG

AUDIO

INPUTS AUDIO

RETURN OUT

REMOTE

OVER

FIBER

FOX T DP 4K

100-240V ~ -.-A MAX

50-60 Hz

DISPLAYPORT

LRRS-232

OPTICAL

RESET

LINK

RS-232 IR

ALARM

Tx Rx G1 2

Tx Rx Tx RxG

AUDIO

OUTPUTS AUDIO

RETURN IN

REMOTE

OVER

FIBER

FOX R DP 4K

Step 1 — Mounting

Turn off or disconnect all equipment power sources

and mount the transmitter and receiver as required.

For mounting details and considerations, see the

FOX II T/R DP 4K User Guide at www.extron.com.

Step 2 — Input and Output Connections

a. Connect a DisplayPort

DISPLAYPORT LOOP THRU

video source to the

transmitter DisplayPort input connector.

b. If desired, connect a DisplayPort video display

to the transmitter Loop-Thru connector for a

local display.

c. Connect a DisplayPort video display to the receiver DisplayPort output connector.

DISPLAYPORT

d. Connect an audio input device to either the Audio 3.5 mm mini jack or the Audio 5-pole captive screw connector

AUDIO

on the transmitter. See the drawing below step 2g to make connections on the captive screw connector.

e. Connect an audio output device to either or both the 3.5 mm mini jack or the Audio 5-pole captive screw connector

on the receiver. See the drawing below step 2g to make connections on the captive screw connector.

f. For optional returned audio, connect an audio output device to the Audio Return Out 5-pole captive screw

AUDIO

RETURN OUT

AUDIO

RETURN IN

connector on the transmitter. See the drawing below step 2g to make connections on the captive screw

connector.

g. For optional returned audio, connect an audio input device to the Audio Return In 5-pole captive screw

connector on the receiver. See the drawing below to make connections on the captive screw connector.

ATTENTION:

• For unbalanced audio, connect the sleeves to the

ground contact. DO NOT connect the sleeves to the

negative (–) contacts.

• Pour l’audio asymétrique, connectez les manchons au

contact au sol. Ne PAS connecter les manchons aux

contacts négatifs (–).

NOTE: For returned audio, above, and RS-232 and IR responses (from the receiver to the transmitter), on the next page, you

must install the receiver-Tx-to-transmitter-Rx cable in step 3b.

Unbalanced Stereo Output Balanced Stereo Output

Unbalanced Stereo Input Balanced Stereo Input

Do not tin the wires!

Tip

No Ground Here

Tip

Sleeves

Tip

Ring

Tip

Ring

Sleeves

Tip

Ring

Tip

Ring

Sleeves

Tip

Sleeve

Tip

FOX II T/R DP 4K • Setup Guide (Continued)

h. If you want the FOX II DP 4K units to pass serial or IR data or control signals, such as for serial Rx TxGnd

Tx RxGnd

IR Device

RS-232 Device

RS-232 IR

Tx Rx Tx RxG

OVER

FIBER

control of a projector, connect the master device to the transmitter and the controlled device to

the receiver via the Over Fiber 5-pole captive screw connectors on both units.

i. For remote monitoring of the status of the Rx optical link on either the transmitter or

RS-232 ALARM

Tx Rx G

REMOTE

receiver, connect a locally constructed or obtained device to the two rightmost poles

of the Alarm and Remote RS-232 5-pole captive screw connector on that unit. The

unit shorts both poles together when no light is detected.

NOTE: The transmitter port reports the status of the link from the receiver.

The receiver port reports the status of the link from the transmitter.

j. For remote control of a unit and for loading rmware, connect a host device, such as a computer or control system, to either of the

following ports on the unit to be controlled:

Configuration port — The front panel USB mini-B connector.

CONFIG

NOTE: Extron recommends performing firmware updates via the Configuration port only.

Remote RS-232 port — The rear panel Remote RS-232 port, the 3 leftmost poles of this 5-pole captive screw connector.

RS-232 ALAR

Tx Rx G

REMOTE

The protocol for the Remote port is as follows:

• 9600 baud •no parity •8 data bits

• 1 stop bit •no ow control

Step 3 — Throughput Connections

Receiver

ransmitter

OPTICAL

LINK

OPTICAL

LINK

NOTE: See the two fiber cable connection drawing at right. You can connect the transmitter and receiver in one of

two ways:

• One way (transmitter to receiver) only, perform step 3a.

• Two way (transmitter to receiver and return), perform steps 3a and 3b.

a. Connect the ber between the Tx port on the transmitter and the Rx port on the receiver (1, at right).

NOTE:Ensure that the transmitter and connected receiver are the same transmission mode, singlemode (SM) or

multimode (MM) and that you use the correct SM or MM fiber cable to connect the devices.

b. If you want the receiver to return serial data (such as responses from a controlled device), IR data, or returned audio

to the transmitter, connect a cable between the Tx port on the receiver and Rx port on the transmitter (2).

Tx Link and Rx Link LEDs — When lit, the link is active (light is output [Tx] or received [Rx]).

NOTE:The Link LEDs indicate transmission of light only, not whether there is data encoded in the optical link.

Operation

After the receiver, the transmitter, and their connected devices are powered up, the system is fully operational. If any problems are

encountered, verify that the cables are routed and connected properly and that the display device has a compatible resolution and refresh

rate. If problems persist, call the Extron S3 Sales & Technical Support Hotline. See the contact numbers on the last page of this guide for

the Extron ofce nearest you.

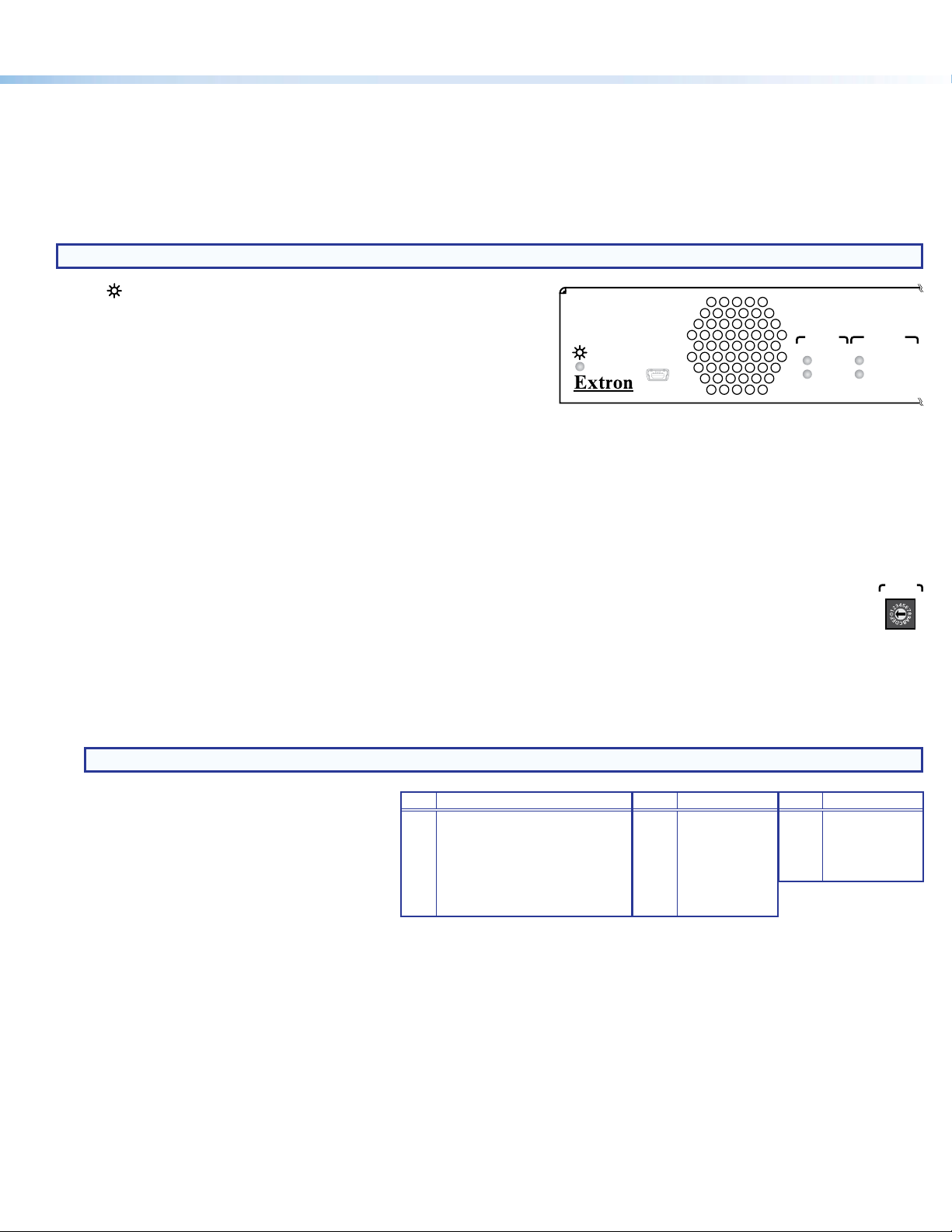

Indications

NOTE:The figure below right is of a receiver. A transmitter has similar indications.

Power ( ) LED — Indicates that power is applied to the unit.

CONFIG SIGNAL

VIDEO AUDIO

HDCP

OUTPUT

RETURN IN

Video LEDs —

Signal LED — Lights on both units when the unit detects an input video

signal.

HDCP LED — Lights on both units when the input signal is HDCP

encrypted.

Audio LEDs —

Input LED (transmitter) — Lights when an analog audio or PCM digital audio signal remains above -35 dBV. The LED goes unlit if the

audio signal level drops below the threshold for 10 seconds or longer.

Output LED (receiver) — Lights when an analog audio or PCM digital audio signal remains above -35 dBV. The LED goes unlit if the

audio signal level drops below the threshold for 10 seconds or longer.

Return Out LED (transmitter) — Lights when analog audio is present on the transmitter Return Audio Output connector.

Return In LED (receiver) — Lights when analog audio is present on the receiver Return Audio Input connector.

EDID (Transmitter) SELECT

EDID

EDID Select rotary switch — Set this switch to one of the positions shown in the table below to select the source of the EDID or

a specic resolution.

Position 0 — An EDID that has previously been captured from a connected display or manually imported via an SIS

command or the Product Conguration Software.

Position 1 — The EDID is selected via the Remote or USB port on the transmitter only, using an SIS command or the Extron Product

Conguration Software.

Position 2 — Use the EDID from the display connected to the receiver.

NOTE:EDID from the display connected to the receiver requires connection of both ber cables.

Position 3 — Use the EDID from the display

connected to the transmitter loop-through.

Positions 4 through E — Specify a resolution.

The table at right identies the resolutions

associated with the switch positions. All

resolutions are at 60 Hz with the exception of

3840x2160 (E), which is 30 Hz.

Position F — No EDID assigned.

Remote control

See the FOX II T/R DP 4K User Guide, available at www.extron.com, for details on operating and monitoring the transmitter and receiver

using either SIS commands or the Extron Product Conguration Software.

Pos. Source or resolution Pos. Resolution Pos. Resolution

0 User recorded EDID 6 1366x768 C 2048x2160

1 Selected via RS-232 7 1440x900 D 2560x1600

2 Display on Rx output 8 1680x1050 E* 3840x2160

3 Display on Tx loop-through 9 1920x1080 F N/A

4 1280x720 A 1920x1200

5 1280x800 B 2048x1536

* 30 Hz

68-2540-50 Rev. B

01 16

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

FOX II T/R DP 4K • Setup Guide (Continued)

Application Diagram

STANDBY

CLASS2 WIRING

XPA1002

LEVEL

1212

LIMITER/

PROTECT

SIGNAL

INPUTS OUTPUT

REMOTE

VOL/MUTE

10V 50mA

100-240V 1.3A,50-60Hz

100-240V~ -.-AMAX

50-60 Hz

DISPLAYPORT

L R

RS-232

OPTICAL

RESET

LINK

RS-232 IR

ALARM

Tx Rx G 1 2

L R

Tx Rx Tx RxG

AUDIO

OUTPUTS

AUDIO

RETURN IN

REMOTE

OVER

FIBER

FOX R DP 4K

100-240V~ -.-AMAX

50-60 Hz

DISPLAYPORT LOOP THRU

L R

RS-232

OPTICAL

RESET

LINK

RS-232 IR

ALARM

Tx Rx G 1 2

L R

Tx Rx Tx RxG

AUDIO

INPUTS

AUDIO

RETURN OUT

REMOTE

OVER

FIBER

FOX T DP 4K

POWER

12V

--AMAX

Tx Rx RTSCTS

COM1

TxRx

COM2

VC G

VOL RELAYS

1 2 C

12 3 4 G

DIGITALI/O

PWR OUT = 6W

eBUS

+V +S -S G

LAN

IPCP PRO 250

IR/S

MODEL80

Extron

Help System

Off

Display

Room

Control

Off

Mute

Screen

Lighting

December15, 2013 - 7:58 AM

Audio

Control

Volume

Mute

Tuner

123

VCR

LaptopPC DVD Doc

Cam

Tuner

Channel

Last

Presets

Enter

RS-232

Ethernet

Audio

4K DisplayPort

Extron

SI 28

Surface-mount

Speakers

Extron

XPA 10

Power

Amplier

4K Display

Local

Monitor

Up to 30 km (18.75 miles)

Singlemode Fiber

SM Model

Audio

RS-232

Extron

FOX T DP 4K

Fiber Optic Transmitter

Extron

FOX R DP 4K

Fiber Optic Receiver

Extron

TLP Pro 72

7" Table Top

TouchLink Pro

Touchpanel

TCP/IP

Network

Extron

IPCP Pro 250

IP Link Pro

Control Processor

Autres manuels pour FOX II T DP 4K

Ce manuel convient aux modèles suivants

Autres manuels Extron electronics Extenseur

Extron electronics

Extron electronics CSVEQ 100 D Manuel utilisateur

Extron electronics

Extron electronics DTP DVI 4K 330 Manuel utilisateur

Extron electronics

Extron electronics USB Extender Plus T Manuel utilisateur

Extron electronics

Extron electronics PowerCage FOX Tx DVI Plus Manuel utilisateur

Extron electronics

Extron electronics DTP HDMI 230 Manuel utilisateur

Extron electronics

Extron electronics eLink 100 Manuel utilisateur

Extron electronics

Extron electronics FOX USB Tx (SM) Manuel utilisateur

Extron electronics

Extron electronics FOX 2G Tx AV Manuel utilisateur

Extron electronics

Extron electronics FOX T USB Extender Plus Manuel utilisateur

Extron electronics

Extron electronics FOX II T DP Manuel utilisateur

Extron electronics

Extron electronics HDMI 230 D Manuel utilisateur

Extron electronics

Extron electronics UCS FT 901 Manuel utilisateur

Extron electronics

Extron electronics DTP T DWP 4K 232 D Manuel utilisateur

Extron electronics

Extron electronics DTP HDMI 4K D Series Manuel utilisateur

Extron electronics

Extron electronics XTP T HD 4K Manuel utilisateur

Extron electronics

Extron electronics DTP DVI 330 Manuel utilisateur

Extron electronics

Extron electronics FOX3 T 301 Manuel utilisateur

Extron electronics

Extron electronics DTP DVI 330 Manuel utilisateur

Extron electronics

Extron electronics FOX 500 DVI Manuel utilisateur

Extron electronics

Extron electronics DTP DVI 301 Manuel utilisateur

Extron electronics

Extron electronics DTP HWP 4K 231 D Manuel utilisateur

Extron electronics

Extron electronics DTP DVI 4K 230 D Series Manuel utilisateur

Extron electronics

Extron electronics Fiber Optic DVI Extenders DVI 104 RX Manuel utilisateur

Extron electronics

Extron electronics DTP T 3G-SDI 230 D Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
