PVCA 452 • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete user guide, installation instructions, and specications

before connecting the product to the power source.

The PVCA 452 is an audio and VoiceLift amplier designed for classroom applications. It features an integrated high performance

control processor for centralized AV control and a powerful 2-channel 50W amplier. The PVCA 452 accepts analog and digital

audio signals, and includes dedicated ports for connecting the Voicelift Pro system and optional Page Sensor unit for facility

communications.

NOTE: For full installation and operation details, see the PVCA 452 User Guide, available at www.extron.com.

Rear Panel Features and Cabling

POWER

12V

2.0 A MAX

INPUTS

OUTPUTS

LAN

AUDIO

HDMI/CEC/ARC

AUDIO

VOICELIFT

DIGITAL R

AUX

CLASS 2 WIRING

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

AMPLIFIED AUDIO

eBUS

PWR OUT = 3W

+V +S -S G

IR/S D I/O

12G

COM

Tx Rx

RS 232

PAGE

SENSOR

A B C D E F G H I J K M N

Figure 1. PVCA 452 Amplier Connections

APower input FLine audio output KIR/Serial port

BTOSLINK fiber optic port GAmplified audio output LDigital Input/Output port

CVoiceLift microphone port HHDMI/CEC/ARC MeBUS port

DStereo analog audio input IPage sensor port NLAN port

EAux mono audio input JRS-232 COM port

Inputs

NOTE: The audio input sources (TOSLINK or analog stereo input) are mixed with VoiceLift and aux audio inputs. The TOSLINK

and stereo analog audio inputs are selectable (not simultaneously mixed). The default mode is “Autoswitch” which automatically

switches between the two inputs upon signal detection. The 5-pole analog stereo input has priority over TOSLINK.

APower input — Connect the provided power supply to this 2-pole captive screw

connector. Wire the connector as shown at right.

ATTENTION:

• Do not connect the power supply before reading the Attention in the

Power Supply section of the PVCA 452 User Guide.

• Ne branchez pas la source d’alimentation externes avant d’avoir lu les

mises en garde dans la section « Power Supply » du PVCA 452 User

Guide.

NOTE: Use only the 12 V, 4.2 A power supply supplied with this amplifier. The

PVCA 452 power supply can support a typical system (for example, a

PVCA 452, 2 or 4 speakers, an EBP 100, and a VoiceLift Pro Microphone

system).

Power Supply

Output Cord

SECTION A–A

Ridges

Smooth

Captive

Screw

Connector

Tie Wrap

16 (5 mm) Max.

BTOSLINK fiber optic port — Connect a PCM/LPCM 2-Channel audio source to this TOSLINK connector using a fiber

optic digital audio cable.

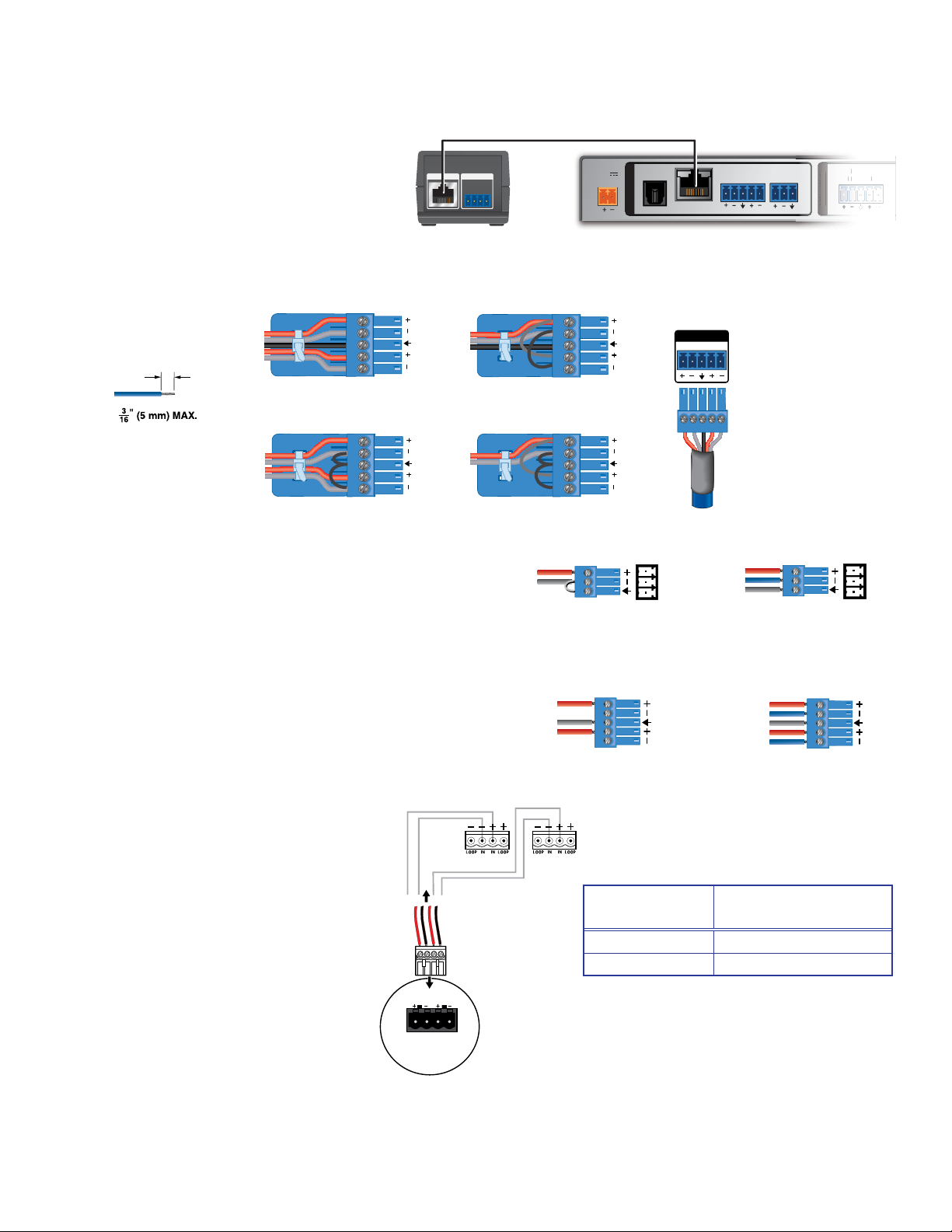

CVoiceLift microphone port — This RJ-

45 jack is dedicated for use with the optional

VLR 302 receiver for integration of a VoiceLift

Pro Microphone system (see the VoiceLift Pro

Installation Guide supplied with the device to

install the VoiceLift Pro system).

DStereo Analog Audio Input — Connect a cable from the source, such as the audio output from a display, switcher, or

MP3 player, to this 5-pole captive screw connector. It can be wired as balanced or unbalanced as shown below.

Tip

Sleeves

Tip

Ring

Sleeves

Tip

Sleeves

Unbalanced Stereo Input

Balanced Mono Input

Unbalanced Mono Input

Balanced Audio Input

(high impedance)

Tip

Sleeve

Ring

Tip

Ring

Do not tin

the wires!

AUDIO

Audio Input

EAux mono audio input — Connect an auxiliary audio

device to this 3.5 mm captive screw 3-pole connector for

dedicated mono audio only input. It can be wired as balanced or

unbalanced (see wiring diagram below).

Outputs

FLine audio output — Connect a downstream audio

device, such as an external amplifier, unified communication

platforms, recording or assistive listening device to this

3.5 mm captive screw 5-pole connector. It can be wired as

balanced or unbalanced.

GAmplified audio output — Connect

speakers to this 5 mm captive screw

4-pole connector (shown below). The

amplified audio is capable of outputting

50 watts (2 x 25 watts RMS) for 4 and 8

ohm speakers.

To terminate the cable, strip the end of

the cable 0.2 inch (5 mm) and secure

the wires into the supplied 4-pole captive

screw connector as shown below.

HHDMI/CEC/ARC — Supports HDMI ARC (Audio Return Channel) audio and CEC (Consumer Electronics Control) over an

HDMI cable when connected to a display that supports these features. When configured, this allows the display to send its

audio, over the HDMI cable, to the PVCA 452.

POWER

12V

2.0 A MAX

INPUTS

OUTPUTS

LAN

AUDIO

HDMI/CEC/ARC

AUDIO

VOICELIFT

DIGITAL

AUX

CLASS 2 WIRING

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

AMPLIFIED AUDIO

eBUS

PWR OUT = 3W

+V +S -S G

IR/S D I/O

12G

COM

Tx Rx

RS 232

PAGE

SENSOR

OUTPUT

1C C2

RELAY

UTPUT

LAN

UDI

DMI/CEC/AR

LASS 2 WIRIN

ROUN

PEAKER

UTPUT

MPLIFIED AUDI

T = 3

-S

COM

232

VLR 302 Receiver PVCA 452

Aux Unbalanced Input Wiring Aux Balanced Input Wiring

Tip

Sleeve

Ring

Tip

Slee

AUX

PVCA 452

Rear Panel

Speaker 1 Speaker 2

4-pole Captive

Screw Connector

Audio output

to speakers

4/8

AMPLIFIED OUTPUT

Speaker Wire

Color

To PVCA 452 Terminal

(Left and Right)

Red Positive (+)

Black Negative (-)

Tip

Sleeve(s)

Ring

Tip

Left

Right

Balanced Output Wiring

Unbalanced Output Wiring

Left

Tip

Sleeve(s)

NO Ground Here

Tip Right

Control Ports

IPaging sensor port — Connect the optional Priority Page Sensor (PPS 35 or PPS 25) to this port, to enable program audio

ducking during paging system broadcasts.

POWER

12V

2.0 A MAX

INPUTS

OUTPUTS

LAN

AUDIO

HDMI/CEC/AR

AUDIO

VOICELIFT

DIGITAL R

AUX

CLASS 2 WIRING

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

AMPLIFIED AUDIO

eBUS

PWR OUT = 3W

+V +S -S G

IR/S D I/

COM

Tx Rx

RS 232

PAGE

SENSOR

WER

MAX

INP

LAN

DMI

ELIFT

ITA

AUX

2 WIRIN

DO NOT

PEAKER

OUTPUTS

4/8

MPLIFIED A

WR OUT = 3

S-S

D I

COM

S 23

Red (+V)

Black (+)

Drain Wire (-)

NOTE: The Extron Priority Page Sensor is an optional accessory, purchased separately

(see the Extron website for details about the Priority Page Sensors). For page sensor

installation and operation details, see the PVCA 452 User Guide available at

www.extron.com.

JCOM RS-232 port — Use this port to control external devices, such as the display device.

RS-232-

Controllable

Device

Transmit

Receive

Ground

Strip wires

3/16" (5 mm) max. 9-pin HD

Connector

To 3-pole

COM port

POWER

12V

2.0 A MAX

INPUTS

OUTPUTS

LAN

AUDIO

HDMI/CEC/ARC

AUDIO

VOICELIFT

DIGITAL R

AUX

CLASS 2 WIRING

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

AMPLIFIED AUDIO

eBUS

PWR OUT = 3W

+V +S -S G

IR/S D I/O

12G

COM

Tx Rx

RS 232

PAGE

SENSOR

WER

MAX

INP

LAN

DMI

ELIFT

ITA

AUX

2 WIRIN

DO NOT

ROUN

PEAKER

OUTPUTS

AMPLIFIED A

WR OUT = 3W

D I

SOR

NOTE: If you use cable that has a drain wire, tie

the drain wire to ground at both ends.

COM 1 Terminal RS-232 Cable Color Pin

Tx White 2

Rx Green 3

Ground Shield 5

KIR serial port — For IR control of a source device, connect an IR emitter to this 3.5 mm captive screw 2-pole connector

(see figure 2). Adhere the IR emitter to the IR receive location of the source device (supports 30 kHz to 300 kHz, with or

without carrier signal).

G(-)

(+)

(-)

(+)

To the

IR Receiver of

a Projector,

Display, or

Source Device

LAN

eBUS

+V +S -S G

POWER

12V

2.0 A MAX

INPUTS

OUTPUTS

AUDIO

HDMI/CEC/ARC

AUDIO

VOICELIFT

DIGITAL R

AUX

CLASS 2 WIRING

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

AMPLIFIED AUDIO

PWR OUT = 3W

IR/S D I/O

12G

COM

Tx Rx

RS 232

PAGE

SENSOR

LAN

UTPUT

DMI

ELIFT

AUX

2 WIRIN

DO NOT

PEAKER

UTPUT

MPLIFIED A

WR OUT = 3W

COM

S 232

SOR

IR Emitter

Ground

IR Output

Ground

IR or

RS-232 Output

Unidirectional IR

3/16" (5 mm) max.

To Projector, Panel Display, or the Wired

IR Remote of a Source Device

NOTE: For unidirectional RS-232 control, wire the transmit (TX) wire to the “S”

port, and ground to the “G” port. Then, wire the appropriate connection to the

device being controlled.

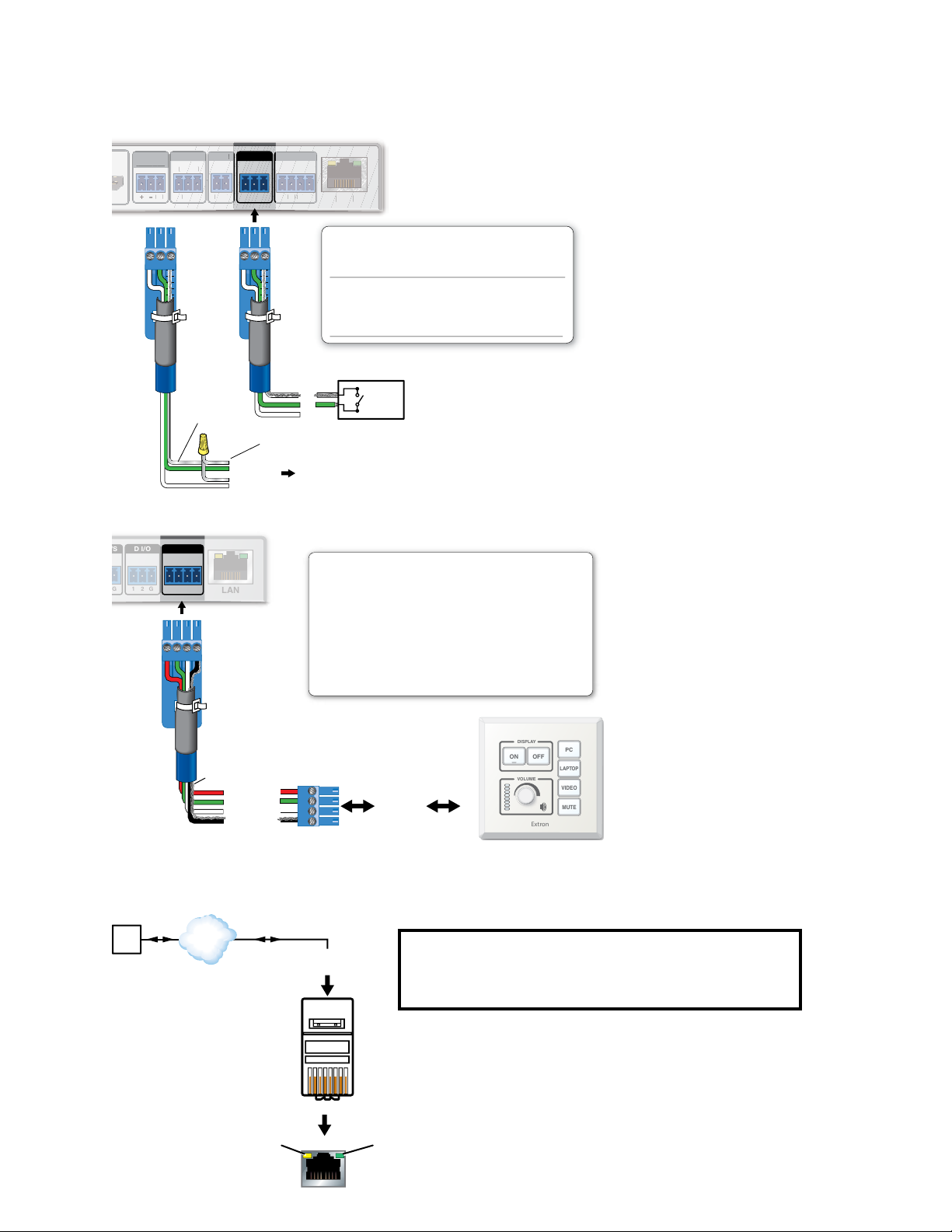

LDigital I/O port — Connect two digital inputs or outputs, such as sensors or contact closure buttons, to this captive screw

connector.

POWER

12V

2.0 A MAX

INPUTS

OUTPUTS

LAN

AUDIO

HDMI/CEC/AR

AUDIO

VOICELIFT

DIGITAL R

AUX

CLASS 2 WIRING

DO NOT

GROUND

OR SHORT

SPEAKER

OUTPUTS

4/8

AMPLIFIED AUDIO

eBUS

PWR OUT = 3W

+V +S -S G

IR/S D I/O

12G

COM

Tx Rx

RS 232

PAGE

SENSOR

LAN

DMI

2 WIRIN

DO NOT

GROUN

PEAKE

UTPUTS

MPLIFIED A

PWR OUT = 3W

+S -

COM

S 23

SOR

Digital I/O (digital input/output)

Congure each port as a digital input or output,

with or without +5 VDC pull-up.

Use these ports to:

• Monitor or trigger events and functions (toggle relays,

issue commands, send e-mail), once congured.

• Power LEDs or other devices that accept a

TTL signal.

Switch,

Sensor

(Switches, sensors, LEDs,

relays, or similar items)

Ground

Share the same ground among I/O connections.

Device 2

Device 1

Wire

Nut

MeBUS port — Connect an eBUS endpoint device to this captive screw connector.

eBUS port

on an

eBUS device

(button

panel or

similar

device)

-S

+ Signal

+12 VDC

- Signal

Ground

Drain Wires

LAN

HDMI/CEC/ARC

AMPLIFIED AUDIO

eBUS

PWR OUT = 3W

+V +S -S G

IR/S

D I/O

12 G

COM

Tx Rx

RS 232

PAGE

SENSOR

eBUS Accessory Port

Connect the rst eBUS device to this port, then connect other

eBUS devices and accessories to that device in the desired

topology (daisy chain, star, or combination).

• Wire the connectors the same at both ends for every eBUS

device.

• See the eBUS Technology Reference Guide for the

recommended distance from the control processor to the last

eBUS device and maximum quantity of devices per control

processor.

• The PVCA 452 provides 3W of power, which can be used to

power eBUS button panel devices.

Extron

DISPLAY

VIDEO

OFF

LAPTOP

MUTE

VOLUME

NLAN port — This port allows communication with the PVCA 452 via TCP/IP for controlling devices over the network,

firmware updates over the network, as well as configuration and operation using PCS, Global Configurator, and Campus

Communication Suite.

LAN

RJ-45

Connector

Insert Twisted

Pair Wires

Pins:

12345678

Link

LED

Activity

LED

Ethernet

Corporate

TCP/IP

Network

NOTE: The factory configured password for this device has

been set to the device serial number. Passwords are case

sensitive. Performing a Reset to Factory Defaults sets the

password to extron.

Front Panel Features

PVCA 452

CONFIG

PAGE

SENSOR

Tx 1

LINK

ACT

COMIR/SI/O CEC

1000

eBUS

LIMIT

OVER

GHI

AFB CDJ

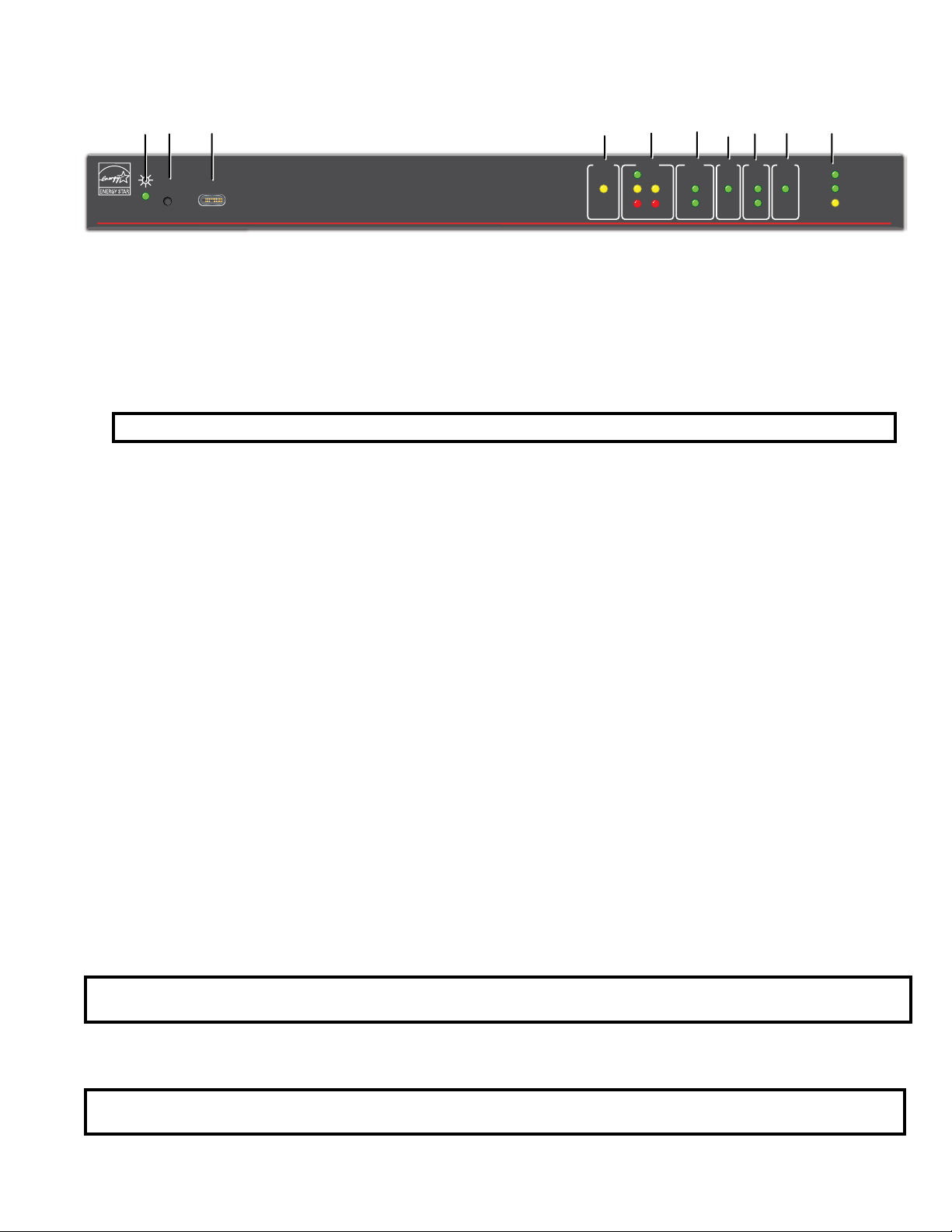

Figure 2. Front Panel Features

APower LED — This LED lights green when the unit is powered up, and amber when it is in power save mode.

BReset button — Pressing this inset button resets the device to default settings (see the PVCA 452 User Guide for the

various reset modes).

CConfiguration port — Connect a computer to this USB-C port (cable not supplied) for device configuration, control, and

firmware upgrades.

DPage Sensor LED — Lights yellow when paging system broadcasts are detected.

NOTE: For page sensor installation and operation details, see the PVCA 452 User Guide available at www.extron.com.

EeBUS status LEDs — These LEDs indicate the following eBUS port states:

• Link (

) LED —Lights green when eBUS devices are discovered.

• Busy (

) LED —Blinks yellow when eBUS device firmware sync is in progress.

• Error (

) LED —Blinks red when BUS ID conflicts are detected.

• Limit LED —Lights yellow if eBUS power consumption is within limit load range.

• Over LED —Lights red if eBUS power consumption is greater than or equal to the load limit.

FCOM LED — Lights green when the corresponding serial port is transmitting (Tx) or receiving (Rx) data.

GIR/S LED — Lights green when a signal is transmitting on the rear panel IR/S port.

HDigital I/O LEDs —

• When in digital input mode: LED is on when port input is above the threshold.

• When in digital output mode: LED is on when the port is enabled.

ICEC LED (future use)

JLAN LEDs —

• 1000 LED

—

Indicates Single 1000Base-T network connection

• LINK LED

—

Indicates link status

• ACT LED

—

Indicates network activity

PVCA 452 Configuration

The PVCA 452 amplier can be controlled and congured using Extron Product Conguration Software (PCS),

Global Congurator Pro/Plus (GCP), and ToolBelt via a host computer. Firmware updates can also be made using PCS.

• PCS is used for setup and adjustment of PVCA 452 A/V functions. For information on accessing PCS, see the PVCA 452 User

Guide (available at www.extron.com). For configuration details, see the embeded help file in PCS.

• For Global Configurator Pro/Plus, see Configuring the PVCA 452 using Global Configurator below.

NOTE: The factory configured password for this device has been set to the device serial number. Passwords are case sensitive.

Performing a reset to factory defaults sets the password to extron (see the PVCA 452 User Guide for reset instructions).

Conguring the PVCA 452 using Global Congurator

NOTE: The following are the most basic steps, outlined in the recommended order. For detailed instructions, see the Global

Configurator Help File. The help file includes an introduction to the software, and instructions on starting a project.

1. Connect the host computer and the PVCA 452 to the same Ethernet subnetwork (see LAN port on page 4).

2. Start Global Configurator Pro/Plus (GCP) and open the Toolbelt feature (or use the stand-alone Toolbelt program).

68-3603-50 Rev. B

11 23

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron

Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

3. Start Device Discovery, and select your PVCA 452 device from the list (use the MAC address to locate the desired device).

Enter credentials, if required.

4. Use the Set IP feature in the Toolbelt software, or use the Toolbelt Manage >Network Settings tab to set the IP address or

host name, subnet, gateway IP address, and related settings.

NOTE: If using a host name instead of an IP address, the user must enter a qualified host name

(Username.HostName.Domain). For example: somename.somedomain.com.

5. Using GC, create a new GC Plus or GC Professional project and configure the PVCA 452:

a. Configure the control ports.

b. Select device drivers and link them to each assigned serial, IR, or Ethernet port.

c. Configure settings (serial protocol, relay behavior, digital input, volume control settings) as needed.

d. Add and configure control interface (eBUS, TouchLink Pro, etc.).

e. Set up monitors, schedules, macros, and local variables.

6. Save the project.

7. Build and upload the system configuration to the controller.

Application Diagram

HDMI

ABC

Extron

WPD 110 A

HDMI Pass-Thru

HDMI

PVM 220

PLENUM VAULT

Display

Audio

RS 232 (Display Control)

Di l

Extron

PVCA 452

VoiceLift Amp

Extron

EBP 100

Extron

FF 120T

Extron

FF 120T

eBus

Extron

DISPLAY

ON PC

OFF

VOLUME

xtron

EBP

Extron

PLA

ON P

MUTE

LAPTOP

LAN

Audio

GVCCS

Audio

Line Output Audio

PVCA 452

CONFIG

PAGE

SENSOR

Tx 1

LINK

ACT

COMIR/SI/O CEC

1000

eBUS

LIMIT

OVER

Extron

VLR 302

CONFIG 1

LINK

Autres manuels pour PVCA 452

Table des matières

Autres manuels Extron electronics Amplificateur

Extron electronics

Extron electronics VGA Distribution Amplifiers P/2 DA4xi s Manuel utilisateur

Extron electronics

Extron electronics HDMI DA4 Manuel utilisateur

Extron electronics

Extron electronics MPA 152 MD Manuel utilisateur

Extron electronics

Extron electronics XTRA FULL RACK XPA 2002 Manuel utilisateur

Extron electronics

Extron electronics ASA 204 Manuel utilisateur

Extron electronics

Extron electronics SVDA 6 A MX Manuel utilisateur

Extron electronics

Extron electronics IN3212 Manuel utilisateur

Extron electronics

Extron electronics FOX DA8 Plus Manuel utilisateur

Extron electronics

Extron electronics XPA 1002 Manuel utilisateur

Extron electronics

Extron electronics P/2 DA2 Plus Manuel utilisateur

Extron electronics

Extron electronics P/2 DA8 A Manuel utilisateur

Extron electronics

Extron electronics PA 250 Manuel utilisateur

Extron electronics

Extron electronics MDA 4V EQ Manuel utilisateur

Extron electronics

Extron electronics MP 101 Manuel utilisateur

Extron electronics

Extron electronics MPA 401-70V Manuel utilisateur

Extron electronics

Extron electronics MPA 152 Plus Manuel utilisateur

Extron electronics

Extron electronics XPA Ultra Series Manuel utilisateur

Extron electronics

Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ 100... Manuel utilisateur

Extron electronics

Extron electronics D/2 DA4 DVI Manuel utilisateur

Extron electronics

Extron electronics Fiber Optics Fox 4G DA8 Manuel utilisateur

Extron electronics

Extron electronics MPA 152 Plus Manuel utilisateur

Extron electronics

Extron electronics SW2 VGA DA2 A Manuel utilisateur

Extron electronics

Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ... Manuel utilisateur

Extron electronics

Extron electronics PA 300 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
