User’s Manual

Surface Access Productsfor Cables, AAPs, and Power Outlets

68-701-01 Rev. F

06 06

Cable Cubby®200

Cable Cubby®300C

Cable Cubby®300S

Cable Cubby®600

Cable Cubby®800

Cable Cubby®Products • Table of Contents

Table of Contents

Chapter One • Introduction.................................................... 1-1

About the Cable Cubby®Products ....................................... 1-2

Features ........................................................................................ 1-5

Chapter Two • Installation ...................................................... 2-1

Installation Overview............................................................... 2-2

Preparing the Routing Template .......................................... 2-3

Preparing the Table................................................................... 2-4

Preparing the table with a router......................................... 2-4

Preparing the table with a hole saw

(Cable Cubby 300C only) ....................................................... 2-6

Installing the Cables and AAPs ............................................. 2-7

AAP shelf brackets (CC 300, 600, 800) .................................. 2-7

Installing the power module (CC 300, 600, 800).................. 2-8

Installing the cables............................................................... 2-8

Installing the AAPs................................................................. 2-9

Installing the shelf assembly (CC 300, 600, 800)................ 2-10

Adjusting the cable position (CC 200) ................................ 2-10

Mounting the Cable Cubby.................................................. 2-11

Chapter 3 • Maintenance and Modiﬁcations............. 3-1

Removing and Replacing the Cable Cubby....................... 3-2

Replacing Cables or an AAP................................................... 3-5

Adding an Additional Power Module

(CC 600 and CC 800).................................................................. 3-6

Appendix A • Reference Information..............................A-1

Speciﬁcations ..............................................................................A-2

Cable Cubby Part Numbers ....................................................A-7

Included Parts .............................................................................A-8

Replacement/Modiﬁcation Part Numbers.........................A-9

Routing Template Part Numbers ........................................A-11

Top Plate Dimensions .............................................................A-11

Appendix B • Packaging for Shipment........................... B-1

ii Cable Cubby®Products • Table of Contents

Table of Contents, cont’d

Cable Cubby®Products

Chapter One

Introduction

About the Cable Cubby®Products

Features

All trademarks mentioned in this manual are the properties of their respective owners.

68-701-01 Rev. F

06 06

Cable Cubby®Products • Introduction

Introduction

Cable Cubby®Products • Introduction

1-2 1-3

Figure 1-1 — Cable Cubby 300S US/domestic enclosure

The AAP spaces inside the cubbies allow you to customize the

enclosure to meet your unique needs, with the included split

double space AAPs and Extron’s full line of optional passive

AAPs. The split AAPs can store almost any type of cable

you might encounter. The line of passive AAPs allows you

to customize the AAP with almost any kind of pass-through

connectivity you may need.

The elevation of the AAPs inside the cubby and the arrangement

of the AAPs and the power outlets are adjustable to suit cable

lengths and connector types.

NThe elevation and arrangement of the power outlet

and AAPs in the Cable Cubby 200 are ﬁxed and not

customizable.

About the Cable Cubby®Products

The Extron Cable Cubbies are furniture-mounted, architectural

solutions for inconspicuous cable access and connection points.

When cables are not in use, they can be stored out of the way

while remaining connected to the presentation system.

Most US/domestic Cable Cubby models provide two

unswitched USA AC power outlets. The US/domestic Cable

Cubby 200 provides one outlet. Each of the international

versions provides a single unswitched AC power outlet

appropriate to the region where the Cable Cubby is sold.

Several different types of power receptacles are available for the

international version, including UK, French, Israeli, Australian,

Indian, European, and Swiss receptacles.

The four different sizes of Cable Cubbies provide room for

the indicated number of Extron’s Architectural Adapter Plates

(AAPs):

• Cable Cubby 800 USA/domestic model — Eight single-

space (single-height) AAPs

• Cable Cubby 800 (international model) — Seven single-

space (single-height) AAPs

• Cable Cubby 600 USA/domestic model — Six single-

space AAPs

• Cable Cubby 600 (international model) — Five single-

space AAPs

• Cable Cubby 300 USA/domestic model — Three single-

space AAPs

Cable Cubby 300S — Square cover (ﬁgure 1-1)

Cable Cubby 300C — Circular (round) cover

• Cable Cubby 300 (international model) — Two single-

space AAPs

Cable Cubby 300S — Square cover

Cable Cubby 300C — Circular (round) cover

• Cable Cubby 200 (all models) — Two single-space AAPs

Cable Cubby®Products • Introduction

Introduction, cont’d

1-4 Cable Cubby®Products • Introduction

1-5

The installed Cable Cubbies ﬁt nearly ﬂush within a table or

podium top, storing the AAPs and cables out of the way and

out of sight. To access the AAPs and connectors, lift the lid

(ﬁgure 1-2). Half-moon cutouts in the lid allow you to run

cables in or out and then close the lid. For Cable Cubby 300s,

600s, and 800s, you can lower the lid into its recessed position.

Mounted

through a table

or podium

Extron

Cable Cubby 800

Hideaway Cable

Access Enclosure

Audio Cable,

Network Cable

15-pin HD Cable

Figure 1-2 — Typical Cable Cubby 800 application

The Cable Cubby 300 is available with either a round or a

rectangular top. The other cubbies all have rectangular tops

only. Preparing the table to install a Cable Cubby 300C (round)

requires simply drilling a hole in the table with a 6-inch hole

saw (ﬁgure 1-3). Preparing the table to install a square cubby

requires routing a square hole in the table top. Sheet metal

routing templates are available on request for all models at no

cost.

12 3

Figure 1-3 — Cable Cubby 300C mounting

Features

• Easy access to cables and AAPs

• Durable mechanical movement

• Cable Cubby 300, 600, and 800 available in a variety of

surface ﬁnishes

• Compact size

• Flexible installation of Extron passive AAPs

• Grounded AC receptacle(s)

• UL/CUL listing

• CSA certiﬁcation

Cable Cubby®Products • Introduction

Introduction, cont’d

1-6

Cable Cubby®Products

Chapter Two

Installation

Installation Overview

Preparing the Routing Template

Preparing the Table

Installing the Cables and AAPs

Mounting the Cable Cubby

Cable Cubby®Products • Installation

Installation

Cable Cubby®Products • Installation

2-2 2-3

Installation Overview

Install and set up the Cable Cubby enclosures as follows:

1If you plan to use a mounting template that has not been

prepared, prepare the template. See Preparing the Routing

Template, later in this chapter.

2Cut a hole in the surface where the enclosure will be

installed. See Preparing the Table, later in this chapter.

3Run all cables necessary to support the AC connector,

the cables stored in the cubby, and all planned AAP

connectors. Leave enough slack in the cables to connect or

route them before the cubby is installed in the table.

4If applicable, install the power module. If your location

requires electrical conduit, install an Extron ﬂexible

conduit kit. Refer to the Flexible Conduit Kit Installation

Guide, Extron part #68-734-01.

5Install all desired cables into the cable pass-through (split)

AAPs and install the AAPs into the Cable Cubby. See

Installing the Cables and AAPs, later in this chapter.

6If applicable, connect cables to the rear connectors on

the passive AAPs and install the AAPs in the cubby. See

Installing the AAPs, later in this chapter.

7Mount the Cable Cubby in the table. See Mounting the

Cable Cubby, later in this chapter.

8Peel the protective ﬁlm from the top surface.

9Connect the Cable Cubby power cord.

Preparing the Routing Template

Extron provides metal templates for the Cable Cubbies at no

charge. See Routing Template Part Numbers, in appendix A,

Reference Information, for part numbers. Extron recommends

using this template as a guide to cut the hole in the table where

the cubby will be installed.

NThe metal routing template is reusable. Do not discard

this template when the installation is complete. Save it

for installing Cable Cubby models of the same size.

1. Cut 1/2" x 4" strips of soft, ﬁnished lumber at least

long enough to span the distance between the desired

installation location on the mounting surface and the edges

of the mounting surface (ﬁgure 2-1).

These strips raise the routing template above the mounting

surface to provide room for the router’s collar, protect the

mounting surface, and extend the routing template’s reach

so that it can be clamped to the edge of the surface.

CDo not allow the wood screws to protrude through

the bottom of the wooden strips. Protruding screws

will mar the table when the template is used.

Mounting

Surface

Edge

Mounting

Surface

Edge

Wood Thickness

0.5" / 1.3 cm

Width of Mounting Surface

Routing Template

Wood Strip

Height

4" / 10.2 cm

Minimum

4 Screws

Wood

Strips

Figure 2-1 — Prepared CC 300 mounting template

2. Using four or more short wood screws, secure the

mounting template to the lumber strips.

Cable Cubby®Products • Installation

Installation, cont’d

2-4 Cable Cubby®Products • Installation

2-5

Preparing the Table

The preferred and recommended method for preparing the table

for square Cable Cubbies and one of two preferred methods for

the Cable Cubby 300C is to use the appropriate Extron routing

template and a router.

For the Cable Cubby 300C, another preferred method is to use a

6" hole saw.

Alternatively, for any model, you can use a paper cut-out

template (see appendix A) and a sabre saw or keyhole saw, but

this method is not recommended.

CThe opening in the table for the Cable Cubby should

be cut only by licensed and bonded craftspeople.

Exercise care to prevent scarring or damaging the

furniture.

The surfaces of the Cable Cubby enclosure have

screws and other protruding hardware that could

damage ﬁne furniture. Do not rest the enclosure on

unprotected furniture.

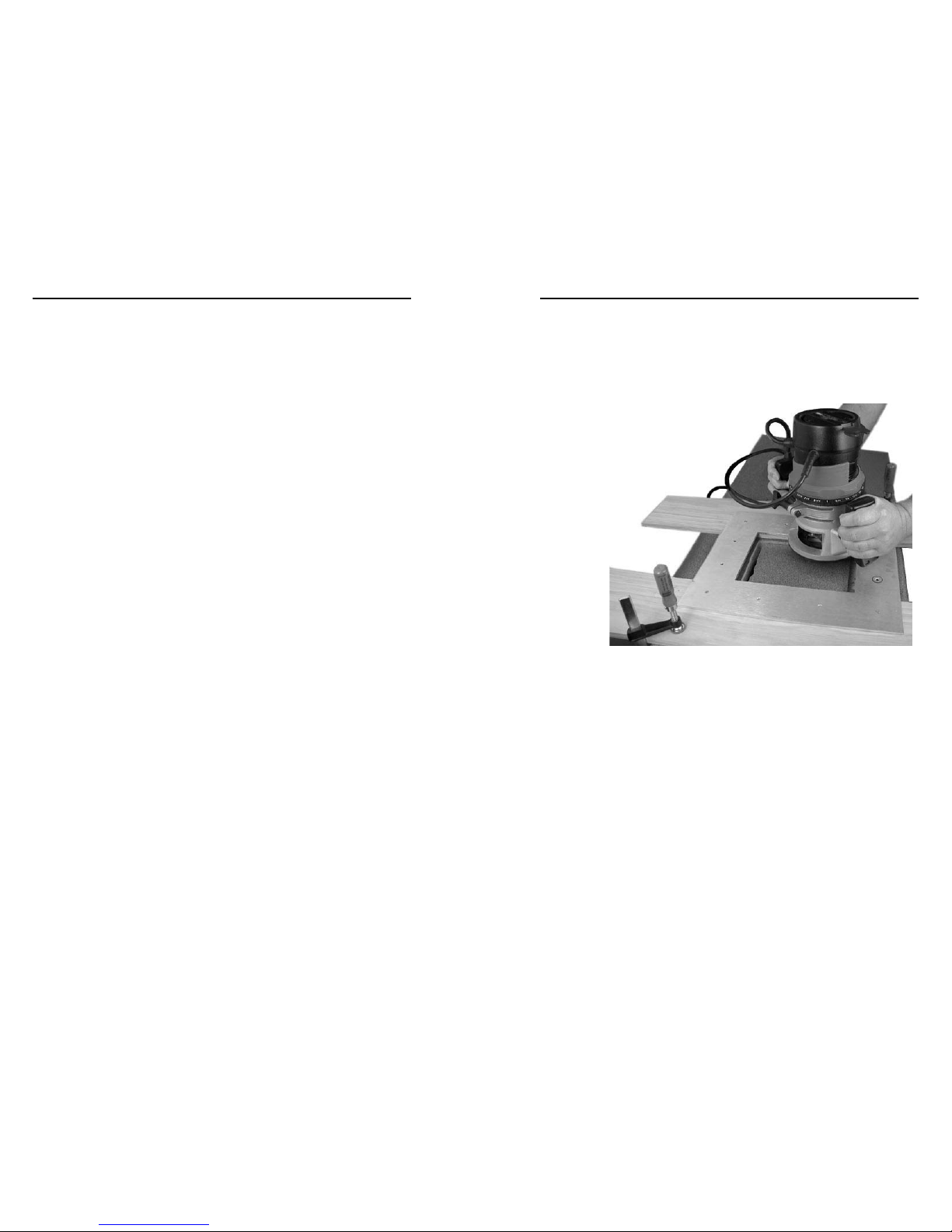

Preparing the table with a router

Prepare the table with a router as follows:

CThe routing templates for the various Cable Cubbies

are not interchangeable. If you use the wrong

template, you will cut an improperly-sized hole. If

you use a larger template than required, the cut will

result in gaps in the table surface on either side of

the enclosure.

CEnsure that only the wooden strips on the routing

template contact the furniture. Failure to do so may

mar the furniture.

NThe metal routing template is reusable. Do not discard

the template when the installation is complete. Save it

for installing other Cable Cubbies of the same size.

1. Locate the desired mounting location on the tabletop or

other installation surface. Mark the location.

2. Place the mounting template assembly on the table,

centered on the mounting location. Angle the template

for the optimum positioning. If necessary, use a square to

ensure that the template is properly positioned. Extron is

not responsible for improperly positioned Cable Cubbies.

3. Once the template assembly is positioned properly, secure

the assembly to the table with C-clamps.

WWear safety glasses when operating the router.

Failure to comply can result in eye injury.

4. Using a router with a 5/8" (or 16 mm) outside diameter

guide bushing and a 1/2" (or 12 mm or 12.7 mm) diameter

straight router bit, carefully cut the opening in the surface

(ﬁgure 2-2).

Figure 2-2 — Cutting the opening with a router

5. Remove the C-clamps and the routing template.

Cable Cubby®Products • Installation

Installation, cont’d

2-6 Cable Cubby®Products • Installation

2-7

Preparing the table with a hole saw

(Cable Cubby 300C only)

Prepare the table with a hole saw as follows:

1. On the tabletop or other installation surface, mark the 6"

circle, then ﬁnd and mark the center of the circle.

WWear safety glasses when operating the drill.

Failure to comply can result in eye injury.

2. Using a portable drill with a 6" (or 152 mm) hole saw,

carefully cut the opening in the table surface at the

desired location (ﬁgure 2-3). Extron is not responsible for

improperly positioned Cable Cubbies.

CUse a portable drill with sufﬁcient power to handle

the 6” hole saw. Exercise caution when handling

the drill and hole saw. Take care to protect the

mounting surface from damage.

Figure 2-3 — Cutting the opening with a hole saw

Installing the Cables and AAPs

Each Cable Cubby 300, 600, and 800 model ships with one or

two moveable AAP shelf assemblies. The Cable Cubby 200’s

AAP shelf is ﬁxed in place.

AAP shelf brackets (CC 300, 600, 800)

Each shipped AAP shelf assembly consists of a set of shelf

brackets and a number of cable pass-through (split) AAPs.

Depending on the Cable Cubby model, each set of shelf

brackets supports either two, three, or four single-space AAPs

(ﬁgure 2-4).

Four-Space Shelf Bracket

and Split AAPs

Three-Space Shelf Bracket

and Split AAPs

Two-Space Shelf Bracket

and Split AAPs

Figure 2-4 — Shelf brackets

The simplest way to install the cables and AAPs in the Cable

Cubby 300, 600, and 800 is to populate the shelf brackets with

split and/or standard AAPs outside the cubby and then install

the populated AAP shelf assembly into the cubby.

NCable cubby 300, 600, and 800 only —

On US/domestic models, the power module takes up

two AAP spaces. On IEC, EU, Swiss, UK, Israeli, and

Australian models, the power module takes up three

AAP spaces. Cable pass-through AAPs take two, three,

or four AAP spaces. Consider the arrangement of the

Cable Cubby AAPs when you install them so that you do

not waste AAP space.

Autres manuels pour Cable Cubby 200

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extron electronics Adaptateur

Extron electronics

Extron electronics RGB 138xi Manuel utilisateur

Extron electronics

Extron electronics VGA Line Driver P/2 DA1 Manuel utilisateur

Extron electronics

Extron electronics DPH 101 Manuel

Extron electronics

Extron electronics DPH 101 Manuel utilisateur

Extron electronics

Extron electronics BNCM-RCAM 6 Manuel utilisateur

Extron electronics

Extron electronics Captive Screw Plug to 3.5 mm Mini Jack Adapter CSM... Manuel utilisateur

Extron electronics

Extron electronics FOX II T HD 4K Manuel utilisateur

Extron electronics

Extron electronics Cables and Adapters 13W3-to-VGA Manuel utilisateur

Extron electronics

Extron electronics ASA 100 Series Manuel utilisateur

Extron electronics

Extron electronics IPA T IPA Manuel utilisateur

Extron electronics

Extron electronics PVT HD RGB Instructions d'utilisation et d'entretien

Extron electronics

Extron electronics TLCA 1 Manuel utilisateur

Extron electronics

Extron electronics PVT HDMI Manuel de service

Extron electronics

Extron electronics BNCF-BNCF/10 Manuel utilisateur

Extron electronics

Extron electronics MBC Sparc Buffer Manuel utilisateur

Extron electronics

Extron electronics DPH 101 4K PLUS Manuel utilisateur

Extron electronics

Extron electronics DVIAM-VGAF Manuel utilisateur

Extron electronics

Extron electronics ShareLink Pro WFA 100 Manuel utilisateur

Extron electronics

Extron electronics MSR 6 Manuel utilisateur

Extron electronics

Extron electronics RGB 580xi AAP Series Manuel utilisateur

Extron electronics

Extron electronics SMA-2 Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
