Extremis MARINA TABLE Guide de configuration rapide

PRODUCT

MARINA COMBO – FLOOR FASTENING – MAINTENANCE

MARINA COMBO

READ INSIDE

ASSEMBLY INSTRUCTIONS,

HOW TO USE, USEFUL TIPS

FOR KEEPING YOUR TOOL FOR

TOGETHERNESS IN SHAPE

LANGUAGES

EN – NL – DE – FR – IT – ES

WWW.EXTREMIS.COM

LANGUAGES

ENGLISH P. 3

contents p. 3

assembly marina combi p. 5

assembly oor fastening p. 8

maintenance p. 10

NEDERLANDS P. 13

inhoud p. 13

montage marina combi p. 14

montage grondverankering p. 18

onderhoud p. 20

DEUTSCH P. 23

inhalt p. 23

montage marina combi p. 24

montage bodenverankerung p. 26

pege p. 30

FRANÇAIS P. 33

contenu p. 33

montage marina combi p. 34

montage ancrage au sol p. 38

entretien p. 40

ITALIANO P. 43

contenuto p. 43

montaggio marina combi p. 44

montaggio ancoraggio al suolo p. 48

manutenzione p. 50

ESPAÑOL P. 53

contenido p. 53

montaje marina combi p. 54

montaje anclaje al suelo p. 58

mantenimiento p. 60

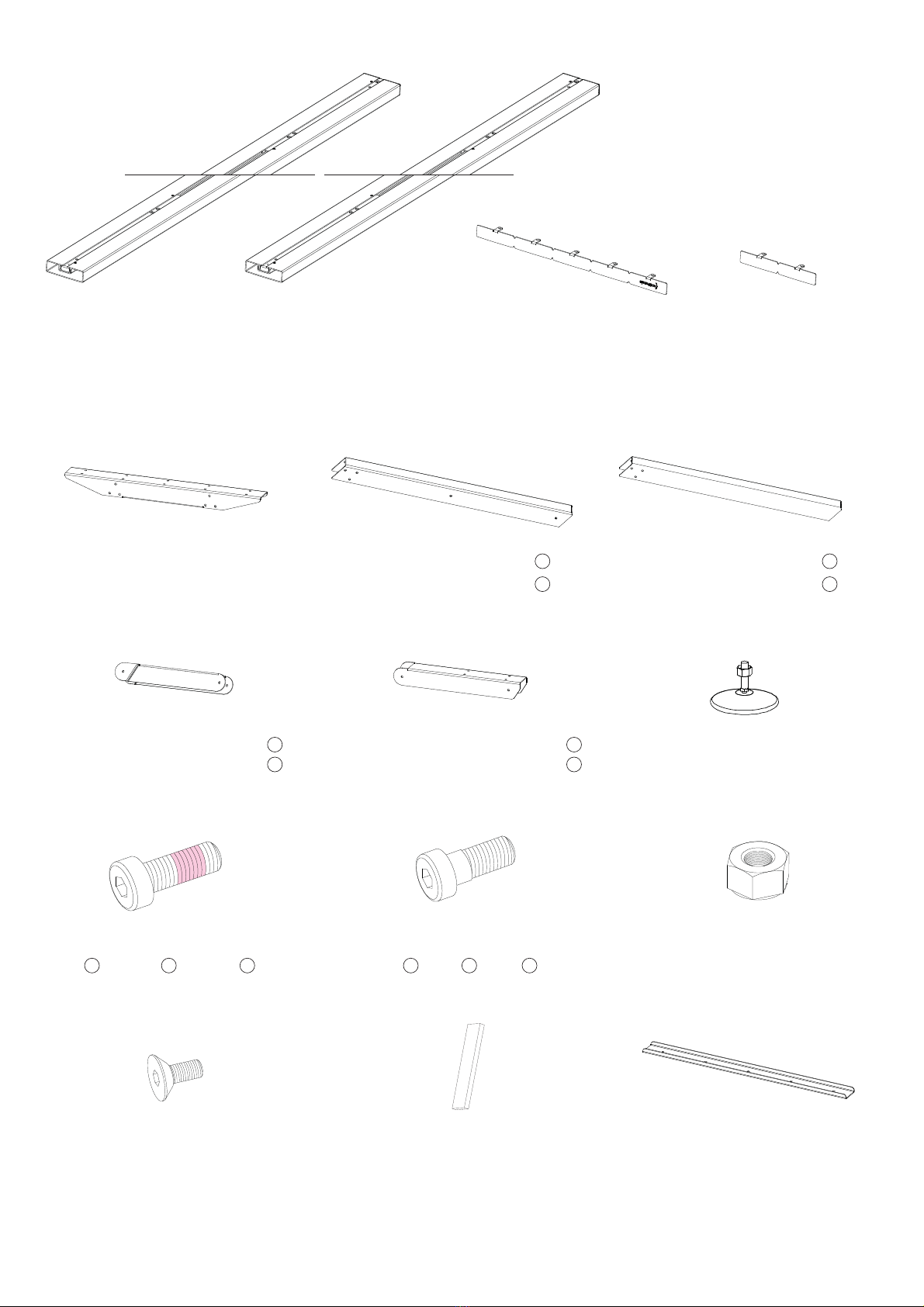

2 contents

2 x N x bench support

1 x N x bench support

2 x N x bench connection

1 x N x bench connection

2 x N x adjustable foot with M10

nut

M6 x 20 hexagon socket bolt

(10/12 + 18/20 + 14/16 + 5/6

x O)

M6 x 16 hexagon socket bolt

(12 + 24 + 18 )

24 x N x M6 lock nut

1 1

2 2

3 3

2 2

3 3

M5 x 12 countersunk bolt

(5/6 x tabletop end piece +

2 x bench end piece)

10 x spacer N - 1 x reinforcement prole

(if distance between legs without

bench is greater than about

2300 mm)

N x tabletop connection 2 x N x table leg

1 x N x table leg

2 x N x table leg

1 x N x table leg

5/6 x proles

(for tabletop)

2 x X x proles

(for benches)

2 x tabletop end piece 2 x N x bench end piece

N = number of legs

O = number of reinforcement

proles

X = number of benches

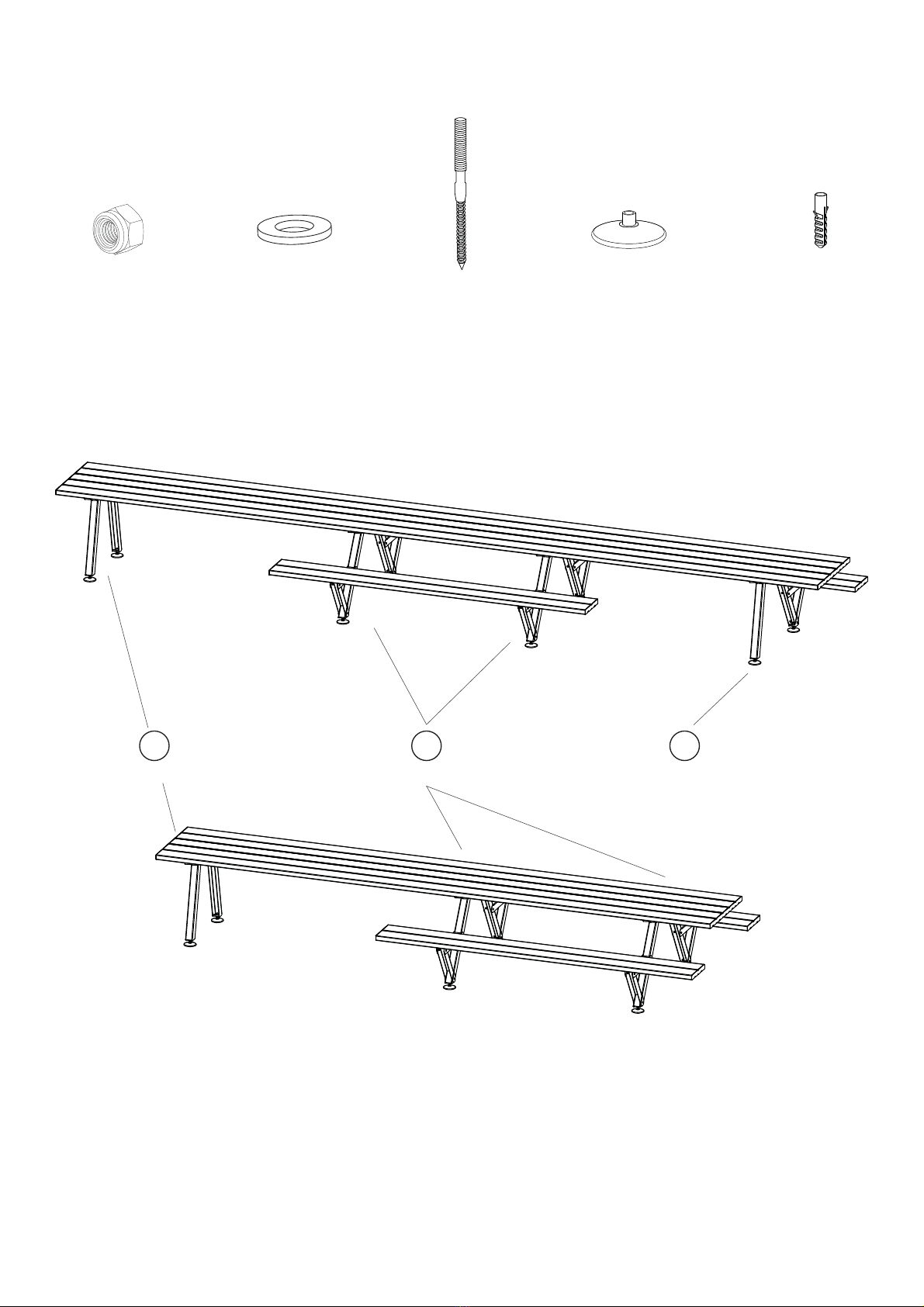

CONTENTS

english 3

123

table

leg

picnic leg combi leg

2 x N x M8 nut 2 x N x M8 plain

washer

2 x N x M8x100

dowel screw

2 x N x foot 2 x N x 12x60 plug

FLOOR FASTENING

OPTIONAL

4 contents + assembly marina combo

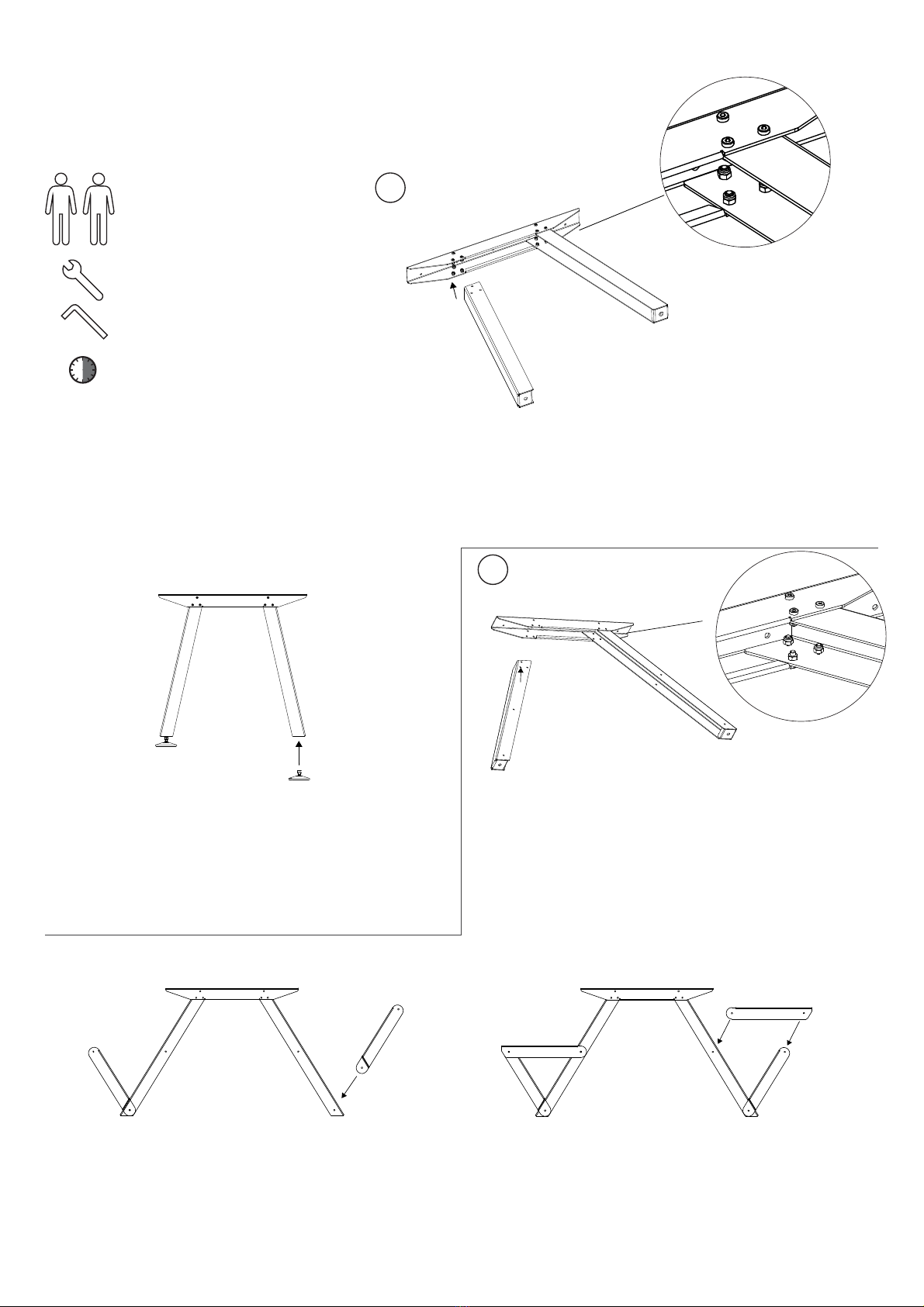

2. Slide the bench supports onto the table legs. 3. Slide the bench connections onto the table leg and the

bench support. First push 12 M6 x 16 hexagon sockets

bolt shas through the pre-drilled holes. Make sure

that the bolts are on the outside. Only then thread the

12 lock nuts onto the shas of the bolts and tighten

them rmly!

2. Now screw the adjustable feet into the legs. Repeat step

1 through 2 for each table leg assembly and put them

aside.

1. Insert the table legs into the tabletop connection,

aligning the 3 holes, and use 12 M6 x 16 hexagon

socket bolts and 12 lock nuts to fasten them. First push

all the bolt shas through the holes and make sure that

the bolts are on the outside. en thread the nuts onto

the shas of the bolts and tighten them rmly.

1. Insert the table legs into the tabletop connection, aligning the 3 holes, and

use 12 M6 x 16 hexagon socket bolts and 12 lock nuts to fasten them. First

push all the bolt shas through the holes and make sure that the bolts are

on the outside. en thread the nuts onto the shas of the bolts and tighten

them rmly.

look at p. 4 which type of

legs you have

ASSEMBLY MARINA COMBO

WHAT YOU NEED

no. 3 - 4 hex key

no. 10 - 17 spanner

min. 2 people

+/- 60 - 120 min.

(depending on the length

of the table)

english 5

4. Now screw the adjustable feet into the legs. Repeat step

1 through 4 for each table leg assembly and put them

aside.

1. Put the 5/6 tabletop proles on the oor, with the slots

facing upwards, and make sure that the crosses are

facing the same way. Insert a spacer between each

prole at +/- 40 cm from the end.

2. Slide the bench supports onto the table legs. 3. Slide the bench connections onto the table leg and the

bench support. First push 12 M6 x 16 hexagon sockets

bolt shas through the pre-drilled holes. Make sure

that the bolts are on the outside. Only then thread the

nuts onto the shas of the bolts and tighten them

rmly!

4. Now screw the adjustable feet into the legs. Repeat step

1 through 4 for each table leg assembly and put them

aside.

1. Insert the table legs into the tabletop connection,

aligning the 3 holes, and use 12 M6 x 16 hexagon

socket bolts and 12 lock nuts to fasten them. First push

all the bolt shas through the holes and make sure that

the bolts are on the outside. en thread the nuts onto

the shas of the bolts and tighten them rmly.

ASSEMBLY MARINA COMBO

6 assembly marina combo

6. Position the benches on the bench connections and

fasten them using 4 M6 x 20 hexagon socket bolts per

leg per side. First screw bolts , but do not tighten

them. ereaer bolts .Now tighten all bolts with a

hexagon socket wrench no. 4.

7. Level the table by screwing the adjustable feet in or out

and fasten the feet by turning the nut until it sits

against the leg.

4. Put the 2 bench proles on the oor, with the slots

facing upwards, and make sure that the crosses are

facing the same way. Insert a spacer between the

proles at +/- 40 cm from the end.

5. Insert the bench end piece with the lips into the slots

from le to right. Fasten them using the M5 x 12

countersunk bolts per side. Repeat this operation on

the other side, this time from right to le. Remove the

spacers.

2. Insert the tabletop end piece with the lips into the slots

from le to right. Fasten them using 5/6 M5 x 12

countersunk bolts. Repeat this operation on the other

side, this time from right to le.

3. Now fasten the table leg assembly with the tabletop

connection to the proles, each time at the intended

place, using 10/12 M6 x 20 hexagon socket bolts +

reinforcement proles. Remove the spacers and turn

over the table.

english 7

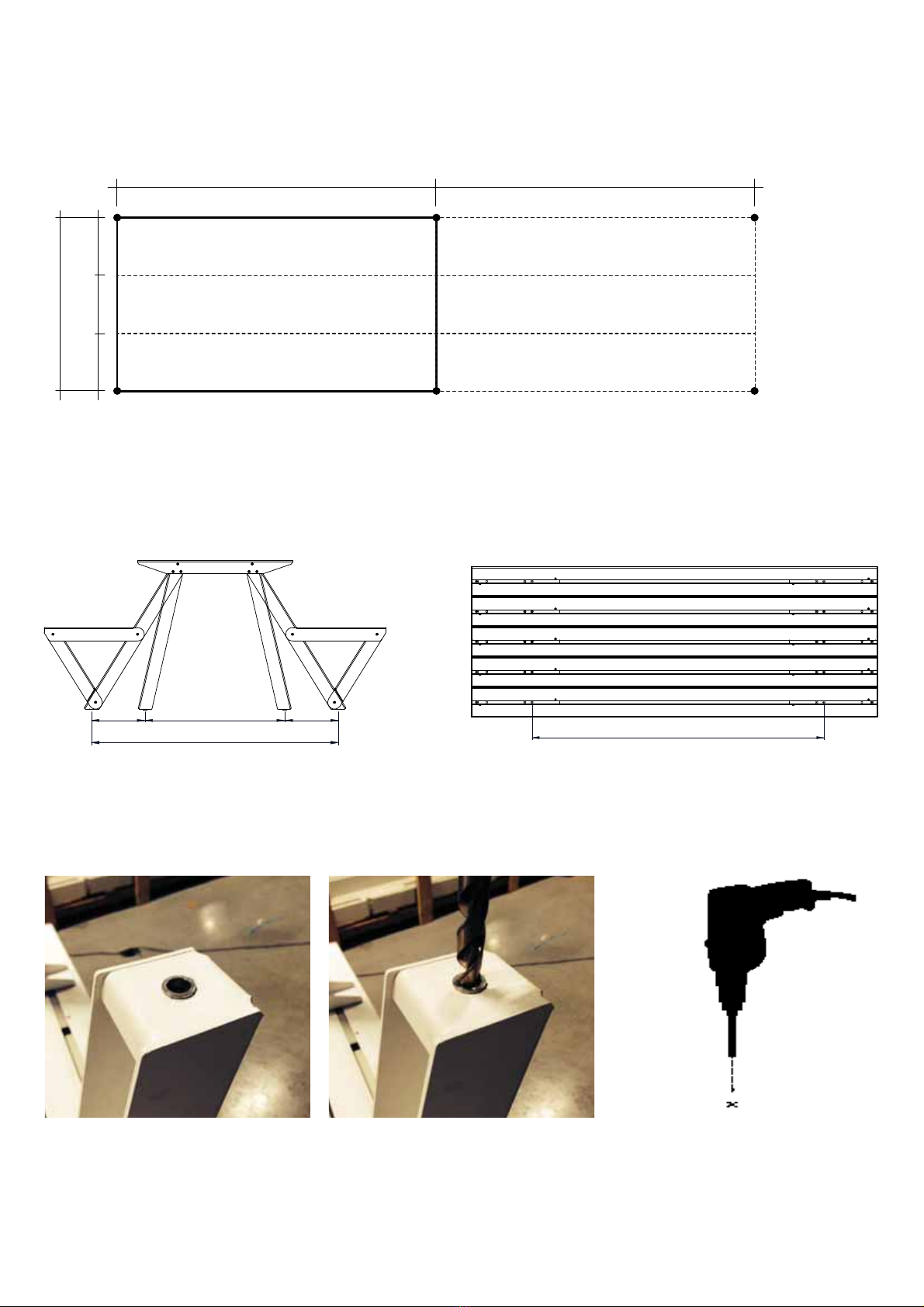

B L

BB1

B (5 proles) = 1100,50 mm

B (6 proles) = 1245,50 mm

B1 (5 proles) = 620 mm

B1 (6 proles) = 765 mm

L = distance between the legs

Attention! If the oor fastening set

was ordered later, it is likely that the

nuts are still in the legs.

Drill the nuts out of the legs with

a ø12 drill. Now continue with the

next steps.

2. Use an electric drill to drill 12 mm

diameter holes on the spots you

marked and insert a 12 x 60 plug

in each hole.

B2 (5 proles) = 240,25 mm

B2 (6 proles) = 240,25 mm

1. Mark the spot on the ground where you want to put the table. ere are two anchor points per leg frame (see

diagram above).

L = distance between the legs

B = width of the leg frame

ASSEMBLY FLOOR FASTENING

8 assembly floor fastening

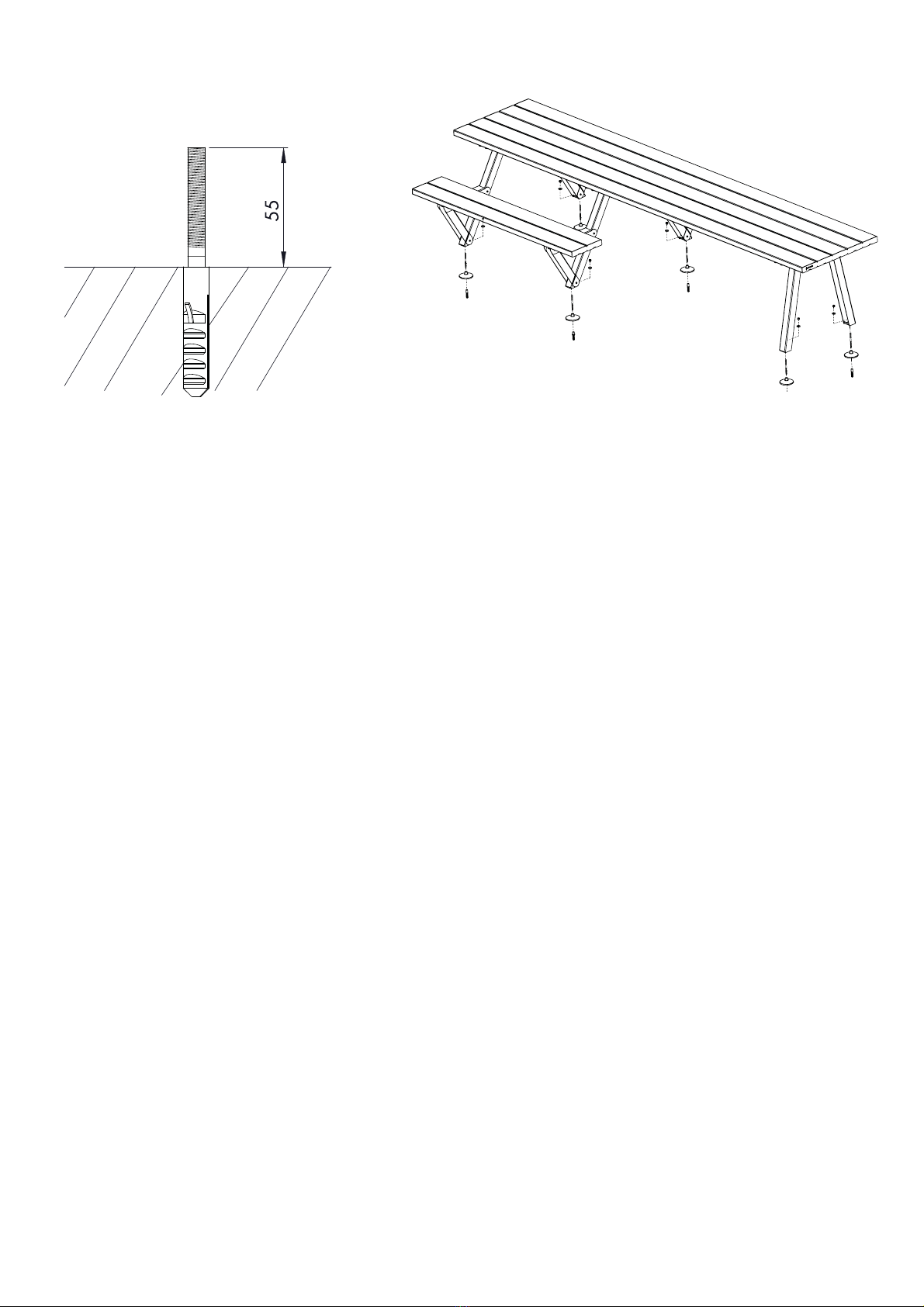

3. Screw the dowel screws into the plugs so that it

protrudes 55 mm.

4. Align the feet with the dowel screws and put the table

on top of them. Now fasten the table to the ground

using the supplied plain washers M8 & nuts M8.

english 9

10 maintenance

MAINTENANCE

TABLETOP & BENCHES

Use common kitchen cleaning

products. Avoid using aggressive

products. ese surfaces are best

cleaned with a neutral cleaning

product diluted in water.

In case of stubborn stains, we

recommend using a magic sponge.

Stubborn stains can also be removed

using acetone.

To provide extra protection, place a

dirt-repellend lm on the proles by

applying silicone spray and carefully

spreading it with a rubbing motion.

POWDER COATED LEGS

Clean with warm water and non-

abrasive cleaning product. en

dray with a so cloth.

DO NOT USE abrasive scouring

powders or scourers as they will

scratch the surface.

MAGIC SPONGE

Only use the Miraclean sponge when

normal cleaning with lukewarm

water, so soap and a normal sponge

isn’t sucient!

If stubborn stains remain visible

aer treatment according to the

instructions (see product manual),

you can use the MiraClean sponge

provided. Dip the sponge in water

and rub it over the stain. Do not

rub too hard with this sponge as

this might cause dull patches on a

surface.

ere is no need to use cleaning

products. Water alone is sucient.

is sponge is made of melamine

resin and wears away with use. e

sponge is very easy to use and gives

results up to 26 times more quickly

than a traditional microbre cloth.

e magic sponge gets rid of most

stubborn stains without extra eort.

Never use this sponge on high-

gloss surfaces as it may cause dull

patches.

e magic sponge is the solution for

getting rid of stubborn stains such

as felt-tip pens, grease, scu marks,

limescale marks or coee and tea

stains. e magic sponge can be used

on tarpaulin fabric, plastic proles,

glass, steel, chrome, aluminium,

porcelain, articial leather and

many types of oor.

For more information, contact

Extremis: info@extremis.be

IMPORTANT

Stains should be removed

immediately with a clean, so cloth,

particularly in case of dark-coloured

liquids such as wine, ink, coee,

coke, oil and bird droppings. If

le to dry, these liquids may cause

permanent damage!

CAUTION

We strongly advise against using

power tools given the risk of thread

galling on the stainless steel bolts.

For tables with 3 legs or move, we

recommend using trestles to attach

the table leg assemblies to the

tabletop, instead of keeping it upside

down.

We strongly advise you against

standing on top of the table! A

concentrated load can cause small

perceptible cracks in the proles

that might be visually annoying,

although they do not aect the

strength of the table in any way.

Autres manuels pour MARINA TABLE

Table des matières

Langues :

Autres manuels Extremis Mobilier d'extérieur

Extremis

Extremis Hopper AA picnic Manuel utilisateur

Extremis

Extremis AMAi Manuel utilisateur

Extremis

Extremis Marina bistro Manuel utilisateur

Extremis

Extremis Pantagruel picnic Manuel utilisateur

Extremis

Extremis AMAi Manuel utilisateur

Extremis

Extremis AMAi Manuel utilisateur

Extremis

Extremis Manille Manuel utilisateur

Extremis

Extremis MARINA TABLE Manuel utilisateur

Extremis

Extremis Abachus Manuel utilisateur

Extremis

Extremis Bistroo Manuel utilisateur

Extremis

Extremis AMAi shade Manuel utilisateur

Extremis

Extremis AMAi HiLo Bench Manuel utilisateur

Extremis

Extremis MARINA PICNIC Manuel utilisateur

Extremis

Extremis Anker Manuel utilisateur

Extremis

Extremis Sensu Manuel utilisateur

Extremis

Extremis Hopper Picnic Manuel utilisateur

Extremis

Extremis MARINA PICNIC Guide de configuration rapide

Extremis

Extremis Marina double desk Manuel utilisateur

Extremis

Extremis Hopper picnic 2 Manuel utilisateur

Manuels Mobilier d'extérieur populaires d'autres marques

Belleze

Belleze 014-HG-20074 Manuel utilisateur

Hatteras Hammocks

Hatteras Hammocks DCA1-K-HH Manuel utilisateur

Kozyard

Kozyard Morgan Aluminum Pergola Manuel utilisateur

Lemeks

Lemeks Palmako PA120-5959 Manuel de l'installateur

Polywood

Polywood 400 Series Manuel utilisateur

OLT

OLT 24 Manuel utilisateur

forest-style

forest-style HACIENDA 2354 Mode d’emploi

Courtyard Creations

Courtyard Creations RUS0188-WM Manuel utilisateur

RPR

RPR OLLIE CHAIR Manuel utilisateur

kingsley-bate

kingsley-bate MC-55 Manuel utilisateur

Weltevree

Weltevree Carrier Manuel utilisateur

Grange Fencing

Grange Fencing Elite Arch Manuel utilisateur

Grosfillex

Grosfillex AUVENT YR14 Manuel utilisateur

X-METAL

X-METAL EAGLE 33511 Manuel utilisateur

Anova

Anova FBW6R Manuel utilisateur

Outsunny

Outsunny 84A-090 Manuel utilisateur

Ivy Terrace

Ivy Terrace IVTD212 Manuel utilisateur

Breezesta

Breezesta FANBACK ADIRONDACK AD-0101 Manuel utilisateur
