Extreme Flight Turbo Bushmaster Manuel utilisateur

1



120”TurboBushmaster



2



Pleasetakeafewmomentstoreadthisinstructionmanualbeforebeginningassembly.We

haveoutlinedafast,clearandeasymethodtoassemblethisaircraftandfamiliarizing

yourselfwiththisprocesswillaidinaquick,easybuild.

Pleasereadthefollowingparagraphbeforebeginningassemblyofyouraircraft!



THISISNOTATOY!Seriousinjury,destructionofproperty,orevendeathmayresultfrom

themisuseofthisproduct.ExtremeFlightRCisprovidingyou,theconsumerwithaveryhigh

qualitymodelaircraftcomponentkit,fromwhichyou,theconsumer,willassembleaflying

model.Itisbeyondourcontroltomonitorthefinishedaircraftyouproduce.ExtremeFlight

RCwillinnowayacceptorassumeresponsibilityorliabilityfordamagesresultingfromthe

useofthisuserassembledproduct.ThisaircraftshouldbeflowninaccordancetotheAMA

safetycode.ItishighlyrecommendedthatyoujointheAcademyofModelAeronauticsin

ordertobeproperlyinsured,andtooperateyourmodelatAMAsanctionedflyingfields

only.IfyouarenotwillingtoacceptALLliabilityfortheuseofthisproduct,pleasereturnit

totheplaceofpurchaseimmediately.

ExtremeFlightRCguaranteesthiskittobefreeofdefectsinmaterialsandworkmanshipfor

aperiodof30DAYSfromthedateofpurchase.Allwarrantyclaimsmustbeaccompaniedby

theoriginaldatedreceipt.Thiswarrantyisextendedtotheoriginalpurchaseroftheaircraft

kitonly.

ExtremeFlightRCinnowaywarrantiesitsaircraftagainstflutter.Wehaveputtheseaircraft

throughthemostgruelingflighttestsimaginableandhavenotexperiencedanycontrol

surfaceflutter.Properservoselectionandlinkageset-upisabsolutelyessential.Inadequate

servosorimproperlinkagesetupmayresultinflutterandpossiblythecompletedestruction

ofyouraircraft.Ifyouarenotexperiencedinthistypeoflinkageset-uporhavequestions

regardingservochoices,pleasecontactusat[email protected]or770-887-1794.It

isyourresponsibilitytoensuretheairworthinessofyourmodel.



3



ExtremeFlightandLegacyAviationareexcitedtoannouncethereleaseofthelongawaited

120"Bushmaster!ThebrainchildofCodyWojcik,thisdesignbuildsonthelegacyofthe

original84"and65"versionswhichhavebecomemusthaveadditionstothehangarsofRC

enthusiastsaroundtheglobe.Renownedforitsabilitytobebotha"relaxingbutnever

boring"sportmodelaswellasafullycapablebushstyleaerobat,theBushmasterdesignhas

wonlegionsoffanswhosimplywantagreatflyingmodelwithauniqueappearanceand

style.NowLegacyAviationdeliversthenextstepinthisseriesaimedatthegiantscale

enthusiast,the120"Bushmaster!DesignedaroundtheXpwr60brushlessoutrunnerand

theDA-70twincylindergasengine,theBushmasterdeliversaboutasmuchfunascanbe

hadwithanRCaircraftwitheitherchoiceofpowerplant.We'verecentlybeenflyingour

DA-70poweredversionwitha2into1headerandsinglecanistermufflersetupwhich

deliversquietconsistentpowerandlongflighttimes.OfcoursetheXpwr60versionwitha

12S5000+mahbatterysetupprovidesexcellentpowerandiscleanandquiet.Whichever

powersystemyouchoose,youarecertaintohaveamostfulfillingflyingexperience!

TheBushmasterfeaturesalightweightbuiltupbalsaandplywoodairframewith

strategicallyplacedcompositereinforcementstoaddstrengthandrigidity.Itfeaturesa

carbonfibermaingearandtailwheelassemblyalongwithcarbonfiberwing,staband

ruddermountingtubesandtwogorgeousUltracote(Oracover)colorschemes.Anexpertly

paintedfiberglasscowlisstandardfarealongwithaprolevelhardwarepackage.An

optionalfloatkitisalsoavailableforwaterbasedoperations.



Ultracote/OracoverColorCodes:

White/Blue/Silverscheme:UltracoteHANU870White,HANU885MidnightBlue,HANU881

Silver.Oracover21-010White,21-052DarkBlue,21-091Silver.

Yellow/Black/Greyscheme:UltracoteHANU872BrightYellow,HANU874Black,HANU882

LightGrey.Oracover21-033CadmiumYellow,21-071Black,21-011Grey.



4



Recommendedaccessories:

DesertAircraftDA-70gasengineorXpwr60ccbrushlessoutrunner

MTWTD110Hrearexhaustcanisterwith60mmdrop,2-into-1headerandcouplerkit

24-34ounceFlowmastergastank

EFAnodizedfueldot

EFBluefuelline

52"EFservoarms(ailerons,flaps,rudder)

21.5"EFservoarms(elevators)

11"EFservoarm(throttle)

11.25"EFlightweightservoarm(tailwheelsteering)

BlazingStarDA-70mount

BlazingStarXXLStandoffsetforXpwr60

CastleCreations160HVESC

Falcon24x9carbonpropforDA-70

Xoar24x10or24x12woodorFalcon26x8carbonpropforXpwr60

Qty.2–EF6inch20AWGservoextension(Flaps)

Qty.3–EF24inch20AWGservoextension(Ailerons,throttle)

Qty.3-EF36inch20AWGservoextension(Elevators,tailwheelservo)

Qty.1–EF48inch20AWGservoextension(Rudder)

2setsEFMPXMulti-wireservoplug(2wireversion)

EFServoWireSafetyClips

4"EFCarbonFiberspinner

7hightorquemetalgearservosforcontrolsurfaces(MKS1220,MKS777A+orequivalent)

1highspeedservoforthrottle(MKS1250)

1metalgearminiservofortailwheelsteering(Hitec5245,7245)



5



Let’sbegin!

1.Locatethe2wingpanelsaswellastheG10aileronandflapcontrolhorns.Usesandpaper

toscufftheportionofthecontrolhornthatwillbegluedintothesurface.Foramore

finishedlookyoumaywishtopaintyourcontrolhornsbeforeinstallation.Donotpaintthe

portionofthecontrolhornthatwillglueintothecontrolsurface.



2.Usingasolderingironorasharphobbyknife,removethecoveringfromtheslotsforthe

aileronandflaphorns.Placethecontrolhornsintothebaseplate.Dryfitthehornsinto

theirrespectiveslotsandtrimanydebrisfromtheslotuntilthecontrolhornseatsproperly

againstthecontrolsurface.Sandawayanyportionofthebaseplatethatmayextend

beyondtheedgeofthebevel.Oncesatisfiedwithfitremovethecontrolhornsanduseyour

hobbyknifetoremovethecoveringthatisunderthebaseplateforbestglueadhesiontothe

surface.



6



3.Applyagenerousportionof30-minuteepoxytotheaileronandflapcontrolhornslots

andtothescuffedareaofthecontrolhorns.Itmaybehelpfultouseaziptietopushthe

epoxyintotheslots.

4.Assemblethecontrolhornsandballlinksasshownandinstallthecontrolhornsinto

theirrespectiveslots.Wipeawayanyexcessepoxywithapapertowelorclothsoaked

withdenaturedalcohol.

 



5.Inthesenextstepswewillinstallthehinges.Pleasetakeafewmomentstofamiliarize

yourselfwiththisprocessifyouhavenotinstalledhingepointsbefore.

Thereareseveralwaystodothisandseveraladhesivesyoucanuse.Wewilldescribethe

waythatwedoit,asthismethodhasprovenitselfovermanyyearsofmodelbuilding.If

youarenewtothistypeofhingingprocess,thenIrecommendthatyouinstallasingle

hingefirstjusttoacquaintyourselfwiththismethod

Beforestartingyouwillneedtogatherafewitemstoaidyouasyouproceed.

A. 30MinuteEpoxy

B. Ashortlengthofpushrodorsmalldowel.

C. Arollofpapertowels

D. DenaturedalcoholorAcetone

E. HobbyKnife

F. Teflonlubricant

7



6.Locateawingpanelandseparatethecontrolsurfacesfromthemainwingandremove

thehinges.

7.Mixupagenerousbatchofepoxyanduseapieceofpushrodordoweltoapplythe

epoxytothehingehole.



8.Applyepoxytothebarbedsectionofthehingeononesideandinsertitintothehole

untilthecenterofthehingeiscenteredonthehingeline.Usingapapertowelsoaked

withacetoneordenaturedalcoholwipeawayanyepoxythathasbeensqueezedoutof

thehole.



8



9.Makesurethehingecanmovefreelyandthatthepinisalignedproperlybeforethe

epoxysets!Whenyouaresatisfiedwiththeresultssetthesurfaceasidesothatthe

epoxywillpoolaroundtherearofthehinge.Whenyouarecomfortablewiththis

processyoushouldbeabletodoonesideofasurfaceperbatchofepoxy.Repeatthe

processtoattachthesurfacestoeachwing.Thereshouldbeaslittlegapaspossible

whilestillallowingmaximummovementofthecontrolsurface.



10.Asafinalstepbeforesettingthewingasidetodry,doafinalcleaningofthehinge

knuckleswithapapertowelsoakedwithdenaturedalcoholoracetonetoremoveany

epoxyresidue.Ifyoufindanyofthehingesarestiffafterdrying,applyadropofacetone

toeachhingewithaQ-tipandmovethesurfacebackandforthseveraltimestoloosenit

up.AsafinalstepItypicallyapplyacoupledropsofTeflonlubricanttoeachhinge.This

isavailableatmosthomeimprovementandhardwarestores.

11.Youwillneedtoattacha24inchservoextensiontoyouraileronservotoreachthe

wingroot.Theflapservowirewillrequirea6inchextension.Securetheextensionsto

theservoleadswithheatshrinktubingoraservowiresafetyclip.



9



12.Usethemanufacturersuppliedmountinghardwaretoinstallthewingservoswith

theoutputshafttowardtheTRAILINGEDGEofthewing.Electronicallycenterthe

servoandinstall2inchservoarmsontotheservospline.Theservoarmsshouldbe

paralleltothehingelinewhencentered.Itisveryimportantthatyouusethesame

lengthservoarmsforbothflapandaileronservos.



13.Foreaseoffieldassemblywehighlyrecommendusing2setsoftheExtremeFlight

MPXMulti-wireservoplugs.Attachthesetotheservoextensionsprotrudingfromthe

wingforafastandeasysingleplugsolutiontowingservoconnections.Besuretosecure

theMPXplugleadsothatitcannotfloparoundinsideofthewing,possiblycausingthe

plugtopulloutofthereceivingsocket.



10



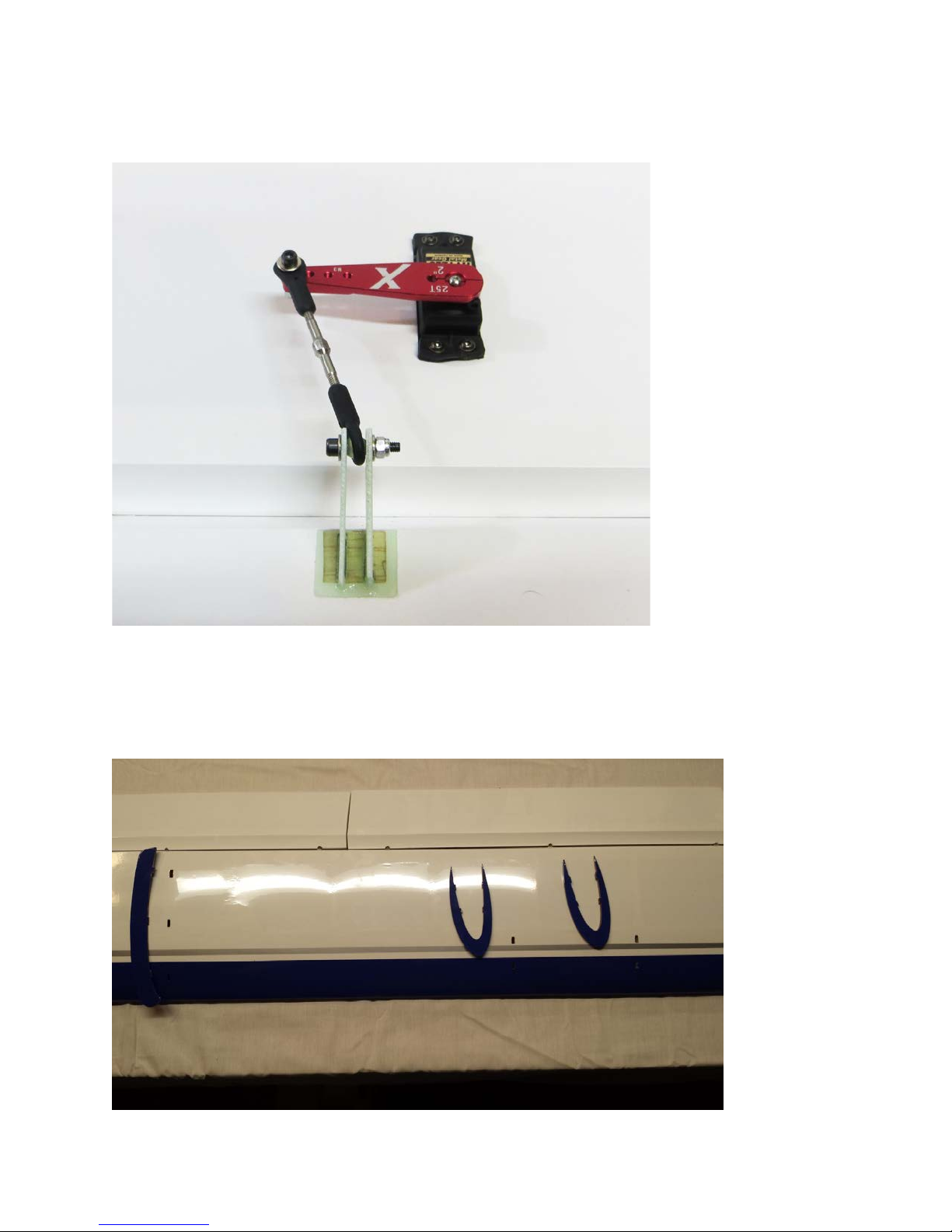

14.Usethesuppliedballlinks,turnbucklepushrods,3mmbolts,washersandnutsto

assembletheaileronandflaplinkagesandsecuretotheservoarmandcontrolhorns

asillustratedinthefollowingphoto.Boththeaileronandflaplinkageareassembled

thesameway.



15.Locatethewingfencesandtrialfitontothewing.Somesandingmayberequired

forbestfit.Werecommendgluingthefencesinplacewithepoxy.Usetapeorclamps

toholdthefencesinplacewhiletheepoxycuresmakingsuretheyareperpendicular

tothesurfaceofthewing.Twostripsoftapeplacedparalleltothefenceswillkeep

excessepoxyfromgettingonthewingsurface.


