120cc Build Guide120cc Build Guide
Please read the following paragraphs before beginning assembly of your aircraft!
THIS IS NOT A TOY! Serious injury, destruction of property, or even death may result from the misuse of this
product. Extreme Flight RC is providing you, the consumer with a very high quality model aircraft component
kit, from which you, the consumer, will assemble a flying model. It is beyond our control to monitor the finished
aircraft you produce. Extreme Flight RC will in no way accept or assume responsibility or liability for damages
resulting from the use of this user assembled product. This aircraft should be flown in accordance to the AMA
safety code (or code appropirate to your region). It is highly recommended that you join the Academy of Model
Aeronautics in order to be properly insured, and to operate your model at AMA sanctioned flying fields only. If
you are not willing to accept ALL liability for the use of this product, please return it to the place of purchase
immediately.
Extreme Flight RC guarantees this kit to be free of defects in materials and workmanship for a period of 30
DAYS from the date of purchase. All warranty claims must be accompanied by the original dated receipt. This
warranty is extended to the original purchaser of the aircraft kit only.
Extreme Flight RC in no way warranties its aircraft against flutter. We have put these aircraft through the most
grueling flight tests imaginable and have not experienced any control surface flutter. Proper servo selection
and linkage set-up is absolutely essential. Inadequate servos or improper linkage set up may result in flutter
and possibly the complete destruction of your aircraft. If you are not experienced in this type of linkage set-up
or have questions regarding servo choices, please contact us at info@extremeflightrc.com or 770-887-1794.
It is your responsibility to ensure the airworthiness of your model.
Special notes on120cc aerobatic monoplanes:
Extreme Flight 35%/120cc aerobatic monoplanes are a high-point in RC aerobatic capability and are champi-
ons of freestyle RC contests worldwide. Their performance is truly extreme. Choose your components wisely.
Use only the best servos and arms to prevent flutter. Tie and wrap and fasten your equipment extremely well
inside the airframe to prevent anything coming loose in flight.
It is assumed that anyone assembling and flying a 35% Extreme Flight aerobatic monoplane is an experienced
assembler of RC aircraft. For this reason this assembly guide will not teach basic aspects such as how to
shrink covering material. We will cover details specific to this series of aircraft. If this is your first aerobatic RC
aircraft, it is highly recommended that you recruit an experienced giant scale RC enthusiast to inspect your
work before you maiden. Please read through these instructions to familiarize yourself with tools, materials,
and techniques before you begin assembly.
1. is assembly guide covers the entire series of 120cc aerobatic monoplanes. ey all assemble in
fundamentally the same way. ere are detail dierences between the aircra, but they are slight
in terms of assembly. Because these are large aircra and can be dicult to move around, we will
begin with assembly of the landing gear so that the aircra will be up on its wheels for later steps.

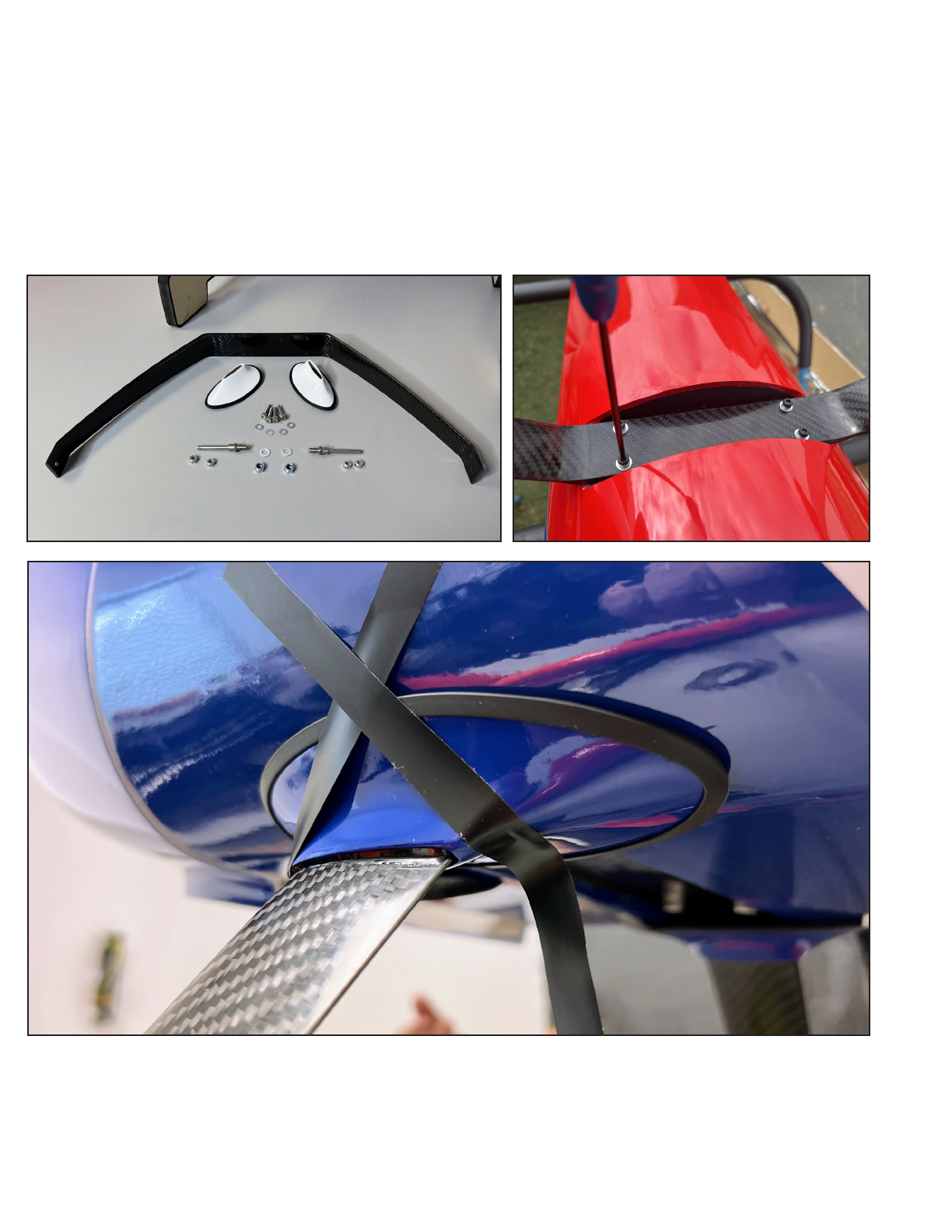

Screw the landing gear to the fuselage, the gear sweep slightly forward when installed correctly. Use
blue loctite or equivalent threadlocker on the gear attachment screws. Locate the gear-to-fuselage
fairings. We recommend to glue the fairings to the landing gear *only* (not ot the fuselage) with a
large dollop of rubberized glue such as “Goop”. Tape the fairings in place until the glue is dried.

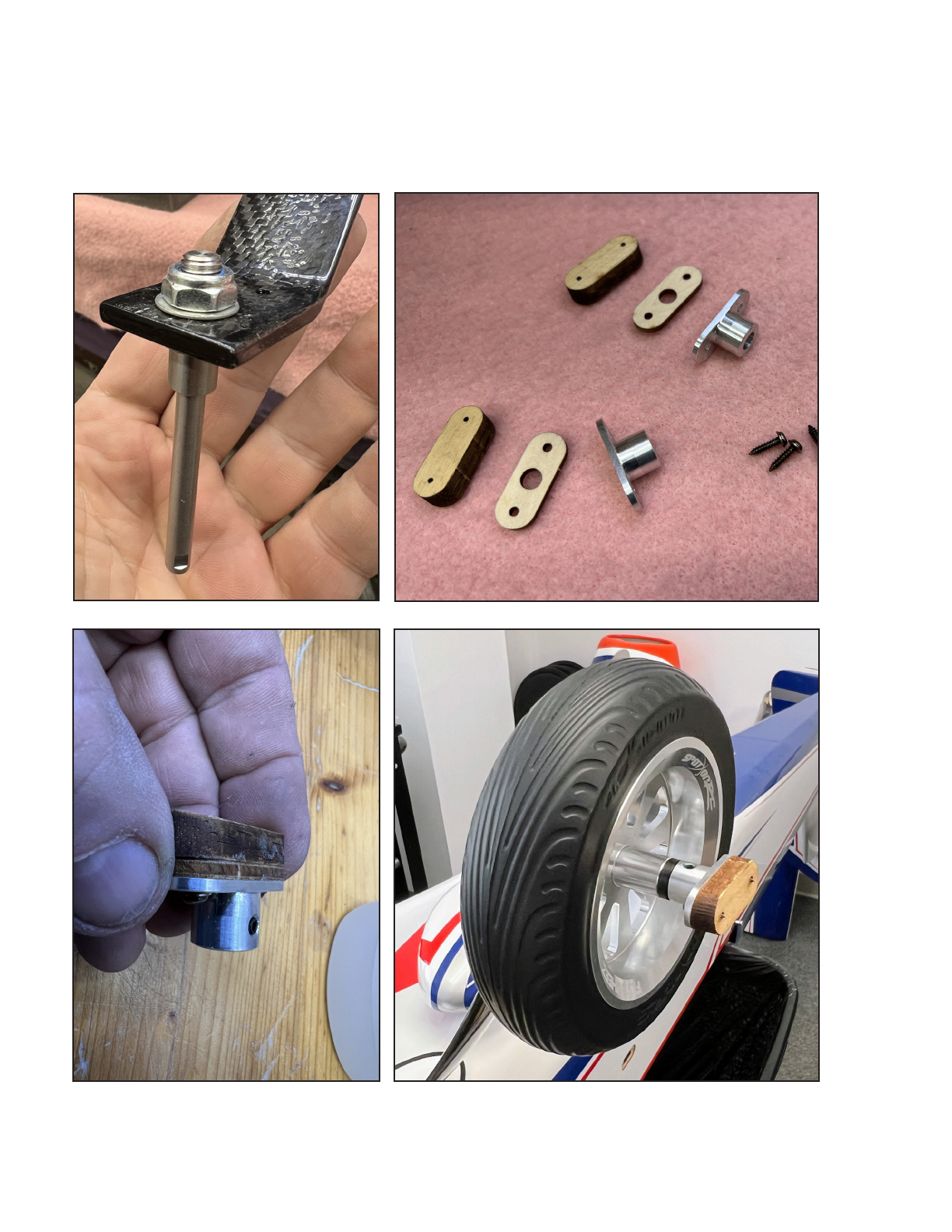

2. e axle system includes a wheel-pant-saver mechanism. Begin by attaching the axles to the
landing gear with washers and self-locking nuts, nd the at spot on the outboard end of the
axle and orient this at spot *down* to face the runway. Assemble the “pant saver” as shown
and install the wheels as shown with the pant saver as the outboard wheel retainer. In these
photos, we show the installation of optional “Spot On” wheels, available from Extreme Flight
RC.

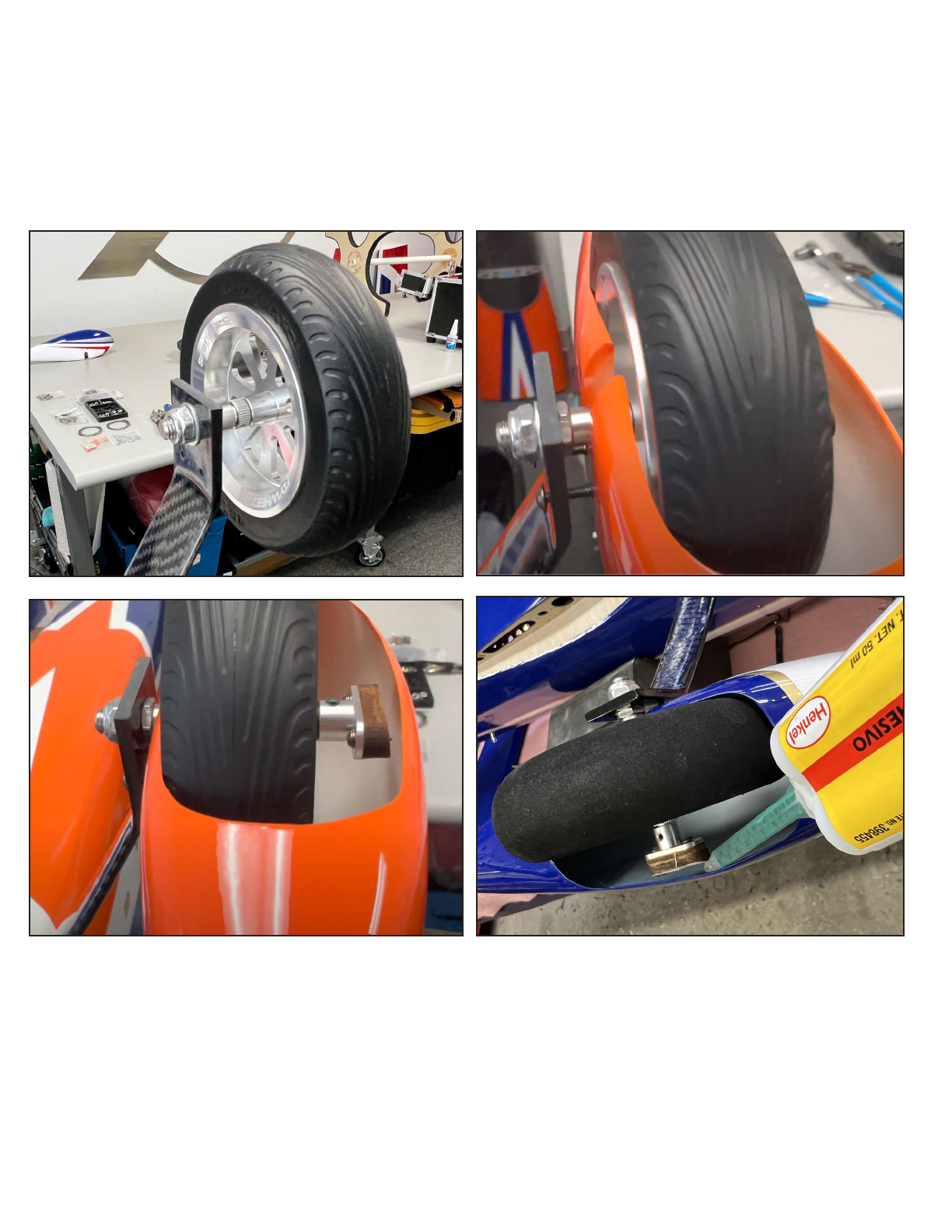

3. Using loctite, start the screws which hold the wheelpant into the landing gear, but leave them
loose. Please a dab of epoxy glue between the wooden pad of the “pant saver” and the wheelpant.
Tighten the screws holding the wheelpant to the landing gear.
4. Locate the tailwheel, screws, and tiller keepter (nylon ball link). Glue the keeper into the
hole in the bottom of the rudder with epoxy. Install the tailwheel onto the fuse using the
screws and blue loctite threadlocker. Put the plane up on its landing gear.

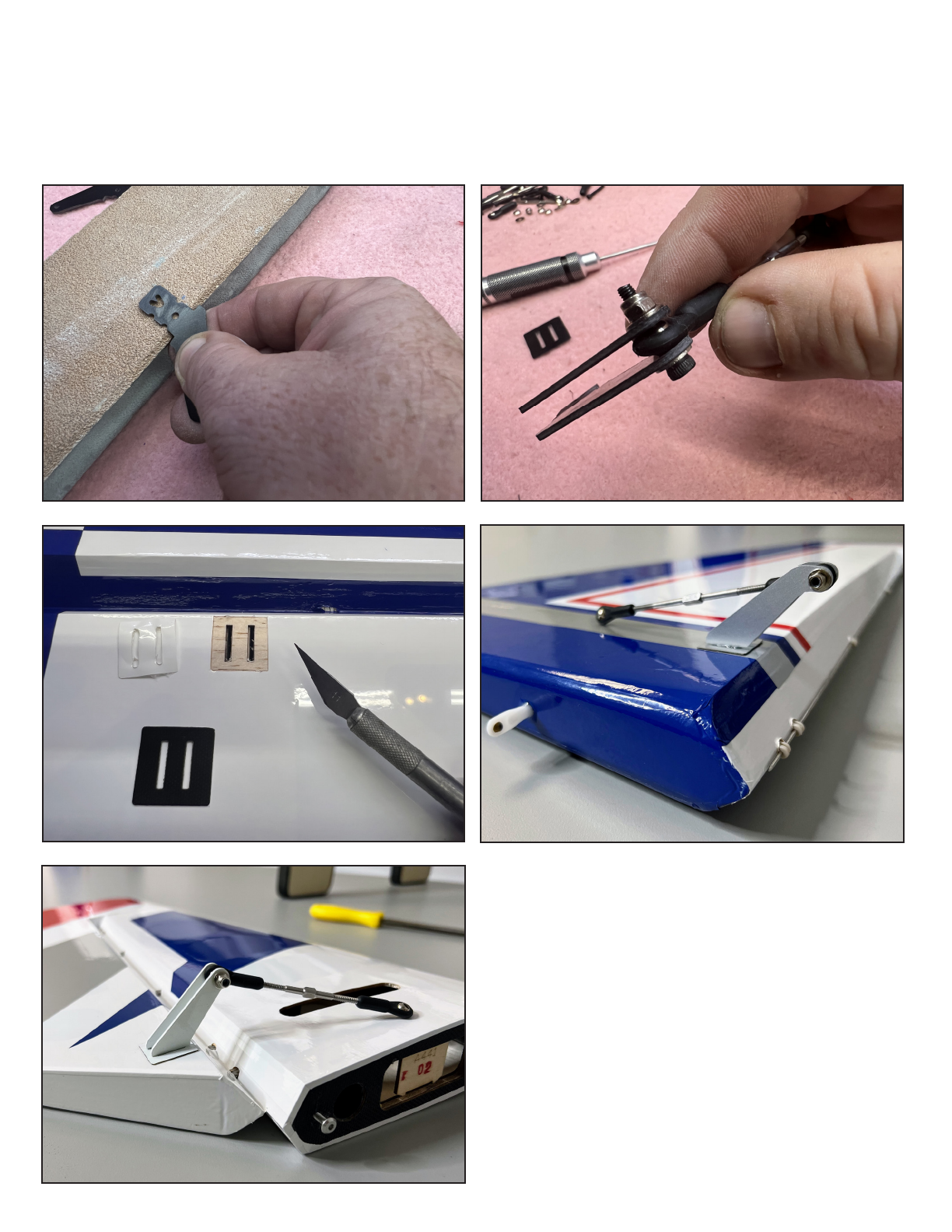

5. All the control horns on the aircra install in the same way, in this step we will install the elevator
and rudder horns ONLY. Scu the gluing surface of the horns using 80-240 grit sandpaper. Assem-
ble the horns with their ball link as shown. Remove the covering over the slots under the cover plate
as shown. Assemble the cover plate onto the horns and test t without glue, make sure the horn
slides all the way into the surface. Remove the horn, apply epoxy into the slot and onto the horn,
then install the horn and clean up any excess epoxy. Allow to cure.

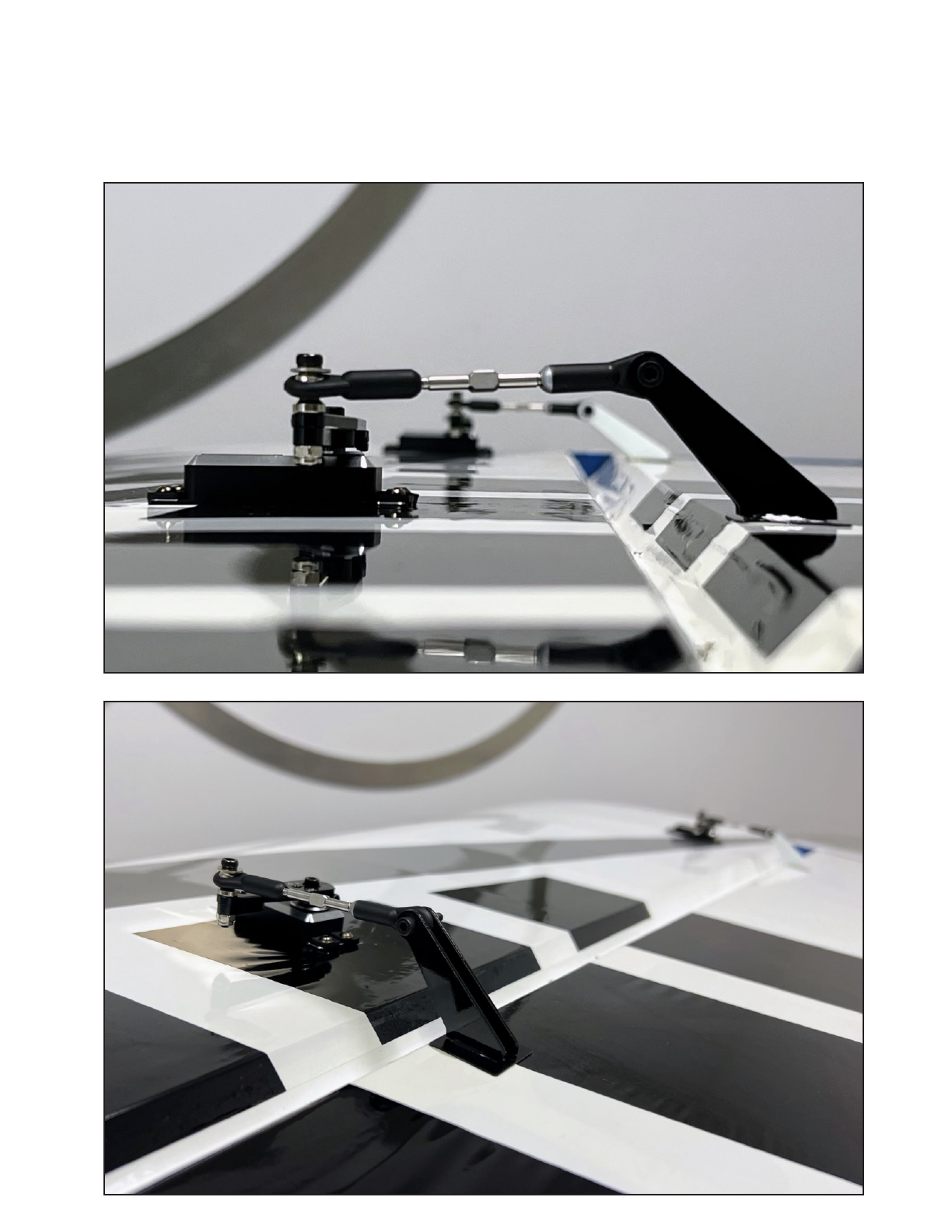

6. For the aileron horns, note that each wing has two aileron servos and two horns. To correct for
the tapering thickness of the wing, and keep the linkage geometry identical between the inner and
outer servos, install the TALLER horn on the OUTBOARD location. e shorter horn goes into
the thicker, inboard location.

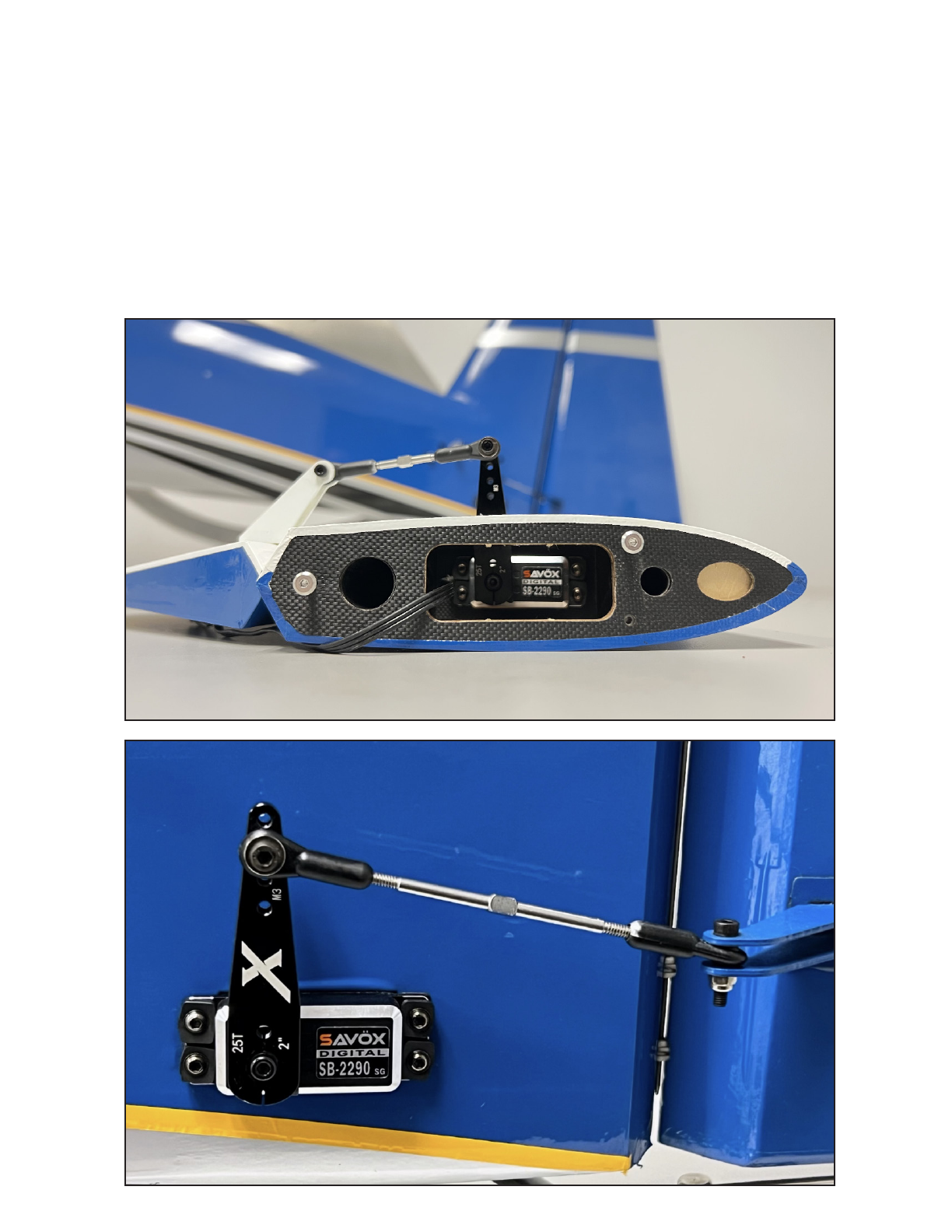

7. Servos: You MUST use a top-quality digital, high-strength metal gear servo in these 120cc aerobat-
ic monoplanes to avoid utter and have the expected level of performance. Savox SG-2290, JR8911,
and MKS599 are good choices. When installing servos, install the servo screws, then remove the
screws and servo and put a small drop of thin CA glue into each screw hole to harden the area,
allow to cure then re-install the servo permanently.
Attach the link to the servo arm using a tapered cone spacer between the ball link and the arm. Use
washers and locking nuts as shown. Some of our 120cc kits include pull-pull rudder hardware, but
so long as you are using a power system in the recommended range (120-125CC twin cylinder gas-
oline engine) you should mount your rudder servo in the rear using the simple, direct, push-pull
linkage as pictured here. For every servo location, use the pushrod as a length gauge to determine
the direction the servo should face.

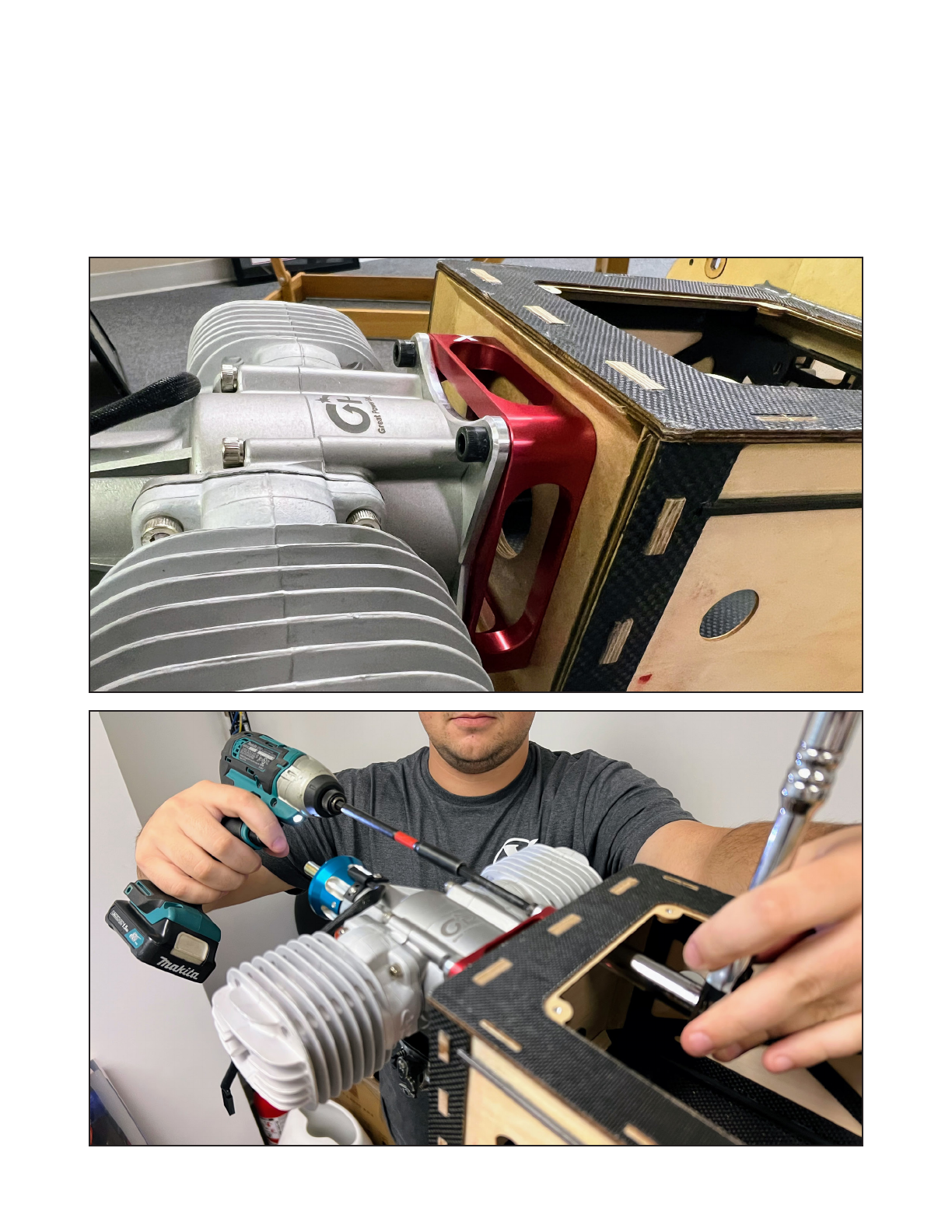

8. Drill the rewall as appropriate for your engine. e DA-120/GP-123 pattern is marked on the re-
wall for you. Use large washers and locking nuts on your engine mounting screws. For the DA-120
and GP-123, you will need the Blazing Star DA-120 mount, availble for Extreme Flight RC. Note
that these engines are slightly dierent in overall length, and berglass cowls can vary slightly in
length. So, the Blazing star mount, and some of our kits, include spacers so you can set the distance
from your spinner backplate to the cowl perfectly. Place the spacers between the aluminum mount
and the rewall as necessary. We recommend 2-3mm spacing. Note that we include 2.5-3 degrees of
right thrust built into the rewall of our kits, and so on some cowls, such as the Extra 260 and 300,
the clearance will be dierent on the right and le sides.
