Expobar MONROC Mode d’emploi

U / GB

Rev. 090129

...............................................................................

Instruction manual and maintenance

MONROC

1. Contents Page 2

2. Identification of external components Page 3

3. Characteristics Page 3

4. Equipment provided Page 4

5. Installation of the coffee machine Page 4

6. Filling water in the boiler Page 5

7. Pressure gauge Page 5

8. Start up Page 5

9. Fitting the filter holder into the brew group Page 6

10. Dispensing of coffee MONROC Page 6-7

11. Control panel

11.1 Programming the electronic control panel Page 8

11.2 Electronic control panel alarms Page 9

12. Heating of liquids Page 9

13. Extraction of water for infusions (teas) Page 9

14. Cleaning the coffee machine Page 10

15. Cleaning the brew group Page 10

16. We recommend Page 11

17. Possible dysfunctions Page 12

18. Precautions Page 12

1. Contents MONROC

READ THIS INSTRUCTION AND MAINTENANCE MANUAL CAREFULLY

BEFORE INSTALLATION AND BEFORE USING THE COFFEE MACHINE

1. Steam tap

2. Boiler pressure gauge

3. Water tap

5. Electronic control

panel

6. Indication lamp

7. Adjustable leg

8. General switch

9. Filter holder

10. Brew group

11. Hot water

exit

12. Exit steam spout

Model Unit Measurements in mm. Boiler Power (W) Voltage Weight

Number Width depth height Litres Resistance Total Vac Kg.

2 Units 2 650 530 480 11.5 3050 3235 230 60

3. Characteristics MONROC

2. Identification of external components MONROC

FIG. 1

For models: Units 2, 3 and 4.

2 complete filter holders for two cups

+ 1 filter holder for 1 cup.

+ 1 1/2 meter hose.

+ 1 clean unit filter.

When the machine is installed in its case, the latter must be as near horizontal as possible (use

the adjustable legs) so that the coffee issuing from the machine is evenly distributed between the

cups.

-Electrical installation:

Electrical installation of the coffee machine must be performed by qualified personnel, who must

follow closely the following safety instructions:

a) Check that the electrical information on the data plaque fits with the installation on your site

or at your home.

b) The coffee machine must be connected to a socket with current provided with an earth

which complies with current regulations in your country.

c) The electric cable on the installation site must be protected with a magneto-thermic fuse

which should be adequate for the power of the current used by the coffee machine, as

indicated on the data-plaque.

d) There must also be a differential relay adequate for the type of installation.

e) Make sure that the thickness of the installation cables is suitable for the energy

consumption of the coffee machine. Do not use extensions, adapters or multiple sockets

when connecting the coffee machine to the electricity supply.

-Hydraulic installation:

Using the pipe connected to the machine, connect it to a male 3/8" water tap

with a screw-down valve. It is obligatory to fit a softener between the

valve and the machine (in the equipment provided there is a 50 cm pipe for making this

connection). In a later chapter we will explain how to regenerate the resins in the softener

so that they continue capturing the lime particles.

The manufacturer is not responsible for any injuries or damage to health, whether of animals or

human beings, nor for any material damage caused by incorrect installation of the coffee machine.

4. Equipment provided MONROC

5. Installation of the coffee machine MONROC

Water is refilled automatically.

Indicatespressureintheinterioroftheboiler

Pressure-Temperature Relationship

6. Refilling water in the boiler MONROC

7. Pressure gauge MONROC

8. Start up MONROC

Temperature(ºC)

125

120

115

110 0,6 0,7 0,8 0,9 1 1,1 1,2

Pressure bars

1. Open the water screw valve external to the machine.

2. Connect the general switch, see (8) Fig. 1-.

3. Open the steam tap until steam is emitted.

”The red pilot light, see (6) Fig.1,- shows that the machine is heating up.

When it goes out, the machine has reached its ideal temperature”.

4. Connect the dispensing button, see (4) Fig. 1, or the control panel, see (5) Fig. 1 ,until

the water is issuing continuously for each dispensing unit, see (10) Fig. 1.

Water is refilled automatically.

9. Fitting the filter holder into the dispensing unit MONROC

10. Coffee dispensing MONROC

FITTING THE FILTER HOLDER INTO THE

DISPENSING UNIT

The filter holder has two projections on the sides which

must be fitted into the unit’s slots. When that has been

done, turn from left to right until the handle of the holder

is at a perfect right angle to the coffee machine.

CORRECT POSITION OF THE HOLDER IN THE UNIT

CORRECT THE RUBBERS ARE WORN

FIG. 2

PULSER MODEL

a) Pull the filter holder away from the machine.

b) Place the amount of coffee you need for coffee of your choice in the filter.

Preferably, the coffee should have been recently ground. Use the appropriate filter holder

See Fig. 4-.

c) Push the coffee down with the coffee press.

d) Position the filter holder into the unit and make sure that it is really tight, see Fig.3-,

place the cup below the filter holder’s outlet, and activate the dispensing

switch, - see (4) Fig. 1-.

FIG. 3

10. Dispensing coffee MONROC

CONTROL MODEL

a) Pull the filter holder away from the machine.

b) Place the amount of coffee you need for coffee of your choice in the filter.

Preferably, the coffee should have been recently ground. Use the appropriate filter holder

See Fig. 3-.

c) Push the coffee down with the coffee press.

d) Select the desired option from the electronic control panel.

The panel is pre-programmed with 4 standard doses (which can be programmed to your taste,

see programming) and a continuous dispensing option. The first four buttons

(1 small coffee - 1 large coffee - 2 small coffees - 2 large coffees) are automatically

disconnected, and the fifth is for continuous coffee, to disconnect it push it again

ALWAYS LEAVE THE FILTER HOLDER ENGAGED IN THE UNIT.

It is very important to keep it at the ideal temperature, so that you can get

a good expresso coffee.

Filter holder for two

doses of coffee Filter holder for one

dose of coffee

Filter for two doses of

coffee Filter for one dose of

coffee

FIG. 4

11. Electronic control panel MONROC

11.1. Programming the electronic control panel

Keep pressing the continuous button, on either of the two control panels, for 8 seconds. The

continuous coffee lights will blink on and off.

Press the coffee dose you want to reprogramme (1 small coffee - 1 large coffee - 2 small coffees -

2 large coffees). It will then begin to dispense coffee. When you have reach the desired dose, push

the dose you selected once more to end the process, and the dose will be remembered. Repeat

the process for the other buttons.

Very important: When you reprogramme a dose in the left hand control panel (looking at the

machine from the front), the dose will be remembered in both control panels.

Example: If we re-programme the dose of the small coffee button on the left control panel, the new

dose which we have placed in the memory is remembered by the small coffee button on the other

control panels.

This only happens with the left control panel, if we re-programme another panel only that panel is

modified.

When reprogramming the coffee dose, fresh coffee must be used in the filter.

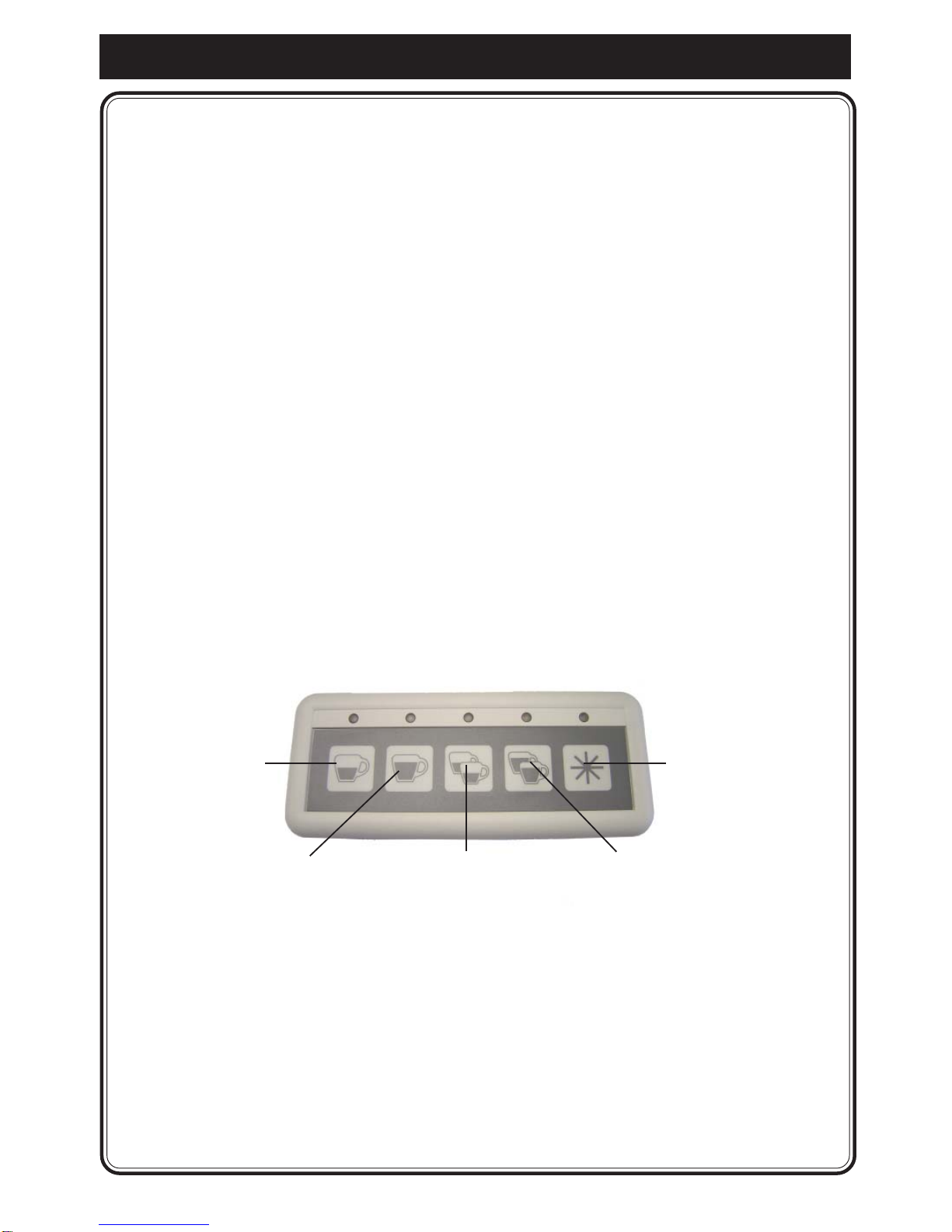

FIG. 5

2. SMALL COFFEES

1. SMALL

COFFEE

1. LARGE

COFFEE 2. LARGE COFFEES

CONTINUOUS

COFFEE

11. Electronic control panel MONROC

11.2. Electronic control panel alarms

When the electronic control panel detects a lack of water in the boiler, the five lights on the control

panel will blink.

When the volume meter on the electronic control panel detects a problem, the light for the dose

which we have pressed blinks.

Maximum security period. All doses have a maximum coffee dispensing time of five minutes.

Heating of liquids

a) Fit the steam pipe, which is above the tray, and open the steam tap, see (1) Fig. 1-, so

that any condensed water in the pipe escapes.

b) Close the steam tap.

c) Place the steam pipe in the liquid to be heated.

d) Open the tap. It will begin to heat (never take the steam pipe out of the liquid to be

heated because it could spray out hot liquid which could cause scalding).

e) When the process is finished, place the vaporiser on the tray, open the steam tap so

that the inside of the pipe is clear of remains of milk or other liquids, close the tap and

clean the outside of the pipe with a damp cloth.

Extraction of water for infusions (teas)

Place the receptacle in which you wish to put the hot water beneath the water pipe.

Open the water tap, see (3) Fig. 1, until enough water has been obtained.

Close the tap.

12. Heating of liquids MONROC

13. Extraction of water for infusions (teas) MONROC

10.

14. Cleaning the coffee machine MONROC

Cleaning the coffee machine

Disconnect the machine for cleaning. The entire surface of the coffee machine can be cleaned

with a damp cloth. Use NON-aggressive detergents.

Do not use solvents or degreasing agents.

Cleaning the dispensing unit

a) Pull the filter holder away from the machine.

b) Place the filter membrane inside the filter holder, -see Fig. 6-.

c) Place a sachet of detergent inside the filter holder. Special detergents

must be used for cleaning the dispenser unit.

d) Place the filter holder in the coffee machine and press the dispensing button, - see (4)

Fig. 1, for about 10 seconds.

Repeat the operation at least five times.

Important: When the cleaning cycle with detergent is finished, dismount the filter and wash it out.

For complete elimination of any leftovers, repeat the cleaning but this time without using any

detergent.

”DO NOT HANDLE THE FILTER HOLDER DURING THE SELF-CLEANSING PHASE”

The unit must be cleaned every day without using detergent, only with the membrane and water.

The unit must be cleaned with detergent once a week. Filter

15. Cleaning the dispensing unit MONROC

Filter

Filtermembrane

Detergent

FIG. 6
