Your energy. Optimized.
Controls

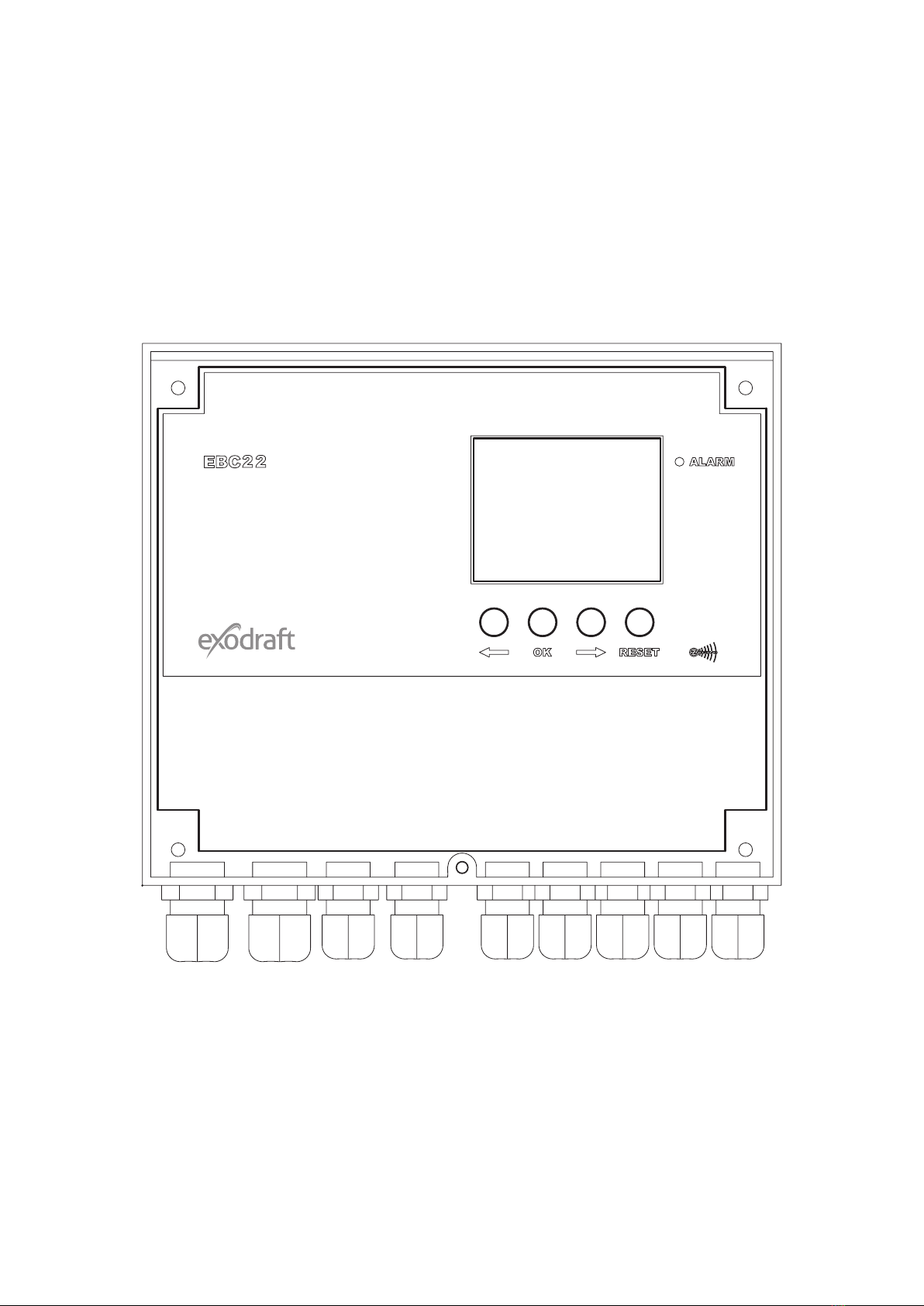

EBC22
UK |Read and save these instructions!
Your energy. Optimized.
Control | EBC22
Content
Product information 8
Scope of supply 8
Accessories 8
Technical specications 10
Construction and components 11
Components function 12
Fitting 12
Installation 13
Outdoor tting of the pressure transducer (XTP) 14
Layout of the user interface 14
Light emitting diodes and terminal board 15
Display 16
Introduction to the user interface 17
Setup 17
Service Menu 18
Overview of the service menu 19
Changing between the operating functions 21
Pressure-controlled regulation of the chimney fan 23
Area of use 23
Method of operation 23
Electrical connection 24
Sample wiring diagrams 24
Single- or two boiler application 25
Single boiler application with potential free contact in boiler 26
Two boiler application with continuous operation of chimney fan 27
Solid fuel boiler with temperature sensor 28
User menu 29
Commissioning 30
2-stage speed regulation of Exodraft chimney fan 31
Area of use 31
Method of operation 31
Electrical connection 31
Sample wiring diagrams 31
1 x 2-stage boiler 32
2 x 1-stage boilers 33
User Menu 34
Set-up 35
Commissioning 36
Pressure-controlled regulation of Exodraft supply air fan 37
Use 37
Method of operation 37
Electrical connection 37
Sample wiring diagram 37
Connection of frequency converter/MPR relay 38
User menu 39
Set-up 40
List of alarms and troubleshooting 41
Alarm handling 41
Alarm overview 42
More troubleshooting 43
UK Conformity Assessed 44
Declaration of Conformity 45
Disposal
Electrical and electronic equipment (EEE) often contain materials, components and substances
that may harm the environment or be hazardous to your health. Products (WEEE) marked with
the ‘crossed-out wheeled bin’ symbol should be disposed of separately from other waste at
the end of its life. Though legislation may differ from country to country we strongly advise
that electrical and electronic waste is separated from other waste and disposed of according to
national legislation to protect the environment and personnel that may come into contact with
waste.
How to use this manual
This manual has been prepared based on the specific product and
contains relevant technical information and installations guides.
Accessories and spare parts are not covered by this manual.
Please refer to the individual manuals of these components.
This installation manual does not contain any system design documentation.
Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the product.
Errors and omissions excepted.
Symbols
The following symbols may be used in the manual
to draw attention to danger or risk of personal
injury or damage to the product.
General prohibition
Failure to observe instructions marked with the prohibited
symbol may result in extreme danger or serious personal injury.
General warning
Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the product.
General attention
Marks a dangerous situation that, in the worst-case scenario,
can cause serious personal injury or significant damage to the product.
Electricity hazard/High Voltage
Marks a situation in which caution is advised due to the risk of high voltage electric
shock which can cause serious personal injury or significant damage to the product.
Connect an earth terminal to the ground
Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the product.
Permitted and approved
Permitted and approved method of installation.
Prohibited and not approved
Prohibited and not approved method of installation.
Warning
To minimise the risk of fire, electric shock, personal injury
and/or damage to the product please observe the following:
• Please always read the manual and only use the product in accordance with the
manufacturer’s instructions. If in doubt, contact one of the Exodraft specialized dealers.
• All installations must be carried out by properly qualifi ed personnel in accordance with
national legislation and regulations.
• This product must be earthed. Get assistance from an qualifi ed electrician when in doubt.
• This product must always be disconnected under the installation.
• Prior to servicing the product, disconnect the power and ensure that it cannot accidentally
be reconnected.
• Exodraft always recommends the use of a smoke alarm when a solid fuel open fire is
installed.
• If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please
ensure that the design meets the requirements of BS EN15287-1. If this cannot be achie-
ved, a smoke alarm must be installed in the same room as the heat appliance.
UK
Your energy. Optimized.
Symbols
The following symbols may be used in the manual
to draw attention to danger or risk of personal
injury or damage to the product.
General prohibition
Failure to observe instructions marked with the prohibited
symbol may result in extreme danger or serious personal injury.
General warning
Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the product.
General attention
Marks a dangerous situation that, in the worst-case scenario,
can cause serious personal injury or signicant damage to the product.
Electricity hazard/High Voltage
Marks a situation in which caution is advised due to the risk of high voltage electric
shock which can cause serious personal injury or signicant damage to the product.
Connect an earth terminal to the ground
Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the product.
Permitted and approved
Permitted and approved method of installation.
Prohibited and not approved
Prohibited and not approved method of installation.
8|UK
Your energy. Optimized.
Product information
The EBC22 (Exodraft Boiler Control) is a specially designed control component for constant pressure
regulation of chimney draft. EBC is specially designed to comply with the Gas Application Directive.
By changing the operating mode, the EBC22 can also:
• Act as a 2-stage speed regulator
• Control the supply of fresh air to the boiler room
• Automatically start/stop via a temperature sensor in the chimney duct
Incorrect use may result in problems with soot, chimney res, etc. which might damage the product.
Please check out this site for advice about the product:
www.exodraft.com
Scope of supply
• Exodraft EBC22 (EBC22EU01 for indoor installation/EBC22EU02 for outdoor installation)
• Pressure transducer (XTP)
• Measuring probe for EBC22EU01
• Measuring probe for EBC22EU02
• 2 m silicone hose
• Installation manual and user instructions
Accessories
The table below shows the accessories and spare parts available for the RHG-models.
Accessories*
Temperature sensor
Isolation switch
Realy box
*This manual does not describe the specic use of accessories. We refer to the separate manuals for such components.
For more details contact your Exodraft dealer.
UK |9
3112015_EBC22_UK
Warranty
All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For
some countries an extended period of guarantee may apply depending on either national legislation or
other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or who-
lesaler (preferably where the Exodraft product has been bought originally). An updated list of Exodraft
specialised dealers can be found on our website for the country in question.
Exodraft products must always be installed by properly qualied personnel. Exodraft reserves the right to
change these guidelines without prior notice.
The warranty and liability does not cover instances regarding personal injury or damage to property or the
product that can be ascribed to one or more of the following causes:
• Failure to follow this installation and operation manual
• Incorrect installation, start-up, maintenance or servicing
• Improper repairs
• Unauthorised structural modications made to the product
• Installation of additional components that have not been tested/approved with the product
• Any damage resulting from continued use of the product despite an evident defect
• Failure to use original spareparts and accessories
• Failure to use the product as intended
• Exceeding or failure to meet the limit values in the technical data
• Force majeure
10 |UK
Your energy. Optimized.
Technical specications
The EBC22 is an automatic control system for single and multiple gas boiler installations and for other
installations in which singularor multiple heat sources are connected to the same chimney. The control may
only be used with Exodraft fans. The EBC22 system consists of an EBC22 controller, which can be positio-
ned anywhere, and a pressure transducer (XTP 150G sensor) which is positioned near the chimney.
The EBC22 control is approved accordingly to the gas directive by Kiwa Gastec.
The EBC22 controller monitors and maintains a specic draught by maintaining a constant pressure. The
pressure in the chimney is measured by the XTP 150G sensor. If the draught falls outside the set point
value the speed of the fan is modulated to achieve the target draught. If it is not possible to maintain the
draught at or above the set point then the controller will automatically disconnect the boiler(s).
Technical data
Data EBC22
H x W x D [mm] 204,3 x 239,5 x 77,2
Weight 1,62 kg
IP-rating / material IP54 / ABS PA758
Voltage 230 V AC ±10 %, 50 Hz ±1 %
Max power consumption 475 W
Fuse T4A
Temperature -20 °C to 60 °C
Monitoring range -500 Pa to +500 Pa
