Exmark 790 Manuel utilisateur

For Serial Nos.

790,000 & Higher

Part No. 4500-485 Rev. D

LAZER Z® MODELS

ADVANTAGE SERIES

MODELS

-1-

-2-

READ OPERATOR’S MANUAL BEFORE

OPERATING OR SERVICING EXMARK EQUIPMENT.

TABLE OF CONTENTS

Description Page

Brake Handle Assembly ................................................25

Caster Wheel Assembly ...........................................18-19

Controls Group ..............................................................22

Cutter Housing Assembly ................................5, 8, 11, 14

Decal Group ..................................................................37

Deck Group ................................................................3-15

Deck Support Group......................................................20

Deck Idler Assembly......................................................15

Electrical Diagram ....................................................38-39

Electrical Group .............................................................36

Electrical Logic Schematic........................................40-41

Engine Group ...........................................................30-33

Fuel Tank Group............................................................28

Fuel Tank Assembly ......................................................29

Height of Cut Assembly .................................................21

Hydraulic Group ............................................................34

Mainframe Group...........................................................16

Motion Control Group ...................................................23

Park Brake Group .........................................................24

Pump Idler Assembly.....................................................35

ROPS Assembly............................................................17

Seat Group ....................................................................26

Seat W/Tracks Assembly...............................................27

48” DECK GROUP

-3-

Item Part No. Description Qty.

1 109-9027 Asm, Deck W/Decals 484..................... 1

2 103-6401 Blade-Notched...................................... 3

O103-6391 Blade, Mulching.................................... 3

103-6386 Blade, Low Lift...................................... 3

103-6381 Blade, Solid .......................................... 3

103-6396 Blade, Extreme..................................... 3

3 323-8 Screw, HH 3/8-16 x 1 1/2...................... 18

4 109-2872 Spacer-Pulley ....................................... 2

5 109-0977 Pulley, Idler 5" ...................................... 1

6 109-2796 Pulley, Idler 6" ...................................... 1

7 3231-44 Bolt, Carriage 3/8-16 x 2 1/2................. 2

8 109-6658 Nut, Nyloc 3/8-16 Flg............................31

9 109-2883 Asm, Deck Idler.................................... 1

10 109-7188 Asm, Discharge Chute.......................... 1

10:1 109-2738 Chute, Discharge.................................. 1

10:2 109-8675-01 Bracket, Discharge Chute..................... 1

10:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3

Item Part No. Description Qty.

10:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3

11 3231-28 Bolt, Carriage 3/8-16 x 1 1/4................. 2

12 109-8070 Belt, V-B X 175.75................................ 1

13 109-6982 Wireform, Cover................................... 2

14 109-6935 Cover, Belt RH 46-56 ........................... 1

15 109-6936 Cover, Belt LH 46-56............................ 1

16 116-0133 Extension-Spring.................................. 1

17 109-9010-01 Baffle, Discharge.................................. 1

18 3231-22 Bolt, Carriage 3/8-16 x 1....................... 2

19 109-9851 Axle, Anti-Scalp Roller.......................... 3

20 1-603299 Roller-Scalp, Anti ................................. 3

21 98-5975 Washer, Spring Disc 3/8 ...................... 3

22 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 3

23 103-7263 Kit, Antiscalp Roller.............................. 3

24 109-9017 Kit, Cutter Housing 48 .......................... 3

25 109-9642 Asm, Deck Complete 484 .................... 1

Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).

ORequires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK484.

QApply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles and bearings. DO NOT use a

copper or nickel based anti-seize.

48” DECK W/DECALS ASSEMBLY – 109-9027

-4-

Item Part No. Description Qty.

2 1-303508 Decal-Warning, Discharge ..................... 1

3 1-403005 Decal-Danger......................................... 2

4 1-633922 Decal, Antiscalp ..................................... 1

5 98-5954 Decal-Cover, Missing ............................. 2

Item Part No. Description Qty.

6 109-3148 Decal, Bolt Torque................................. 1

7 116-0033 Decal, Ultracut 48 Series 4 .................... 1

8 109-9361 Decal, Belt Routing................................ 1

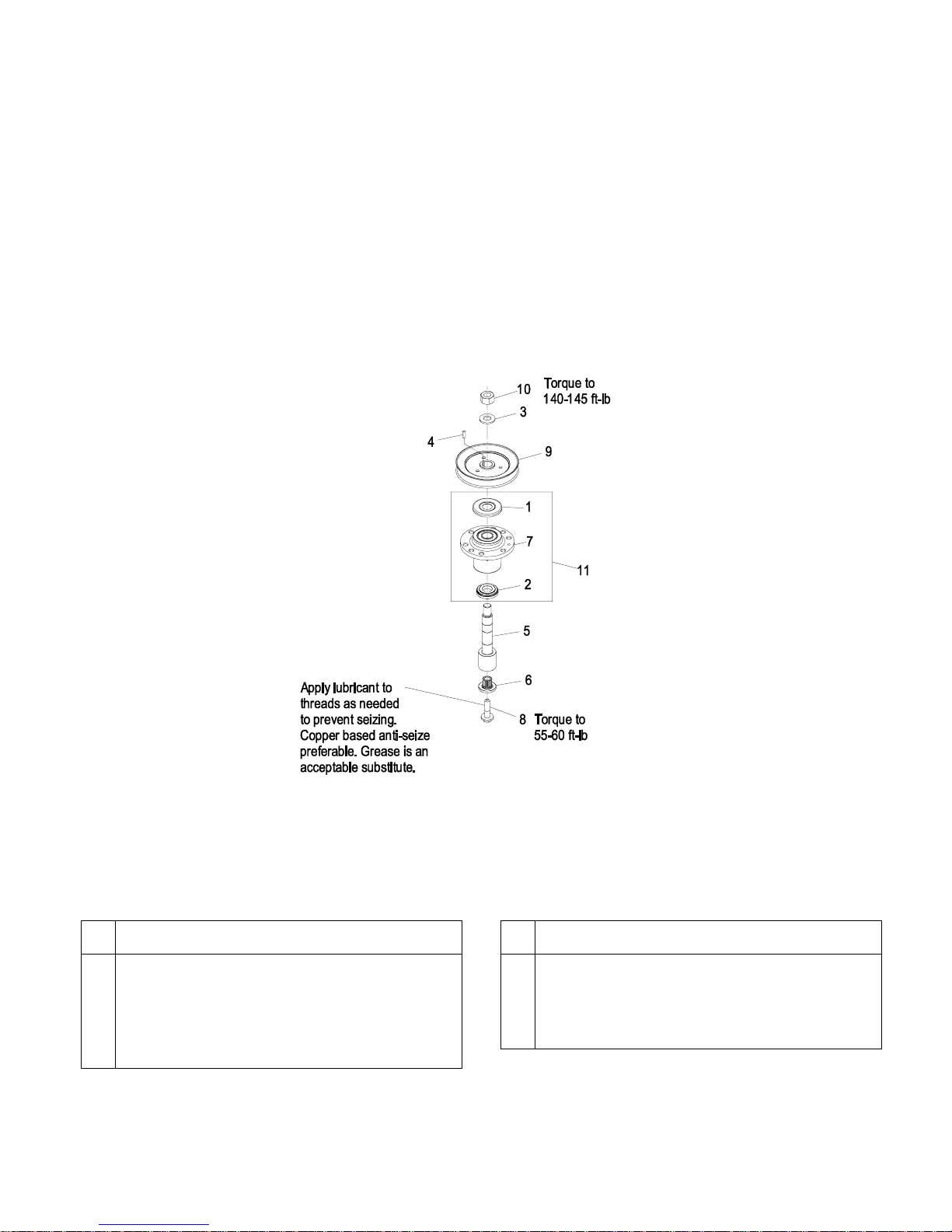

CUTTER HOUSING ASSEMBLY – 109-9017

-5-

Item Part No. Description Qty.

1 103-1330 Guard, Bearing Top ............................... 1

2 103-2535 Spacer, Guard Bottom ........................... 1

3 103-2802 Washer, Spring Disc 3/4 ........................ 1

4 103-2982 Key, Machine 1/4 x 3/16 x 3/4 ................ 1

5Q 103-9086 Kit, Splined Spindle ............................... 1

6 103-3037 Bushing, Splined.................................... 1

Item Part No. Description Qty.

7 103-8353 Housing, Cutter ..................................... 1

8 109-9220 Screw, SEMS 1/2-20 x 2.19................... 1

9 116-1444 Sheave, Blade Drive ............................. 1

10 3217-46 Nut, Hex 3/4-16 Heavy .......................... 1

11 103-8280 Kit, Cutter Housing ................................ 1

Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food grade antiseize) between the jackshaft and bearings, jackshaft and

sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antiseize.

QKit includes items 3, 4, 6, 8, & 10.

52” DECK GROUP

-6-

Item Part No. Description Qty.

1 109-9012 Asm, Deck W/ Decals 524.................... 1

2 1-603299 Roller, Scalp, Anti................................. 3

3 98-5975 Washer, Spring Disc 3/8....................... 3

4 116-0133 Extension-Spring .................................. 1

5 109-9851 Axle, Anti-Scalp Roller.......................... 3

6 103-6402 Blade-Notched...................................... 3

O103-6392 Blade, Mulching.................................... 3

103-6387 Blade, Low Lift...................................... 3

103-6382 Blade, Solid .......................................... 3

103-6397 Blade, Extreme..................................... 3

7 109-0977 Pulley, Idler 5" ...................................... 1

8 109-2796 Pulley, Idler 6” ...................................... 1

9 109-2872 Spacer-Pulley ....................................... 2

10 109-2883 Asm, Deck Idler.................................... 1

11 109-4994 Belt, V-B ............................................... 1

12 109-6658 Nut, Nyloc 3/8-16 Flg............................31

13 109-6935 Cover, Belt RH 46-56 ........................... 1

Item Part No. Description Qty.

14 109-6936 Cover, Belt LH 46-56............................ 1

15 109-6982 Wireform-Cover.................................... 2

16 109-7188 Asm, Discharge Chute ......................... 1

16:1 109-2738 Chute, Discharge ................................. 1

16:2 109-8675-01 Bracket, Discharge Chute .................... 1

16:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3

16:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3

17 109-9915-01 Baffle, Discharge 52/60 ........................ 1

18 323-8 Screw, HH 3/8-16 x 1 1/2 ..................... 18

19 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 3

20 3231-22 Bolt, Carriage 3/8-16 x 1....................... 2

21 3231-28 Bolt, Carriage 3/8-16 x 1 1/4................. 2

22 3231-44 Bolt, Carriage 3/8-16 x 2 1/2................. 2

23 103-7263 Kit, Antiscalp Roller.............................. 3

24 109-9018 Kit, Cutter Housing 52 .......................... 3

25 109-9644 Asm, Deck Complete 524 .................... 1

Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).

ORequires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524.

52” DECK W/DECALS ASSEMBLY – 109-9012

-7-

Item Part No. Description Qty.

2 1-303508 Decal, Warning Discharge ..................... 1

3 1-403005 Decal, Danger........................................ 2

4 1-633922 Decal, Antiscalp ..................................... 1

5 98-5954 Decal, Cover Missing ............................. 2

Item Part No. Description Qty.

6 116-0034 Decal, Ultracut 52 Series 4 .................... 1

7 109-3148 Decal, Bolt Torque................................. 1

8 109-9361 Decal, Belt Routing................................ 1

CUTTER HOUSING ASSEMBLY – 109-9018

-8-

Item Part No. Description Qty.

1 103-8353 Housing, Cutter...................................... 1

2 103-2535 Spacer, Guard Bottom ........................... 1

3Q 103-9086 Kit, Splined Spindle................................ 1

4 103-2982 Key, Machine 1/4 x 3/16 x 3/4 ................ 1

5 103-1330 Guard, Bearing Top ............................... 1

6 116-0186 Sheave, Blade Drive .............................. 1

Item Part No. Description Qty.

7 103-2802 Washer, Spring Disc 3/4........................ 1

8 3217-46 Nut, Hex 3/4-16 Heavy .......................... 1

9 103-3037 Bushing, Splined ................................... 1

10 109-9220 Screw, SEMS 1/2-20 x 2.19................... 1

11 103-8280 Kit, Cutter Housing ................................ 1

Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food grade antiseize) between the jackshaft and bearings, jackshaft and

sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antiseize.

QKit includes items 3, 4, 6, 8, & 10.

60” DECK GROUP

-9-

Item Part No. Description Qty.

1 109-9013 Asm, Deck W/ Decals 604.................... 1

3 103-6403 Blade, Notched .................................... 3

O103-6393 Blade, Mulching.................................... 3

103-6388 Blade, Low Lift...................................... 3

103-6383 Blade, Solid .......................................... 3

103-6398 Blade, Extreme..................................... 3

4 109-2872 Spacer-Pulley ....................................... 2

5 109-2796 Pulley, Idler 6" ...................................... 1

6 109-2883 Asm, Deck Idler.................................... 1

7 109-0996 Pulley, Idler 8"Flat ................................ 1

8 109-8073 Belt, V-5V ............................................. 1

9 116-0133 Extension-Spring .................................. 1

10 3231-44 Bolt, Carriage 3/8-16 x 2 1/2................. 2

11 109-6658 Nut, Nyloc 3/8-16 Flg............................37

12 109-9915-01 Baffle, Discharge 52/60 ........................ 1

13 3231-22 Bolt, Carriage 3/8-16 x 1....................... 2

Item Part No. Description Qty.

14 109-6982 Wireform-Cover.................................... 2

15 116-0094 Cover-Belt, RH ..................................... 1

16 109-6938 Cover-Belt, LH...................................... 1

17 109-7188 Asm, Discharge Chute ......................... 1

17:1 109-2738 Chute, Discharge ................................. 1

17:2 109-8675-01 Bracket, Discharge Chute .................... 1

17:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3

17:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3

18 3231-28 Bolt, Carriage 3/8-16 x 1 1/4................. 2

19 109-9851 Axle, Anti-Scalp Roller.......................... 4

20 1-603299 Roller-Scalp, Anti ................................. 4

21 98-5975 Washer, Spring Disc 3/8 ...................... 4

22 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 4

23 103-7263 Kit, Antiscalp Roller.............................. 3

24 109-9019 Kit, Cutter Housing 60 .......................... 3

25 109-9646 Asm, Deck Complete 604 .................... 1

Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).

ORequires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Exmark Tondeuse à gazon

Exmark

Exmark Metro 21 Series Manuel

Exmark

Exmark VANTAGE S Series Manuel utilisateur

Exmark

Exmark Metro 26 Manuel utilisateur

Exmark

Exmark 109-4173 Manuel

Exmark

Exmark Turf tracer Manuel utilisateur

Exmark

Exmark Vikingtm Hydro 4500-355 Manuel utilisateur

Exmark

Exmark PIONEER S-SERIES Operators Manuel utilisateur

Exmark

Exmark METRO Manuel

Exmark

Exmark Laser Z Propane Manuel utilisateur

Exmark

Exmark LAZER Z HP 523 Manuel utilisateur

Exmark

Exmark Phazer PHZ19KA343 Manuel utilisateur

Exmark

Exmark FontRunner FR524 Manuel utilisateur

Exmark

Exmark Frontrunner Manuel

Exmark

Exmark Lazer Z LZE Manuel utilisateur

Exmark

Exmark Ultra VAC QDS LAZER Z Manuel utilisateur

Exmark

Exmark QUEST 109-6792 Manuel

Exmark

Exmark LAZER Z Manuel utilisateur

Exmark

Exmark Metro 26 Manuel utilisateur

Exmark

Exmark Frontrunner Manuel utilisateur

Exmark

Exmark Ultravac Bagger 126-8680 Manuel utilisateur

Exmark

Exmark Lazer Z XP Manuel utilisateur

Exmark

Exmark Lazer Z HP Manuel utilisateur

Exmark

Exmark VIKING HYDRO Manuel utilisateur

Exmark

Exmark Phazer Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
