Before Using the Scale

In order to use this scale correctly, we suggest you read this manual carefully.

Instructions for Use

1. Please keep the scale ina cool and dryplace. Do not store at high temperatures or damp

places.

2. Please keep the scale clean and free from insect infestation.

3. To avoid impact and it is to be used under designated pressure (the weight put on the platter

can not exceed the maximum capacity of the scale).

4. If the scale is not going to be used for some time, please clean and store it ina plastic bag

with desiccants in a dry condition. The scale should be charged every3 months to prevent

failure of the internal rechargeable battery.

5. Please don’t use different types of drybatteryor mix newbatteries with used ones.

6. Please operate or charge the scale in an open area. Do notsqueeze the power cord to avoid

wire onfire.

7. Operating temperature: -10℃~ +40℃

8. Anysuggestion for product is welcome.

Preparing to Use the Scale

1. Avoid operating the scale in directsunlight or damp environment.

2. If possible avoid connecting the scale to ac power outlet sockets whichare adjacent to other

appliances to minimise the possibility of interference affecting the performance of the scale.

3. Remove any weight that might be on the weighpanbefore the scale is switched on and

avoid leaving weight on the pan for long periods of time.

4. Allgoods weighed should be placed in the centre of the weighpan for accurate weighing.

The overall dimensions of the goods being weighed should not exceed the dimension of the

weighpan.

5. Once the scale has been powered on, it will go throughanLCD display testand it is ready

for use when the displayshows zero.

6. The scale requires 15~20 minutes to warm up before operation to ensure the bestaccuracy.

7. Please note when the symbol keeps flashing on the screen, the scale needs to be

charged.

8. Introductionof Storage Battery

Thank you for choosing EXCELL Weighing Hanging

Scale. To guide you to use our product correctly,

please read this User Manual carefully to extend

the life of machine and to avoid maloperation.

EXCELL PRECISION CO., LTD

02022010 ZSME300000197

No burning

Caution Corrosion

Due to the storage battery adoptthe advanced free-maintaining technique, customers need not

to replenishelectrolyte.

The scale should be recharged every 3 months to prevent failure of the internal rechargeable

battery.

1. The batteryshould be charged for 8~10 hours.

2. The temperature of batteryshould below 45℃.

Maintaining

1. Please do not discharge with over-current when using the battery. Please charge the battery

after discharging current.

2. Please take down the battery when the scale is not used for a long time or break the

connection of cathode.

3. Do not short the battery terminals to check whether there is current. Please check whether

the connection point is firm to guarantee good connection.

4. The battery should be replaced by specialized person. No reverse-battery or the product

will be damaged.

a) Anode of battery should be connected withAnode of product battery（usually red

cable）

b) Cathode of batteryshould be connected withCathode of product battery (usually brown

cable or black cable)

c) See the picture following

Safety warnings

1. The electrolyte of battery is caustic whichcauses metal, cotton, etc to corrode.

2. The hydrogen will be resolved when using or charging the batteryand it will cause explosion

when approaches fire.

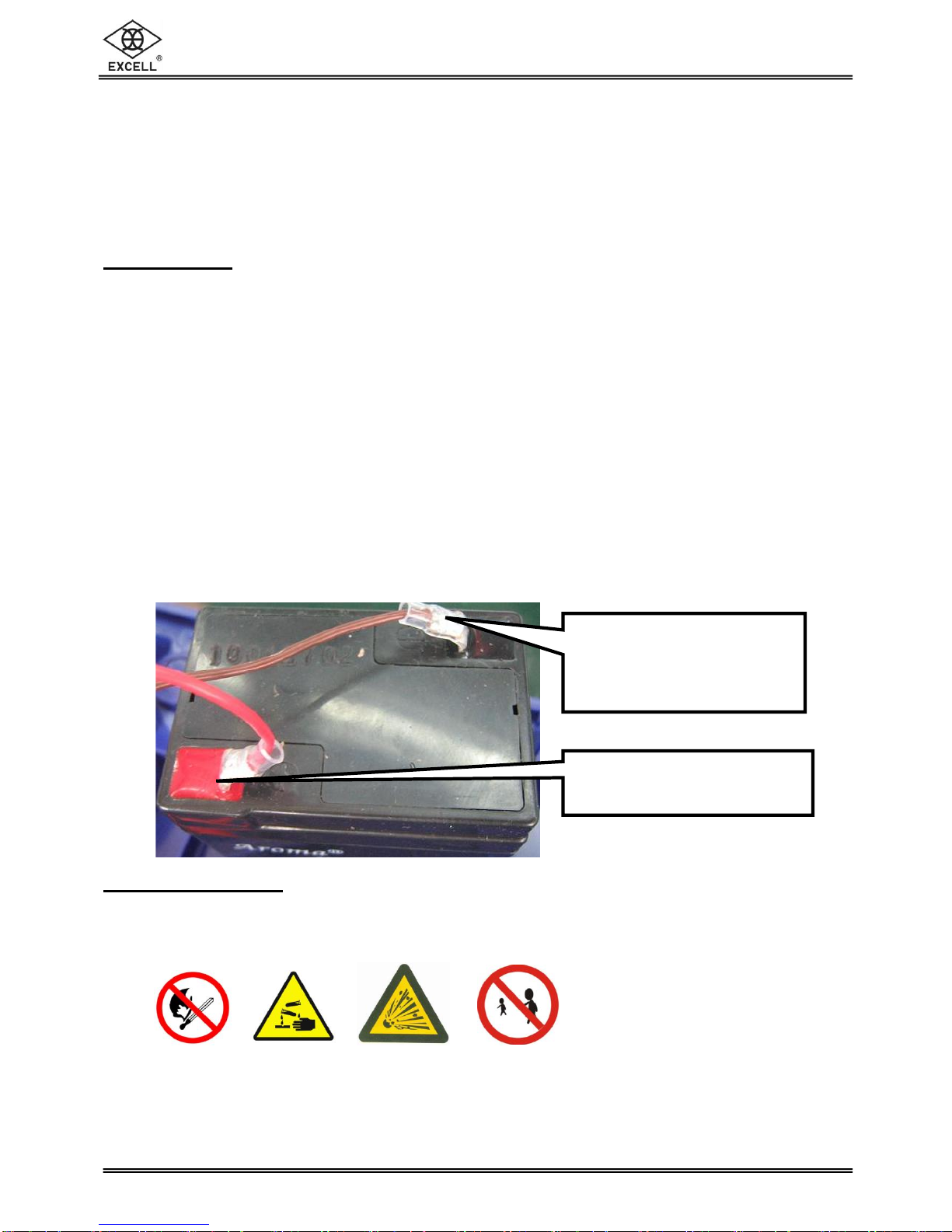

Brown cable(or black cable)

connected withAnode of

battery

Red cable connected with

Cathode of battery

Warning explosion

Children faraway

EXCELL PRECISION CO., LTD

02022010 ZSME300000197

Pcs

“” indications description:

1 : (STABLE) stable indication

2 : (GROSS) gross weight indication

3 : ( ) unit weight insufficient indication

4 : Samples insufficient indication

5 : ( PT ) pre-tare indication

6 : (Hold) weight hold indication

7 : M+ indication

Chapter 1 Introduction

1-1 Features

Up to 1/6,000 displayresolution

Hold function, Check weighing with LO / HI / OK

Simple counting function

Full range tare, Pre-tare, Auto zero tracking, Gross/Net Indication

Selectable unit mode

Lowpower indicationand auto power off

LCD display with LED backlight

1-2 Display Description

When the scale with 2-segment specification, the indications description will be:

3 : Range 1

4 : Range 2

HI : Upper limit

OK : Value between HI and LO

LO : Lower limit

Kg : Unit “kilogram”

lb : Unit “pound”

t : hk tael

Pcs : Counting mode indication

0: Zero point indication

Net : Net weight indication

:Low Power indication

EXCELL PRECISION CO., LTD

02022010 ZSME300000197

1-3 Keypad Function

ON/ZERO

KEY

When the power is off, press

ON/ZERO

keyto switch the indicatoron.

When the power is on, press

ON/ZERO

key to return to zero.

Zero Range for non-approval models is ±2% Full Scale.

OFF

KEY

Press the

OFF

key to switch the indicator off.

TARE/PT

KEY: Tare / Pre-tare key

To TARE:

Place the container onto the scale, wait until the weight value is stable, press TARE

/PT

key for zero return and the NETindicationis shown on the display.

Place the object onto the container and the displayshows the net weight value of the

object.

Remove both object and container, and negative value of the container will show on the

display.

Press TARE

/PT again

to clear “tare value”. The scale returns to zero and NET indication

goes off.

TARE function canremain effective untiltare value=full load capacity

Continuous Tare Press TARE

/PT key

for continuous weight increase/decrease on

platter.

Pre-tare cannot be done in tare function. However, if a pre-tare had been preset, and

the tare weight is more than that pre-tare weight, then the Tare can be done.

No Tare canbe done under gross weight display mode.

To PRE-TARE:

Press TARE / PT key, use keypad to input pre-tare weight. When the cursor flashes on

the rightmost digit, press TARE / PT key again to complete.

Pre-tare mode, keypad functionas followed:

MC => upward key(0~9 digit entry) NET/GROSS => move cursor leftward

UNIT => downward key(0~9 digitentry) TARE/PT => move cursor rightward

UNIT

KEY

Press the

UNIT

key to switch weight units; the displayicons will indicate the active units.

EXCELL PRECISION CO., LTD

02022010 ZSME300000197

Pcs

NET/GROSS

KEY

In the Tare mode, the screen displays the “

TARE

” icon; press the

NET/GROSS

key to switch

between the “Net value” and the “Gross value”.

When the ”GROSS” arrow



shows up, the Gross Weightin the screen = Tare weight +

Net weight, meanwhile, only

NET/GROSS

key is available.

M+

KEY

Sum-up function.

This keyis a composite key, while the item total is shownand weightreturns to net zero,

press M+ key to erase memory.

Whena is new weight added onplatter, the sum-up function can be effective. If this

weight had not been removed, no new item can be added.

Displaywill show the item total for one second, and show the net weight for one second,

then the scale returns to the current weight, and printout the last total.

To clear the Sum-up info, press M+ key to bring up the item total show up, thenpress

M+again, to clear the Sum-up value data.

P.s. To execute the clear function, the weight must return to zero.

KEY

Memoryclear for accumulationdata.

Simple Counting Mode

Use UNIT key to switch unit to Pcs, to enter simple counting mode.

1. Use

NET/GROSS

keyto select a sample number from “10 , 20, 50, 100, or 200”. Display

will show 、、、、inan sequential order by

pressing

NET/GROSS key.

2. Select a sampling number, and put appropriate weight onplatter, and press

UNIT key.

Display will show “ ”. The scale will enter counting mode after weight is stable,

and displaywill show the sample number.

Unit weight insufficient ( ) : Sample unit weight < 0.2d (d=division)

Samples insufficient ( ) : total sample < 20d (d=division)

While sampling, if there is insufficient sample or unit weight insufficient indication “”, the

scale is still usable,but there maybe slight inaccuracy.

After Power-off, the scale automatically memorizes the sampling number, and it is available

when “Pcs” unit is selected next time.

If the setting is “automatic average unit weight “, if the object on platter > the previous

sampling number more than 5 pcs, and also < less than100% the previous sampling

number, the scale will execute unit weight calibrationautomatically.

...

....

EXCELL PRECISION CO., LTD

02022010 ZSME300000197

1-4 Power Supply

Power Supply Selection

1. 6 V / 7 Ah Rechargeable battery

2. 110 / 220 V ±15 % AC Main power

Power Consumption

40 mA (Indicator + Load Cell) About 180 hours

70 mA(Indicator + Load Cell + displaybacklight) About 100 hours

Charging Voltage

DC 10V/1A

Low Battery Warning

Please note when the (

) symbol keeps flashing on the display, the internalbattery

should be recharged.

The scale will turn off automatically after a few hours when the low battery warning symbol

shows up. The scale must be fully charged before operating again.

When the battery status indication is full, the power is about 6.1V; each block is about 0.2V;

When the battery warning symbol shows up, the poweris about 5.4V.

Safety Reminder:

Please make sure “+” , “- “ poles are placed in the correct direction

Please don’t’ place the battery in hot areas, or try to dissemble the battery, to avoid

electricity leakage.

Please don’t mix or use batteries of different types.

Please don’t keep the used-up batteryinthe batterycase to avoid breakdown.

(drycell models)

The battery inside the indicator was used for testing in factory.

Therefore, the life of the battery cannot be count from the day you purchase it.

EXCELL PRECISION CO., LTD

02022010 ZSME300000197

1-5 Error Messages

Zero is higher than the zero range when switching the scale on.

Zero is lower than the zero range whenswitching the scale on.

Internal value is unstable.

Continuous unstable occurred over 10 sec when switching the scale on, or after

pressing ON/ZERO or TARE/PT key.

The weight of the object is over 9 divisions of the maximum capacity.

1/6 full scale lower than zero.

1-6 Weight Units

(kg)

1 g = 0.001 kg

(g)

1 g = 1 g

(lb)

1 g = 0.002204623 lb

(lb/oz)

1 g = 0.03527396 oz

(oz)

1 g = 0.03527396 oz

(GN)

1 g = 15.432358 GN

(dwt)

1 g = 0.6430149 dwt

(ct)

1 g = 5 ct

(hk.tael)

1 g = 0.02645546 Hk.catty

viss

1kg = 0.612245 viss

Table des matières

Autres manuels Excell Échelle

Excell

Excell ESW-3 Manuel utilisateur

Excell

Excell KWH4 Series Manuel utilisateur

Excell

Excell H4 Series Manuel utilisateur

Excell

Excell H3 Series Manuel utilisateur

Excell

Excell ELW Max Manuel utilisateur

Excell

Excell SI-132 Manuel utilisateur

Excell

Excell SI-130 Manuel utilisateur

Excell

Excell 20key-6PS Manuel utilisateur

Excell

Excell H3 Series Manuel utilisateur

Excell

Excell Weighing Scale Manuel utilisateur

Excell

Excell SK-VET Manuel utilisateur

Excell

Excell HJP Manuel utilisateur

Excell

Excell DIGITAL HIGH PRECISION WEIGHING SCALES Manuel utilisateur

Excell

Excell YSP Manuel utilisateur

Excell

Excell SI-132 Manuel utilisateur

Excell

Excell 150 Series Manuel utilisateur

Excell

Excell High Precesion Counting Scale Manuel utilisateur

Excell

Excell SUBe AirCharge Manuel utilisateur

Excell

Excell Counting Scale Manuel utilisateur

Excell

Excell 14key Manuel utilisateur

Excell

Excell AM4Series Manuel utilisateur

Excell

Excell Ocean Manuel utilisateur

Excell

Excell X Series Manuel utilisateur

Excell

Excell ESW-E Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
