GT IPSec

Setup Guide

GT IPsec Setup Guide

Printed in USA

Warranty

The information contained in this document is subject to change without notice.

ExaDigm makes no warranty of any kind with regard to this material, including, but not limited to, the

implied warranties or merchantability and fitness for a particular purpose.

ExaDigm shall not be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

GT IPsec Setup Guide

Table of Contents

1.0 Web GUI Login.....................................................................................................4

1.1 Initial Connection.......................................................................................................4

2.0 IPsec ....................................................................................................................4

2.1 Tunnel Configuration .................................................................................................5

3.0 Cisco ASA Settings ..............................................................................................6

3.1 Network Diagram.......................................................................................................6

3.2 Cisco ASA Configuration ...........................................................................................6

3.3 Cisco ASA Configuration ...........................................................................................7

4.0 NetGear VPN Settings........................................................................................10

4.1 Network Diagram.....................................................................................................10

4.2 NetGear VPN Configuration.....................................................................................10

4.3 NetGear ProSafe VPN Screen.................................................................................11

5.0 IPsec Tunnel Listing...........................................................................................13

GT IPsec Setup Guide

1.0 Web GUI Login

1.1 Initial Connection

1. Verify the GT unit’s power supply is connected; the green LED light will be illuminated.

2. Connect a PC or laptop to the front of the GT using a RJ-45 Ethernet cable.

Note: The Ethernet Port on the GT is “auto-sensing”, which means a straight through or cross-

over cable can be used to connect to the ExaDigm router.

3. Launch a web browser and connect to the GT using the address http://192.168.12.20:8080/. If

you cannot connect, verify the address provided by the GT’s DCHP host using your system’s

network adapter information.

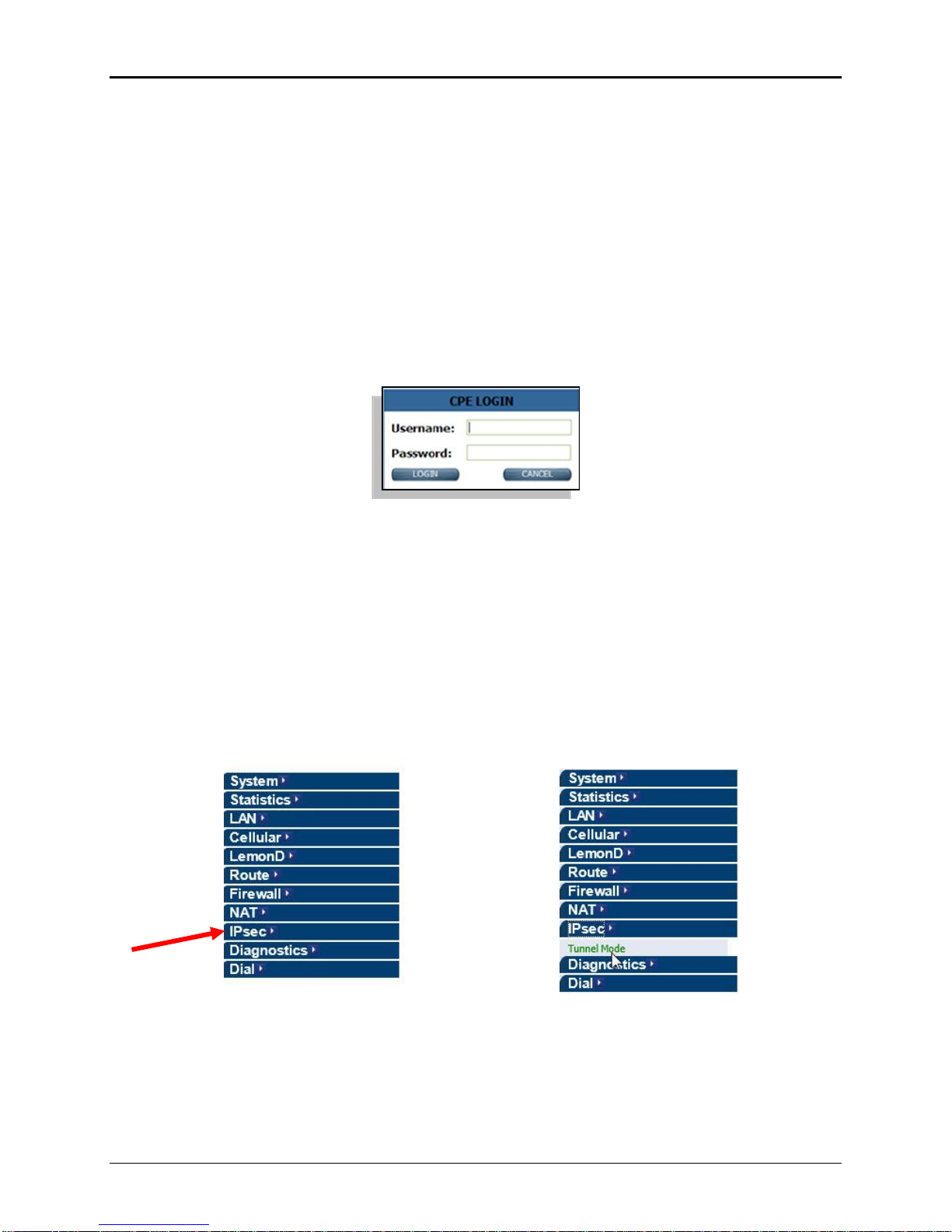

4. Once you are connected, the login screen will be displayed (see Figure 4 below).

Figure 4 –Login Screen

5. Enter the Username and Password, they are case sensitive. The default for access is:

Username: root

Password: admin

6. Once the GT validates the information, access will be granted and the Home Screen will be

displayed.

2.0 IPsec

Click on the IPsec tab located on the left side of the main screen (figure 1). Then click Tunnel Mode

under the IPsec menu (figure 2).

Figure 1 Figure 2

GT IPsec Setup Guide

2.1 Tunnel Configuration

The IPsec parameters will need to be added according to the specific Adaptive Security Appliance (ASA).

Click the Add button to configure the parameters.

The above configuration should be set according to the ASA being used.

GT IPsec Setup Guide

3.0 Cisco ASA Settings

3.1 Network Diagram

3.2 Cisco ASA Configuration

My Subnet will be set to the default DNS for the GT. The Peer Address is the external interface address

and the Peer Subnet is the internal address.

Once the configuration is set click on Apply.

GT IPsec Setup Guide

3.3 Cisco ASA Configuration

ASA Version 8.4(2)

hostname asa2

domain-name exadigm.com

enable password /xxxxxxxxxxxxxxxx encrypted

passwd xxxxxxxxxxxxxxxx encrypted

names

interface Ethernet0/0

switchport access vlan 2

interface Ethernet0/1

interface Ethernet0/2

interface Ethernet0/3

interface Ethernet0/4

interface Ethernet0/5

interface Ethernet0/6

interface Ethernet0/7

interface Vlan1

nameif inside

security-level 100

ip address 192.168.166.1 255.255.255.0

interface Vlan2

nameif outside

security-level 0

ip address 74.212.223.250 255.255.255.224

boot system disk0:/asa842-k8.bin

ftp mode passive

dns server-group DefaultDNS

domain-name exadigm.com

object network obj-192.168.166.0

subnet 192.168.166.0 255.255.255.0

object network obj-192.168.155.0

subnet 192.168.155.0 255.255.255.0

object network obj_any

subnet 0.0.0.0 0.0.0.0

access-list inside_access_in extended permit ip any any

access-list inside_access_in extended permit icmp any any

access-list inside_access_in extended permit tcp any any

access-list outside_access_in extended permit ip any any

access-list outside_access_in extended permit icmp any any

access-list outside_access_in extended permit tcp any any

access-list vzw_l2l extended permit ip 192.168.166.0 255.255.255.0

192.168.155.0 255.255.255.0

pager lines 50

logging enable

logging console debugging

logging asdm informational

GT IPsec Setup Guide

mtu inside 1500

mtu outside 1500

icmp unreachable rate-limit 1 burst-size 1

no asdm history enable

arp timeout 14400

nat (inside,any) source static obj-192.168.166.0 obj-192.168.166.0

destination static obj-192.168.155.0 obj-192.168.155.0 no-proxy-arp

object network obj_any

nat (inside,outside) dynamic interface

access-group inside_access_in in interface inside

access-group outside_access_in in interface outside

route outside 0.0.0.0 0.0.0.0 74.212.223.225 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02

timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat

0:05:00

timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect

0:02:00

timeout sip-provisional-media 0:02:00 uauth 0:05:00 absolute

timeout tcp-proxy-reassembly 0:01:00

timeout floating-conn 0:00:00

dynamic-access-policy-record DfltAccessPolicy

user-identity default-domain LOCAL

no snmp-server location

no snmp-server contact

snmp-server enable traps snmp authentication linkup linkdown coldstart

crypto ipsec ikev2 ipsec-proposal AES256

protocol esp encryption aes-256
