Evonicfires COLORADO Instructions de montage

Installation & User Instructions:

Models –COLORADO –IOWA –DETROIT –STATON - MEMPHIS –KANSAS –

KEPLER22

Once installed, the installer should take the appropriate steps

To ensure that the user understands how the appliance operates and

Should make the customer aware of the appliances basic service requirements.

THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE

Safety:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their

safety.

Children should be supervised to ensure that they do not play with the appliance.

General Warnings:

Never leave children unsupervised with an unguarded heater.

Never obstruct or cover the heater outlet.

Never install or use this product where it may come in contact with water i.e. a bathroom or wet room.

Never use aerosols or steam cleaners near this product.

Never route the electric cable near the heater outlet.

Never route the electric cable under carpets or floor coverings.

Never install this product close to curtains or combustible materials.

Never Use the heater to dry clothes or other objects.

Never remove the fireplace surrounding without isolating the electric supply.

Important electrical safety:

This appliance must never be installed above or in front of a fixed electric socket.

The electrical socket must be easily accessible to isolate the supply during maintenance and cleaning.

This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug to connect to a standard 230/240V plug

socket.

This appliance must always be earthed. If in any doubt consult a suitably competent person.

All Evonic fires products meet the requirements of the EC Directives 2004/108/EC and 2006/95/EC.

These directives have been met by compliance with the following standards:

BS EN 60335-1:2002

BS EN 60335-2-30:2003

BS EN 6100-6-3:2001

Please read these instructions before installation or use and keep this booklet handy for future reference.

•The green and yellow wire must be connected to the terminal in the plug which is marked

with the letter E or the earth symbol.

•The blue wire must be connected to the terminal in the plug marked with the letter N.

•The brown wire must be connected to the terminal in the plug marked with the letter L.

•If the plug is damaged, replace or consult a qualified electrician.

•Replace fuses only with fuses of the correct size and rating.

Servicing:

Only a competent person should service this appliance.

We recommend that this appliance is serviced every 12 months.

Warning: Before carrying out any repairs or servicing, ensure that the power supply cord is removed from the mains supply.

As the colours of the mains lead of this appliance may not match the coloured markings used to identify the terminals in a plug, please observe

the following:

Replacement plug: (Please note that it may invalidate your warranty is the moulded plug is removed)

This appliance must only be connected to a 230/240 Volts AC 50Hz supply. Before connecting the fire, check that the supply voltage is the same

as stated on the fire. This appliance must only be used on a AC supply, fuse rating 13Amp.

The wires in the mains lead are coloured in accordance with a standard UK supply, these being:

GREEN/YELLOW –EARTH

BLUE –NEUTRAL

BROWN –LIVE

INSTALLATION REQUIREMENTS:

INSET MODELS:

This product has been designed to be installed into a standard 420mm(W) x 570mm(H) x 80m(D)

If the products is to be installed into a open chimney or flue, it is important that the chimney/flue is blocked off to prevent any up/down draughts

and falling debris which could restrict and alter the airflow to the product.

It is also important to ensure that the product has a minimum clearance around it of 15mm, this is to ensure that the product can circulate the

required airflow for the heater unit.

The product should never be sealed into a opening with the use of silicones or adhesives as this can also alter the airflow and hinder any further

servicing of the product.

Please refer to technical specification table for further information, with reference to measurements.

(Heater unit cut-out) (This is a safety feature, to safe guard against further damage to the product).

If the airflow is restricted the heater will automatically turn off. This is can occur due to incorrect installation or obstruction.

To reset the heater function:

•isolate from the mains power supply.

•Leave product to cool.

•After a suitable cooling down period, remove the obstruction if obstructed, and check installation.

•After 10 minutes the thermo switch (cut-out) in the heater will reset.

Please note that both the effect fan and heater fan omit a low decibel noise, both of which are normal operating characteristics.

OPERATING INSTRUCTIONS

The appliance can be operated manually using the rocker switch to the right of the heater outlet, or by remote control. To operate, first

press the right master switch (located on the right side of the product) which is marked (O/I) to the ( I ) position then perform the

following actions:

FLAME EFFECT ONLY (NO HEAT)

Manual –Press the rocker switch on the appliance once.

Remote –Press the button marked on the remote handset.

FLAME EFFECT WITH 1Kw OF HEAT

Manual –Press the second rocker switch on the appliance to the ( I ) position.

Remote –Press the button marked on the remote handset.

FLAME EFFECT WITH 2Kw OF HEAT

Manual –Press the third rocker switch on the appliance to the ( II ) position.

Remote –Press the button marked on the remote handset.

STANDBY MODE –NO HEAT OR FLAME EFFECT

Manual –Press the first rocker switch on the appliance to the ( O ) position.

Remote –Press the button marked on the remote handset.

FLAME EFFECT –DIMMER FUNCTION

Manual –N/A No dimmer function on a manual control product.

Remote –Press the button marked on the remote handset once, and then again to stop the dimmer at the desired setting.

SETTING THE THERMOSTAT:

Ensure the ﬁre is plugged in and switch it on to the full heat setting.

Turn the Control Knob fully to the right (max temperature setting) to warm the room rapidly.

When the room temperature has reached the desired level, turn the thermostat knob back slowly until you

hear the thermostat just click off.

The heater will then maintain the room temperature at the chosen level.

Note: Should your heater fail to come on when the thermostat is at a low setting, this may be due to the

room temperature being higher then the thermostat setting.

maxmin

Fig:2) - Align the keyhole slots of the

Detroit fascia with the bolts in the main

body of the product.

Fig:3) –Once aligned, push the Detroit

fascia over the bolts, and then push

down to lock the door in position.

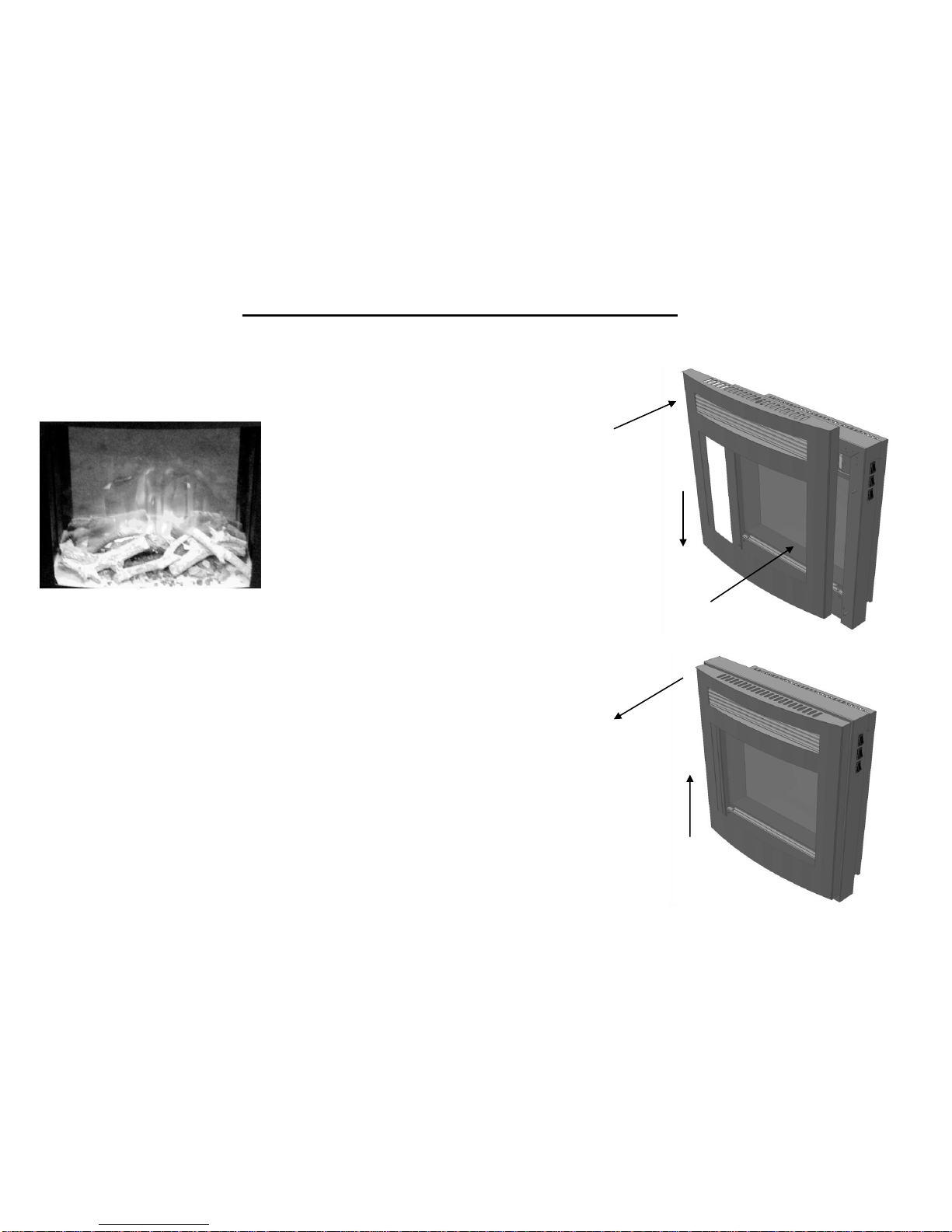

Attaching and removing the Detroit fascia

Fig:4) –To remove the fascia, pull in a

upward motion.

Fig:5) –Then pull the fascia away from

the main body.

Fig:2

Fig:3

Fig:4

Fig:5

Suggested fuel layout:

Fig:1) –Place the ceramic fuel set into

the product as shown above. Fig:1

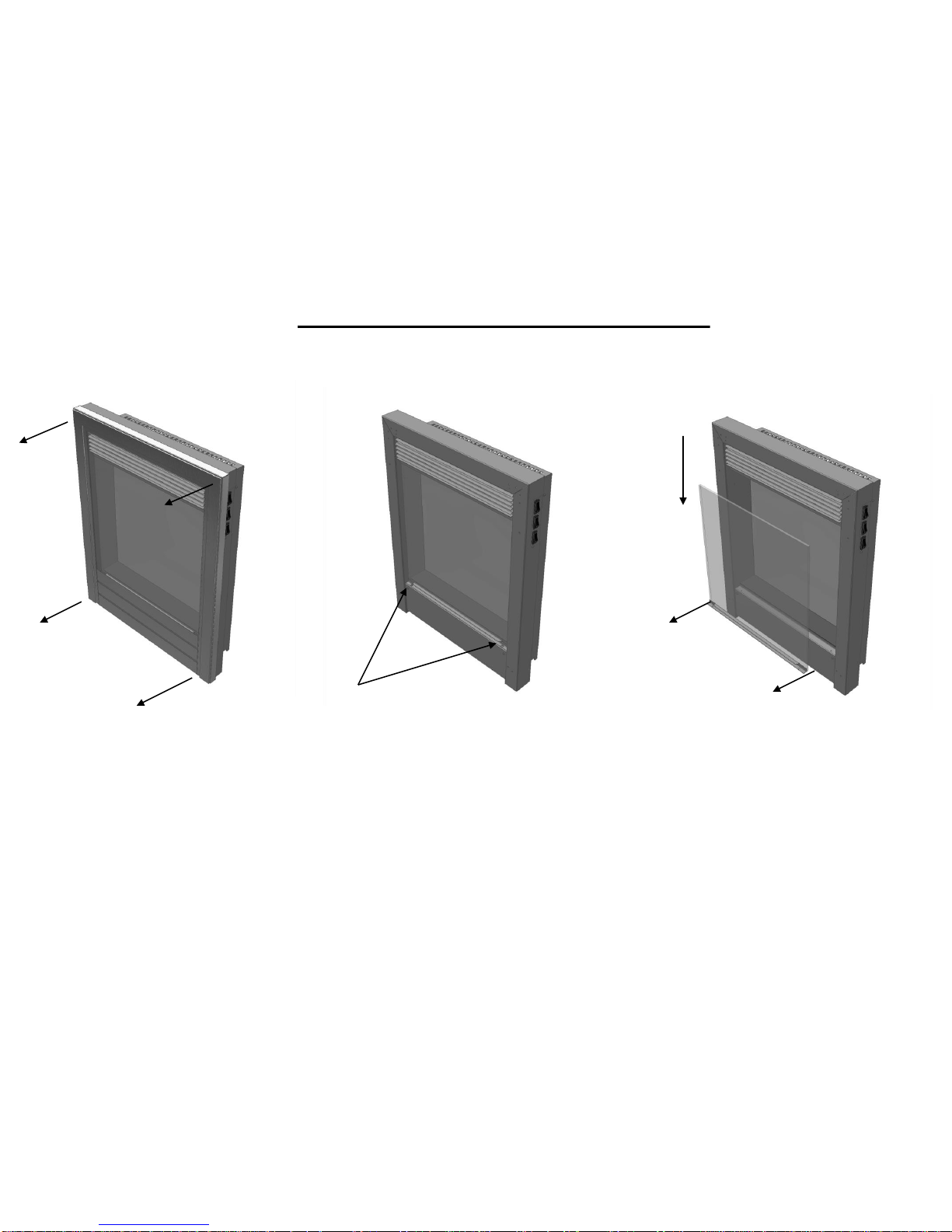

COLORADO FRONT GLASS REMOVAL:

1. Remove outer frame, this is held

in place with magnets. 2. Remove the two screws located

in the bottom glass retaining bar. 3. Remove the glass by pulling the

retaining bar away from the body of

the fire, ensure that this glass is

supported at all times.

To install the fuel set (Logs,Pebbles,Coals) the below steps must be taken.

4. Place the fuel set (Logs,Pebbles,Coals) on the fuel bed

as to your own specification.

5. To replace the glass, please reverse the above steps.

Memphis infill plate installation

To install the Memphis infill plate please follow the below steps:

1. Remove the x2 screws located in the

front plate as indicated.

2. Feed the x2 screws through the x2

holes in the Memphis infill plate.

3. Screw and fix the Memphis infill plate

to the front plate located on the fire.

Memphis-Kansas Tie back

installation

1. Screw and fix the eyelet into the

top of the installation aperture.

Fig:1

2. Feed the wire first through the

body of the fire and then through

the eyelet. Fig:2

3. Once threaded through the eyelet,

feed back through the same hole

on the fire body to create a loop.

4. Move the fire back into the

opening, whilst pulling the excess

slack of the cable tight.

5. Cut the cable 50mm away from

the body of the fire.

6. Feed the straddle clamp onto the

end of the wire, and screw tight.

Fig:3

Fig:1

Fig:2

Fig:3
