Evolution EVO12 Manuel utilisateur
Owners Manual for Models:
EVO12
EVO16
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 1
Contents
1. Cautions------------------------------------------------------------------------------------------------------------------------------------------------------------2
2. Vehicle structure--------------------------------------------------------------------------------------------------------------------------------------------------3
3. Bike Assembling-----------------------------------------------------------------------------------------------------------------------------------------------4-6
4. How to use-----------------------------------------------------------------------------------------------------------------------------------------------------7-10
5. Daily maintenance------------------------------------------------------------------------------------------------------------------------------------------11-18
6. Warranty-----------------------------------------------------------------------------------------------------------------------------------------19
PLEASE READ MANUAL CAREFULLY BEFORE OPERATING
For more information, please visit:
www.evolution-bicycles.com
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 2
Cautions
1. Note: the product pictures are for illustration purpose only. These pictures may not reflect the exact out looking of
actual product. Specifications may change.
Before using the bike, please must read the manual carefully and inspect whether the parts are in good conditions, to ensure
children and riding safety. If there is any problem, please contact the dealer immediately.
2. Children are required to use the bike under the supervision of parents or adults.
3.The bike should be parked in a dry and ventilated place. Do not rinse the bike with water. It is recommended to wipe it with a cloth.
4. Please comply with local laws or regulations; Please slow down and increase the braking distance in rainy/snowy day or slippery
road, to sure the safety.
5. Non-professional maintenance persons are prohibited from disassembling and replacing parts.
6. The bike is forbidden to do stunt riding.
7. Please inspect and sure all screws are tight before riding.
8. The controller is equipped with an overload protection function. It will cut off the power automatically once overloaded. And when
the power turns to normal, the power will turn on.
9. When the bike is with electricity but cannot drive, please turn off the power in time in case of electric components damage.
10. Please turn off the power when you get down from the bike or you are pushing it, in case that when riders push the throttle
unintentionally , the bike starts suddenly and get hurt.
11. Never operate the bike if side cover and chain cover are not installed.
Do not allow hands, feet, body, clothing or other similar items to come into contact with any rotating or moving parts.
Ride at your own risk and use common sense.
Not intended for children under the age of 3 or heavier than 75lbs. Make sure the childs feet can safely reach the floor; able to
follow instructions.
12. Use proper riding attire. Always wear a helmet, shoes, knee and elbow covers and gloves.
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 3
22
Vehicle structure
1. Front wheel 2.Tire 3.Front fork 4.Stem 5. Frame 6.Saddle 7. Seat post 8.Inner tube 9.Rear wheel
10.Jack11.Chain cover 12.Side cover 13.controller 14.battery 15.seat post release 16.Right grip 17.throttle
18.Handlebar 19.Left brake lever 20.Left grip 21.Braking cable 22. Rear drum brake
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
16
17
18
21
19
20
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 4
Bike Assembling
1. Please take out the bike from carton, remove the packing and fix the handlebar on the stem tightly with a hex wrench.
QUICK START
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 5
Bike Assembling
2. installation requirements:
2.1 Handlebar needs to be symmetrical
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 6
Bike Assembling
2.2 Correct the horizontal angle, the brake level is about 45°horizontally
45°
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 7
Yellow light: Medium power
How to use
1. Please wear personal protective equipment, like helmet, protective glass, sneaker, glove, elbow pad, knee pad etc.
2. Throttle/Display instruction
3. Press power switch button, battery indicator light is on;
Press power switch button, battery indicator light is off;
4. Use the finger to push the throttle to control the power
5. In order to protect the safety of children, after the power switch is turned on, the display shows that the power is on, and the
switch has a 5-second slow start function.
Green light: Full power, high battery
Red light: Low power
Power switch
Throttle
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 8
How to use
6. Speed conversion instructions :
In order to protect children and prevent riding speed from being too fast, the figure below shows the controller plug-in
connection speed limit line. The plug-in speed limit line is disconnected and turned on to realize two speed modes:
Mode 1: The speed limit line is disconnected, the bike speed is 13KM/H.
Mode 2: The speed limit line is connected, the bike speed is 6.5KM/H.
The operation of this speed change switch requires an adult to operate
E L E C T R I C B A L A N C E B I C Y C L E U S E R M A N U A L
Page 9
How to use
6.1. Detail operate process :

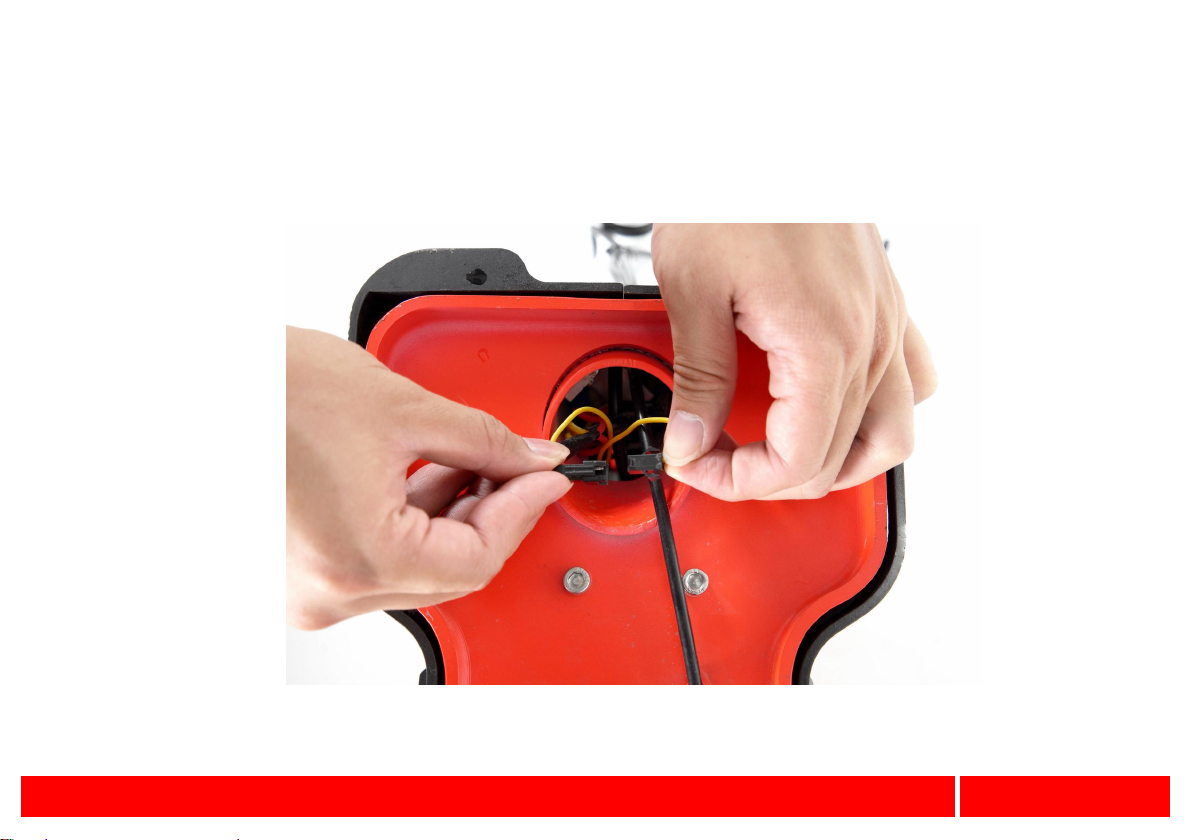

1). Find the speed limit line at the bottom of the frame to insert or remove to change the speed.
