Evolution Aqua EAZYPOD AUTOMATIC Guide rapide

INSTALLATION AND INSTRUCTION MANUAL

Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP

t +44 (0) 1942 216554 - f+44 (0) 1942 418 489 - e[email protected] - wwww.evolutionaqua.com

English

EAZYPODAUTO1250416MAN

IMPORTANT PLEASE READ:

We recommend that all electrical work on your EazyPod

Automatic System be done by a suitably qualified electrician.

Ensure that the UV is switched off at the mains before you attempt

to conduct any type of maintenance.

WARNING: PLEASE READ THE FOLLOWING

SAFETY INFORMATION FIRST.

IMPORTANT SAFETY INFORMATION

- Please Read Carefully

- Never look directly at an illuminated UV bulb.

- Do not run this unit dry.

- Please ensure that the EazyPod Automatic is full of water before switching it on.

- Always isolate the unit from mains electricity and turn off any water supply before

carrying out any maintenance.

- Always disconnect all pond appliances from the mains supply before putting your

hands into the water.

- Use in the area of the garden pond only if the installation complies with the

relevant wiring regulations.

- Power must be supplied through a Residual Current Device (RCD) with a residual

operating current not exceeding 30mA.

- This unit must be earthed. Never use a fuse larger than 3 amps on the power lead.

- The unit must not be submerged in water.

- If the quartz sleeve is cracked, replace it immediately.

- The unit must be either fully frost protected or taken inside during Winter months.

- Young children should always be supervised near water.

PRODUCT INFORMATION

- Rating:

220-240V, 50Hz.

18 Watt UV

- Control box is IP68. Automatic Valve is IP64. UV unit is IP54.

All units are CE approved.

- UV Bulb Specification: 18 Watt PL-L UV-C Bulb

Disposal Of Your Old Product

Your product is designed and manufactured with high quality material and components,

which can be recycled and reused. When this crossed-out wheeled bin symbol is

attached to a product, it means the product is covered by the European Directive

2002/96/EC. Please contact your local authority about correct disposal for electrical

and electronic equipment. Our WEE Registration Number is WEE/FE1471RR.

Please act according to your local rules and do not dispose of your old products with

your normal household waste. The correct disposal of your old product will help prevent

potential negative consequences for the environment and human health.

INTRODUCING THE EAZYPOD AUTOMATIC

Please read this instruction manual carefully

from start to finish before attempting to

install your EazyPod Automatic.

CONTENTS

Parts list PAGE 04

Dimensions PAGE 05

How the EazyPod Automatic Works PAGE 06

Components PAGE 07

Setting up the EazyPod Automatic PAGE 08

Specification and flow rates PAGE 10

Installation PAGE 11

Connection to the electricity supply PAGE 13

Cleaning with the EazyPod Automatic PAGE 18

The cycle timer explained PAGE 19

Setting the cycle timer PAGE 20

Automatic cleaning operation PAGE 22

Cleaning principles PAGE 23

Cleaning the UV Quartz sleeve PAGE 24

Replacing the UV bulb PAGE 25

Troubleshooting PAGE 26

Warranty PAGE 27

EAZYPOD AUTOMATIC PARTS

Your EazyPod Automatic / EazyPod UV Automatic comes complete with the following items:

EAZYPOD LID

4 TO 3 INCH EAZYCONNECTOR

FOR OUTLET

1½” HOSETAIL AND ADAPTOR

FOR AUTOMATED WASTE VALVE

K1 MICRO FILTER MEDIA

INTEGRATED NON-RETURN HOSETAIL

AND O-RING FOR INLET

1½” AUTOMATED WASTE VALVE

(Factory fitted to EazyPod)

DIMENSIONS

190

585

530

655

580160

620

145

The concept of the EazyPod Automatic is simple and yet innovative. Water enters via the inlet (A) and

passes over an 18 watt UV Clarifying bulb (L) (on UV versions), helping to kill any single celled algae

in the water.

The water then enters the outer chamber (B), which runs around the entire circumference of the

EazyPod. Between the outer chamber (B) and the inner chamber (C), is a stainless steel perforated

screen (H). These perforations are situated in the lower half of the screen and around its entire

face. This means that when the water passes from the outer to inner chamber (Bto C) a downward

and upward flow is created. This causes many of the larger solids to settle in the base of the outer

chamber (B), due to the force of gravity.

The size of the perforations will not allow large mechanical waste to enter the inner chamber (C), thus

acting as a first stage mechanical filter. The inner chamber holds 18 litres of static K1 Micro media.

As the water enters the inner chamber, the fine smaller solids become entrapped in the K1 Micro.

After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe

(E). From here it returns to the pond via the return outlet (I).

The EazyPod Automatic filtration system gives water quality and clarity that surpasses all

expectations. The nature and volume of the K1 Micro means, that when static, apart from being

a very efficient mechanical filter, there is more than enough surface area for beneficial bacteria to

colonise. Therefore on a smaller pond, the EazyPod Automatic is an excellent complete filter.

PLEASE NOTE that in normal running, the K1 Micro has to be static – it is only moved during

cleaning and maintenance. If the K1 Micro is moved in normal operation, whether by air or by

hand, all of the debris it has collected will be returned to the pond! The K1 Micro is cleaned by the

integrated air pump located inside the control box, that is connected to the air line (P) in the EazyPod

Automatic, which in turn goes to an air ring (G) in the base of the inner chamber (C). The air ring has

small holes in it which causes the K1 Micro to move and therefore clean itself.

During the cleaning cycle, the finer particles escape into chamber (B) from the K1 Micro. This waste

water will be automatically dumped via a 1½ inch motorised ball valve (J)

Your EazyPod Automatic will help to keep your pond clear of green water. As with any filter that works

in combination with a UV, the effectiveness of the UV light will depend on stocking levels, sunlight /

shade, daily sunshine amounts etc.

Please check the table on page 10 to make sure you run your EazyPod Automatic within our specified

limits to achieve the best results.

HOW THE EAZYPOD AUTOMATIC WORKS

Description Identity Letter

Inlet A

Chamber B - Outer Chamber B

Chamber C - Inner Chamber C

Overflow Assembly D

Return Pipe E

Stainless Steel Perforated Pipe F

Air Ring G

Stainless Steel Perforated Screen H

Outlet: 4”-3” EazyConnector I

Automated Waste Valve J

Inlet: 1½” Non-Return Hosetail K

UV Clarifier Bulb Unit (18 W PL-L Bulb) * L

Automatic Control Box M

Pump Power Cable (NOT SUPPLIED) N

Mains Power Cable (NOT SUPPLIED) O

Airline for cleaning P

Glue stepped hosetail with adaptor Q

COMPONENTS

*ON EAZYPOD UV AUTOMATIC MODELS

N O

SETTING UP THE EAZYPOD AUTOMATIC

ADD K1 MICRO

FIT THE NON RETURN HOSETAIL

Your EazyPod Automatic is supplied with 18 litres of K1 Micro. Simply empty the entire bag into the

inner chamber (C) of the EazyPod Automatic.

To set up your EazyPod Automatic ready for use, follow these simple steps:

For automatic cleaning you need to install the non-return hosetail onto the inlet. This helps to prevent

back siphoning to the pond when the EazyPod Automatic is in cleaning mode.

STEP 1: Fit O-Ring on the

hosetail thread of the non

return hosetail.

STEP 2: Screw the non-return

hosetail into the inlet thread.

STEP 3: Ensure the non-return

hosetail is hand tightened

until the rubber O-ring seals

on the inlet face. (DO NOT

OVERTIGHTEN)

SETTING UP THE EAZYPOD AUTOMATIC

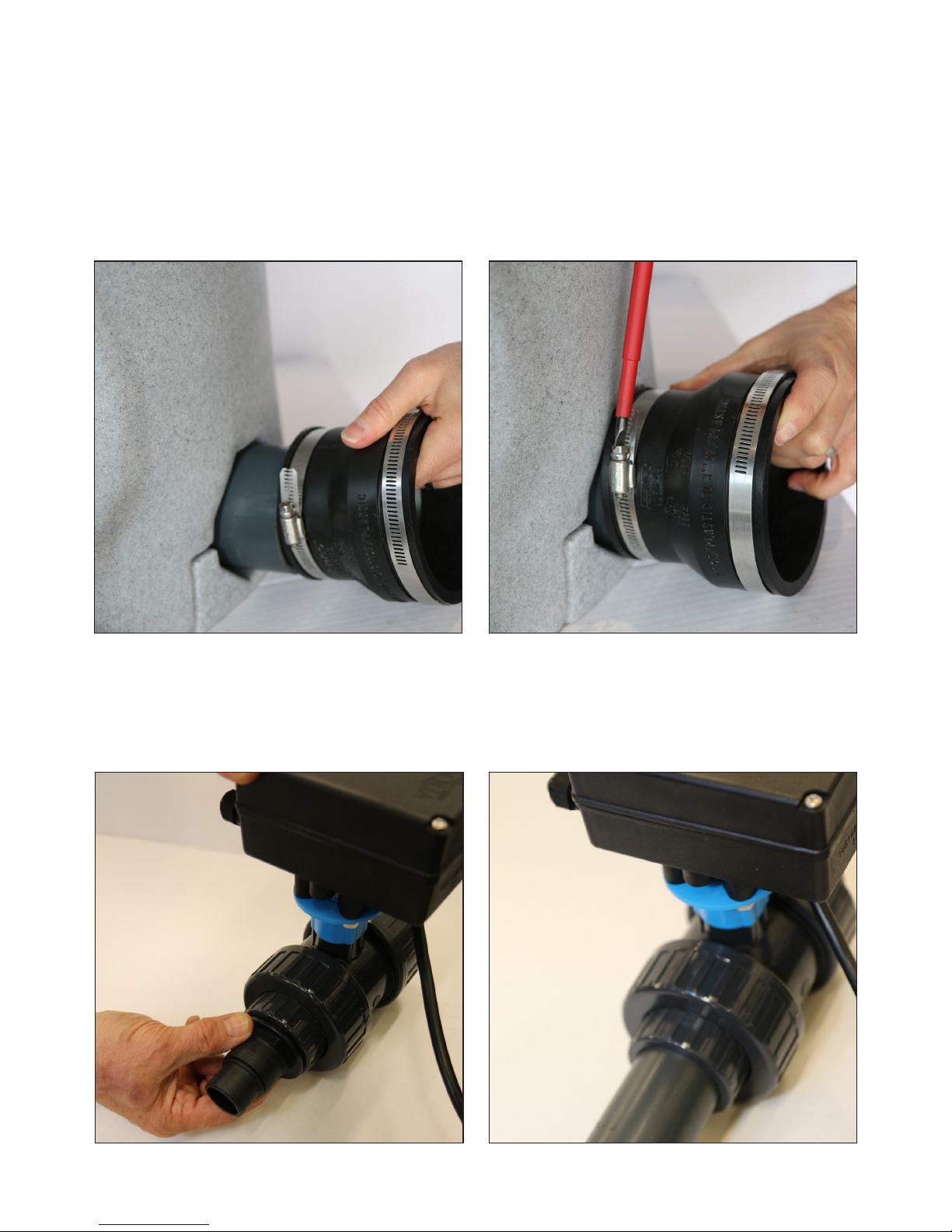

FIT THE EAZY CONNECTOR ON THE OUTLET PIPE

GLUE HOSETAIL / PIPE INTO AUTOMATIC WASTE VALVE

Fit the 4”-3” EazyConnector onto the outlet pipe and tighten the jubilee clip with a flat head screwdriver.

You can connect your waste valve to flexible hose (minimum 1”) with the help of a glued hosetail and

adaptor provided. Or you can connect the waste with 1½” PVC pipe.

GLUE HOSETAIL

AND ADAPTOR

INTO AUTOMATIC

WASTE VALVE

OR GLUE

1½” PVC PIPE

INTO THE

AUTOMATIC

WASTE VALVE

The EazyPod Automatic is truly multi-functional. It can be run in several different ways for different

applications.

The EazyPod Automatic can be used:

• as a stand alone filter on a small pond

• as a complete filter on a quarantine system

• as a pre-filter at the front of any new or existing system

• as a polisher at the end of any system

• off a mid water feed to aid mechanical filtration

• on a skimmer line as a mechanical filter

Remember that if you use the EazyPod Automatic solely as a mechanical filter,

you will also get an enhanced biological benefit in your system.

EazyPod Automatic Specifications and Flow Rates

Follow this manual carefully and your filter will provide a perfect environment for your fish. One

of the factors that can have a significant influence on our ponds is the turn over rate. This is the

time that it takes for the total water volume of the pond to pass through the filter system once. On

ponds, where an EazyPod Automatic is used as the only filtration system, a total pond volume turn

over of every 1 to 2 hours is required.

Therefore if you have a 10,000 litre pond, a minimum rate of 5,000 litres per hour is needed

giving a 2 hour turnover, although you could also run at 10,000 litres per hour giving a turnover

rate of once per hour.

SPECIFICATION AND FLOW RATES

Max flow rate: 10,000 litres/hr 2,200 UK gallons/hr 2,640 US gallons/hr

Max pond size for all fish 10,000 litres 2,200 UK gallons 2,666 US gallons

Max pond size with

the addition of

supplementary UV 20,000 litres 4,400 UK gallons 5,333 US gallons

K1 Micro 18 litres

Max feed rate 100 - 120g per day

AirPump Factory fitted inside control box

UV Bulb Specification 18 Watt PL-L UV-C

UV Bulb Life Recommended bulb change every 8000 hours
