English

Overview

Thank you for purchasing a genuine EVGA graphics card. EVGA is an NVIDIA® Authorized Solution Provider that

builds high performance 3D cards. Our graphics cards are fully compatible with the latest 2D and 3D graphical

requirements.

Before installing your EVGA graphics card, it is highly recommended to ﬁrst register the product to receive the full

support and warranty. Please note that you are required to register this product within 30 days to receive the full

warranty. You can register your card online at www.evga.com/register

EVGA also strives to provide a full range of programs and services to enhance the customer experience including

but not limited to:

EVGA Advanced RMA (EAR) Program:

The EVGA Advanced RMA (EAR) Program is a program to protect yourself and your product in the case of product

failure. For more details please visit www.evga.com/support/ear

EVGA Step-Up Program:

In order to give our customers the greatest amount of ﬂexibility when purchasing EVGA graphics cards, we have

instituted the EVGA Step-Up Program. For more details please visit www.evga.com/stepup

EVGA Online Community:

To visit the EVGA community forums, please visit www.evga.com/forums

EVGA Precision:

For select EVGA graphics cards: Fan speed control, real-time monitoring on-screen or on your keyboard, take

in-game screenshots, overclock, choose from user created skins, create custom proﬁles and more! Visit

www.evga.com/precision

EVGA OC Scanner:

Built-in artifact scanning, benchmarking, and more, EVGA OC Scanner combined with Precision make the perfect

combo. Visit www.evga.com/ocscanner

EVGA FAQ:

To search our knowledge base and product FAQ, please visit www.evga.com/faq

EVGA Gaming:

If you live to game, this is the place for you! We have the best tournaments, prizes and game servers. Visit

www.evga.com/gaming

English

Folding@EVGA:

Distributed computing for the greater good. Did you know that you can turn your graphics card into a shared

supercomputer? Visit www.evga.com/folding

EVGA Social Networks:

Stay up to date on contests, promotions, tech tips, new products, driver releases and more by following EVGA on

your favorite social network! Visit www.evga.com/sonet

MODS RIGS:

$1K Sponsorships for every 200 posts. Come show off your rig and join in on one of the biggest things happening

at EVGA. www.modsrigs.com

EVGAontheTUBE:

Installation instructions, troubleshooting guides and product videos! www.youtube.com/evgaonthetube

Hardware Installation

installation procedure, consult a qualiﬁed computer technician. Damage to the system components, the

graphics card, and injury to yourself may result if power is applied during installation. Now that you have prepared

your computer, you are ready to install your graphics card.

Quick Start

1. Before starting installation, it is recommended to completely remove all drivers for your existing graphics card.

(If you have one)

2. Power off the computer and all attached devices (monitors, keyboard, mouse, etc.).

3. Disconnect the display cable from your current display adapter on the back of the computer.

4. Remove your existing graphics card (if you have one) from your computer. You will do this by removing the

retaining screw and pulling the card out in a straight up fashion. Please note that your motherboard may have a

PCI Express (PCI-E) latch on the slot that needs to be pressed in ﬁrst.

(NOTE: If your motherboard has integrated or onboard video, you may need to disable it ﬁrst, please contact

your system or motherboard manufacturer for additional information.)

Preparing Your Computer

WARNING: Turn off the power to your system and discharge your body’s static

electric charge by touching a grounded surface – for example, the metal surface of

the power supply or chassis – before performing any hardware procedure. EVGA

assumes no liability for any damage, caused directly or indirectly, by improper

installation of any components. If you do not feel comfortable with performing the

English

Hardware Installation Details

Graphics Cards Requiring Additional Power

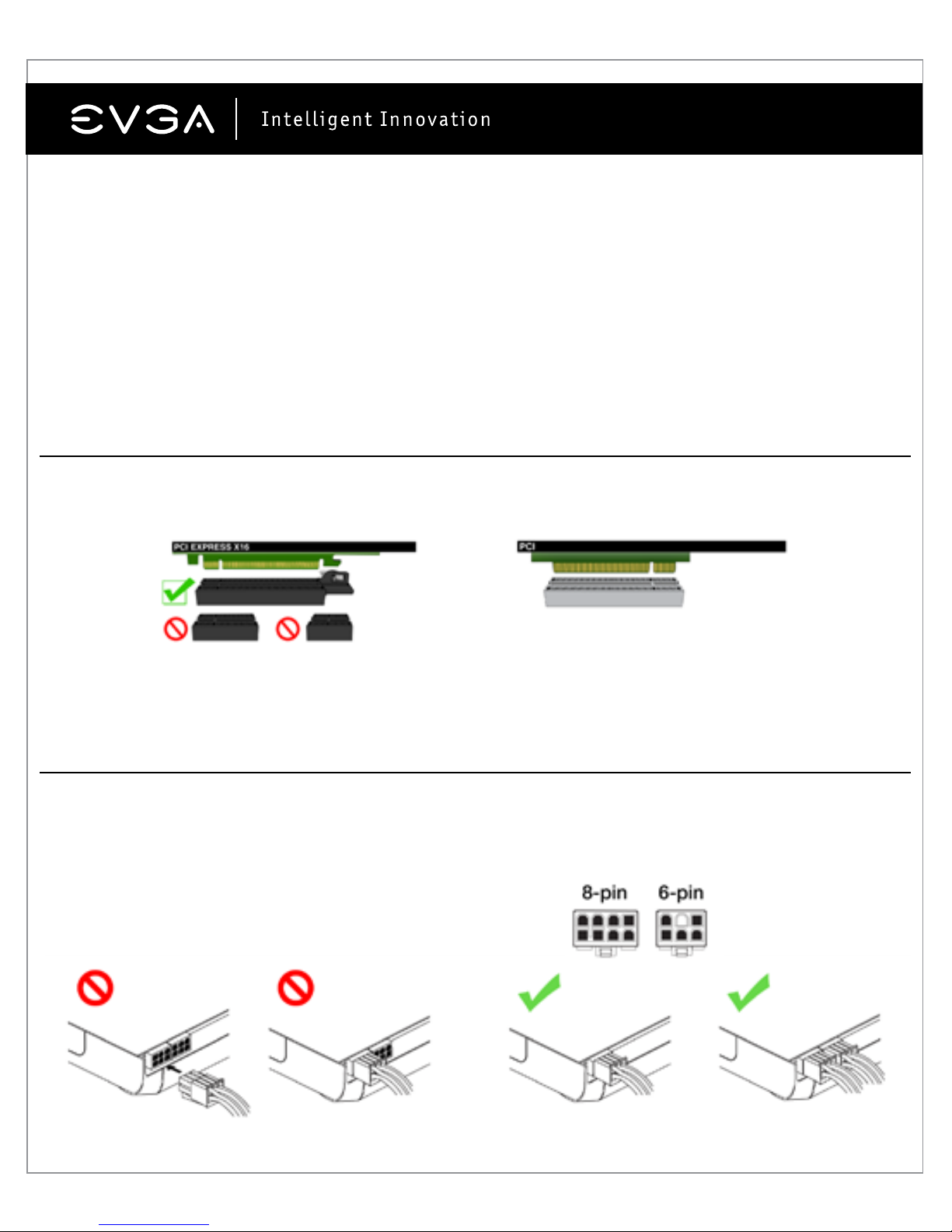

PCI Express (PCI-E) and PCI slots are different, so prior to installation; please verify that the graphics card bus type

and available slot are the same.

If your graphics card is equipped with a supplemental power adapter, it is required that it be connected at the time

of installation. This supplemental power adapter ensures that your graphics card receives the necessary power

that will allow it to function at optimal performance levels. Your card may require one or two 6 or 8-pin PCI Express

(PCI-E) supplemental power connectors. Please note that the 8-pin PCI-E power connector is not the same as the

8-pin CPU power connector. Please see the below illustration.

5. Align your new card with the appropriate slot, (see illustration below) and press it in ﬁrmly until the card is fully

seated. Make sure that the metal contacts of the card are completely pushed into the expansion slot.

6. Connect the supplemental PCI Express (PCI-E) power adapter(s) to the card if applicable. (See illustration

below.)

7. Replace the retaining screw to fasten the card into place, and then replace the computer cover.

8. Reconnect any devices that you detached during installation, and then connect the monitor’s video cable to

your new graphics card.

9. Apply power to your system, boot to the operating system and install the proper drivers.

PCI Graphics CardsPCI Express (PCI-E) Graphics Cards

English

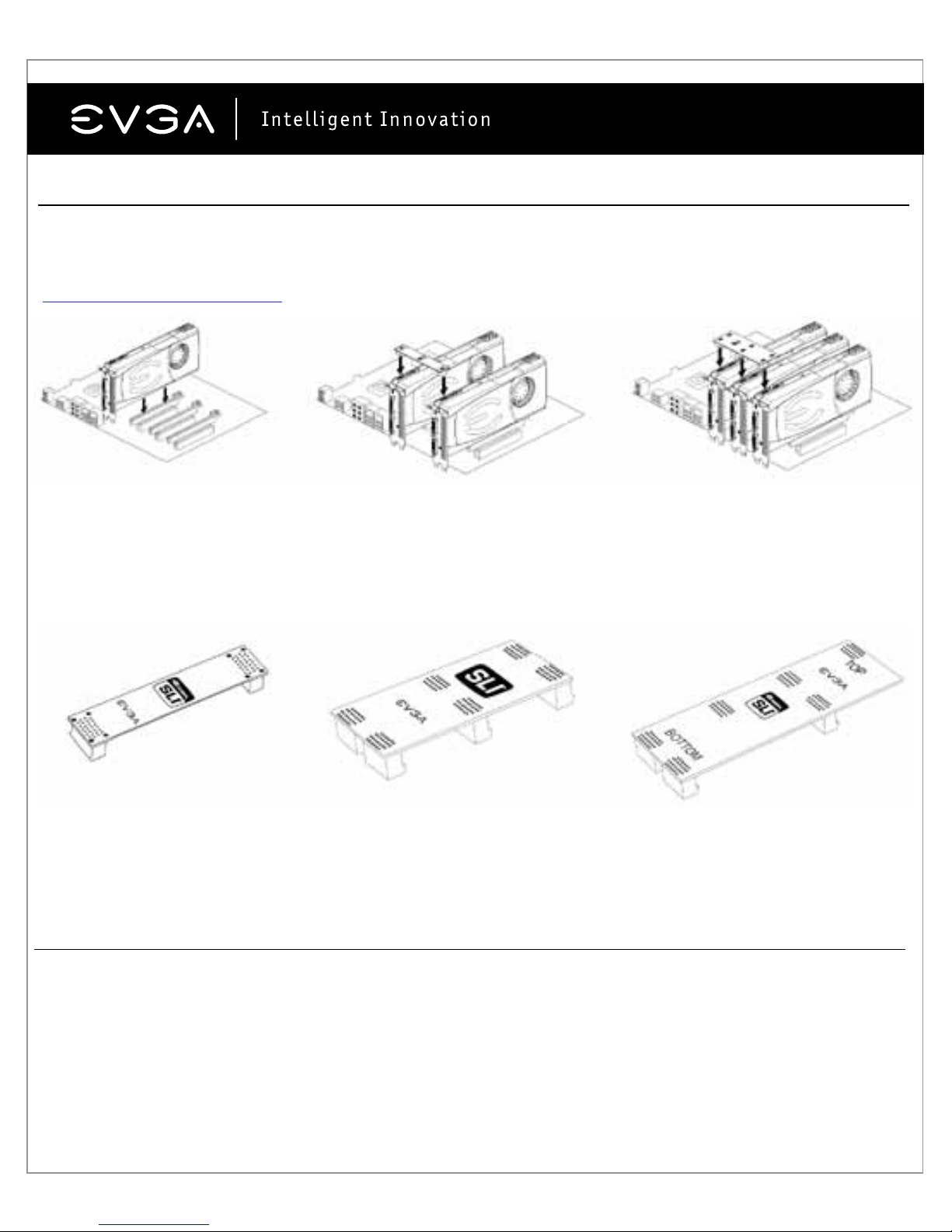

SLI Installation (optional)

On some EVGA graphics cards, it is possible to link multiple graphics cards up for improved performance, this is

called SLI. To install multiple cards in SLI, follow the below instructions, please note that in SLI setups both cards

must be the same model. For a video overview of setting up SLI, please visit

www.evga.com/twit.asp?id=517

Software Installation

When you boot up your computer for the ﬁrst time after installing your new graphics card, Windows may detect a

new display device and attempt to install the drivers. If it gives you the option to cancel, please do so, otherwise

wait for Windows to complete the installation (a reboot may be necessary).

After this process has been completed, it is necessary to install the recommended drivers for your graphics card.

To begin, insert the EVGA Installation DVD/CD and allow the autorun driver installation menu to start.

Install your ﬁrst GeForce graphics card

into the Primary PCI Express x16 slot.

The above SLI bridges are included with your SLI ready motherboard depending on the conﬁgurations that it supports. In order for your

SLI setup to work properly you would need to use the appropriate bridge based on the number of cards you are connecting.

2-way SLI

2-way SLI: Install your second GeForce

graphics card in to the outer PCI Express

x16 slot. Connect the two cards together

using the 2-way SLI bridge connector that

came with your SLI-ready motherboard.

3-way SLI

3-way SLI: Install the third GeForce card into

the middle or secondary PCI Express

slot on the motherboard. Connect the

GeForce cards together using the 3-way

SLI bridge connector that came with your

SLI-ready motherboard.

4-way SLI

English

Setting up Multiple Displays

The NVIDIA Control Panel allows you to conﬁgure a multi-display environment, whether it is through multiple

computer monitors or by using a monitor in conjunction with an HDTV. The ability to use multiple displays within

Windows can simplify many everyday tasks by spreading out the Windows Desktop area or by allowing you to

watch a movie on one of the displays. Multiple display conﬁguration can be made in the “Set up multiple displays”

subsection located in the NVIDIA Control Panel. To access the NVIDIA control panel, simply right click on the

desktop, and select “NVIDIA Control Panel.”

Single Mode

Select just one checkbox for the monitor you wish to use as your single display. This will disable the secondary

output and is the default setting if you only have one monitor connected to the graphics card.

Extended Mode

Select two or more checkboxes to enable more than one monitor. Once checked, right click on the monitors in the

section below to set the desired mode. Extended desktop mode can independently control resolution and refresh

rate settings for each display.

Duplicate Displays

Select two or more checkboxes to enable more than one monitor. Once checked, right click on the monitors in the

section below to set them to duplicate display mode, and select the primary monitor. Duplicate displays require

identical resolutions between both displays.

Enabling SLI (optional)

If you installed cards in SLI mode, now you will need to enable SLI to get the full performance from your setup. To

enable SLI, visit the NVIDIA control panel by right clicking on the desktop, and select “NVIDIA Control Panel.” Next,

select “Set SLI and PhysX conﬁguration.” Finally, select “Maximize 3D Performance” and select apply. To see a

video overview of the SLI installation procedure, please visit www.evga.com/twit.asp?id=517

Note: If the autorun driver installation menu does not appear, it can be launched manually by clicking on the

“Computer” or “My Computer” icon, and double clicking the icon for your DVD/CD drive. After that double click on

the “autorun.exe” ﬁle.

Once the autorun installation menu appears, select the “Install Video Drivers” button. This will start the driver

installation process.

Note: During installation, you may be prompted by the Microsoft WHQL (Windows Hardware Quality Labs) warning,

please select the “Continue” or “Install this driver software anyway” option, as it is safe to do so.

English

Problem: The computer will only display a black screen after it boots into Windows.

Cause: The integrated video adapter has not been disabled prior to installing the new graphics card and/or not

having uninstalled the display drivers from your previous display adapter.

Solution: Ensure the integrated video adapter has been disabled through your motherboard’s BIOS or the

Windows Device Manager prior to installing the new graphics card, and that you have uninstalled the drivers

through the Windows Control Panel. After the new card has been installed, connect the monitor cable and if

required, any supplemental power adapters to the new card before booting up the system.

Problem: Games lockup or crash to the desktop.

Solution: Verify that all the necessary hardware drivers are installed and up to date, including the chipset, video

and sound card drivers. Reinstall the latest version of DirectX (located on EVGA installation disc) or the game itself.

Also, verify the game has all the necessary patches installed that are available from the developer.

Problem: Where can I ﬁnd the latest drivers for my graphics card?

Solution: The latest drivers can be found at www.evga.com/support/drivers

Solution: Remove the card from the computer and reinsert it, making sure that the card is seated properly in the

slot, and then try to boot the computer again. If this does not work then the problem is either with the motherboard

or the graphics card and you should contact your hardware manufacturer for further assistance.

Quick Fixes

Problem: At boot-up, all you hear is a series of beeps from the computer, but see no screen.

Cause: The beep sounds are a warning sound from the motherboard BIOS that says it cannot initialize the

graphics card, this can mean one of four things:

1) The card is not seated properly.

2) There is a problem with the motherboard’s graphics card slot.

3) Supplemental PCI-E power is not connected to the graphics card.

4) There is a problem with the graphics card.

English

Additional Support

Should you require any assistance with the installation or troubleshooting of your EVGA graphics card, please visit

the support section of our website at www.evga.com/support. There you will be able to download drivers, check

out our extensive Knowledge Base, and submit technical and customer support inquiries. Be sure to visit the EVGA

forums at www.evga.com/forums

Alternatively, we can be reached by phone. Before contacting Customer Service, please review this manual. If you

need to contact Customer Service, please have your system conﬁguration as well as your card’s model number

and serial number ready. You will need to register your product before a support technician can assist you. You

may register your card online at www.evga.com/register

 •HoursofOperation:24/7TechnicalPhoneSupport

 •PhoneSupport:(888)880-EVGA(3842)

 •TechSupportWebSite:www.evga.com/support

Warranty Program to Fit your Needs

For many Retail Products, EVGA offers a Limited Lifetime Warranty. (Must be registered within 30 days of pur-

chase date). For more information, please visit www.evga.com/support/warranty

The rest of the EVGA product line is still covered under the excellent Limited 2 Year or 3 Year Warranty.

(Must be registered within 30 days of purchase date). For more information please visit

www.evga.com/support/warranty

Problem: When viewing my PC on an HDTV, the entire desktiop is not visible, and certain areas; such as the

Windows taskbar, reside offscreen.

Solution: Firstly, ensure that you are running at the correct resolution for your display. If it is, try adjusting the

“Resize Desktop” feature. This lets you compensate for HDTV overscan so that the entire desktop is visible. In this

case, to view display elements that appear offscreen, NVIDIA recommends using the Ovescan Shift feature to pan

the desktop. You can access the Overscan Shift controls from the TV Settings page of the NVIDIA panel.

Note: For problems not listed in this document, please visit the EVGA Knowledge Base at www.evga.com/faq

English

Macrovision Product Notice

Trademark Information

CE Compliance Information

EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-14, Generic Emissions Standard for Residential,

Commercial and Light Industrial Products (EN 55022/CISPR 22, Limits and Methods of measurement of Radio). (EN 55022/CISPR 22,

Limits and Method of Measurement of Radio Interference Characteristics Information Technology Equipment) Warning: This is a Class B

product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate

measure. EN 50082-1, Generic Immunity Standard for Residential, Commercial and Light Industrial Products (IEC 801-2, IEC 801-3, IEC

801-4)

This product may incorporate copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use

of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only

unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

2001-2012 EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brands and companies are

trademarks of registered Trademarks of their respective companies. EVGA reserves the right to terminate this license if there is a violation of

its terms or default by the Original Purchaser. Upon termination, for any reason, all copies of the Software must be immediately returned to

EVGA and the Original Purchaser shall be liable to EVGA Corp. for any and all damages suffered as a result of the violation or default.

Compliance Information

FCC Compliance Information

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

This device may not cause harmful interference, and this device must accept any interference received, including interference that may

cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are deigned to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

Increase the separation between the equipment and signal source. Connect the equipment to an outlet on a circuit different from that to

which the signal source is connected.

Consult the dealer or an experienced computer technician for help. The use of shielded cables for connection of the monitor to the graphics

card is required to ensure compliance with FCC regulations. Changes or modiﬁcations to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

English

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels EVGA Carte vidéo

EVGA

EVGA GeForce GTX 560 Ti DS Superclocked Manuel utilisateur

EVGA

EVGA GeForce GTX 580 FTW Hydro Copper 2 Manuel utilisateur

EVGA

EVGA GeForce GTX 580 3072MB Hydro Copper 2 Manuel utilisateur

EVGA

EVGA GeForce GT 240 Instructions d'installation

EVGA

EVGA GeForce GTX 580 Call of Duty: Black Ops... Manuel utilisateur

EVGA

EVGA GeForce GT 610 Manuel utilisateur

EVGA

EVGA GeForce GT 220 DDR2 Instructions d'installation

EVGA

EVGA GeForce GTX 1080 FTW2 GAMING iCX 8GB Manuel utilisateur

EVGA

EVGA GeForce GTX 570 Superclocked Manuel utilisateur

EVGA

EVGA GEForce GTX 550 Ti FPB Manuel utilisateur

EVGA

EVGA GeForce GTX 580 Batman: Arkham City Edition Manuel utilisateur

EVGA

EVGA GeForce GT 430 SuperClocked Manuel utilisateur

EVGA

EVGA GeForce GTX 580 Manuel utilisateur

EVGA

EVGA GeForce 6200 PCI Manuel utilisateur

EVGA

EVGA GeForce 9800 GT HDMI Instructions d'installation

EVGA

EVGA GeForce GTX 680 SC w/Backplate Manuel utilisateur

EVGA

EVGA GeForce GTX 590 Classified Quad SLI 2 Pack Manuel utilisateur

EVGA

EVGA GeForce GT 430 SuperClocked Manuel utilisateur

EVGA

EVGA GeForce RTX 2080 Ti XC Gaming 11GB Manuel utilisateur

EVGA

EVGA GeForce GTX 680 FTW LE Manuel utilisateur

EVGA

EVGA GeForce GTX 480 SuperClocked Manuel utilisateur

EVGA

EVGA GeForce GTX 560 SE Manuel utilisateur

EVGA

EVGA GeForce GTX 570 Manuel utilisateur

EVGA

EVGA GeForce GTX 760 Manuel utilisateur

Manuels Carte vidéo populaires d'autres marques

Gainward

Gainward GeForce GTX 690 4GB Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 137-40225-20 Manuel utilisateur

MSI

MSI N220GT series Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuel utilisateur

SIIG

SIIG aurora Manuel utilisateur

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuel utilisateur

MSI

MSI R7850 series Manuel utilisateur

DVS

DVS Atomix HDMI Manuel utilisateur

Aztech

Aztech VGS3D-AGP Manuel utilisateur

Advoli

Advoli TB4 Standard Manuel utilisateur

ELSA

ELSA ERAZOR III LT Manuel utilisateur

Gigabyte

Gigabyte GV-R7500L Manuel utilisateur

Themis

Themis TGA-7000 PMC Manuel utilisateur

EMS

EMS XtremeRGB-Ex1 Manuel utilisateur

Nvidia

Nvidia Quadro Workstation Manuel utilisateur

Pioneer

Pioneer PDA-5003 Manuel utilisateur

QDI

QDI N2 Manuel utilisateur

NEC

NEC N8116-48 Manuel utilisateur
