THANK YOU

USE AND CARE GUIDE

18 IN. UNDERMOUNT RUNNER

Questions, problems, missing parts? Before returning to the store,

call Everbilt Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

1-800-305-1726

HOMEDEPOT.COM

Item #

Model #

1002 782 617

9236060

924 395 700

9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37

Table of Contents

Table of Contents ...................................2

Safety Information ..................................2

Warranty ..........................................2

Pre-Installation.....................................3

Planning Installation ...............................3

Tools Required ....................................3

Hardware Required ................................3

Package Contents .................................3

Installation Options .................................3

Dimensions ........................................4

Cabinetry Dimensions ..............................4

Mounting Dimensions ..............................4

Drawer Catch Dimensions ...........................5

Frameless Installation ...............................5

Face Frame Installation ..............................6

Drawer Installation and Removal ......................7

Safety Information

Please read and understand this manual before installing this product.

CAUTION: Always be cautious when using power tools.

Warranty

Subject to the terms of this warranty, the Manufacturer warrants to the original consumer purchaser that the product will be free from

defects in material and workmanship. If the product does not comply with this warranty, the Manufacturer will repair or replace the product

or, at the Manufacturer’s option, refund the purchase price. Repair, replacement, or refund of the original purchase price is your sole remedy

under this or any other warranty on the product, whether expressed or implied.

For additional details and questions, please contact Everbilt Customer Service at 1-800-305-1726.

9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37

3 HOMEDEPOT.COM

Please contact 1-800-305-1726 for further assistance.

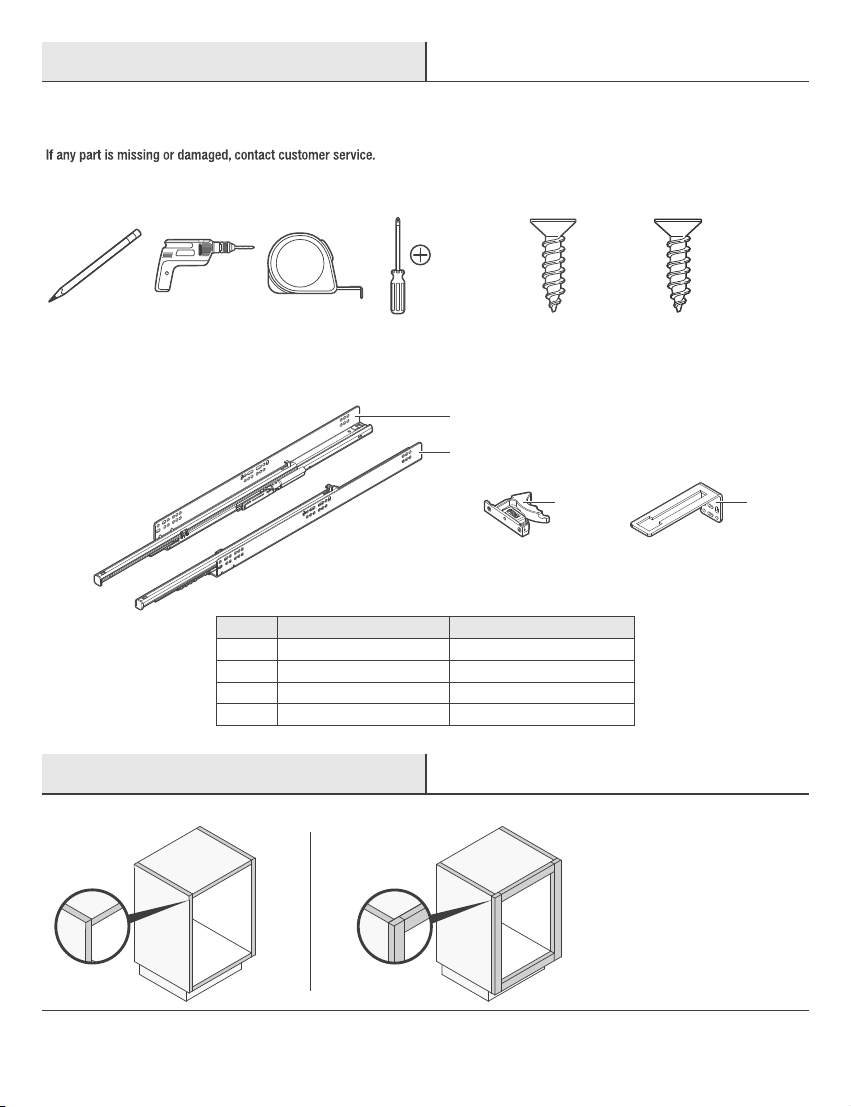

Pre-Installation

PLANNING INSTALLATION

Ensure all parts listed in the Package Contents section are included and that you have the listed Tools and Materials Required on hand.

TOOLS REQUIRED

Pencil Drill Measuring Tape Phillips

screwdriver

HARDWARE REQUIRED

#6 x 1/2 in. screws #6 x 3/4 in. Screws

PACKAGE CONTENTS

C D

Part Description Quantity

A Left Drawer Slide 1

B Right Drawer Slide 1

C Drawer Catch 2

D Face Frame Bracket 2

Installation Options

These slides can be installed in frameless and face frame cabinetry. Instructions for both options are provided in this manual.

Frameless Face Frame

9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37

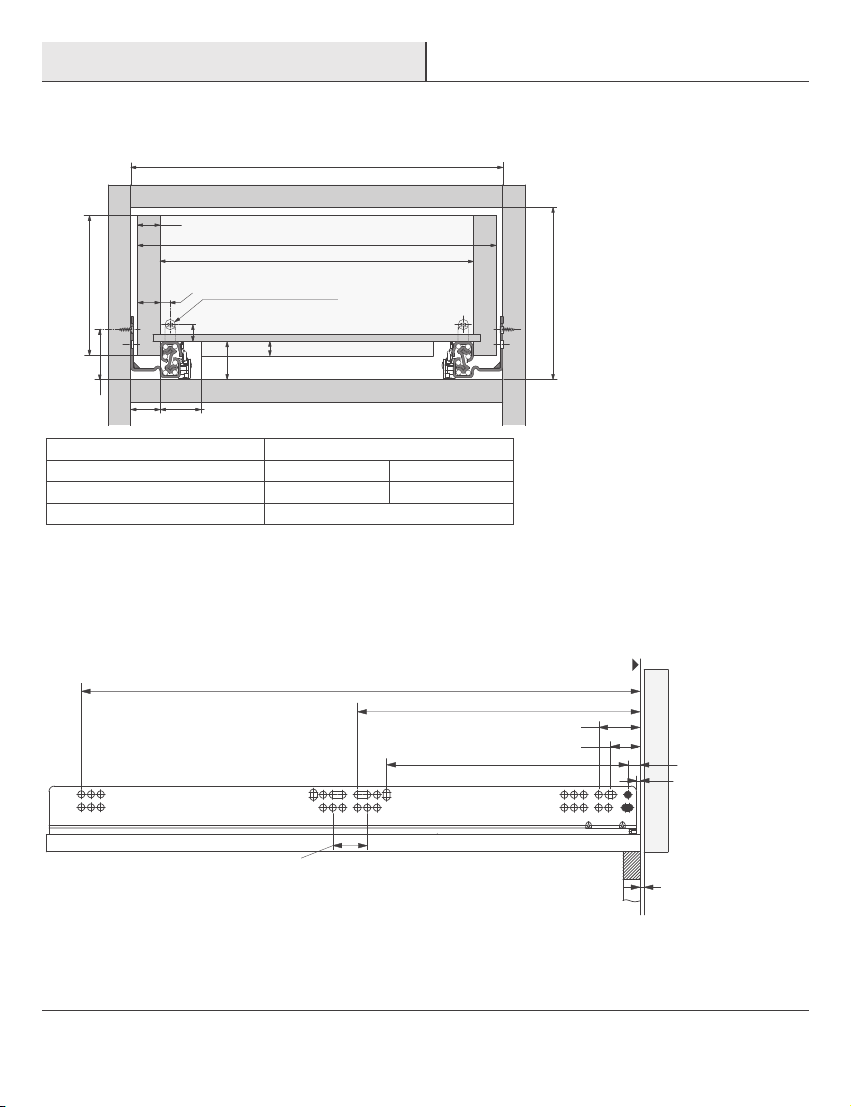

Dimensions

Please review these diagrams and measure and mark your installation location before you begin the installation procedures.

CABINETRY DIMENSIONS

Inside cabinet width (ICW)

Cabinet opening height

30 mm (1-3/16")

Drawer height

37 mm

(1-15/32")

Outside drawer width

Inside drawer width

Drawer side thickness

5/8"

26 mm (1")

7 mm

(9/32") ø 6 mm (1/4")

depth 10 mm (3/8")

11 mm (7/16")

max.

max. 12.7 mm (1/2")

IW=Installation width 13/16 in. (21 mm)

Drawer side thickness 1/2 in. (13 mm) 5/8 in. (16 mm)

Outside drawer width=ICW minus 5/8 in. (16 mm) 3/8 in. (10 mm)

Inside drawer width=ICW minus 1-21/32 in. (42 mm)

Maximum drawer height = cabinet opening height minus 13/16 in. (20 mm)

Minimum cabinet opening height = drawer height plus 13/16 in. (20 mm)

Dimensions in millimeters (inch approximations as noted)

MOUNTING DIMENSIONS

Cabinet front edge

Setback 2 mm (3/32")

Front gap 1.5 mm (1/16"

)

10 mm (3/8")

37 mm (1-7/16")

28 mm (1-3/32")

261 mm (10-1/4")

453 mm (17-3/16")

224 mm (8-13/16")

32 mm (1-1/4")

9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38

5 HOMEDEPOT.COM

Please contact 1-800-305-1726 for further assistance.

Dimensions (continued)

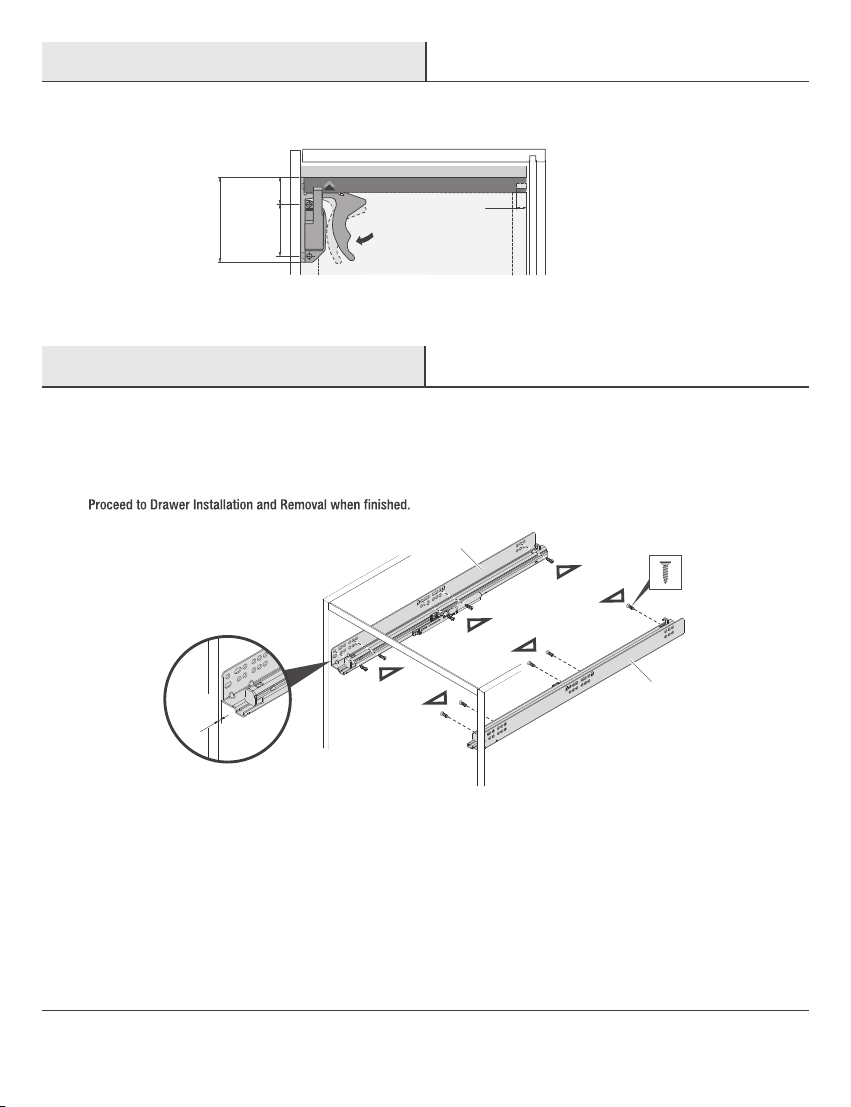

DRAWER CATCH DIMENSIONS

10 mm

3/8"

80 mm

(3-9/16") 48 mm

(1-7/8")

26 mm

(1-1/32")

Frameless Installation

1 Installing the drawer slides

ƑAttach the left and right drawer slides (A and B) to the inside of the cabinet using #6 x 1/2 in. screws.

Ensure you leave a 1/16 in. (2 mm) space between the face of the cabinet and the start of the drawer slides.

#6x1/2

2 mm

1/16"

9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38

Face Frame Installation

1 Preparing the slides

ƑSlide the notch on the left and right drawer slides (A and B)

forward, as shown.

A/B

2 Installing the drawer slides

ƑAttach the face frame brackets (D) to the back of the

cabinet using #6 x 1/2 in. screws.

ƑSlide the left and right drawer slides (A and B) onto the

face frame brackets (D).

3 Securing the drawer slides to the

cabinet

ƑSecure the front of the drawer slides (A and B) onto the

cabinet using #6 x 1/2 in. screws.

ƑProceed to Drawer Installation and Removal.

9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38

7 HOMEDEPOT.COM

Please contact 1-800-305-1726 for further assistance.

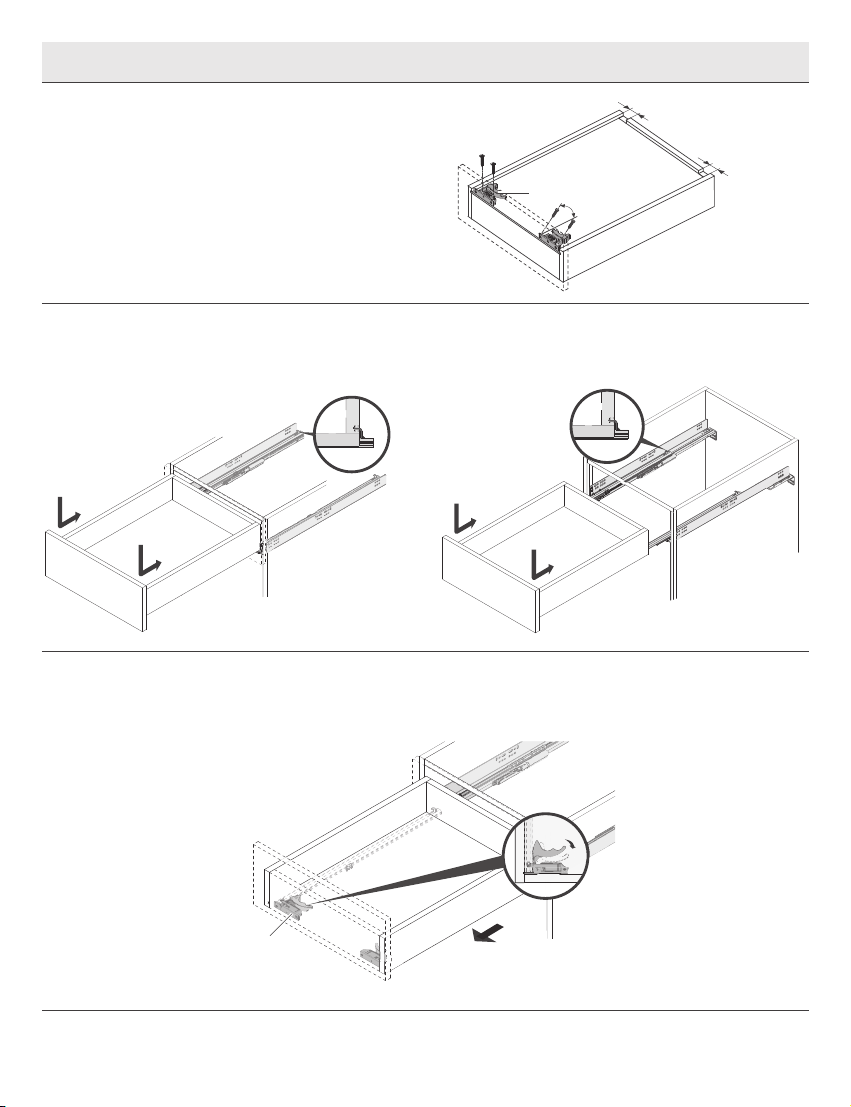

Drawer Installation and Removal

1 Installing the drawer catches

ƑInstall each drawer catch (C) into the two front corners of the

drawer using #6 x 3/4 in. screws. If you need to install the

screws at an angle, do not angle the screws more than 30°.

2 Installing the drawer

ƑInsert the drawer onto the glides inside the cabinet and push inside until the drawer catches click.

Face FrameFrameless

3 Removing the drawer

ƑGently pull each drawer catch lever and slide the drawer out to remove.

≤ 30°

30 mm (1-3/16")

9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38

Questions, problems, missing parts? Before returning to the store,

call Everbilt Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

1-800-305-1726

HOMEDEPOT.COM

Retain this manual for future use.
