8kg Twin Tub Washing Machine

ETTW800

www.euromaid.com.au

Safety Precautions

Explanation of the symbols

Installation

Installation requirements

Install upper drain hose

Changing the position of the drain hose

Installation position

Operation

Preparation instructions

Reference of laundry quantity corresponding to different capacities

Laundry volume and detergent dosage reference

Machine overview

Accessories

Control panel overview

Quick Start

Washing method

Rinsing method

Spinning method

Energy and water (WELS) ratings

Maintenance

Notes

Troubleshooting

Main technical parameters

Manufacturer Guarantee

1 - 2

4 - 8

8 - 9

10 - 11

CONTENTS

-1-

SAFETY PRECAUTION

Safety Precaution

For your safety, the information in this manual must be followed

to minimize the risk of fire or explosion, electric shock, or to

prevent property damage, personal injury or loss of life.

This appliance is not intended for use by persons (including children) with reduced physical,

or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified persons in order to avoid a hazard.

The new hose-sets supplied with the appliance are to

be used and that old hose-sets should not be reused.

The openings must not be obstructed by a carpet.

This appliance is intended to be used in household and similar applications such as:

− staff kitchen areas in shops, offices and other working environments;

− farm houses;

− by clients in hotels, motels and other residential type environments;

− bed and breakfast type environments;

− areas for communal use in blocks of flats or in launderettes.

Explanation of the symbols:

！Warning!

This combination of symbol and signal word indicates a potentially dangerous

situation which may result in death or serious injuries unless it’s avoided.

Caution!

This combination of symbol and signal word indicates a potentially dangerous situation

which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially

dangerous situation which may result in slight or minor injuries.

WASH RATED CAPACITY

SPIN RATED CAPACITY

8.0kg

4.6kg

0.6MPa

MAXIMUM WATER PRESSURE

-2-

SAFETY PRECAUTION

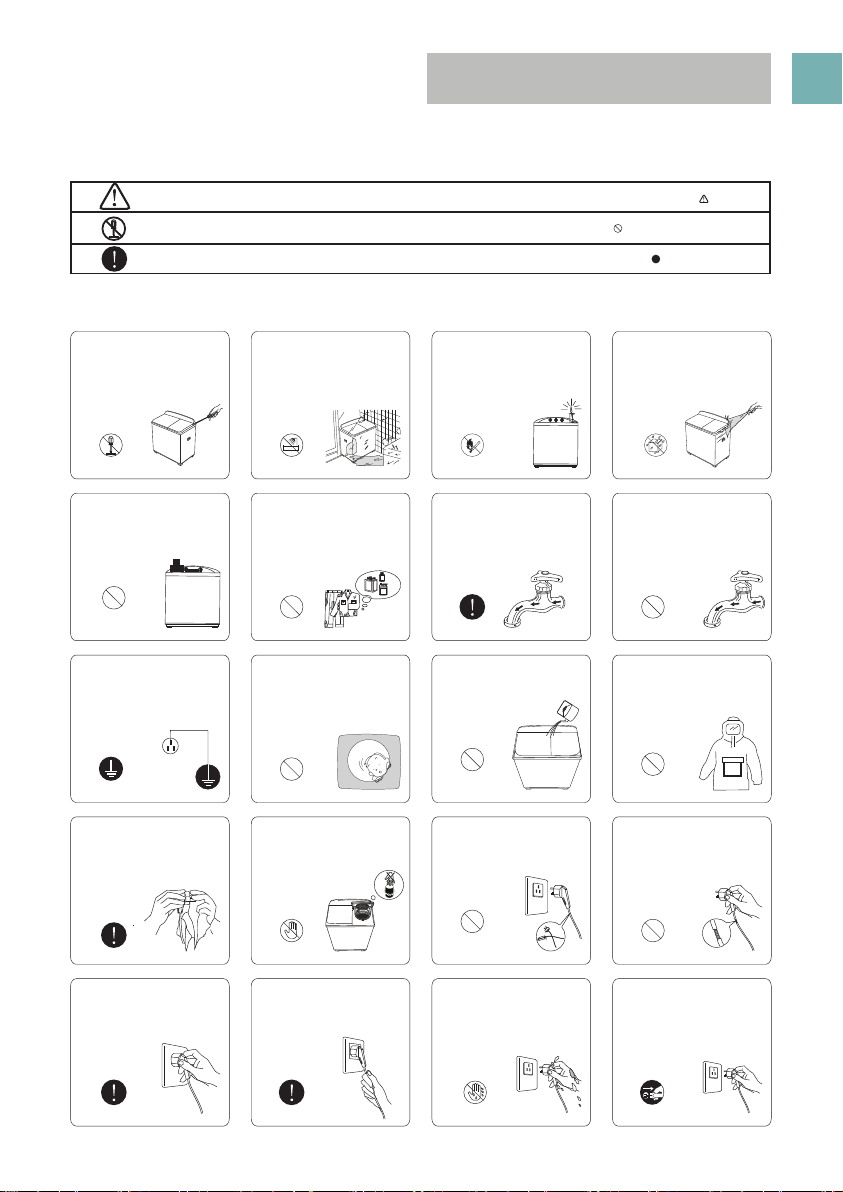

Be sure to comply with the following to prevent damage to body and property of you and others:

The sign stands for “pay attention” , and the picture of specific items needs attention shows in

The sign stands for “forbid”, and the picture of specific items forbidden shows in

The sign stands for “must do”, and the picture of specific items must be done shows in

Do not install the machine in

damp or rainy environment to

avoid electric shock, fire,

machine failure,or

deformation.

Do not wash clothes that are

stained with kerosene, petrol,

alcohol, and other flammable

substance.

Do not let children climb into

the machine or play nearby

when it is in operation.

Ensure hands are not

placed in the drum when

machine is in operation.

When removing the power

plug from the socket, ensure

the cable is not pulled. .

Do not spray water directly to

the machine.

Do not exceed the max.

water level to avoid water

overflowing and machine

failure.

Do not wash down-filled

coat,raincoat or similar

clothes.

Do not damage the power

cord and plug so to avoid

electric shock, short circuit

or fire.

Unplug the plug from socket

after use.

waterproof

Make sure that the water inlet

hose is connected and the

tap is opened before

washing.

Do not place inflammable

materials like burning candle,

mosquito incense, cigaret etc.

or heating source like electric

stove, calorifier etc. on

the machine.

If using warm water, the

temperature should not

exceed 50 ‘C.

Do not replace power cord

by yourself.

Do not insert or unplug the

plug with wet hands to avoid

electric shock.

50’C

Do not dismantle the machine

by yourself.

Do not let baby sit on it or

place heavy things on it.

To avoid electric shock,

please ensure the plug

is placed firmly into the

power socket.

Wipe dirt dust off the power

plug to avoid poor contact

with the power socket.

Ensure the power plug

is connected firmly.

Grounding

-3-

INSTALLATION

Installation position

In order to avoid electrical failure, discoloration and deformation,

do not install the machine in the following places:

• Locations exposed

to direct sunlight

• Locations exposed

to rain or snow

• Locations with uneven

or unstable ground

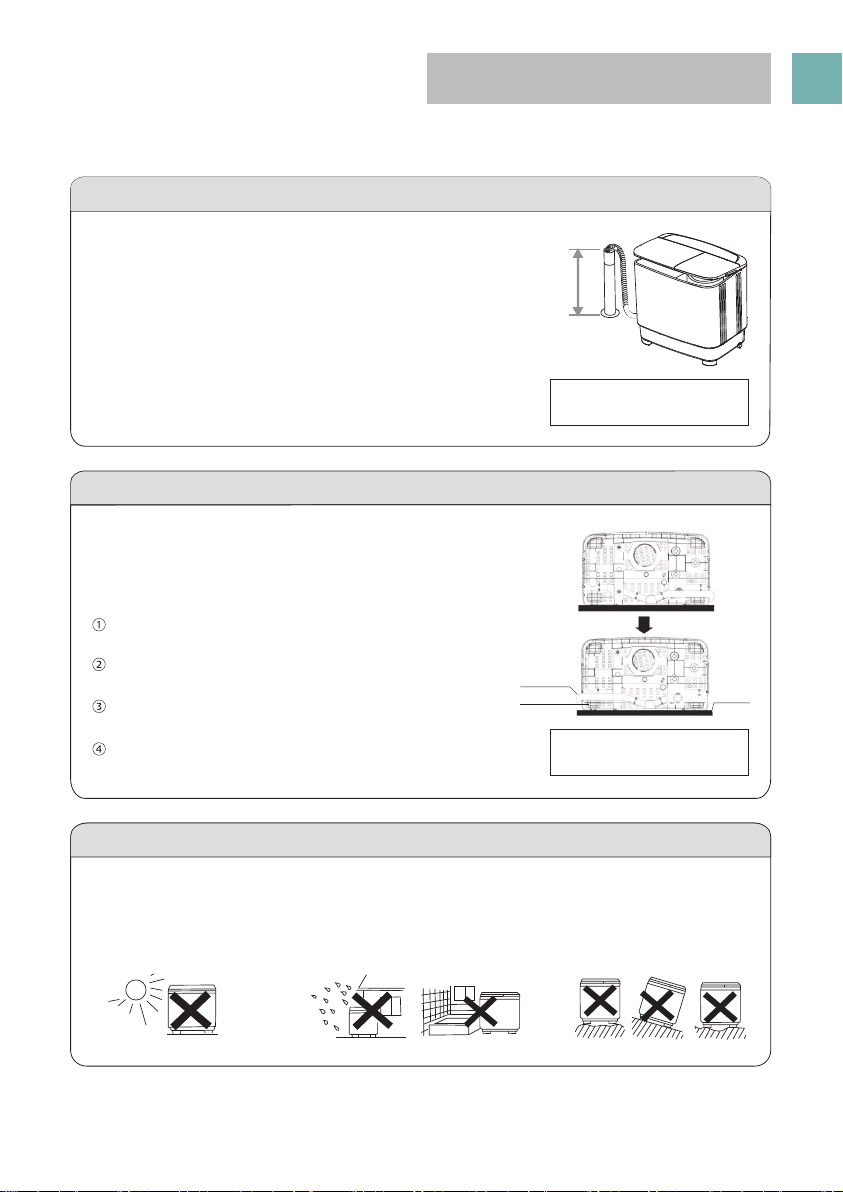

Installation Requirements

• The washing machine requires a drainage hose

with a minimum 3cm diameter and flow capacity

of at least 40 litres per minute.

• For this drainage method, the drain hose must be

placed at least 86cm above the outlet at the bottom

of the machine but should not exceed a height of 100cm.

86cm<H<100cm

Placement of the upper drain hose

FOR UPPER DRAIN

SYSTEM ONLY

Front

Drain hose

Buckle Blanket

The default setup of the drain hose will see it connected

to the spin side of the machine however it can be changed

and connected to the wash side.

The method is as follows:

Unplug the power cord and empty water in the drain

hose completely.

Spread a piece of soft cloth on the floor (e.g. a blanket)

and place the washing machine on it gently.

Take the drain hose out from the buckle at the

spin side, and put it into the buckle at the wash side.

Hang up the drain hose kit.

Changing the position of the drain hose

FOR UPPER DRAIN

SYSTEM ONLY

-4-

Water

level

Fabric type Laundry

capacity (kg) Water flow Wash time

(minutes)

Detergent

amount (g)

Synthetics, silk,

delicate fabrics

Cotton or linen

Heavy Soils

0 - 5.0

5.0 - 6.5

0 - 6.5

6.5 - 8.0

0 - 6. 5

6.6 - 8.0

Low

Mid

High

Mid

High

Gentle

Normal

3 - 5

7 - 10

10 -35 (soak 20)

About 50

About 61

About 77

About 61

About 77

OPERATION

• Plug in power and connect the water inlet hose.

• Run the lower drain hose and connect it to the trap beneath the sink,

or run the upper drain hose to places as indicated in page 2.

• Check that there are no objects such as coins, hairpins, mud or sand in the pocket.

• Strings should be knotted in advance to prevent entanglement.

• Clothes can be classified for washing according to the texture, colour and how dirty they are.

• Ensure small pieces of clothing are placed in a protective bag.

• The correct amount of laundry detergent to use is determined by the degree of

soiling and the type of garments being washed. Always check dosage requirements

on the back of the laundry detergent bottle and adjust as required.

Preparation Instructions

8.0kg Capacity about 16 pcs. about 11 pcs. about 8 pcs. about 4 pcs.

Laundry

Capacity

Jacket

about 1600 g

Shirt

about 500 g

Uniform

about 650 g

Jeans

about 900 g

• The figure above is for reference only, specific weights are subject to actual clothes.

Different types of clothing articles and weights:

Laundry Detergent Dosing Guide:

-5-

Accessories

Inner spin cover Water inlet hose

Control Panel Overview

• Water inlet: for the connection of hot or cold water.

• Wash timer: for selection of the desired wash time.

• Spin timer: for selection of the desired spin time.

• Program selector: for washing or rinsing, select “ Gentle”or“ Normal”. For Draining ,select “Drain”.

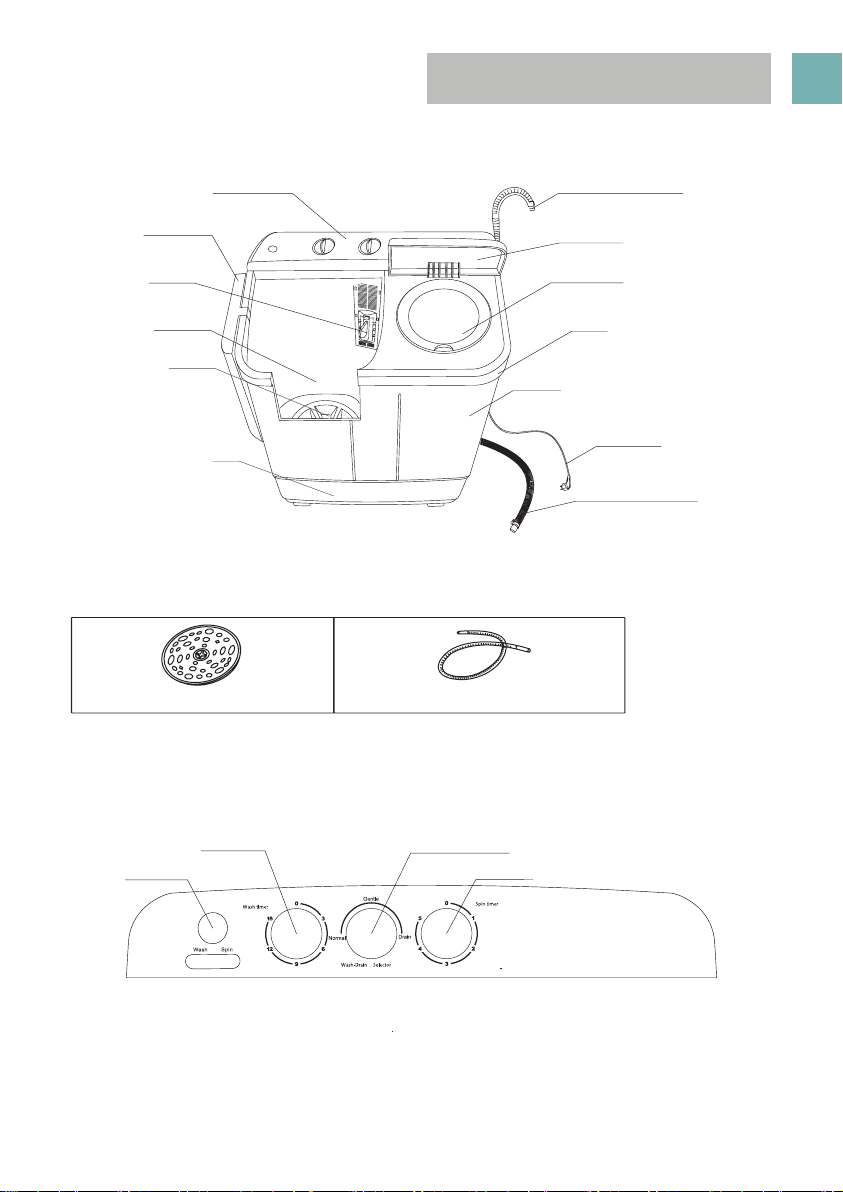

Control panel

Wash cover

Lint filter

Pulsator

Base

Spin cover

Cabinet

Safety cover

Frame

Lower drainage hose

Upper drainage hose

Wash tub

Power plug

Water inlet

Wash timer Program selector

Spin timer

OPERATION

Machine Overview

-6-

Washing Method

Rinsing Method

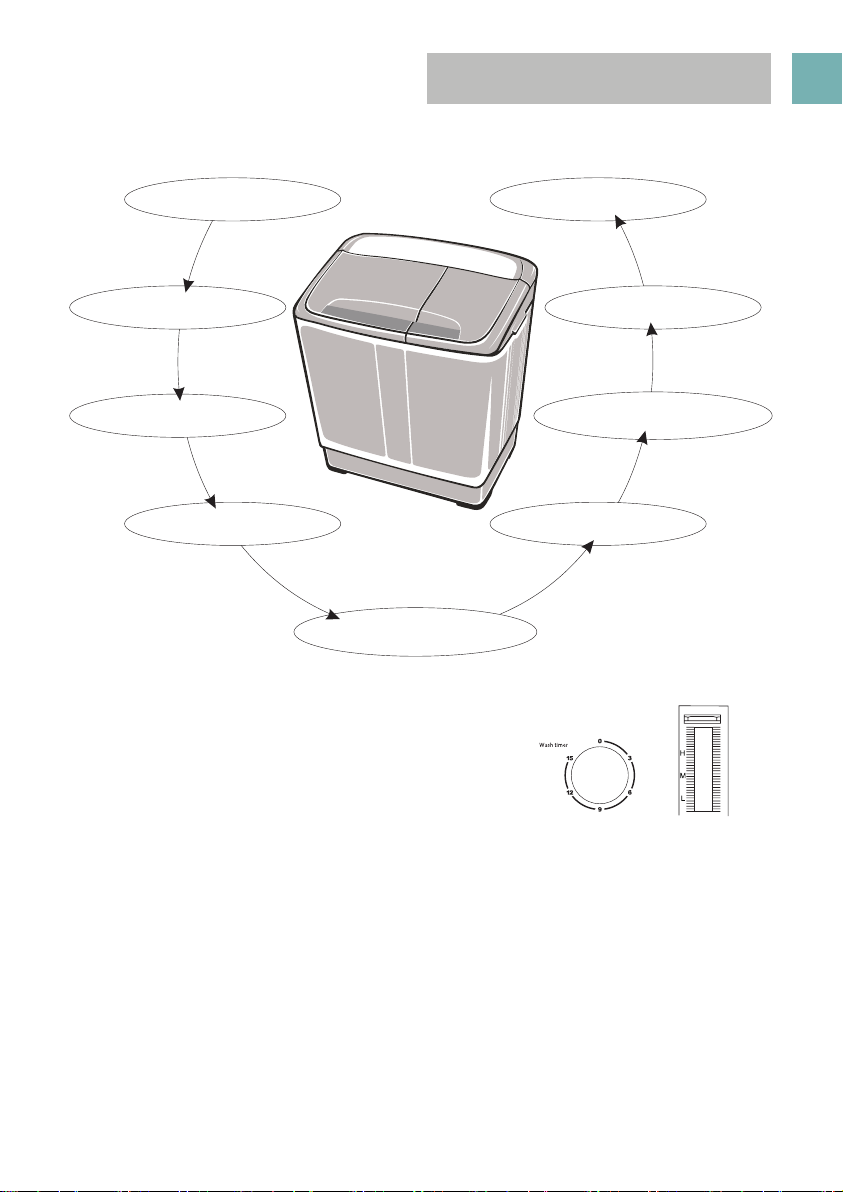

1. Install the washing machine

2. Load the laundry

6. Repeat the steps 3-5 for rinsing

7. Move the laundry into the spin

tub and close the spin cover

8. Turn the spin timer

knob to set spin time

9. Remove the laundry

from the spin tub

3. Add detergent and

water into the wash tub

4. Turn the wash timer

knob to set wash time

5. Set the wash drain selector to

“Drain” position after washing

OPERATION

Quick Start

1. Insert the water inlet hose into the water inlet opening,

and select wash (left hand) on the Wash/Spin toggle switch.

2. If soaking is required, placed articles to be washed into the

drum, add detergent and fill with water to half of the desired

water level. When ready to commence the wash cycle, fill up

the rest of the drum with water.

3. Set wash program to “Gentle” or “Normal” depending on the types of garments to be washed.

4. Turn the wash timer knob to select the wash time.

5. After washing has finished, set the program selector to “Drain” position for draining.

Water level indicator

1. Fill the washing drum with the desired amount of water

2. Turn the "Program" knob to "Normal" or "Gentle".

3. Set the "Wash Timer" to the desired time (3 - 5 minutes for rinsing is recommended).

4. After rinsing has completed, turn the "Program" knob to "Drain" to remove all water from the drum.

5. Once all the water has been drained, remove items and place in the right hand side of the machine.

6. If several rinsing cycles are desired, repeat steps 1 - 4.

-7-

Spin Cover

Safety Cover

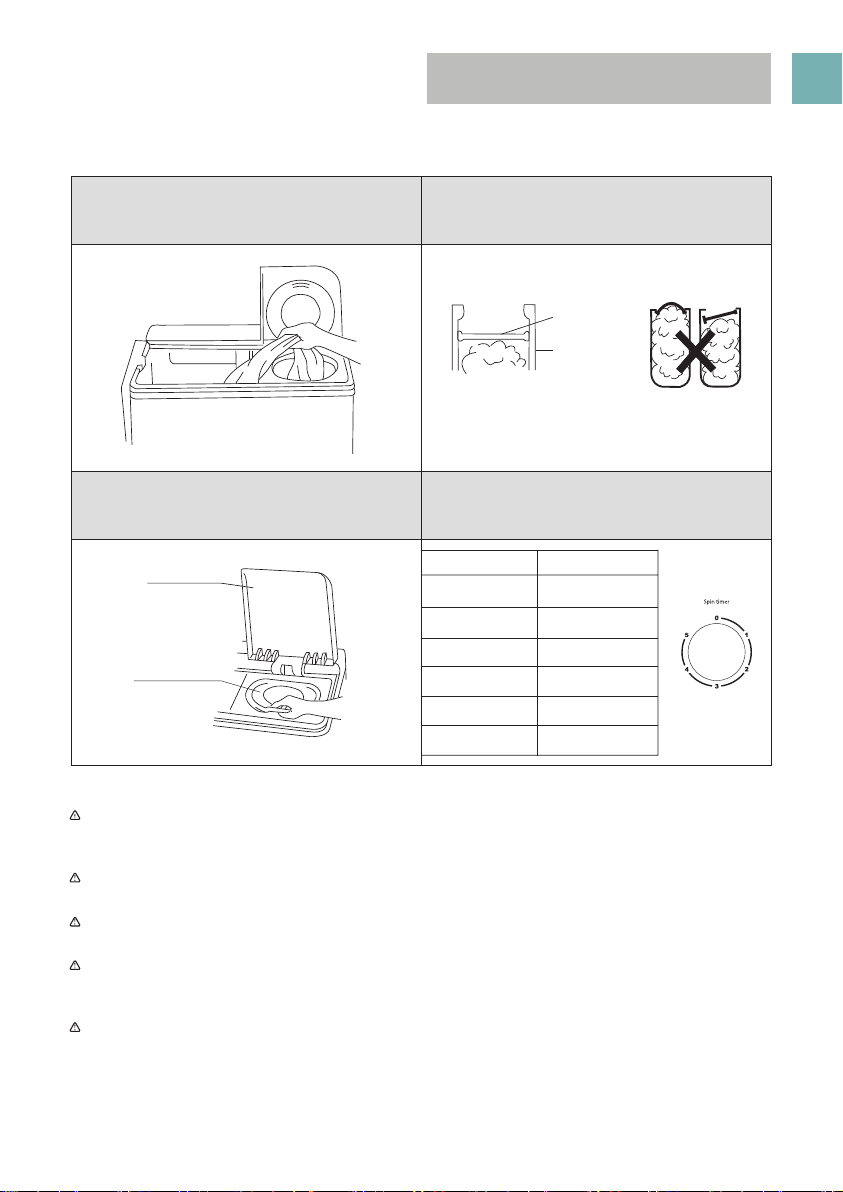

1. Shake out the laundry and place

into the right hand side of the machine

(spinning drum).

2. Place the inner spin cover on top of the

laundry and ensure it is lying horizontal.

3. Close the safety cover and the spin cover.

Correct Incorrect

Inner

spin cover

Spin tub

4. Refer to the following table

to select spinning duration.

Laundry type

Delicates

Wool

Light clothes

Sportswear

Towels

Blankets

30 - 60 seconds

1 minute

5 minutes

1 - 2 minutes

2 - 3 minutes

3 - 4 minutes

Spin duration

OPERATION

Spinning Method

The appliance can not be used by children or persons with reduced

physical, sensory or mental capabilities, or lack ofexperience and

knowledge, unless under supervision or instruction.

The new hose supplied with the appliance should be used

and inspected to ensure no cracks or leaks are present.

When filling up the washing or spin drum with water, ensure not to disconnect

the hose from the water inlet valve before turning the water off at the tap.

If the machine is vibrating during the spin cycle, open the spin cover

immediately and ensure the washing machine is placed on a flat and

even surface and that laundry inside the drum is distributed evenly.

Do not wash or spin waterproof clothes or clothes that float

easily to avoid abnormal vibration or damage to the clothes.

Table des matières

Autres manuels Euromaid Rondelle

Euromaid

Euromaid MW7140 Manuel utilisateur

Euromaid

Euromaid WM8 Manuel utilisateur

Euromaid

Euromaid WMF10 Manuel utilisateur

Euromaid

Euromaid WM7 Manuel utilisateur

Euromaid

Euromaid WMFL8 Manuel utilisateur

Euromaid

Euromaid EBFW900 Manuel utilisateur

Euromaid

Euromaid EBFW700 Manuel utilisateur

Euromaid

Euromaid EFLP1000W Manuel utilisateur

Euromaid

Euromaid WM7PRO Manuel utilisateur

Euromaid

Euromaid EFLP850G Manuel utilisateur

Euromaid

Euromaid EFL900WPRO Manuel utilisateur

Euromaid

Euromaid MW6001P Manuel utilisateur

Euromaid

Euromaid WM55 Manuel utilisateur

Euromaid

Euromaid HTL65 Manuel utilisateur

Euromaid

Euromaid EFL700WPRO Manuel utilisateur

Euromaid

Euromaid ETL1000RCW Manuel utilisateur

Euromaid

Euromaid EBFW800 Manuel utilisateur

Euromaid

Euromaid TL10KG Manuel utilisateur

Euromaid

Euromaid WM5PRO Manuel utilisateur

Euromaid

Euromaid TL8KG Manuel utilisateur

Euromaid

Euromaid WM5 Manuel utilisateur

Euromaid

Euromaid HTL55 Manuel utilisateur

Euromaid

Euromaid EFLP850W Manuel utilisateur

Euromaid

Euromaid WMFL55 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
