Euromaid Eclipse EC64GS Manuel utilisateur

User Manual

Eclipse Series Gas Cooktops

EC64GS

60cm 4 burner gas cooktop - stainless steel

EC64GB

60cm 4 burner gas cooktop - black glass

EC74GTB

75cm 4 burner gas cooktop, twin wok - black glass

EC95GLS

90cm 5 burner gas cooktop - stainless steel

EC95GLB

90cm 5 burner gas cooktop - black glass

For your safety

Installation.........................................3

During use.........................................4

Safety of children and the infirm . . . . . . . . . . . . . . . . . . . . . . . . 6

Service and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Environmental protection advice . . . . . . . . . . . . . . . . . . . . . . . . 6

Use and Care

Description of the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

To Light the Burners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

For correct use of the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Abnormal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Service and spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Warranty .........................................14

Installation

Technical data.....................................15

Instructions for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Building into kitchen benches . . . . . . . . . . . . . . . . . . . . . . . . . 16

Combustible surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installation cutout drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connection to the gas supply . . . . . . . . . . . . . . . . . . . . . . . . . 20

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Replacing the power supply lead. . . . . . . . . . . . . . .

. . . . . . . .

Before leaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Gas Conversion (NG to ULPG) . . . . . . . . . . . . . . . . . . . . . . . . 24

Gas Conversion (ULPG to NG) . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Contents

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

These instructions have been drawn up for your safety and that of

others. You are therefore requested to read them carefully before

installing and using the appliance. Keep this instruction manual for

future reference as necessary. If the appliance is sold or moved,

make sure that the manual is handed over to the new user.

INSTALLATION

·Installation of the appliance and its connection to the

electrical mains must only be carried out by Authorised

Personnel. Before any service procedure, it is important to

check that the appliance is DISCONNECTED from the

electrical mains.

·WARNING: This appliance is a domestic kitchen appliance

suitable for indoor installation. It is not suitable for outdoor

installations such as alfresco kitchens or garages unless a

qualified, competent installer has deemed the location and

installation to be suitable & compliant.

·DO NOT MODIFY THIS APPLIANCE.

·After removing the appliance from the packaging, make

sure that it is undamaged and that the electrical lead is in

perfect condition. Otherwise, contact your dealer before

operating the appliance.

·Make sure that air is able to circulate freely around the

appliance. Poor ventilation produces a shortage of oxygen.

·Make sure that the available gas supply matches the type

of gas indicated on the data label and the gas type label

next to the gas connection point.

·Use of a gas cooking appliance produces heat and

moisture in the room in which it is installed. Ensure that

the room is well ventilated by keeping the air intakes open

and in good working order or by installing an extractor

hood with discharge pipe.

·If the appliance is used intensively for a long time the

effectiveness of the ventilation will have to be increased,

for example by opening a window or increasing the power

of any electric extractor fan.

For Your Safety

DURING USE

homes and for non-commercial purposes. It should not be

used for any other purpose.

·After using the appliance, make sure that all controls are in

'CLOSED' or 'OFF' position.

·If you use an electrical socket close to this appliance, take

care that the cables of the appliances you are using do not

touch it and are far enough away from the hot parts of this

appliance.

·DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS

APPLIANCE WHILE IT IS IN OPERATION.

·DO NOT STORE OR USE FLAMMABLE LIQUIDS OR ITEMS

IN THE VICINITY OF THIS APPLIANCE.

·NOT FOR USE IN MARINE CRAFT, CARAVANS OR MOBILE

HOMES UNLESS EACH BURNER IS FITTED WITH FLAME

SAFEGUARD.

·WHERE THIS APPLIANCE IS INSTALLED IN MARINE

CRAFT OR IN CARAVANS, IT SHALL NOT BE USED AS A

SPACE HEATER.

·WARNING - Accessible parts will become hot when in use.

To avoid burns and scalds children should be kept away.

·This appliance is not intended for use by young children or

infirm persons without supervision

·Young children should be supervised to ensure they do not

play with the appliance.

This product is designed to cook foods inside private

For Your Safety

Do not place anything, eg. flame tamer,

asbestos mat, between pan and pan support

as serious damage to the appliance my result.

Do not remove the pan support and enclose

the burner with a wok stand as this will

concentrate and deflect heat onto the hotplate.

Do not use large pots or heavy weights which

can bend the pan support or deflect flame

onto the hotplate.

During use (continued)

·Explanation of symbols on the glass top.

(For Gas on glass models only)

Safety of children and the infirm

This appliance must only be used by adults. Make sure that

children do not touch the controls or play with the appliance.

The exposed parts of this appliance heat up during cooking and

remain hot for some time even after it is switched off. Keep

children well away until the appliance has cooled down.

Cleaning and maintenance

Keep the appliance thoroughly cleaned. Food residues may cause

fire risks.

Service and repairs

If the appliance fails to operate correctly, never attempt to repair

the appliance yourself. Repairs by unskilled persons may cause

damage and accidents. First refer to the contents of this manual. If

you do not find the necessary information, contact your nearest

Service Center. Servicing work on this appliance must be carried

out by Authorised Personnel. Always request the use of original

spare parts.

For Service & Spare Parts please contact:

1300 556 816 (AU) or 09 274 8265 (NZ)

Environmental protection advice

All the materials used are environmentally friendly and recyclable.

Please make your contribution to conserving the environment by

using the separate waste collection channels available when

disposing of this product. Through environment-friendly disposal,

a number of materials used in the production of your appliance

can be recycled. Find out about the current disposal options from

your local authority.

For Your Safety

Use and Care

Description of the hob

1. Hob

2. Auxiliary burner

3. Semi-rapid burner

4. Rapid burner

5. Wok burner

6. Pan supports

7. Control knobs

A - Burner cap

B - Burner head

C - Burner bowl

D - Thermocouple

E - Ignition Candle

Note: Model shown may not be identical to the hotplate you have purchased.

Use and Care

Instructions for use

The symbols on the control knobs mean the following:

Regular burners (Auxiliary, Semi Rapid, Rapid, Wok)

1. No gas flow or 'Off' position.

2. Maximum gas flow or 'High' flame and lighting position.

3. Minimum gas flow or 'Low' flame position.

Dual Valve Wok burner (Not all models)

1. No gas flow or 'Off' position.

2. Maximum gas flow for inner and outer flame or 'High' flame

and lighting position.

3. Minimum gas flow for outer flame only or 'Low' flame

position. NOTE: Inner flame remains in ‘High’ position at

this point.

4. Minimum gas flow for inner flame or ‘Low’ flame position.

No outer flame.

All burners

5. Position of the burner each control knob operates.

All operating positions must be set between the maximum and

minimum flow settings, and never between the maximum setting

and the closed position.

Dual WokRegular Burners

To light the burners

To light the burner, press the control knob down completely and

hold down before rotating anti-clockwise to the ‘High’ Flame

position. The ignition device is integrated into the control knob and

is automatically activated by pushing down on the control knob.

After lighting the flame, keep the knob pressed for about 5

seconds: this time is necessary to heat up the thermocouple (D on

page 7) and activate the safety valve, which would otherwise cut

off the gas flow.

In the instance of a power failure, place a lit match near the burner

and proceed as described above. If the flame does not light after

the first attempt, wait 5 minutes for the gas to dissipate before

attempting to re-light the burner.

Once lit, check that the flame is even and turn the control knob to

adjust the flame as required. If the flame is uneven, check that the

'burner head/skirt' and 'burner cap' are correctly positioned. To

turn off the flame, turn the control knob clockwise to the ‘Off’

position ( ). Before removing pots or pans from the

burners, always turn off the flame.

symbol

Use and Care

When turning the flame down from the 'High' position (2) to

the 'Low' position (3) only the outer flame turns down.

After this point, the outer flame turns off and the inner flame

begins to turn down until it reaches the 'Low' flame position (4).

When turning the flame up again, the outer flame automatically

relights starting in the 'Low' position (3).

Using the Dual Valve Wok burner (not all models)

The Dual Valve Wok burner has the advantage of providing both

very high or very low heat when needed.

The powerful Dual Flame provides high heat when frying, boiling

or searing is required. It can also be turned to the lowest point

where only the small inner flame remains alight to provide a low

heat for simmering or keeping the dish warm.

Follow the instructions below to light the burner.

Use and Care

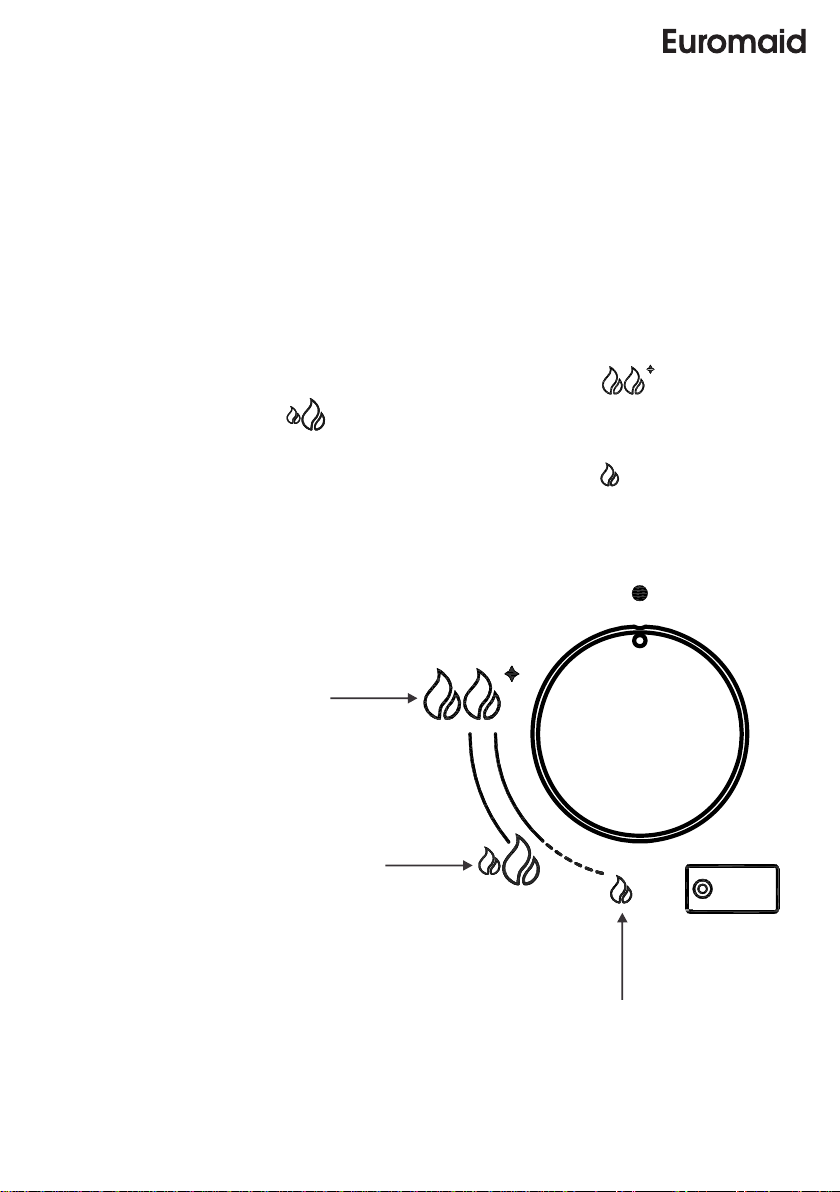

Inner & Outer Flame

operating on High

Inner Flame on High

and

Outer Flame on Low

Inner Flame on Low

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Euromaid plaque de cuisson

Euromaid

Euromaid ECCT Series Manuel utilisateur

Euromaid

Euromaid IHT3B60 Manuel du propriétaire

Euromaid

Euromaid WK69WH Manuel utilisateur

Euromaid

Euromaid EC64 Manuel utilisateur

Euromaid

Euromaid IMZ64 Manuel utilisateur

Euromaid

Euromaid CF6GS Manuel utilisateur

Euromaid

Euromaid GG90S Manuel utilisateur

Euromaid

Euromaid GOC64 Manuel

Euromaid

Euromaid CH32 Manuel utilisateur

Euromaid

Euromaid Range Manuel utilisateur

Euromaid

Euromaid CF9GS Manuel utilisateur

Euromaid

Euromaid CF6GS Manuel utilisateur

Euromaid

Euromaid AO-975 Manuel utilisateur

Euromaid

Euromaid CT70 Manuel utilisateur

Euromaid

Euromaid IMZ60 Manuel utilisateur

Euromaid

Euromaid I3B60 Manuel utilisateur

Euromaid

Euromaid I4B60 Manuel utilisateur

Euromaid

Euromaid ECCK64 Manuel utilisateur

Euromaid

Euromaid CST70 Manuel utilisateur

Euromaid

Euromaid IMZ90 Manuel utilisateur

Euromaid

Euromaid Hot Plates Mode d’emploi

Euromaid

Euromaid IMZ96 Manuel utilisateur

Euromaid

Euromaid I4B64 Manuel utilisateur

Euromaid

Euromaid KCS4 Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Casselin

Casselin CSASRE24 Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB00 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Whirlpool

Whirlpool SMP658CNEIXL Manuel utilisateur

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Miele

Miele KM 404 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur
