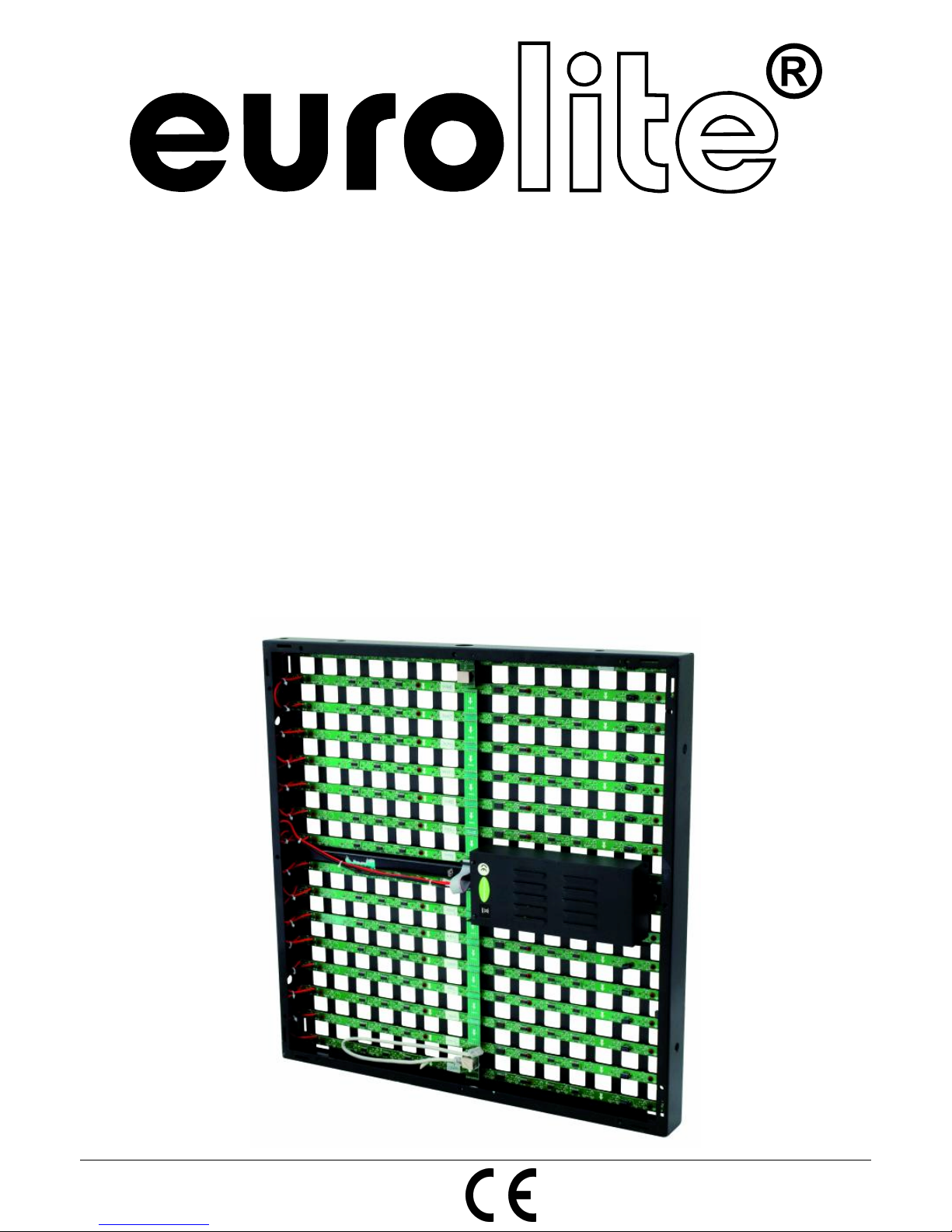

EuroLite LED Pixel Mesh Manuel utilisateur

Reproduction prohibited!

Keep this manual for future needs!

USER MANUAL

LED Pixel

Mesh

Warning.................................................................................…...……………..…………………………….………..….

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations.……………………………………………………………………………………………..

Description...............................................................................…...………………………………………….………..…

Features and Overview ………………………………...….……………….………….……….……….………………

Overall Requirements……….…………………….……………………….……………………….……………………..…

Computer System Requirements……….……………………….……………………….………………………….……..

Set Up and Operation.....................................................................……..………………………………………………

LED Pixel Mesh Limitations ……………………………………………………………………….……...……….……..

Included with the Software Bundle………………………………………………………………………..…………..

Communication Wire Facture………………………………………………………………………………………….

Making an additional Net-cable………………………………………………………………………………………

How to connect the Pixel Mesh………………………………………………………………………………………..

IEC and Data Output Connections……………………………………………………………………………………

Screen Control System Instruction……………………………………………………………………………………..

PC Host Computer………………………………………………………………………………………………………..

System Connection Mode………………………………………………………………………………………………

System Connection Chart……………………………………………………………………………………………….

Mounting System to LED Screen Connection……………………………………………………………………….

Sender card………………………………………………………………………………………………………………..

Backside View……………………………………………………………………………………………………………..

Sender card Installation……………………………………………………………………………..…………………..

LED Vision Studio MX Control System Installation……………………………………………………………………

Display Card Settings…………………………………………………………………………………………………….

ATI Display Card Settings………………………………………………………………………………………………..

GEFORCE Display Card Settings……………………………………………………………………………………….

Receiver Card Configuration…………………………………………………………………………………………..

Maintenance...................................................................................………..………….…….……………………….…

Troubleshooting............................................................................………………….………………….………………...

Product Specifications.................................................................……………….…….………………………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this dev ice has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals.

Never use the device during thunderstorms, unplug the device immediately.

Only use device indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Only operate the device after having familiarized with its functions.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the external cable is damaged, it has to be replaced by a qualified technician.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

Ifyourdevicefailstoworkproperly,discontinueuseimmediately.Packtheunitsecurely

(preferablyintheoriginalpackingmaterial),andreturnittoyourdealerforservice.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

The user is responsible for correct positioning and operating of the LED Pixel Mesh. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

Forreplacementusefusesofsametypeandratingonly.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property !

Description of the device

Features

TheLEDPixelMeshisafabulousLEDLighteffect

• Average Lifespan: 50,000~100,000hrs

• Mounting system has rigging points and flexible configurations

• Rated Power: 75W

• Cooling: Direct air convection

• LED/Pixel: 2xRED/1XGREEN/1XBLUE

• Module size: 640mm×640mm×65mm

• Pixel/Unit：16*16

• Pixel Pitch：40mm

• Pixel Density（dot/ m2）：625

• Pixel composition：2R1G1B 4Φ5 oval LED

• Brightness（cd/ m2）：1300

• Optimal viewing distance（m）：60

• Module peak value power（≤W）：75

• Module average power（≤W）：40

• Module weight(kg)：10

• Scanning mode：Static scan

• Viewing angle：120°（60°horizontally and vertically）

• Driven voltage(V)：4.5～5.5

• Gray scale：256 levels respectively

• Frame change speed：≥60（frame/second）

• Control mode：In step with the computer monitor

• Blind spot rate：≤0.0002

• Operating voltage：AC220V±15％47～64HZ

• Control distance(m)：<130

• Temperature environment：-10℃～50℃

• Humidity environment：10％～90％RH

• Indoor use only

Control

• Software: LEDstudio 8

• System: Windows XP with video card (NOT included)

• Applications: Fixed installations, small or large, interior / advertising /stage

• Works with other manufacturer’s software: Arkaos or Sweetlight Timeline

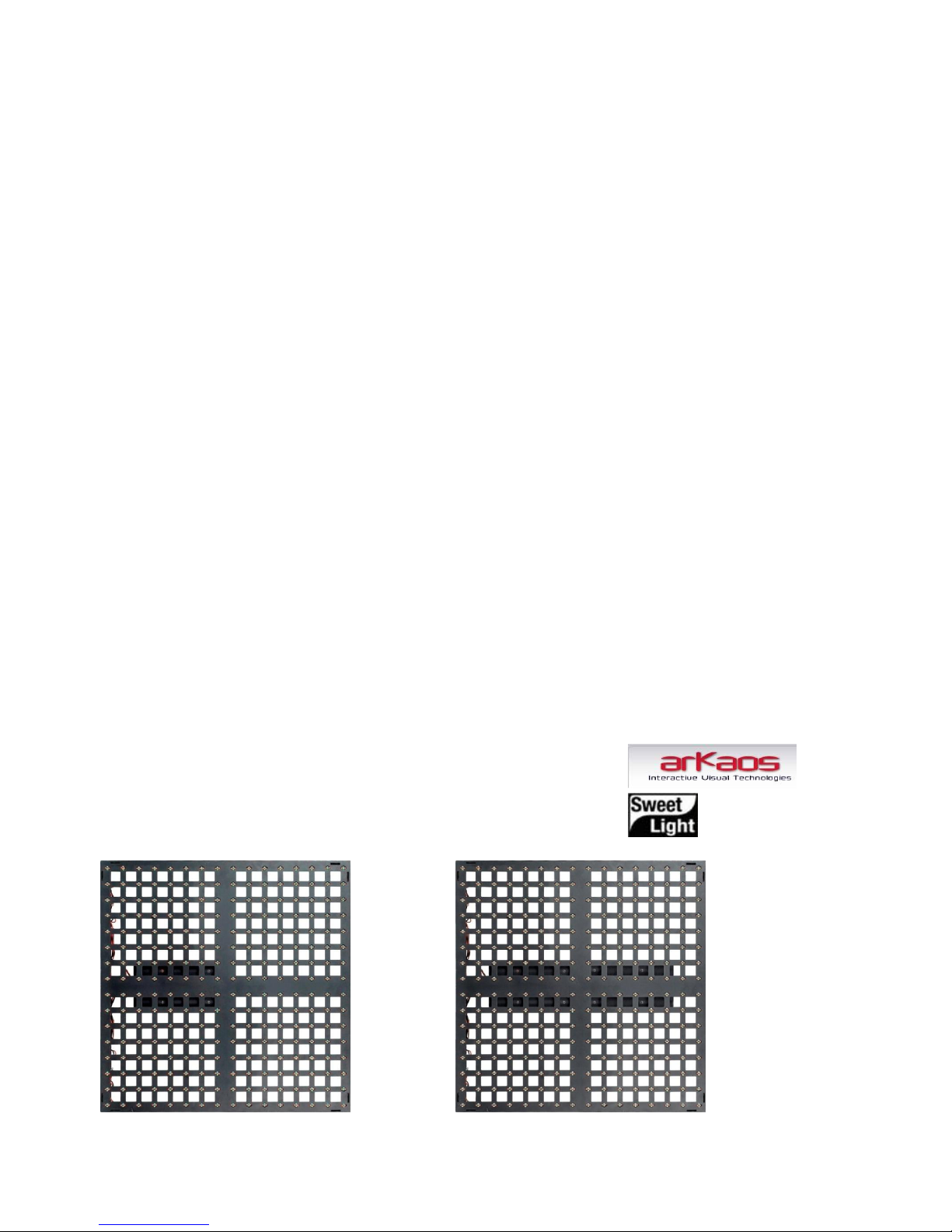

Overview

Fig. 1

Pixel Mesh (101150) Pixel Mesh Controller (101151)

Overall Requirements

• Windows XP computer with an available PCI slot

• Graphics card with 2x DVI or 1x VGA + 1x DVI

• LED PixelMeshController; 1controllerforevery16panelswideand8panelshigh

Computer System Requirements

Minimum

Operating system: Windows XP SP2 (Service Pack 2)

Processor: Pentium 200 MHz with at least one free PCI slot

Harddisk: 20 GB 5400 RPM

Memory: 128 MB

Graphic Card: Graphics Card with dual display Mode and DVI output

Note: Only tested with ATI Graphic Card

Recommended

Operating system: Windows XP SP2 (Service Pack 2)

Processor: Pentium 1 GHz or better with at least one free PCI slot

Harddisk: 40 GB 7200 RPM or more

Memory: 512 MB or higher

Graphic Card: Graphics Card with dual display Mode and DVI output

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

The LED Pixel Mesh can only be used indoors. The LED Pixel Mesh can be viewed during night-time as well

as day-time. Due to the clever mounting system it is easy to setup. The LED Pixel Mesh excellent design

allows you to vary the setup in many shapes and sizes.

LED Pixel Mesh Limitations

Note:1LEDPixelMeshControllerforevery16panelswideand8panelshigh

Horizontal Panels (Left/Right)

Vertical Panels (UP/Down)

Resolution

1 Panel is 16 by 16 pixels on your PC screen.

So 8 x 6 panels (5,12 x 3,84 meters) = a resolution of 128 x 96 pixels in Windows XP.

Minimum 1 Panel

16 columns of LED clusters or 16 horizontal pixels/lines

Maximum with 8 panels (1 Controller)

128 columns of LED clusters or 128 horizontal pixels/lines

Minimum 1 Panel

16 rows of LED clusters or 16 vertical pixels/lines

Maximum with 16 panels (1 Controller)

256 rows of LED clusters or 256 vertical pixels/lines

Minimum 1 Panel

16 X 16 Pixels

Maximum With (1 Controller)

256 X 128 Pixels

Included with the Software Bundle

User manual PC Sender Card

DVI cable (DVI to DVI)

Fig. 2

RS232 to RJ-11 cable CD with LED Studio 8

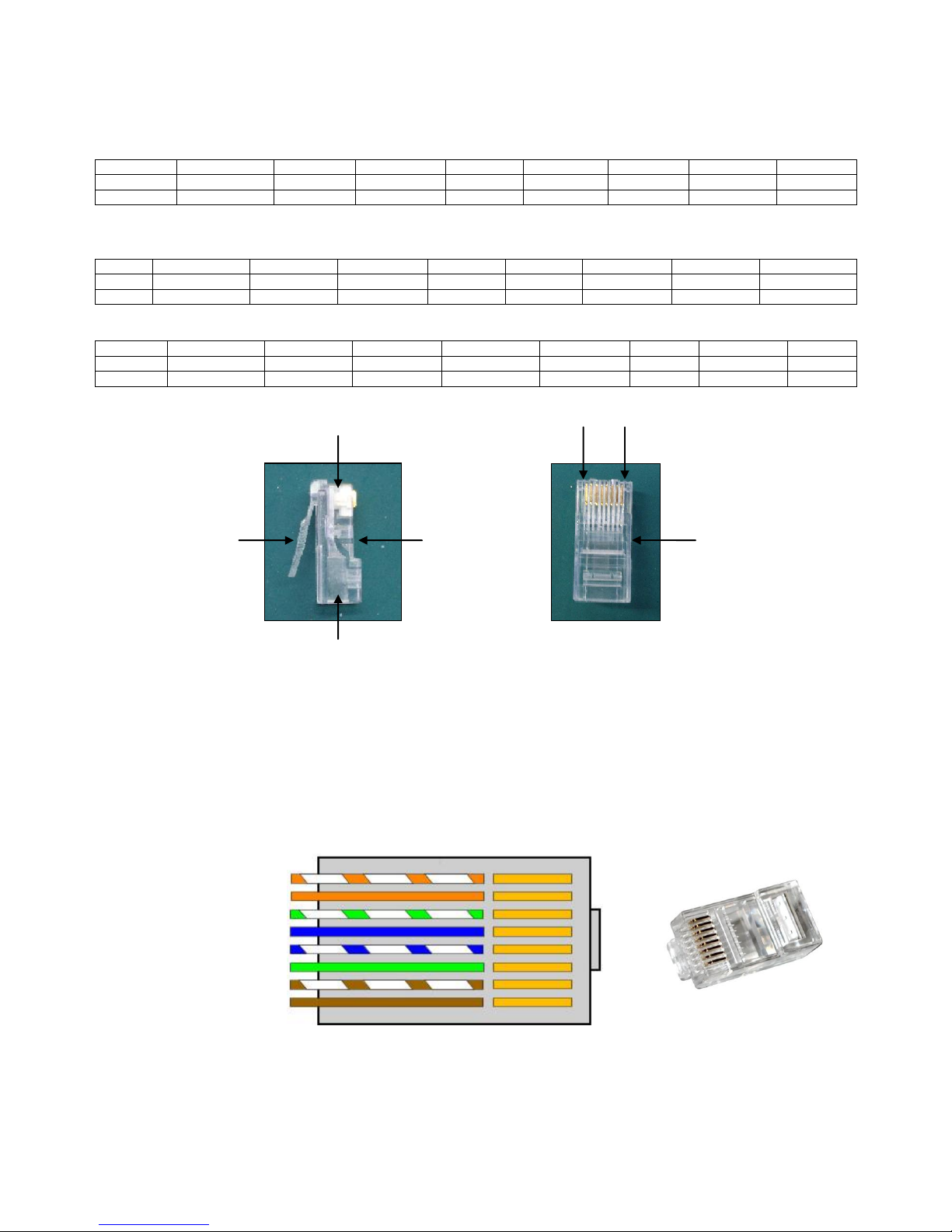

Communication Wire Facture

Cable from Computer to Scan Board 20m

INPUT

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

OUTPUT

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

Cable from Scan Board to Mesh Panel 3,5m

INPUT

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

OUTPUT

Brown

White/Brown

Green

White/Blue

Blue

White/Green

Orange

White/Orange

Cable between Mesh Panels

INPUT

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

OUTPUT

Blue

White/Brown

White/Blue

White/Orange

White/Green

Brown

Orange

Green

C-Side 1 8

A-Side B-Side B-Side

Fig. 3

D-Side

Making an additional cable from the computer to the Scan Board

A Standard NET CABLE cannot be used to replace the NET CABLE required to transmit the information for

the LED Pixel Mesh.

Please follow the following instructions in order to create extra NET CABLE.

Take a standard net cable (Cat5/ 5E /6) and connect it to the RJ-45 connector just like displayed on the

picture. The wires should now be colored as following:

1- white & orange

2- orange

3- white & green

4- blue

5- white & blue

6- green

7- white & brown

8- brown RJ-45 Connector

Insert each wire into an RJ-45 connector with the white & orange wire connected to PIN 1, the orange

wire connected to the second PIN, etc.

Both ends of the NET WIRE are connected in this way.

How to connect the Pixel Mesh

Fig. 4

Note:

Always make sure that all bolts are securely fastened.

Do not use on systems larger than 5,12 meters in height ( 8 panels)

Table des matières

Autres manuels EuroLite Matériel de DJ

EuroLite

EuroLite LED SCY-50 Manuel utilisateur

EuroLite

EuroLite MSB-8i Manuel utilisateur

EuroLite

EuroLite FD-4 Manuel utilisateur

EuroLite

EuroLite LED KLS-400 Manuel utilisateur

EuroLite

EuroLite LED KLS-180/6 Manuel utilisateur

EuroLite

EuroLite LED PFE-60 RGBW Manuel utilisateur

EuroLite

EuroLite LED WF-10 DMX Water Effect Manuel utilisateur

EuroLite

EuroLite LED BL-20 G50 Manuel utilisateur

EuroLite

EuroLite D-28 Manuel utilisateur

EuroLite

EuroLite Confetti Shot DMX Manuel utilisateur

EuroLite

EuroLite LED IP STRIP SET 45 RGB Manuel utilisateur

EuroLite

EuroLite U-1A Manuel utilisateur

EuroLite

EuroLite LED Panel for LED CB-16 IR Controller Manuel utilisateur

EuroLite

EuroLite LED BR-100 Manuel utilisateur

EuroLite

EuroLite UV Light ES 105W E-27 Manuel utilisateur

EuroLite

EuroLite LED IP PAR 36x3W RGBW Manuel utilisateur

EuroLite

EuroLite LED PST-4W QCL Spot Manuel utilisateur

EuroLite

EuroLite FD-32+1 Manuel utilisateur

EuroLite

EuroLite LED D-1000 Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

EuroLite

EuroLite LED D-2000 Manuel utilisateur

EuroLite

EuroLite GoFlow100 Manuel utilisateur

EuroLite

EuroLite LED TCL-150 Manuel utilisateur

EuroLite

EuroLite LED PARty Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

KAM

KAM DMX Laser80 FScan Manuel utilisateur

Chauvet

Chauvet ovation B-2805FC Manuel utilisateur

Eurotherm

Eurotherm LED TMH-X18 Manuel utilisateur
