Eureka V19P11A510 Manuel utilisateur
Owner’s Guide
Thank you for purchasing your new Eureka machine!
Please read this Owner's Guide carefully before
operating, and keep it properly.
Electric vacuum cleaners
2
CONTENTS
IMPORTANT SAFEGUARDS........................................................3
PRODUCT INTRODUCTION .......................................................5
OPERATIONS...............................................................................8
CLEANING AND MAINTENANCE...............................................12
PROBLEM SOLVING ..................................................................15
Follow caution information wherever you see this symbol.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledgeif they have beengiven
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shallnot be made
by children without supervision.
Children should be supervisedto ensure that they do not play with the appliance.
3
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING
Prevent unintentional
starting. Ensure the switch
is in the off-position before
picking up or carrying the
appliance. Carrying the
appliance with your finger
on the switch or energizing
appliance that has the
switch on invites accidents.
Do not touch nozzle when
the vacuum cleaner is on.
Danger.
Do not put any object into
openings. Do not use with
any openings blocked;
keep free of dust lint hair
and anything that may
reduce air flow.
Do not use outdoors or on
wet surfaces. Do not
operate the vacuum
cleaner if it has been
damaged in any way. Do
not allow to be used as a
toy. Close attention is
necessary when used by or
near children.
Use only as described in
this manual. Use only
manufacturer's
recommended
attachments.
Do not unplug by pulling on
cord. To unplug, grasp the
plug, not the cord. This
product is functioning at
temperature range within
40°F - 104°F.
Have servicing performed
by a qualified repair person
using only identical
replacement parts. This will
ensure that the safety of
the product is maintained.
Do not modify or attempt to
repair the appliance except
as indicated in the
instructions for use and
care. This vacuum cleaner
creates suction. Keep hair,
loose clothing, fingers, and
all parts of body away from
openings and moving
parts.
Do not pick up anything
that is burning or smoking,
such as cigarettes,
matches, or hot ashes. Do
not use without filters in
place. Use extra care when
4
cleaning stairs. Do not use
to pick up flammable or
combustible liquids, such
as gasoline, or use in
areas where they may be
present.
Store vacuum cleaner and
charger indoors in a cool
dry area. To avoid electric
shock and / or cleaner
damage, do not expose to
weather elements.
Keep your work area well
lit. Unplug electrical
appliances before
vacuuming them.
Do not incinerate this
appliance even if it is
severely damaged.
Contact local waste facility
before discarding in trash.
Do not leave appliance
when plugged in. Unplug
from outlet when not in use
and before servicing.
Do not pull or carry by cord,
use cord as a handle, close
a door on cord, or pull cord
around sharp edges or
corners. Do not run
appliance over cord. Keep
cord away from heated
surfaces.
Do not handle plug or
appliance with wet hands.
Turn off all controls before
unplugging.
Unplug before connecting
crevice tool or 2-in-1
upholstery tool.
SAVE THESE INSTRUCTIONS
5
PRODUCT INTRODUCTION
WHAT COMES IN THE CARTON
Storage base
(comes as two separate pieces
must be assembled)
Crevice tool 2-in-1 upholstery tool Important safeguards
Hand vacuum
Wand
Motorized floor nozzle
Soft roller brush
6
PRODUCT INTRODUCTION
HOW TO IDENTIFY PARTS OF YOUR VACUUM CLEANER
On/Off and
brushroll mode
switch
Hand vacuum
Release button for
hand vacuum
Power cord
Wand
Motorized floo
r
nozzle
Release button for floor
nozzle
Brushroll
7
PRODUCT INTRODUCTION
HOW TO IDENTIFY PARTS OF YOUR VACUUM CLEANER
For filter maintenance instructions (see page 13)
Post-motor filter cover
(post-motor fihe- inside)
Filter cover
(tre-motor filter inside)
Power and brushroll
mode switch
Handle
Filter cover release
button
Filter assembly
(inside dust cup)
One click dust cup
release button
Nozzle
Filter cover release button
Woven filter
Inlet filte
r
Post-motor filte
r
8
OPERATIONS

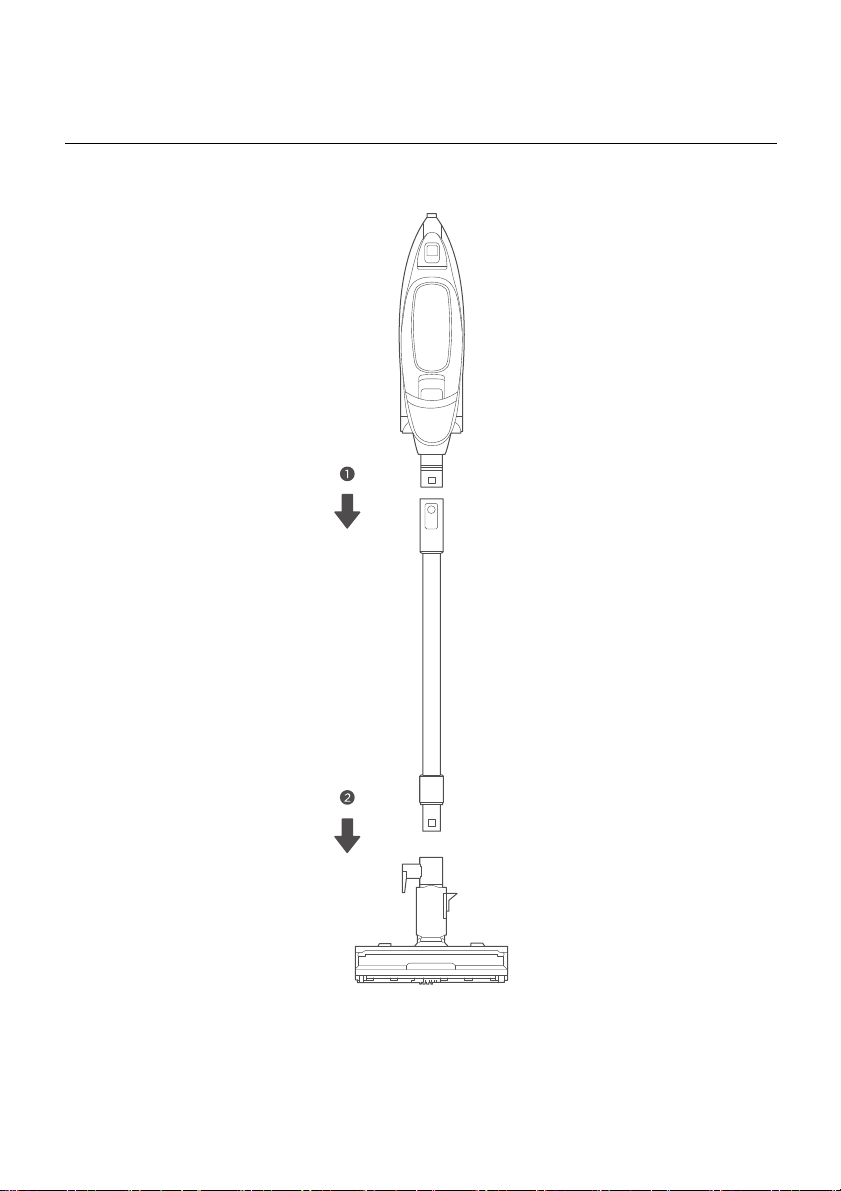

ASSEMBLY
1. Slide wand onto hand vacuum until it clicks (Fig. 1).
2. Push wand into motorized floor nozzle until it clicks (Fig. 2).
Click！
Click！
9
OPERATIONS

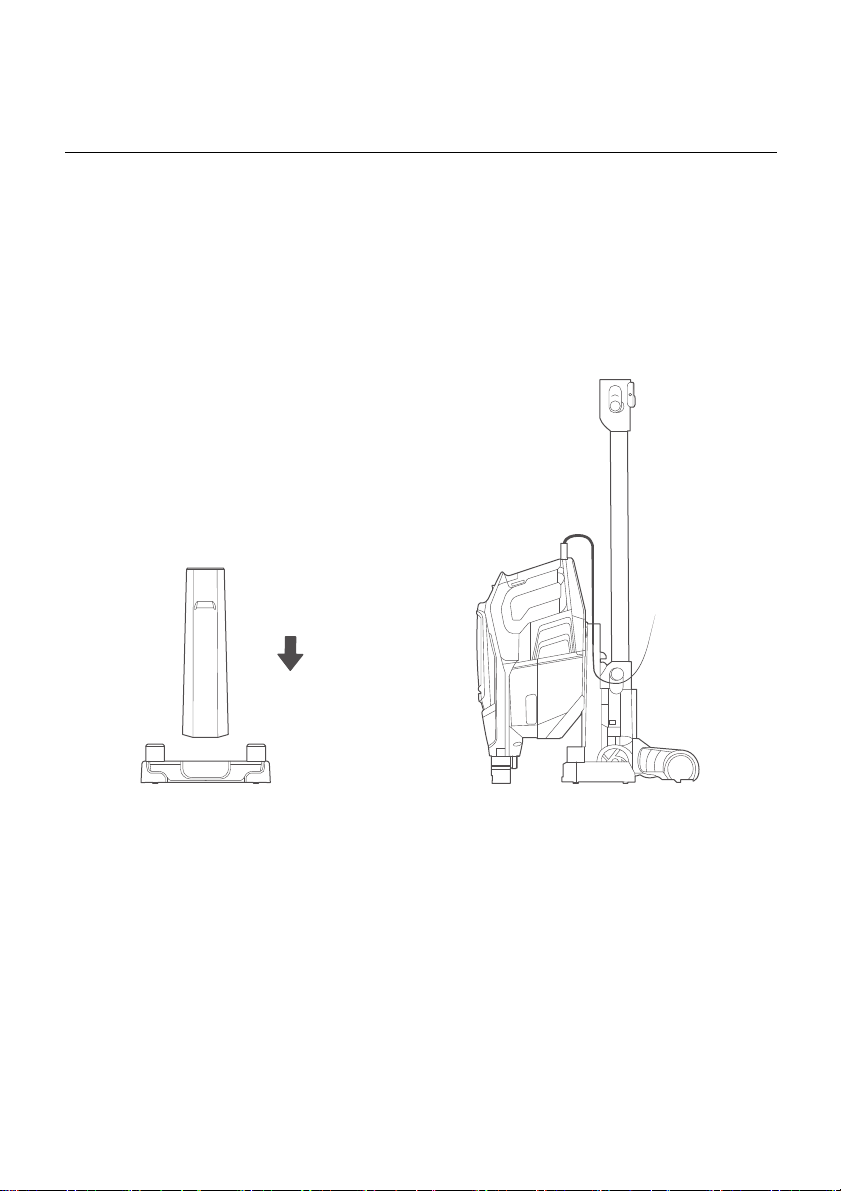

ASSEMBLY OF STORAGE BASE
1. Insert storage base shaft into slot on base until it clicks into place. Ensure side of shaft that says
Floor Nozzle goes in the same side as wheel well.
2. Detach hand vacuum from wand
3. Keep wand attached to floor nozzle and place in the wheel well rest on storage base
4. On back of hand vacuum, slightly below the vent, locate the notch
5. On upright portion of storage base locate the hook
6. Align notch on hand vacuum so it rests on storage base hook
7. Wrap power cord either around the cord wrap hooks on the wand or around the hand vacuum.
8. Tools can be stored on the two side mounts
Note:
When lifting unit on storage base always make sure hooks are properly engaged with both the wand and
the hand vacuum
Click！
Tool base assembly
10
OPERATIONS
WORKING
1. Move power switch on handle to the first position for bare floor cleaning and second position to
engage brushroll for carpet cleaning
2. Using motorized floor nozzle, glide back and forth on area to be cleaned. Avoid oversized or sharp
items (such as screws) with cleaner.
3. Twist wrist to engage swivel function.
4. When done, switch to off position
HOW TO USE HAND VACUUM AND ACCESSORIES
CAUTION
Moving parts! Always turn off hand vacuum before attaching accessories.
The hand vacuum can be used with or without
tools.
1. To use without tools, press release button
and remove wand. Collect debris directly with
hand vacuum nozzle.
2. To use tools with wand, press release button
to remove motorized floor nozzle. Slide tool
onto end of wand until it clicks .
3. To use tools with hand vacuum only, press
release button to remove wand, Slide tool
onto hand vacuum until it clicks
Power button/speed controls
