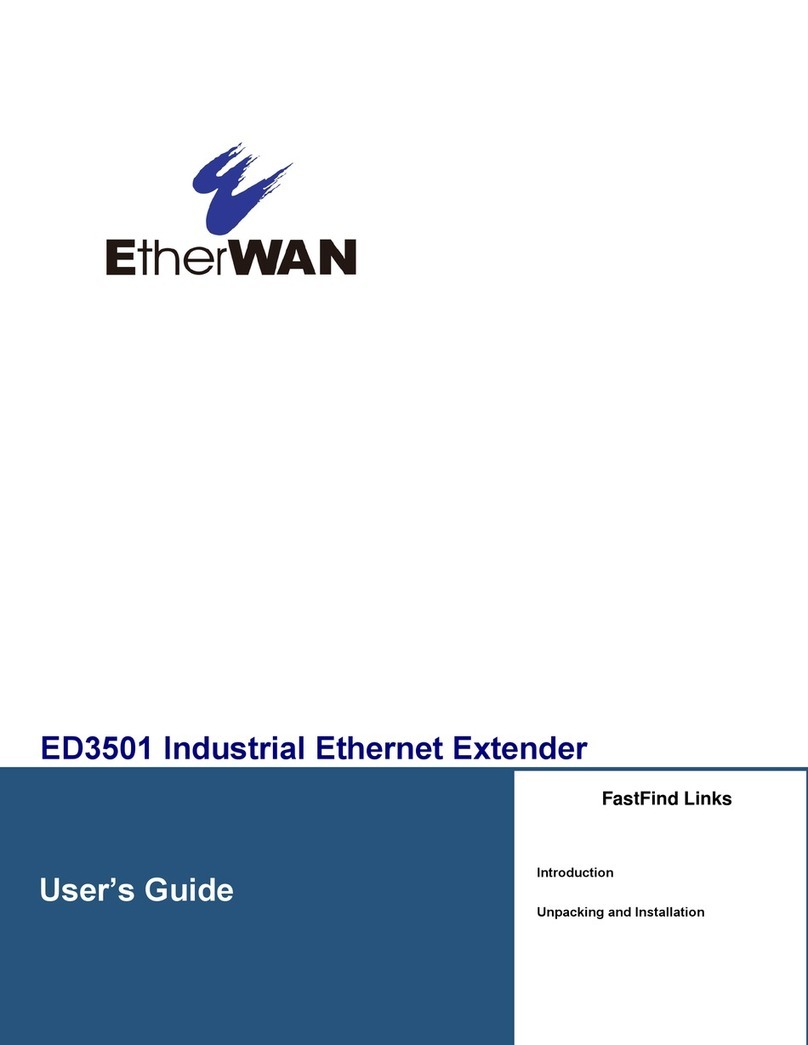

EtherWAN ED3501 Manuel utilisateur

ED3501 rev. 2.0

8/16/2018

W70G-ED3501XQ3

1 Unpacking

Unpack the items. Your package should include:

One ED3501 Industrial Ethernet Extender

One CD containing this user’s guide

If items are missing or damaged, notify your

EtherWAN representative. Keep the carton and

packing material.

2 Select a Location

Installations: Desktop, Wall-mount, DIN-Rail

mount.

Identify a power source within 6 feet (1.8

meters).

Choose a dry area with ambient temperature

between -10 and 60ºC (14 and 140ºF).

Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.

Be sure there is adequate airflow.

Keep the device at least 6 ft (1.83 m) away

from the nearest source of electromagnetic

noise, such as a photocopy machine.

3 Connect to the Data Ports

LED

Color

Status

PWR

Green

ON = Receiving power.

OFF = Power off.

Ethernet Extender Port

Link/Activity

Green

ON = Connection is established.

OFF = No connection is established.

Flashing = Port is sending or receiving

data.

Per

Green

ON = Performance mode.

OFF = Standard mode.

RMT

Green

ON = Remote mode.

LOC

Green

ON = Local mode.

SYM

Green

ON = Symmetric mode.

ASM

Green

ON = Asymmetric mode.

Line Speed

Green

ON = Displays the link speed in Mbps.

10/100TX Port

Link/Activity

Green

ON = Valid network connection.

OFF = No data transmission on port.

Flashing = Port is sending or receiving

data.

Speed

Yellow

ON = Link speed at 100Mbps.

OFF = Link speed at 10Mbps.

A. Insert one end of the Ethernet cable into a

switch port.

B. Connect the other end into the Ethernet port

of the device.

C. Insert the voice grade copper wire between

one pair of Ethernet Extenders via Ethernet

Extender port (RJ-11 connector or Terminal

Block). One device must be set to LOC mode

and the other to Auto mode when two

devices are connected.

4 Apply DC Power

Connect the supplied AC to DC power adaptor to

the receptacle on the rear panel of the Ethernet

Extender, and then attach the plug into a

standard AC outlet.

ED3501 Industrial Ethernet Extender Installation Guide

ED3501rev. 2.0

8/16/2018

W70G-ED3501XQ3

5 DIP Switch

Down

DIP Switch 1

Auto mode

Local mode

DIP Switch 2

Symmetric

Asymmetric

DIP Switch 3

Performance

Standard

NOTE: After making changes to the position of

any DIP switch, the Ethernet Extender must be

rebooted for the new settings to take effect.

6 Top Panel

Distance and data rate for Ethernet

Extender port:

Distance (m)

Data Rate (Mbps)

300

100

400

600

800

2600

This distance/data rate information is measured

according testing standard in EtherWAN

laboratory. The actual installation will be

affected by the quality of copper wire and the

impact of noise disturbance. The connection

speed will be affected.

Ethernet Extender Connection

The RJ-11 and Terminal Block port pinouts

Pin 3: Tip, Pin 4: Ring.

Use a telephone line to connect two RJ-11 or

Terminal Block ports between two Hardened

Ethernet Extenders.
