Assembly Guide

Source Four PARNel Assembly Guide 2

Table of Contents

Final Assembly........................................................................3

Lamp Burner Assembly...........................................................4-5

Housing Assembly ..................................................................6-7

Installing a stippled/wave lens ................................................7

Positioning the stippled/wave lens..........................................7

Cleaning the reﬂector..............................................................8

Source Four PARNel Assembly Guide 3

FinalAssembly

Reference

Number Part

Number Description Quantity

Required

1 7061A2020 S4 PAR zoom base assembly, black 1

2 7061A2020-1 S4 PAR zoom base assembly, white 1

3 7061A2001 Lamp socket assembly, black 1

4 7061A2001-1 Lamp socket assembly, white 1

5 7061A3006 Yoke bracket, black 1

6 7061A3006-1 Yoke bracket, white 1

7 7061A4010-2 PAR zoom clear/wave lens 1

8 7061A4010-1 PAR zoom stippled/wave lens 1

9 HW5125 Bolt, carriage 5/16-18 X .75” BO 1

10 HW5126 Washer, ﬂat .375 X .875 X .078 B/Z 1

11 HW5139 Washer, 1/4 split ring lock, B/Z 2

12 HW5172 Bolt, hex 1/4-20 X 1.0” grade 5 B/Z 2

13 HW522 Washer, ﬂat 1/4 B/Z 2

14 HW8144 Handle, yoke knob, black 1

15 HW8144-01 Handle, yoke knob, white 1

16 7061A3007 PAR gel frame, 7.25” 1

17 7061A4014 Focus knob gear 1

18 7061A4013 Focus knob bushing 1

19 7061A4015 Focus knob 1

20 HW2154 Screw, PPH, 6-19 X 1/2L, 48-2 Plastite 1

21 7061A4012 Lens rotator 1

15 3

14 5

Figure1

Source Four PARNel Assembly Guide 4

LampBurnerAssembly

Reference

Number Part

Number Description Quantity

Required

1 7061A3023 Burner, casting, black 1

2 7061A3024 Strain relief, casting, black 1

3 W330-02 TP22 CLCM assembly, ceramic 1

4 W330-03 TP22 CLCM assembly, mica 1

5 W330-01 TP22 CLCM assembly, 44” 16-AWG. 1/4” semi-stripped, silver contacts,

250º 2

6 7060A3025 Screw, 1/4-20, knurled head 1

7 7061B7002 48”W420 wire, 16-AWG, 200ºC/300V, green, UL 1180/CSA AWM with

J3209 #6 tooth ring crimp lug installed 1

8 HW206 Screw, 6-32 X 3/8, black zinc 1

9 HW349 Washer, #8 4

10 HW394 Screw, 8-32 X 1/2, PhPHMS 4

11 HW2125 Screw, 6-32 X 1/4, self tap, black zinc 1

12 W689 Sleeve, ﬁberglass 1

13 7061A4011 Handle 1

Figure2

Source Four PARNel Assembly Guide 5

LampBurnerAssembly

Tools required: Phillips screwdriver

1. Install the ground wire (7) and the twoTP22 white leads (5) in the sleeving (12).

2. Snap the focus handle (13) onto the burner (1). (Figure 2)

3. Place theTP22 mica (4) in the burner casting (1), as shown in ﬁgure 3.

4. Secure the ground wire lug (7) with prongs down, onto the burner casting (1), using 6-32x3/8” screw (8).

5. Place theTP22 contacts (5) into the grooves on back of the ceramic, and then place on the mica (4). Bend theTP22

white leads as necessary to position around the knurled head screw hole, see ﬁgure 3.

Note

: Position the wires with the green ground wire on top of the twoTP22 white leads. Make sure the green ground

wire is not touching any part of the burner casting.

6. Insert the 8-32x1/2” screws (10), into the washers (9) and place in four positions (as numbered in ﬁgure 4) in the strain

relief casting (2).

7. Position the sleeving assembly (12), as shown in ﬁgure 3. Fold the sleeving so it ﬁts cleanly in the slot between the

burner and the strain relief.

8. Place the strain relief (2) on the burner casting (1). Loosely attach the washers (9) and screws (10).The ceramic (3)

must be centered in the opening in the strain relief (2). (Figure 4)

WARNING!

Make sure that both of theTP22 contacts are centered in the opening in the ceramic and the ceramic is

centered in the opening in the strain relief casting.To center theTP22 contacts, place a small screwdriver (or other

small tipped device) in the center of theTP22 contacts and maneuver them until they are centered in the ceramic.

Failure to center theTP22 contacts and/or the ceramic can cause problems with inserting lamps.

9. Tighten the screws in the order shown in ﬁgure 4, to guard against stripping the screws. Make sure the assembly

remains centered, if it doesn’t, loosen the screws and readjust. (You may want to keep the screwdriver in place in the

TP22 contacts while tightening the screws.)

10. Install the 6-32x1/4” screw (11) into the strain relief. (Figure 4)

11. Make sure the focus handle is secure, then insert the knurled head screw (6) through the handle (13) into burner cast-

ing (1).

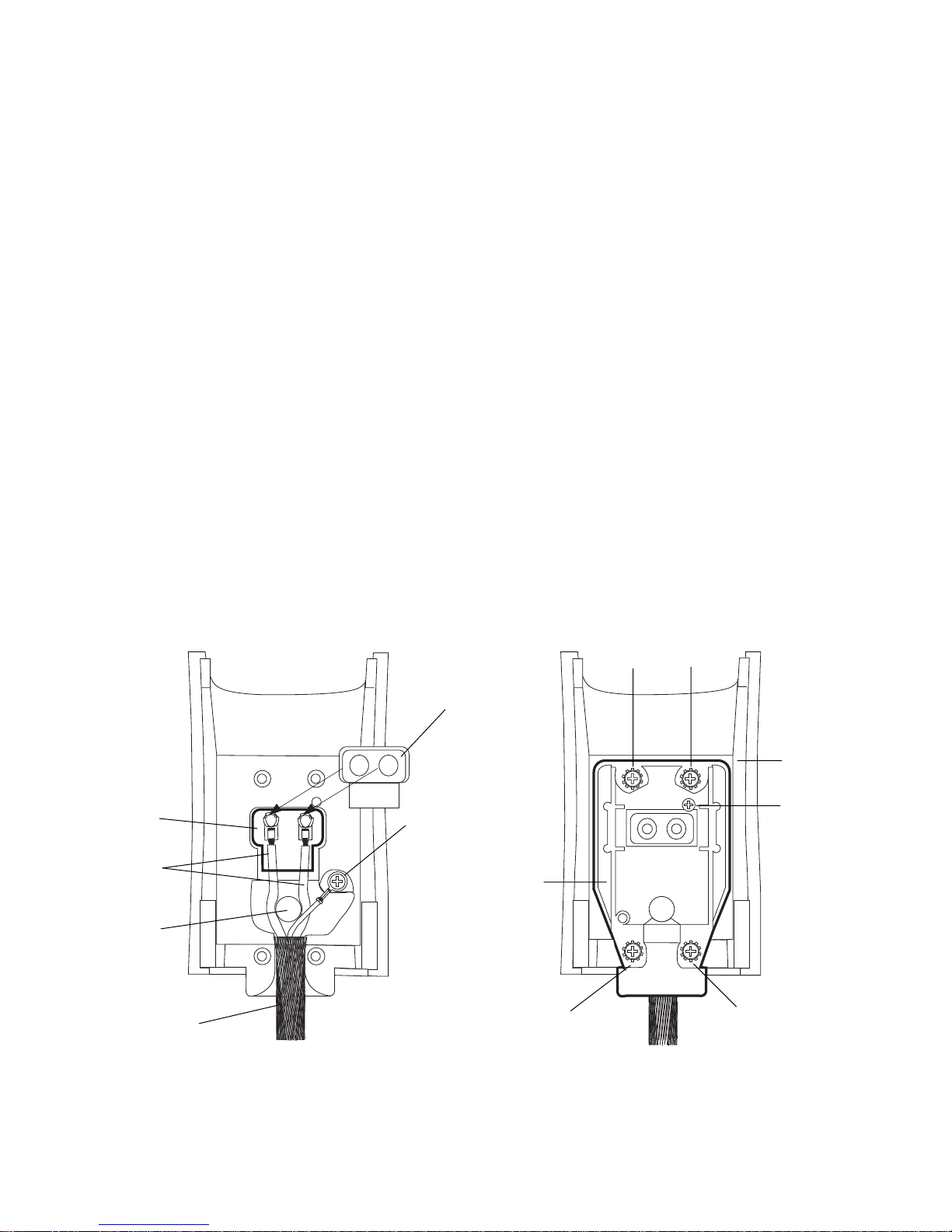

ceramic (3)

mica (4)

TP22 contact

and lead (5)

knurled head

screw hole

sleeving (12)

ground wire (7) and

6-32 X 3/8 screw (8)

strain relief

casting (2)

burner

casting (1)

6-32 X 1/4”

screw (11)

Figure3

Source Four PARNel Assembly Guide 6

HousingAssembly

Reference Number Part Number Description Quantity Required

1 7061A3005 Gel retainer clip 1

2 7061A3013 Spring clip rotator 1

3 7061A3014 Reﬂector, painted black 1

4 7061A3014-1 Reﬂector, painted white 1

5 7061A3025 Barrel, painted black 1

6 7061A3025-1 Barrel, painted white 1

7 70612019 Source Four PAR rivet assembly, black 1

8 70612019 Source Four PAR rivet assembly, white 1

9 70613029 Rotator pressure clip 1

10 HW492 Screw, 10-32 X 5/8, PhPHTaptite 3

11 7061A4001 Pad, silicon reﬂector mount 2

12 70614012 Lens rotator, black 1

13 70614012-1 Lens rotator, white 1

14 7061A4029 Lens stop 1

15 7061A4020 PARNel lens pad 4

16 7061A4013 Focus knob bushing 1

17 7061A4014 Focus knob gear 1

18 7061A4015 Focus knob 1

19 HW2154 Screw, PPH, 6-19 X 1/2L, 48-2 Plastite 1

20 7061A4010-1PAR zoom wave/stippled lens 1

21 7061A4010-2PAR zoom wave/clear lens 1

22 HW750 Spring, retainer 1

23 HW4145 Screw, 10-32 X 3/8, PhPHTaptite, BO 1

Rear lens track

Figure4

Source Four PARNel Assembly Guide 7

HousingAssembly

Tools required: Phillips screwdriver.

1. Install the reﬂector mount silicon pads (11) and lens pad (15) in the left barrel (7 or 8).

2. With the wave side of the lens facing toward the front of the ﬁxture, install the wave/clear lens (21) into the rear lens

track.

3. Assembly items 16, 17 18 and 19 (Focus knob assembly). Rotate the focus knob full spot position.The arrow on the

focus knob will point approximately to the 11 O’clock position.

4. Place the focus knob assembly into the left barrel.

5. Install the lens stop (14) and the rotator spring clip (12) into the lens rotator (12 or 13).

6. Install the lens rotator into the left barrel.

7. Install the rotator pressure clip (9) into the left barrel with screw (23).

8. Install the gel retainer clip (1) and the spring (22) into the right barrel (5 or 6).

9. Attach the right barrel to the left barrel using screws (3) in three places.

10. Check that the gel clip retainer (1) moves easily into position.

11. Check for smooth rotation of the lens rotator (12 or 13).

12. With the wave side facing inward, install the wave/stippled lens (20) into the lens rotator. See below for detailed

instructions on installing the front lens.

Installingastippled/wavelens

1. Position the ﬁxture with the front of the unit facing you, and tilted slightly down.

2. Rotate the focus knob to the full spot position.

3. Hold the lens by the edge, and position it so the wave side faces the rear of the ﬁxture.

4. From the top of the ﬁxture, slide the lens behind the lens catchers and position its base behind the tabs on the bottom

forth lens rotator ring.

5. Gently push the top of the lens inward until it snaps behind the spring clip.

Positioningthestippled/wavelens

1. There are seven “notches” cut into the stippled side of the lens. Position the lens so that the cluster of three notches

is on top.The center notch of the cluster coincides with the spring clip on the lens retaining ring.

2. The bottom of the lens has a cluster of four notches. Place the two center notches behind the tabs at the bottom of

the lens rotator ring.

Figure5

Spring clip

W/S len

Tab

Retaining clip

Focus knob

W/C lens

Figure6

Lens catcher

Figure7

Spring clip

Retaining clip

Top center notch

Bottom two

center notches

Figure8

Cleaningthereﬂector

Warning

: Do not use glass and window cleaners on the reﬂector. Chemicals in these cleaners will harm the reﬂective

coating.

Do not use paper towels or harsh materials to wipe the reﬂector.These materials can scratch the surface of the

reﬂector.

1. Since the rear (wave/clear) lens is ﬁxed in it’s position, the ﬁxture will need to be dissembled before you can clean the

reﬂector. See “Housing Assembly” on page 7.

2. Remove the dust with a blast of oil-free air, or wipe with a clean, soft, lint-free cotton cloth.

3. If the reﬂector is still very dirty, dampen a clean cloth with a mild, soapy water solution (Ivory works well) and gently

wipe the reﬂector.

4. Remove any soapy water residue with a damp soft cloth.

5. Reassemble the ﬁxture.
