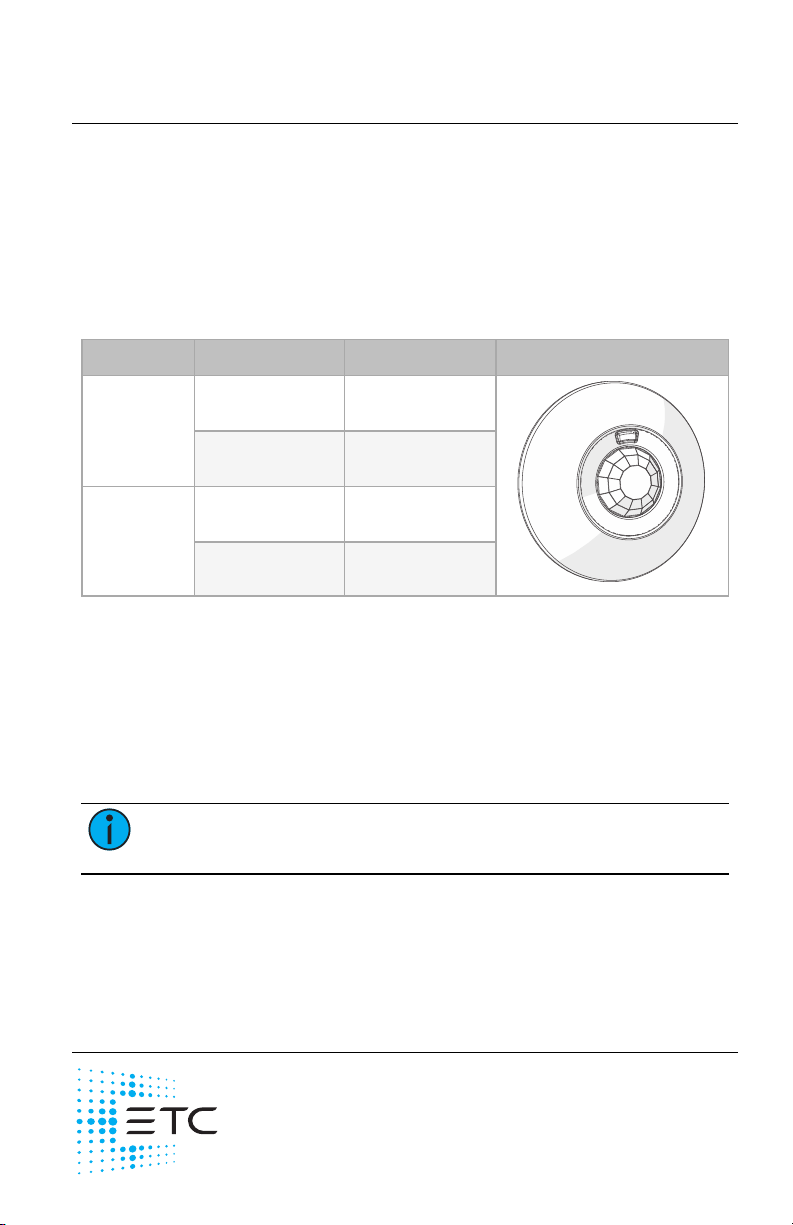

Overview

The Echo Dual Tech Ceiling-mount Vacancy Sensor uses passive infrared (PIR)

technology and acoustic detection to provide reliable vacancy sensing for

lighting control. The sensor relies on local station control for manual on and

provides auto off functionality upon detection of vacancy.

The ceiling-mount sensor offers 360 degree coverage with optimized lens

options to accommodate small and large spaces.

Model Coverage m2Coverage ft2

E-DVAC-C-SR

SmallRoom

41.8m2at2.4m 450ft2at8ft

74.3m2at 6.7m 800ft2at 12ft

E-DVAC-C-LR

LargeRoom

167m2at 2.4m 1,800ft2at 8ft

279m2at 6.7m 3,000ft2at 12ft

Field-installed lens masks are provided to allow customized detection fields

for each sensor lens type.

Custom Configuration

This document guides you through the installation and local DIP switch setup

of the sensor. For more detailed information about custom configuration

options available using EchoAccess, see the EchoAccess App integrated help

system.

Note:

To use the configuration settings applied using EchoAccess,

DIP switch 2 must be enabled. See DIP Switches on page7.

ETC Installation Guide

Dual Tech Vacancy Sensor

Prepare for Installation

Ceiling-mount sensors are intended for installation to a finished ceiling

surface, soft ceiling tile mounted, or attached to a round or octagonal fixture

junction box.

Compliance

•

cULus Listed

•

CE compliant

For use with ETC Echo Control Systems, powered by an Echo station power

supply.

Environment

Ambient

For indoor, commercial controls use only. Operating temperature 0-40°C

(32-104°F), humidity maximum 90%(non-condensing).

Location

ETC recommends paying special attention to the installation environment:

•

When operating in PIR only modes, the sensor must have an

unobstructed view of the room. Do not mount behind or near tall

cabinets, shelves, hanging light fixtures, etc.

•

Do not install the sensor within eight feet from an HVAC airflow

duct/vent.

•

Install the sensor where it cannot easily sense movement in areas

outside of the intended space, such as hallways, glass partitions, or

adjacent rooms. If the installation location cannot avoid these

conditions, portions of the lens can be masked to block the sensor

view of these undesired areas. See

Lens Masking on page10

Note:

In areas of increased noise activity, enabling PIR only mode

may allow for better vacancy detection results. See DIP Switches on

page 7.

Dual Tech Vacancy Sensor Page 2 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Wire Specification

The Dual Tech Vacancy Sensor connects to the EchoConnect communication

bus. EchoConnect is a bi-directional protocol that uses one pair of wires

(data+ and data-) for both data and power. ETC recommends using Belden

8471 Class 2 wire (or approved equal - see the ETC cable cross database

etcconnect.com/Support/Cable-Cross-Database for equal alternatives). The

total combined length of an EchoConnect wire run using Belden 8471 may

not exceed 500m (1,640ft), with a maximum distance of 400m(1,312ft)

between any two devices.

Note:

All control wiring should be installed and terminated by a

qualified installer and should follow standard wiring installation

practices. Leave approximately 25.4cm (10in) of wiring in the back

box for connection and to allow slack for future service needs.

Note:

ETC requires that all stations and devices be grounded for

ESDprotection. Pull an additional 2.5 mm2(14AWG) wire for

grounding when control wires are not installed in grounded metal

conduit.

Note:

When using Category 5 (or equivalent) cable on the

EchoConnect communication bus, please note the following:

•

Cat5 wiring must be terminated using EchoConnect Cat5

Termination Kit and must be installed using a bus topology.

Refer to the installation guide that is provided with the Cat5

Termination Kit (7186A1207) for information to terminate

Cat5 wiring.

•

Not all topologies are supported using Cat5; careful planning

is required to ensure the proper termination kits are available

and the wire is pulled appropriately.

Supplies

The following supplies are provided with the sensor:

•

Soft ceiling tile adapters

•

2 each mounting screws, 6-32 x 3/4" and 6-32 x 1 3/4"

•

Lens masks

•

WAGO connectors, 3-position

Dual Tech Vacancy Sensor Page 3 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Installation

Note:

Installation must follow all national and local codes for

electrical equipment. NEC Class 2 product to be wired in accordance

to NEC Article 725 and local jurisdiction requirements.

The ceiling-mount sensor is provided with a mounting plate that can be

mounted to a junction box, finished ceiling, or soft ceiling tile. Determine the

installation method and follow the detailed instructions:

•

Junction Box or Surface Installation below

•

Soft Ceiling Tile Installation on the facing page

Junction Box or Surface Installation

1. Pull the Belden 8471 (or

equivalent) and one 2.5mm2

(14AWG) ground wire to the

mounting location (junction

box or finished surface) and

strip each wire 11mm (7/16in).

2. Temporarily remove the sensor

cover to gain access to the

configuration switches and

mounting access holes. Hold

the sensor in one hand while

gently twisting the cover

clockwise.

3. Connect the EchoConnect wires

from the sensor to the installed

wires.

a. Connect the data-EchoConnect wire(black) from sensor to the

incoming data- EchoConnect wire (typically black) using a WAGO

wire termination connector.

b. Repeat the above step for the data+EchoConnect wire(typically

white) and for the ESD ground wire (typically green/yellow), using

a new WAGO connector for each termination type.

4. Orient the flat side of the sensor to the junction box or surface and

secure it in place using the screws provided (both short and long

screws are provided for installation convenience).

Dual Tech Vacancy Sensor Page 4 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Soft Ceiling Tile Installation

Ceiling tile

adapter Ceiling tile

Ceiling tile adapter

1. Pull the Belden 8471 (or equivalent) and 2.5mm2(14AWG) ) ground

wire to the mounting location and strip each wire 11mm(7/16in).

2. Temporarily remove the sensor cover to gain access to the

configuration switches and mounting access holes. Hold the sensor in

one hand while gently twisting the cover clockwise.

3. Prepare the ceiling tile.

a. Align the flat side of the sensor to the finished side of the ceiling

tile and mark the center access hole for wire pass-through.

b. Remove the ceiling tile material from marked access hole.

c. Pull the sensor wires through the access holes to the unfinished

side of the ceiling tile.

4. Secure the sensor in place.

a. Insert the soft ceiling tile adapters through the provided pinholes

on the sensor, one set located on each side of the sensor near the

mounting keyholes.

b. Push the adapters through the ceiling tile, and then bend each

tine over in opposite directions for a secure fit on the unfinished

side of the ceiling tile.

5. Connect the EchoConnect wires from the sensor to the installed wires.

a. Connect the data - EchoConnect wire (black) from sensor to the

incoming data- EchoConnect (typically black) wire using a WAGO

wire termination connector (provided).

b. Repeat the above step for the data + EchoConnect wire (white)

and for the ESD ground wire (typically green/yellow), using a new

WAGO connector for each termination type.

Dual Tech Vacancy Sensor Page 5 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Settings

DIP switches

Space and Address

switches

The Echo Dual Tech

Ceiling-mount

Vacancy Sensor

participates in an

Echo control system

using the configured

Space and Address,

which are selectable

using the rotary

switches on the sensor electronics located behind the removable cover.

Note:

When the sensor is placed into Custom configuration mode,

DIP switch 2 set to On, all other DIP switch settings are ignored.

Note:

The [MODE] and Auxiliary [A] buttons, and their related LEDs,

are not used and have no functionality on the Dual Tech Ceiling-

mount Vacancy Sensor.

Set Space and Address

Two rotary switches on the sensor electronics provide for Space and Address

assignment for the sensor. By default, these switches are set to Space1,

Address1. Commands are shared by all devices within a given space.

1. Set the Space rotary switch to the desired number (1 through 16) for

the space you want the sensor to control.

2. Set the Address rotary switch to desired address (1 through 16) for the

sensor identification in the selected space.

Note:

Do not duplicate a device Address within the same Space.

Dual Tech Vacancy Sensor Page 6 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

DIP Switches

DIP switches on the sensor electronics provide for additional configuration

options including Use Custom Config, Vacancy Timeout, Enable/Disable

detection LEDs, PIR Only Mode, and the ability to restore the sensor to its

factory defaults.

Switch # Use

1Unused (leave Off)

2Enable/Disable Custom Config Mode

•

When “Custom Config” is set to Off (default), also known

as Basic configuration mode, the local DIP switch settings

for Vacancy Timeout, Enable PIR LED, and dual technology

features are used. See

Configuration on page 8

•

When “Custom Config” is set to On, all other local DIP

switch settings are ignored. Instead, the settings made by

the EchoAccess App are used.

3 and 4 Vacancy Timeout

•

5 min = Switches 3 and 4 are Off

•

15 min = Switch 3 is Off and Switch 4 is On (default)

•

30 min = Switch 3 is On and Switch 4 is Off

•

Auto = Both switches are On

5Detection LEDs

•

When set to On (default), the occupancy detection LEDs

illuminate when movement is detected.

•

When set to Off, the occupancy detection LEDs are

disabled unless the unit is in Walk Test mode.

6PIR Only Mode

•

When set to On, acoustic detection technology is disabled

for the sensor.

•

When set to Off (default), both PIR and acoustic detection

technologies are used by the sensor.

7Unused (leave Off)

8Restore to Defaults at boot

•

When set to On and power is cycled to the sensor, the

unit restores to its factory default settings.

•

Off is the default setting.

Dual Tech Vacancy Sensor Page 7 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Power Up

All EchoConnect terminations in the system must be made before applying

power to the system and sensor. When the sensor is powered up, the PIR and

acoustic detection LEDs illuminate for one minute for calibration and warm-

up. Both the PIR and acoustic detection features of the sensor will

automatically adjust the sensitivity threshold to eliminate nuisance tripping.

During this time configuration is not allowed and no events are triggered.

Configuration

Basic

When the sensor is in Basic configuration mode (DIP switch 2 set to Off), the

sensor will activate a Space Off command when vacancy is detected.

Custom

When functionality other than Space Off is required, place the sensor in

Custom configuration mode (DIP switch 2 set to On). Customization of the

sensor and all actions are configured using the EchoAccess App.

For more detailed information about custom configuration options available

using EchoAccess, see the EchoAccess App integrated help system.

Operation

Dual Technology

When both PIR and acoustic detection are used, the following logic is used:

•

When the space is vacant, only manual control can switch the state to

occupied.

•

When the space is occupied, PIR, acoustic detection, and manual

control can reset the vacancy timeout.

•

When the vacancy timeout in the space has only been reset by acoustic

detection for 60 minutes, acoustic detection is disabled until the next

PIR detection event.

PIR (only) Detection

When acoustic detection is disabled (DIP switch 6 set to On), the following

logic is used:

•

When the space is vacant, only manual control can switch the state to

occupied.

•

When the space is occupied, PIR detection and manual control can

reset the vacancy timeout.

Dual Tech Vacancy Sensor Page 8 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Vacancy Timeout

Vacancy timeout is the amount of time the sensor waits to take action after

no movement is detected. By default, vacancy timeout is set to 15 minutes

(indicated by DIP switch 3 set to Off and 4 set to On; see

DIP Switches on

page 7

). When the vacancy timeout ends, the grace period begins.

When the sensor detects vacancy, the vacancy timeout period begins. If the

sensor does not detect occupancy again during the vacancy timeout period,

the lights turn off and a 30 second grace period begins.

Grace Period

The sensor features a 30 second grace period after a vacancy timeout occurs.

During this grace period, if the sensor detects occupancy, it will turn on or

restore the previous lighting condition.

Auto Vacancy Timeout

The “Auto” vacancy timeout setting varies the vacancy timeout between

5 and 30 minutes depending on how often it identifies an occupancy trigger

after a vacancy timeout occurs (during the grace period).

Dual Tech Vacancy Sensor Page 9 of 12 ETC

ETC Installation Guide

Dual Tech Vacancy Sensor

Walk Test

The sensor offers a Walk Test mode, which shortens the vacancy timer to ten

seconds and allows for simple and quick verification of the sensor’s coverage

and range in the installed space.

[Walk Test]

1. Prepare the site for configuration.

a. Make certain the sensor and lighting loads are powered and

connected for control by the Echo control system.

b. You will need direct access to the sensor in order to place it into

Walk Test mode.

2. Press the Walk Test button on the sensor to enable the Walk Test

feature. A green LED will flash, indicating Walk Test is enabled and the

vacancy timer will be shortened to ten seconds.

3. Move throughout the space including corners and areas that may be

obscured from line of sight to the sensor. Each time the sensor detects

movement, the lens illuminates red. If acoustic detection is enabled,

any sound detected will illuminate the lens green.

4. Adjust the lens masking, if installed, blocking certain areas of the

installed space from sensor detection. See

Lens Masking below

5. Walk Test mode automatically exits and the sensor returns to normal

operation after five minutes. You can also manually terminate by

pressing the Walk Test button again.

Lens Masking

Lens masks are provided in the packaging for your convenience. Use this to

block a section of the lens from detecting occupancy. To attach, cut to the

desired size, remove the backing and stick it on the sensor lens, covering the

desired sections.

Dual Tech Vacancy Sensor Page 10 of 12 ETC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ETC Accessoires

ETC

ETC Echo Dual Tech Wall-mount Vacancy Sensor Manuel utilisateur

ETC

ETC Sohrana Dual Tech Manuel utilisateur

ETC

ETC echoflex ERUSB-C Manuel utilisateur

ETC

ETC E-DOC-C-LR Manuel utilisateur

ETC

ETC echoflex Elaho E-LS Manuel utilisateur

ETC

ETC Unison Echo Dual Tech Switch-mount Occupancy... Manuel utilisateur

ETC

ETC echoflex RCT Manuel utilisateur

ETC

ETC Echoflex Dual Tech Manuel utilisateur

ETC

ETC Aero SimpleTap Occupancy Sensor Manuel utilisateur

ETC

ETC Echoflex UWLDU-3 Manuel utilisateur

ETC

ETC SR12D Manuel utilisateur

ETC

ETC echoflex RCT Manuel utilisateur

ETC

ETC Echoflex Elaho Manuel utilisateur

ETC

ETC echoflex MOS-IR A Series Manuel utilisateur

ETC

ETC Unison Aero SimpleTap Cubicle Station Manuel utilisateur

ETC

ETC Sasquatch Manuel utilisateur

ETC

ETC Echoflex Elaho Manuel utilisateur

ETC

ETC Unison Echo E-OCC-SR Manuel utilisateur

ETC

ETC echoflex MOS-MT Series Manuel utilisateur

ETC

ETC Unison Aero Manuel utilisateur

ETC

ETC Unison Heritage Manuel utilisateur

ETC

ETC Echoflex Elaho Manuel utilisateur

ETC

ETC echoflex OWS-IR-UW-120/277 Manuel utilisateur

ETC

ETC P-OCC-SR Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
