E21 Installation Manual
(Version: V1.09)
E21 Installation Manual
Contents
Preface ........................................................................................................... 1
Chapter 1 Specification............................................................................................. 3
1.1 Display............................................................................................................. 3
1.2 Internal memory............................................................................................... 3
1.3 Electrical specification..................................................................................... 3
Chapter 2 Installation ................................................................................................ 5
2.1 Announcements before installation................................................................. 5
2.2 Installation space and direction....................................................................... 5
2.3 Installation environment .................................................................................. 5
2.4 Installation dimension...................................................................................... 6
2.5 Installation layout............................................................................................. 7
2.5.1 Layout of rear panel ..............................................................................................7
2.5.2 Rear panel port description...................................................................................7
2.5.3 Overall wiring scheme...........................................................................................9
2.5.4 Electrical wiring scheme......................................................................................10
2.6 Definition of device interface......................................................................... 11
2.6.1 Definition of power interface................................................................................ 11
2.6.2 Definition of input interface.................................................................................. 11
2.6.3 Definition of external output interface..................................................................12
2.6.4 Definition of encoder interface.............................................................................13
2.6.5 Definition of communication interface .................................................................13
Chapter 3 Parameter Description of Machine Tool.............................................. 14
3.1 Enter parameter page.................................................................................... 14
3.2 Parameter Description................................................................................... 15
Chapter 4 Diagnosis................................................................................................ 22
4.1 Enter diagnosis page..................................................................................... 22
4.2 Input diagnosis .............................................................................................. 22
4.3 Output diagnosis............................................................................................ 23
4.4 Keyboard diagnosis....................................................................................... 23
4.5 FRAM diagnosis............................................................................................ 24
4.6 Encoder diagnosis......................................................................................... 24
4.7 LCD diagnosis............................................................................................... 25
E21 Installation Manual
4.8 Communication diagnosis............................................................................. 25
Chapter 5 Commissioning ...................................................................................... 26
5.1 Preparation before Commissioning............................................................... 26
5.2 Procedure...................................................................................................... 26
5.2.1 System parameter setting ...................................................................................26
5.2.2 Action commissioning..........................................................................................27
5.2.3 Precision commissioning.....................................................................................27
5.2.4 Counting commissioning.....................................................................................28
5.2.5 Retreat commissioning........................................................................................28
5.2.6 Teach function commissioning ............................................................................28
Chapter 6 Maintenance............................................................................................ 29
6.1 Instructions to maintenance .......................................................................... 29
6.2 Routine inspection......................................................................................... 29
6.3 Periodic inspection ........................................................................................ 30
Chapter 7 Appendix................................................................................................. 32
7.1 External power description............................................................................ 32
7.2 Grounding design.......................................................................................... 32
7.2.1 Ground classification in equipment cabinet.........................................................32
7.2.2 Equipment grounding design...............................................................................33
7.3 Protective measures...................................................................................... 34
7.3.1 Measures to ensure electromagnetic compatibility..............................................34
7.3.2 Instructions to E21 electromagnetic capability installation...................................36
7.3.3 Install freewheeling diode on relay......................................................................36
7.4 Demonstration of AC Asynchronies motor wiring.......................................... 37
E21 Installation Manual
1
Preface
Target reader
This manual guides the following operators to install, configure and maintain the E21
press break numerical control device:
Machine tool operators
Installation and maintenance personnel
Range of application
Installation and maintenance personnel can install and operate this device properly by
referring to this manual.
Regulation
The design of E21 press brake machine numerical control device complies with the
following grade standard:
Grade standard of EMC test:
-GBT 17626.2-2006 Electromagnetic compatibility (EMC) - Testing and
measurement techniques - Electrostatic discharge immunity test.
Grade 3; contact discharge ±4KV; air discharge ±8KV.
-GBT 17626.4-2008 Electromagnetic compatibility - Testing and measurement
techniques - Electrical fast transient/burst immunity test
Grade 3; power port ±2KV; communication port ±1KV.
-GBT 17626.3-2006 Electromagnetic compatibility - Testing and measurement
techniques - Radiated radio-frequency electromagnetic field immunity test
Grade strength: 10V/m; criteria: Grade A.
-GB/T 17626.8-2006 Electromagnetic compatibility(EMC) - Testing and
measurement techniques - Power frequency magnetic field immunity test
30A/m; 50～60HZ; criteria: Grade A.
-RE Test, reference standard EN55011
Execute CLASS A standard.
Environmental test standard
E21 Installation Manual
2
-Low temperature; refer to JB-T 8832-2001 General requirements for
numerical control device of machine tools, 0 ℃, 2hours. Low temperature
store -20℃. Criteria: normal start up, normal operation.
-High temperature, refer to JB-T 8832-2001 General requirements for
numerical control device of machine tools, 40 ℃, 2hours. High temperature
store 55℃. Criteria: normal operation.
-Constant temperature wet, refer to JB-T 8832-2001 General requirements for
numerical control device of machine tools, 40 ℃, humidity 93%~95%, 2 hours.
Criteria: normal operation.
-Vibration impact, refer to JB-T 8832-2001 General Requirements for numerical
control device of machine tools.
Personnel
Only authorized and properly trained person is allowed to operate this equipment.
Any person without necessary training is not allowed to use this control system, not
even for temporary use.
Area of responsibility distributed for personnel participating in installing, operating
and servicing equipment shall be stipulated explicitly and be confirmed eligible.
E21 Installation Manual
3
Chapter 1 Specification
1.1 Display
LCD display
Dimension of display window: 54.38mm*54.38mm
Dot matrix: 160*160
Status light
Green indicates running
Red indicates stop
1.2 Internal memory
Capable of storing 40 programs, each program includes 25 steps at most.
1.3 Electrical specification
POWER
Input voltage: DC24V±10%
Rated current: 1A
INPUT
Input voltage: DC24V±10%
Maximum input current: 10mA
OUTPUT
External voltage: DC24V±10%
Maximum current: 70mA
Encoder power
Output voltage: DC12V±5%
Allowable maximum output current: 500mA
Absolute temperature
Working temperature: 0～40℃
E21 Installation Manual
4
Storage temperature: -20～55℃
Encoder specification
Power supply: DC 12V
Incremental encoder: single-ended output, with Z/C phase
Output: voltage-type
E21 Installation Manual
5
Chapter 2 Installation
2.1 Announcements before installation
Power supply must be off during installation and wiring.
Serious damage to the equipment may be caused by misconnection of power
supply terminals, improper connection of in-out lines and output line short circuit.
Therefore, before turning on the power supply, check the connection of input output
grounding and power supply wire.
Grounding terminal of E21 digital control device must be grounded in correct way,
with low impedance lower than 0.3Ω.
Do not dismantle the device without authorization so as to avoid malfunction.
Electrical components inside the digital device are very sensitive to static electricity,
therefore do not put foreign matters or make them fall to the inside of digital control
device or touch the control circuit.
Please install E21 digital control device in safe region. Avoid high temperature, and
direct sunlight, moisture and splash of oil drops or water.
Do not use this device in place of high temperature, moisture condensation, dust,
oil smoke, conductive dust, corrosive gas or flammable gas.
2.2 Installation space and direction
Generally, E21 bending machine digital control device is embedded on control panel,
keep a distance of 65mm from its neighboring components and damper (shell) on up
and down, right and left, to facilitate operator install and maintain the device.
2.3 Installation environment
Place free from water, vapor, dust or oily dust.
Place free from flammable, explosive or corrosive gas.
Place free from interference of strong electromagnetism or noise.
Ambient temperature is between 0℃- 40℃. When ambient temperature is over
40℃, please put it in well-ventilated place.
Relative humidity is under 90%RH.
E21 Installation Manual
6
2.4 Installation dimension
The installation method is panel mounting. Installation dimension and drawings are
shown in Figure 2-1.
Unit: mm
4-M4 pressure riveting screws
High 8 mm
Figure 2-1 Panel Installation Dimension
E21 Installation Manual
7
2.5 Installation layout
2.5.1 Layout of rear panel

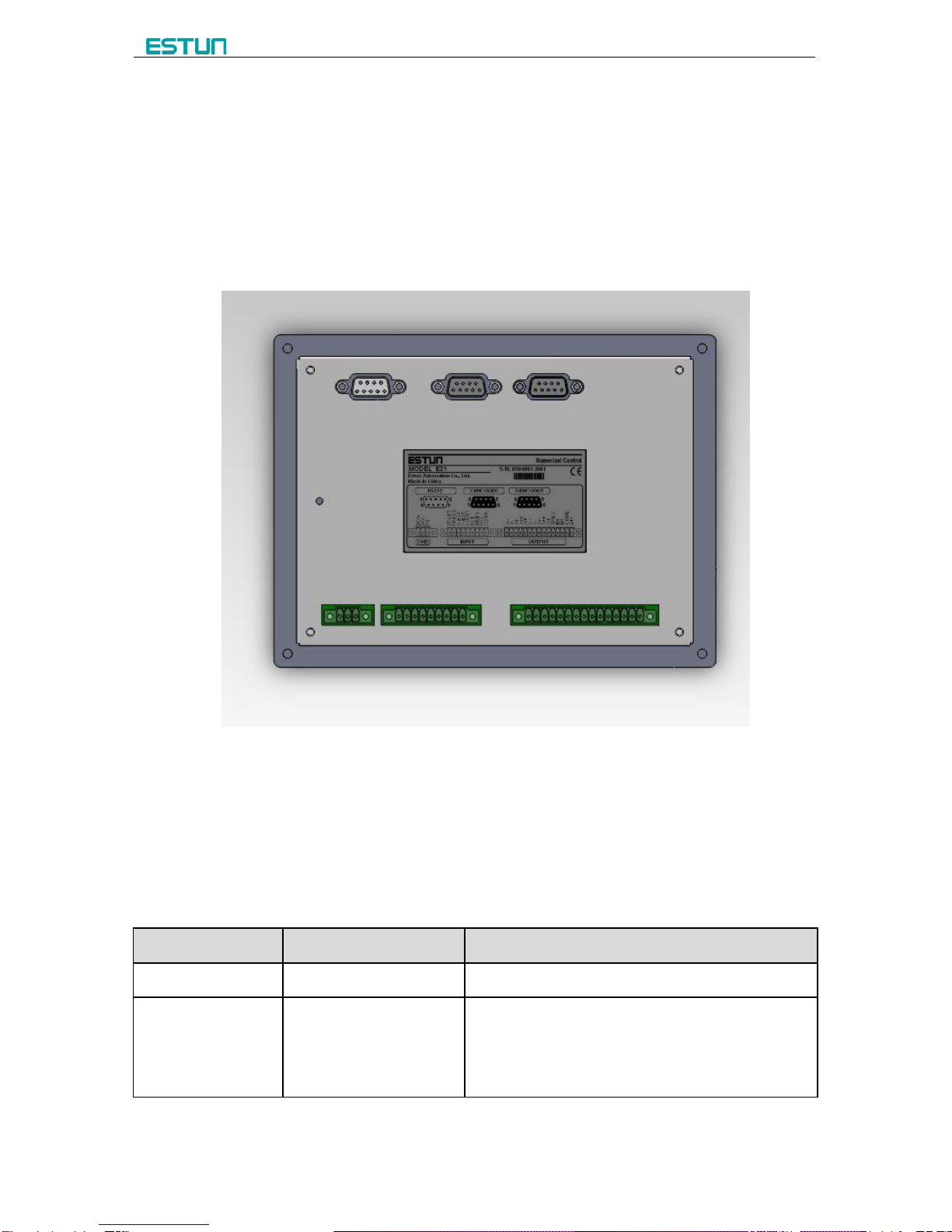

Rear panel block diagram is as shown in Figure 2-2, consisting of power port
(POWER), input port (INPUT), output port (OUTPUT), encoder port (X, Y), and
communication port (COMM).
Figure 2-2 Rear panel layout
2.5.2 Rear panel port description
Rear panel port description is as shown in Table 2-1.
Table 2-1 Rear panel port description
Socket number
External port name
External port description
CN1
POWER
Input terminal of the device power.
CN3
OUTPUT
13 pin. 24VDC, maximum drive capability 70mA,
opto-coupler isolation, maximum withstanding
voltage 40V.
