A Note To You

Thank you for buying an Estate. appliance.

You purchased a quality, ~~rW*/ass home appliance. Years of engineering experience went

into its manufacturing. To ensure that you enjoy many years of trouble-free operation, we

developed this Use and Care Guide. It is full of valuable information on how to operate and

maintain your appliance property

and

safely. Please read it carefully. Also, please complete

and mail the Ownership Registration Card provided with your appliance. This will help us

notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbds

and

follow any instructions given. Here is

brief explanation of the use of each

symbol.

This symbol will help

alert you to

such

dangers as personal injury, bums, fire

and electriil shock.

This symbol will help you avoid actions

whii could cause product damage

(scratches, dents, etc.) and damage to

your per==1 property.

Our Consumer Assistance Center number, l-800-253-1 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see ‘If You Need Assistance Or Service” on page 26. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will

need to

know your appliance’s

complete model number

and

serial number. You can find this information on the model and

serial number label (see diagram on page 4). Par your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name

and telephone

number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial Number

Purchaw Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when

using your rdrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your oki refrig-

erator, do it safely.

Never allow children to operate, play

with, or crawl inside the refrigerator.

Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosii.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in

area

where the room temperature will fall below

55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply

and

grounding.

Do not load the refrigerator with food

before it has time to get properly cold.

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located

and

what they bok like.

Control panel

Ii&

Automatic ice

mmker

Control panel Light

\ /

Upper

freezer

Removable door

Freezerbasked

Before Using Your

Refrigerator

In This Section Ml@ PagO

Cleaning lt ...............................................

lnstalllng lt properly ...............................

6 I

Plugglng lt In ..........................................

Levellng It ...............................................6 I

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To rwnovo any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid handdishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing aloohol, flammable

fluids or abrasive cleaners. These can

damage the rnateriil. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 20-21.

Plugging it in

Recommended Grounding Method

A115Volt,60Hz.,AConlv15or20ampere

fused

and

property grour&d electrical ’

supply is required. lt is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Liierature

Package.

&prong grounding

type wall receptacle

Refrigerator

power cord

grounding

PlW

Installing it properly

1. Allow ‘!Ainch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side cbsest to the wall so the

door can he opened wider.

3. The refrigerator can be flush against the

wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Right to ratoe;

left to tower

Uss a urew-

drtver to sdju&

1. Remove base grille. (See page 17.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterdock-

wise.

4. Check with level.

5. Replace base grille. (See page 17.)

Using Your Refrigerator

In This Section

Setting the controls ............................

Changing the control settings ...........6

Removing the door shelf fronts ........9

Removing the door ttlm .....................9

Adjusting the door bins .....................9

Adjusting the refrigerator shelves ..I0

Removing the snack bln ..................IO

Removing the crisper and

crisper cover .....................................10

Removing the meat drawer

and cover ...........................................11

Adjusting the meat drawer

temperature .......................................11

Removing the freezer basket ...........11

Pago

Removing the freezer shelves .........12

Using the ice and water

dispensers .........................................12

Using the automatic ice maker ........14

Removing the ice maker

storage bin ........................................15

Solving common ke maker/

dispenser problems .........................16

Removing the base grille .................17

Changing the light bulbs .................17

Understandlng the sounds

you may hear ....................................19

Saving energy ...................................IQ

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to sat the controls, remove and adjust some of the fea-

tures in your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

- CID-

3. Give the refrigerator time to cool down NOTE: The Automatic Exterior Moisture

completely before adding food. Thii may control continuously guards against moisture

take several hours. build-up on the outside of your refrigerator

The settings indiited above should be cabinet. This control does not have to be set

correct for normal, household refrigerator or adjusted.

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. lf you need to

adjust these settings, see “Changing the

control settings” below.

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below as a guide. If you have

questions, call our Consumer Assistance

Center number, 1-300-253-l 301.

Adjust the Refrigerator Control first.

Wait at least

hours between adjustments.

Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SETTINGS:

Refrigerator

section

too warm

Freezer

section

too warm

Refrigerator

sectlon

too cold

Door opened often

Large amount of fcod added

Room temperature too warm

Door opened often

Large amount of food added

Very cold mm temperature

(can’t cycle often enough)

Ccmtrois not set correctly

for your conditions

Refrigerator 4

Freezer A

Refrigerator 3

Freezer C

Refrigerator 2

Freezer B

Ice not

made fast

enough

Both

sections

too warm

Heavy ice usage

Very cob room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cob room

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer B

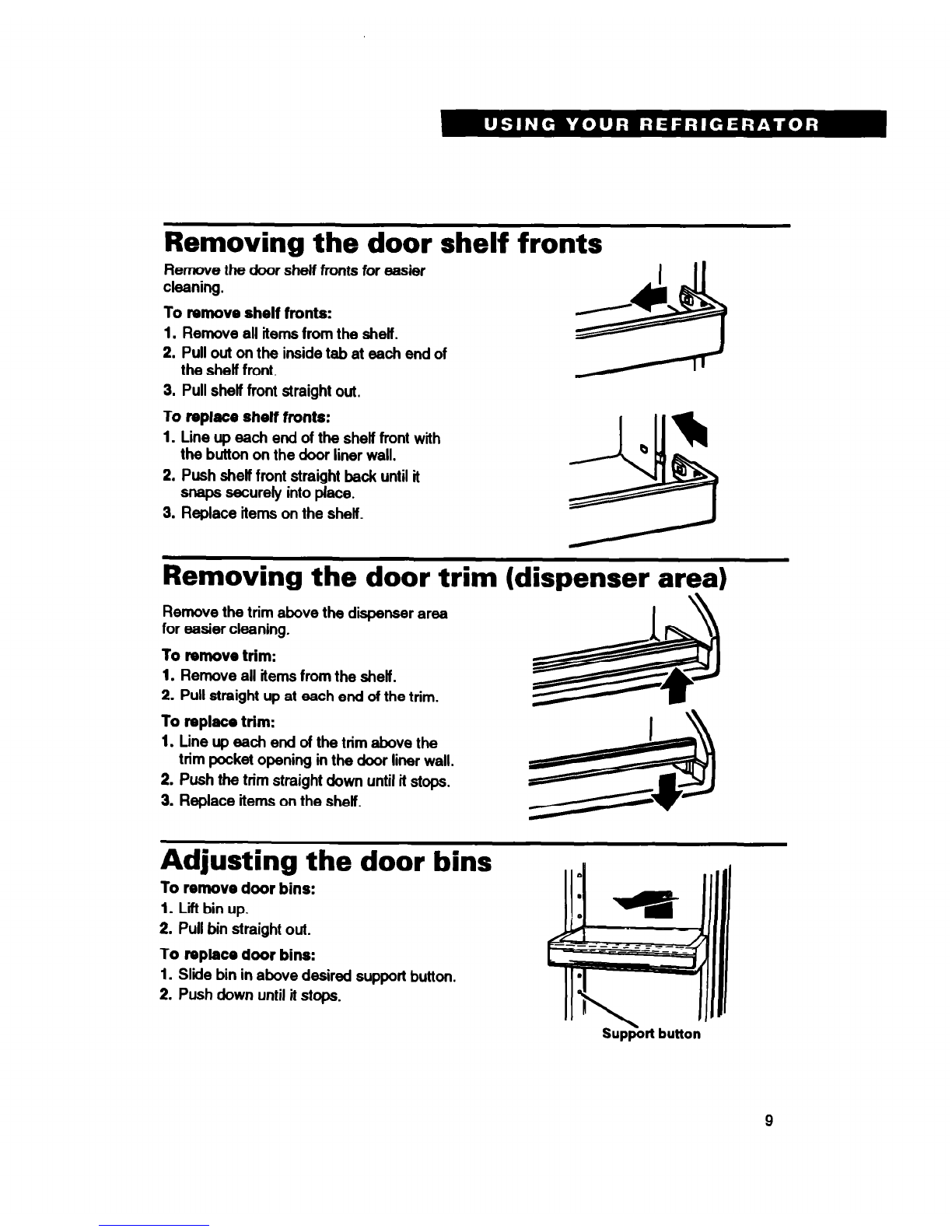

Removing the door shelf fronts

Remove the door shelf fronts for easier

cleaning.

To remove shelf fronts:

Remove all items from the shelf.

2. Pull out on the inside tab at each end of

the shelf front.

3. Pull shelf front straight out.

To replace shelf fronts:

Line up each end of the shelf front with

the button on the door liner wail.

2. Push shelf front straight back until it

snaps securely into place.

Replace items on the shelf.

Remove all items from the shelf.

2. Pull straight up at each end of the trim.

To replace trim:

Line up each end of the trim above the

trim pocket opening in the door liner wall.

Push the trim straight down until it stops.

Replace items on the shelf.

Removing the door trim (dispenser area)

Remove the trim above the dispenser area

for easier cleaning.

To remove trim:

Adjusting the door bins

To remove door bins:

Lii bin up.

2. Pull bin straight out.

To replace door bins:

Slide bin in above desired support button.

2. Push

down

until it stops.

Adjusting the refrigerator shelves

Adjust the shelves to match the

way you usa

your refrigerator. Glass shelves are strong

enough to hold bottles, milk,

and

other

heavy food items.

To remove the shelves:

Remove items from the shelf.

2. Tilt shelf up at front.

Lll shelf up at back.

4. Pull shelf straight out.

To replace the shelves:

Guide the rear shelf hooks into the slots

in the sheff supports on the back liner

wall.

2. Tilt front of shelf up until hooks drop into

slots.

3. Lower front of shelf to

level position.

Removing the snack bin

To remove the snack bin:

Slide snack bin straight out to the stop

with an even, constant motion.

2. Lii the front.

3. Slide bin out the rest of the way.

Replace in reverse order.

Removing the crisper and crisper cover

To remove the crisper:

Slide the crisper straight out to the stop.

2. Lii the front slightly.

Siiie out the rest of the way.

4. Replace in reverse order.

,~cNA

Pull out to the

??a stop, lift the front

a/ and pull ageln.

To remove the cover:

Hold cover firmly with both hands and lift

front of cover off supports.

2. Lii cover out by pulling up and out.

To replace the cover:

Ffi back of cover into notch supports on

walls of refrigerator.

2. Lower front into place.

Lll the cover

front, then

the beck

Table des matières

Autres manuels Estate Réfrigérateur

Estate

Estate REFRIGERATOR Manuel utilisateur

Estate

Estate TS25CGXTD Instructions d'utilisation

Estate

Estate 2173445 Manuel utilisateur

Estate

Estate TT14DKXSQ Instructions de montage

Estate

Estate T4TXNWFWQ00 Manuel utilisateur

Estate

Estate TS22AFXKQ05 Manuel utilisateur

Estate

Estate 2201578 REV A Manuel utilisateur

Estate

Estate TVF15NRGW00 Manuel utilisateur

Estate

Estate TT14DKXK Instructions d'utilisation

Estate

Estate REFRIGERATOR Manuel utilisateur

Estate

Estate LT14EK Manuel utilisateur

Estate

Estate TS22AFXK Instructions d'utilisation

Estate

Estate 2318600 Manuel utilisateur

Estate

Estate TT14DKXSQ Manuel utilisateur

Estate

Estate TT18SKXRD Instructions de montage

Estate

Estate TT18CK Manuel utilisateur

Estate

Estate IT18HD Manuel utilisateur

Estate

Estate 2316077B Manuel utilisateur

Estate

Estate RS25AQXFN00 Manuel utilisateur

Estate

Estate REFRIGERATOR Manuel utilisateur

Estate

Estate TT14DKXSQ Instructions d'utilisation

Estate

Estate TS25CGXTD Manuel utilisateur

Estate

Estate WF-NL300 Manuel utilisateur

Estate

Estate SIDE BY SIDE REFRIGERATOR Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
