Introduction

This Manual is intended as a guide to the engineering and commissioning principles of the MAGDUO 2-

wire Fire Detection and Alarm system and covers the system hardware information only.

Due to the complexity and inherent importance of a system covering a ‘Life Protection Risk’, training on

this equipment is essential and commissioning should only be carried out by competent and approved

persons. For further details of the availability of commissioning services, please contact your supplier.

System Design

This document does not cover Fire Alarm system design and a basic understanding is

assumed.

A knowledge of BS5839: Pt 1: 2017: Fire Detection and Alarm Systems for Buildings

is essential.

It is strongly recommended that a suitably qualified and competent person is consulted in

connection with the Fire Alarm System design and that the entire system is commissioned

in accordance with the current national standards and specifications.

Equipment Guarantee

The equipment carries no warranty unless the system is installed, commissioned and

serviced in accordance with this manual and the relevant standards by a suitably qualified

and competent person or organisation

Anti Static Handling Guidelines

Immediately prior to handling any PCBs or other static sensitive devices, it is essential to

ensure that a personal connection to earth is made with an anti-static wrist-strap or

similar apparatus.

Always handle PCBs by their sides and avoid touching any components. PCBs should also

be stored in a clean dry place, which is free from vibration, dust and excessive heat and is

protected from mechanical damage.

Warning

Do not attempt to install this equipment until you have fully read and understood this manual.

Failure to do so may result in damage to the equipment and could invalidate the

warranty.

Technical support will not be available if the instruction manual has not been read and

understood. Please have this instruction manual available whenever you call for

technical support.

MAGDUO Control Panel Engineering and Commissioning Manual

26-1649-03

EMC

This equipment when installed is subject to the EMC directive 2014/108/EC. It is also

subject to UK Statutory Instrument 2006 No. 3418.

To maintain EMC compliance, this system must be installed as defined within this manual.

Any deviation from this renders the installer liable for any EMC problems that may occur

either to the equipment or to any other equipment affected by the installation.

The MAGDUO System

The MAGDUO system is an intelligent ‘2-wire’ system utilising a conventional type cabling format. The

system is classed as ‘Analogue non-addressable’ due to the architecture used within the design. All

field devices including sounders can be connected to the zone via a common 2-core screened cable.

The devices communicate with the control panel using the ‘MAGDUO’ data protocol.

The MAGDUO panel monitors each zone for detector head removal, device fault, ‘End of line’ fault and

open or short circuit fault.

Devices or detector heads should not be removed with the zone switched on.

Switch off the zone (at access level 3) before removing any devices or detector

heads from that zone.

Detector heads must only be removed using the correct head removal tool.

Removing detector heads without using the correct tool will result in damage to

the head / detector base.

Every MAGDUO device has an inbuilt ‘End of line’ signal, which may be activated as required. All

setting options are configured using the DIL switches fitted to the device.

Do not use a resistor or Capacitor or any other 3rd party ‘End of line’ module for

‘End of line’.

The MAGDUO control panel also provides two monitored outputs that may be configured as

conventional sounder circuits or conventional 24V monitored relay circuits, a volt free common fire relay

and a volt free common fault relay. There are also two multifunction latching/non-latching inputs and

one monitored input programmable with options such as ‘Class-Change’ and ‘Remote fire input’.

The MAGDUO control panel incorporates an integral power supply unit and requires 2 x 12V 3.2Ah (or

3.3Ah) batteries to provide up to 48 hour standby times. For 72 hour standby times a separate external

battery box can be purchased which requires 2 x 12V 7Ah batteries.

All standby times depend on the system loading (refer to Technical Data for further information).

Standby battery calculations may be made using the MAGDUO Panel Battery & Loading Unit

Calculation Sheet.

Unlike most conventional fire alarm systems, which require separate pairs of cables for detector zones

and sounder circuits, the MAGDUO system requires one 2-core screened cable for each zone to

accommodate both detection devices and sounders. Furthermore, sounders are incorporated within the

detector to reduce system components and simplify installation.

The MAGDUO panels include some features described in EN54-2 as ‘optional functions with

requirements’. These are:-

Output to fire alarm devices EN54-2 Clause 7.8

Output to fire protection equipment, type A EN54-2 Clause 7.10.1

Dependency on more than one alarm signal, type A (Confirmation) EN54-2 Clause 7.12.1

Delays to outputs EN54-2 Clause 7.11.1

MAGDUO Control Panel Engineering and Commissioning Manual

Zone test facility EN54-2 Clause 10

Input/output facilities

These facilities are described elsewhere in this manual.

Control Panel

Mounting the Control Panel

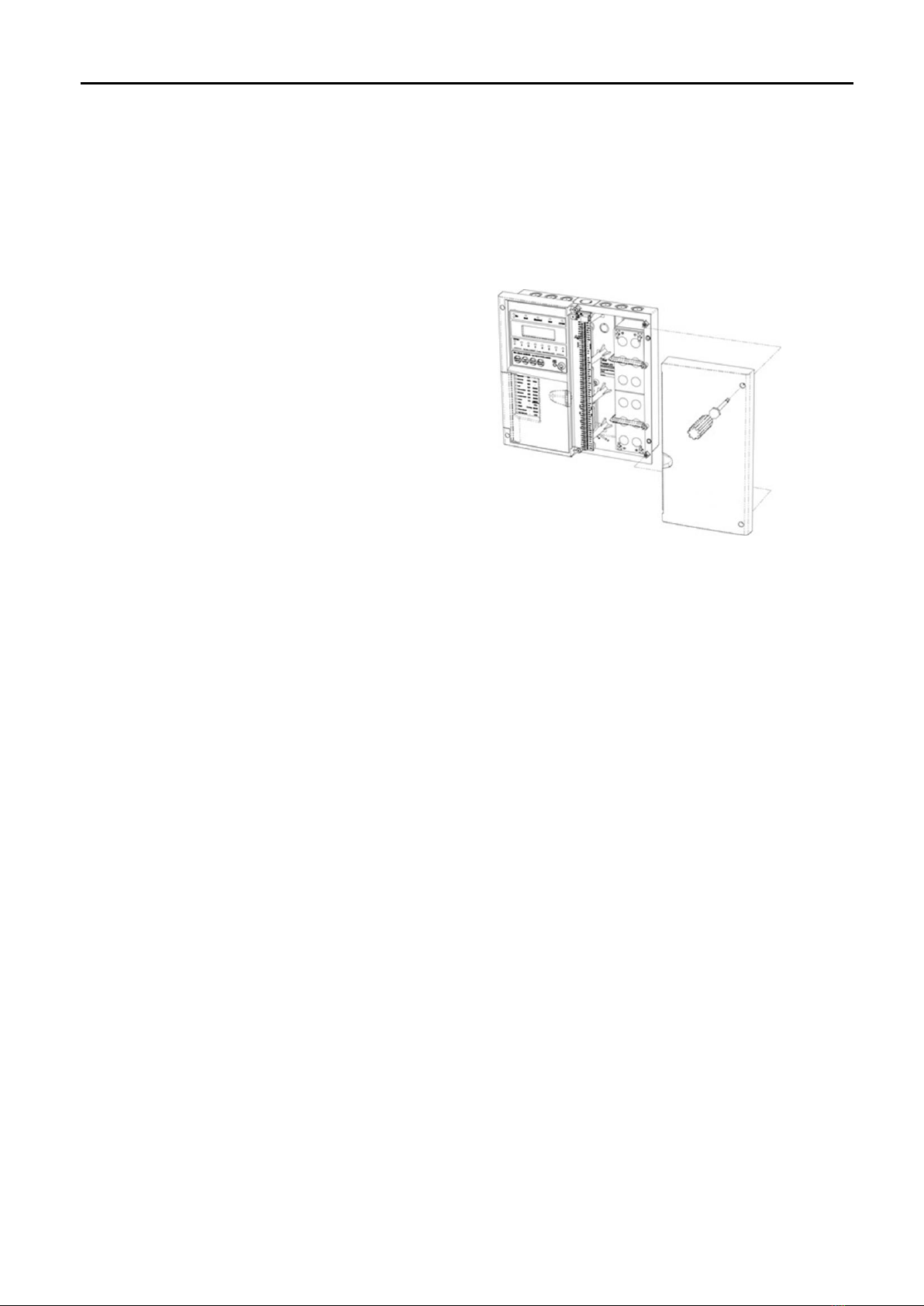

First identify the proposed location for the control panel. Ensure that the control panel will be easily

accessible and that account is taken of any subsequent work that may affect access.

The control panel should be located at the most likely point of access for the fire services. It should be

mounted on a flat, vertical wall at a height where the indicators may be seen without difficulty.

Do not locate the control panel at high level where stepladders or other access equipment may

be required, in spaces with restricted access, or in a position that may require access panels to

be removed.

Do not locate the control panel where extremes of temperature or humidity may occur, or where

there is any possibility of condensation or water ingress.

Like all electronic equipment, the control panel may be affected by extreme environmental conditions.

The position selected for its installation should therefore be clean and dry, not subjected to high levels

of vibration or shock and at least 2 metres away from any pager or radio transmitting equipment.

Ambient temperatures should be within the range given within the Technical Data section, e.g. not

directly over a radiator, heater or in direct sunlight.

In common with all microprocessor-controlled panels, the control panel may operate erratically or may

be damaged if subjected to lightning induced transients. Proper earth/ground connections will greatly

reduce susceptibility to this problem.

Physical Dimensions

All Panels

MAGDUO Control Panel Engineering and Commissioning Manual

26-1649-03

Power Supply Unit

The mains supply should be dedicated to the Fire Alarm Panel and should be clearly labelled ‘FIRE

ALARM: DO NOT SWITCH OFF’ at all isolation points. The Fire Alarm Panel 230V AC supply requires

a 3 amp un-switched fused spur with local isolation and fixed wiring between 0.75 mm2and 2.5 mm2,

terminated into the fused terminals provided in the back box. The main PCB is supplied via a Switch

Mode Power Supply located below the vented cover. Only the power supply provided in the unit may be

used to power the control panel. Both mains termination and location of power supply are shown below.

The control panel requires standby batteries 2 x 12V 3.2Ah (or 3.4Ah) sealed lead acid batteries

should be installed according to the following diagram. These are to be sited in the control panel back

box using the provided clamps. The batteries should be connected in series using the connection leads

supplied. See the section entitled Control Panel Connections for panel connections.

Note that the charging circuit will be in its high impedance state (approximately 3V DC) if no batteries,

faulty batteries, or only one battery is connected. The full 27V DC (nominal) charging voltage should be

present if the correct batteries are connected.

If the system shows a charger or battery fault on first power up, leave the system to charge the batteries

for 5-6 hours.

In order to test for correct operation of the batteries, remove the mains 230V AC fuse and allow the

batteries to settle from their charging voltage for approximately 5 minutes. The battery voltage should

then be measured using an electronic test meter and a voltage greater than 24V DC should be seen.

Note that batteries are electrically live at all times and great care should be taken to ensure that the

terminals are never presented with a short circuit. Care should be taken at all times, especially during

transit, installation and normal use.

230V AC supply

Switch Mode

Power Supply

location

MAGDUO Control Panel Engineering and Commissioning Manual

Batteries no longer required should be disposed of in a safe and environmentally friendly manner by the

manufacturer or a suitable recycling service. They should never be incinerated or placed in normal

rubbish collection facilities.

General Assembly

All Panels

Topology & Cabling

All system wiring should be installed to comply with BS 5839: Pt 1: 2017 and BS 7671 (wiring

regulations) and any other standards relevant to the area or type of installation. A cable complying with

the BS 5839: Pt 1: 2017 Category 1 (cables required to operate for prolonged periods during fire

conditions) is required. This must be a 2-core 1.5mm2screened fire resistant cable (ie. FP200, Firetuff,

Firecell, Lifeline or equivalent).

Each zone requires a separate 2-core radial circuit from the control panel to the furthest point of the

zone, to a maximum of 500 metres.

In order to protect against possible data corruption it is important to ensure the following points are

adhered to:

1. The cable screen must be connected to earth/ground at the control panel only.

2. The cable screen must not be connected to earth/ground at any point other than the control

panel (at the SCRN terminal provided, not at any earthing point). Do not connect the

screen to any device back box used other than those supplied by ESP.

3. The cable screen continuity must be maintained at every point of the circuit, using the

terminals provided or a suitable connection block.

4. Do not use a 4-core cable as a circuit zone in and zone out, due to the possibility of data

corruption. It is essential that two 2-core screened cables are used if this is required.

Refer to the following System Wiring Schematic for further details.

MAGDUO Control Panel Engineering and Commissioning Manual

26-1649-03

System Wiring Schematic

The following schematic may prove useful as an aid to understanding the cable requirements for the

system;

KEY TO SYMBOLS

MAGDUO FlexiPoint

MAGDUO FlexiPoint with Sounder

MAGDUOManual Call Point

1 x Monitored Input,

programmable as

latching/non-latching,

remote fire or class

change. Requires a 3k3

EOL and 680 Ohm

resistor to activate.

1-8 MAGDUO zones.

Cabled in 2 core 1.5mm2

Screened cable complying

with BS 5839: Pt 1: 2017

Category 1.

Note: No EOL component

is required as EOL is set

at the end device.

2 x Monitored Outputs,

programmable as

sounder or remote fire.

Requires 10k EOL.

Common Fire Relay

24V 1A MAX.

Fault Relay

24V 1A MAX.

230 VAC power supply

requires a dedicated

supply with a local un-

switched fused spur in

accordance with

BS5839 pt1: 2017

2 x Un-monitored Inputs

programmable as

latching/non-latching,

remote fire or class

change. Requires a volt

free contact to activate.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ESP Panneau de contrôle

ESP

ESP MAG816 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
