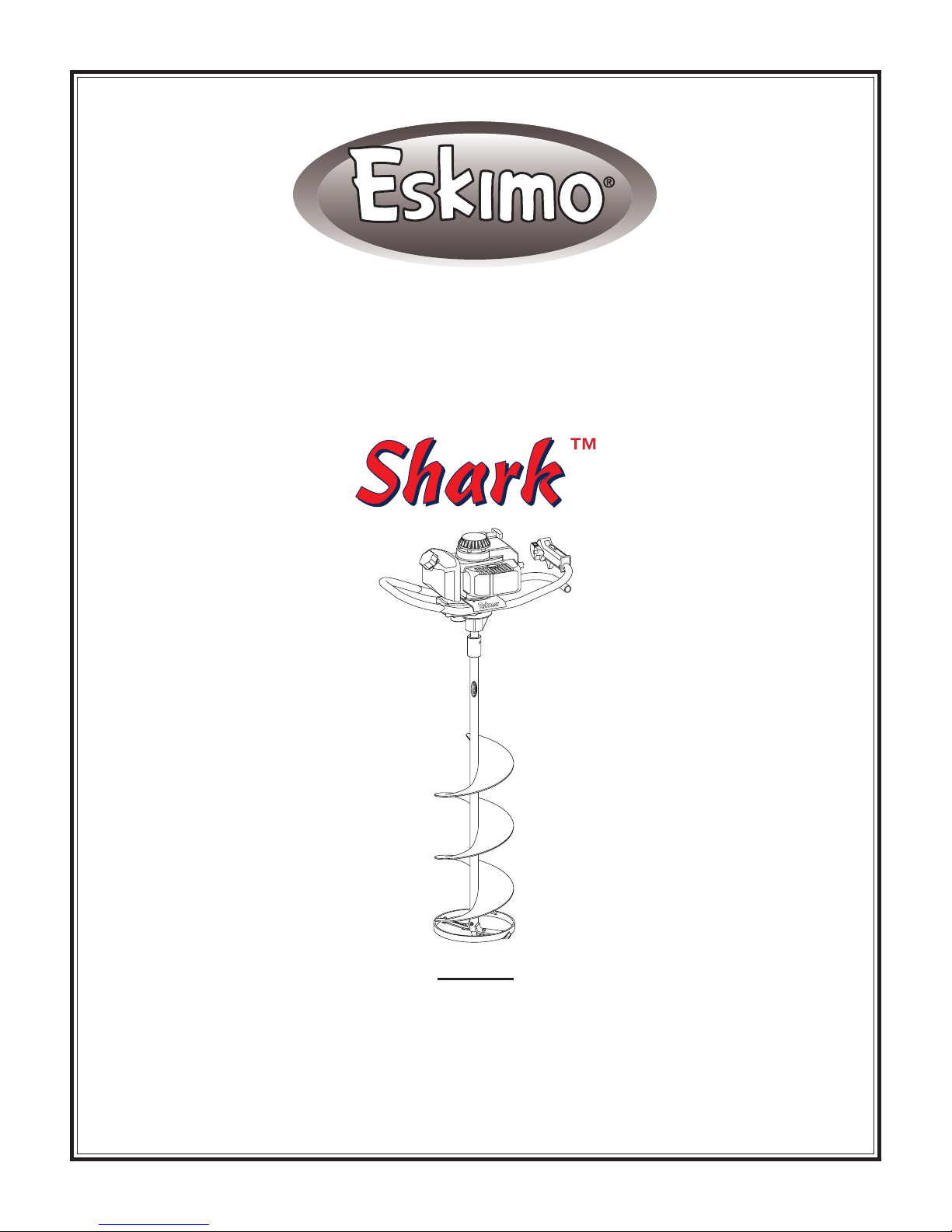

Eskimo Shark 9403S Manuel utilisateur

Power Ice Auger

Operator's Manual

OM9403S-04

Rev. 08/03

Models

9403S

9403S8

9403SQ8

9403SQ9

9403S10

LBL-ESK

LBL-ESKS

Page 2

Page 3

THANK YOU . . .THANK YOU . . .

THANK YOU . . .

for purchasing an Eskimo Ice Auger from

Ardisam, Inc. With proper care, your auger will

provide many years of service. Please take the

time to read this manual carefully to learn how to

correctly operate and maintain your auger.

Congratulations on your investment in quality.

CONTENTSCONTENTS

CONTENTS

Registration/Warranty ....................................... 3

Safety ............................................................... 4

Operation ...................................................... 5-6

Maintenance & Storage .................................... 7

Service, Troubleshooting, and Repair........... 8-11

REGISTRAREGISTRA

REGISTRATIONTION

TIONTION

TION

Your auger has a serial number decal located on

the opposite side of engine gas tank. Engine

serial number is located directly above spark

plug. Write these numbers and the model

number in the space provided. You will need

these numbers if you order parts. Fill out and

mail the registration card located in your parts

packet. Warranty is valid only if your completed

registration card is received by Ardisam, Inc., at

time of purchase.

Model Number_________________________

Serial Number _________________________

Engine Serial Number ___________________

Date of Purchase ______________________

Place of Purchase ______________________

REGISTRAREGISTRA

REGISTRATION AND WTION AND W

TION AND WTION AND W

TION AND WARRANTYARRANTY

ARRANTYARRANTY

ARRANTY

CALIFORNIA PROPOSITION 65 WARNING

Engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproductive

harm.

Two Year

Limited Warranty

The Ardisam, Inc., Manufacturing Company warrants

this Ice Auger to be free from defects in material or

workmanship. Conditions of this warranty include:

What is covered under warranty:

Ardisam, Inc. will repair or replace any part defective

in workmanship or material within two years after

delivery of the auger to the original purchaser.

What is not covered under warranty:

This warranty applies only to products which have not

been repaired or altered outside our factory. It covers

only defects resulting from normal use, and does not

cover defects arising from misuse, alteration,

negligence, commercial use, or accident. This

warranty applies only to the original purchaser, and is

not transferrable.

How to obtain service:

Return the product to us at the address below with

transportation charges prepaid.

This warranty supersedes all other warranties

either expressed or implied and all other

obligations or liabilities on our part. Ardisam,

Inc., does not assume, and does not authorize

any other person to assume for us, any liability

in connection with the sale of our products. This

guarantee is void unless warranty card is

properly filled out and returned to Ardisam, Inc.,

Cumberland, Wisconsin, at time of purchase.

ARDISAM

WARRANTYARRANTY

ARRANTYARRANTY

ARRANTY

Page 4

OWNER'S RESPONSIBILITYOWNER'S RESPONSIBILITY

OWNER'S RESPONSIBILITY

Accurate assembly and safe and effective use of the auger

is the owner's responsibility.

1. Read and follow all safety instructions.

2. Carefully follow all assembly instructions.

3. Maintain the auger according to directions and schedule

included.

4. Ensure that anyone who uses the auger is familiar with

all controls and safety precautions.

CAUTIONS AND IMPORTCAUTIONS AND IMPORT

CAUTIONS AND IMPORTANT NOANT NO

ANT NOANT NO

ANT NOTESTES

TESTES

TES

Two symbols which draw attention to information of

special interest appear throughout this manual. These

comments range in importance from helpful hints to

warnings about risk of personal injury. Please take the time

to read and understand them.

IMPORTANT SAFETY PRECAUTIONSIMPORTANT SAFETY PRECAUTIONS

IMPORTANT SAFETY PRECAUTIONS

Please read this section carefully. Operate the auger

according to the safety instructions and recommendations

outlined here and inserted throughout the text. Make sure

anyone who uses the auger has read the instructions and is

familiar with the controls.

This symbol points out important safety

instructions which if not followed could

endanger your personal safety. Read and

follow all instructions in this manual and

any others provided with this equipment.

1. The ice blade is very sharp. Use extreme caution when

drilling a hole, replacing the blade or blade guard.

2. Do not carry the auger powerhead between holes with

the engine running.

3. The auger should not rotate when the engine is idling. If

it does rotate when engine is idling, contact Ardisam,

Inc. for instructions.

4. Always keep hands and feet clear of rotating auger.

5. Do not wear loose clothing while operating the power

auger.

6. Do not allow children to operate this power auger. Do

not allow adults to operate the auger without proper

instruction.

7. Do not operate any power equipment under the

influence of alcohol or drugs.

8. Keep all screws, nuts and bolts tight.

9. Engine should be shut off before any repairs are

attempted.

SAFETYSAFETY

SAFETY

Provides helpful information for proper assembly,

operation, or maintenance of your auger.

Indicates a situation which may cause personal injury

or damage to the auger or property.

CAUTION

Page 5

OPERATIONOPERATION

OPERATION

CAUTION

OPERATIONOPERATION

OPERATION

1. BE SURE TO USE PROPER GAS/OIL

MIXTURE.

2. The clutch will transfer maximum power after about

two hours of normal operation. During this break-in

period clutch slippage may occur. The clutch should be

kept free of oil or other moisture for efficient operation.

3. Dig holes without placing excessive body weight on the

unit. The auger operates most efficiently with a shaving

action caused by the weight of the unit itself.

4. Never run engine indoors. Exhaust fumes are deadly.

5. Do not use an ice auger in earth.

6. The ice auger blade protector should be attached to the

auger head when not in use. This will protect the cutting

edge of the ice auger blade.

7. This ice auger is not recommended for redrilling old ice

holes.

Please do not start your auger until you have read

this section and the section titled titled Safety. If you

have read these, follow the steps below to start your

auger. Always perform this pre-start checklist before

starting the engine.

FUEL MIXTUREFUEL MIXTURE

FUEL MIXTURE

1. Mix clean, fresh, lead-free gasoline (minimum of 77

octane) with a high quality 2 cycle engine oil at the ratio

of 2.5 oz. oil to 1 gallon gasoline.

2. Mix fuel in a 1 or 2 gallon container approved for

gasoline.

3. Loosen fuel cap slowly. Rest the cap on a clean

surface.

4. Carefully pour fuel into the tank. Avoid spillage.

5. Immediately replace fuel cap and hand tighten. Wipe up

any fuel spillage.

This engine uses a gas/oil mixture. DO NOT RUN

ENGINE ON STRAIGHT GAS ONLY. ENGINE DAMAGE

WILL RESULT!

Never add gas when engine is running or hot from

operation. Never fill the tank indoors.

CAUTION

Page 6

STST

STARTING AND STARTING AND ST

ARTING AND STARTING AND ST

ARTING AND STOPPINGOPPING

OPPINGOPPING

OPPING

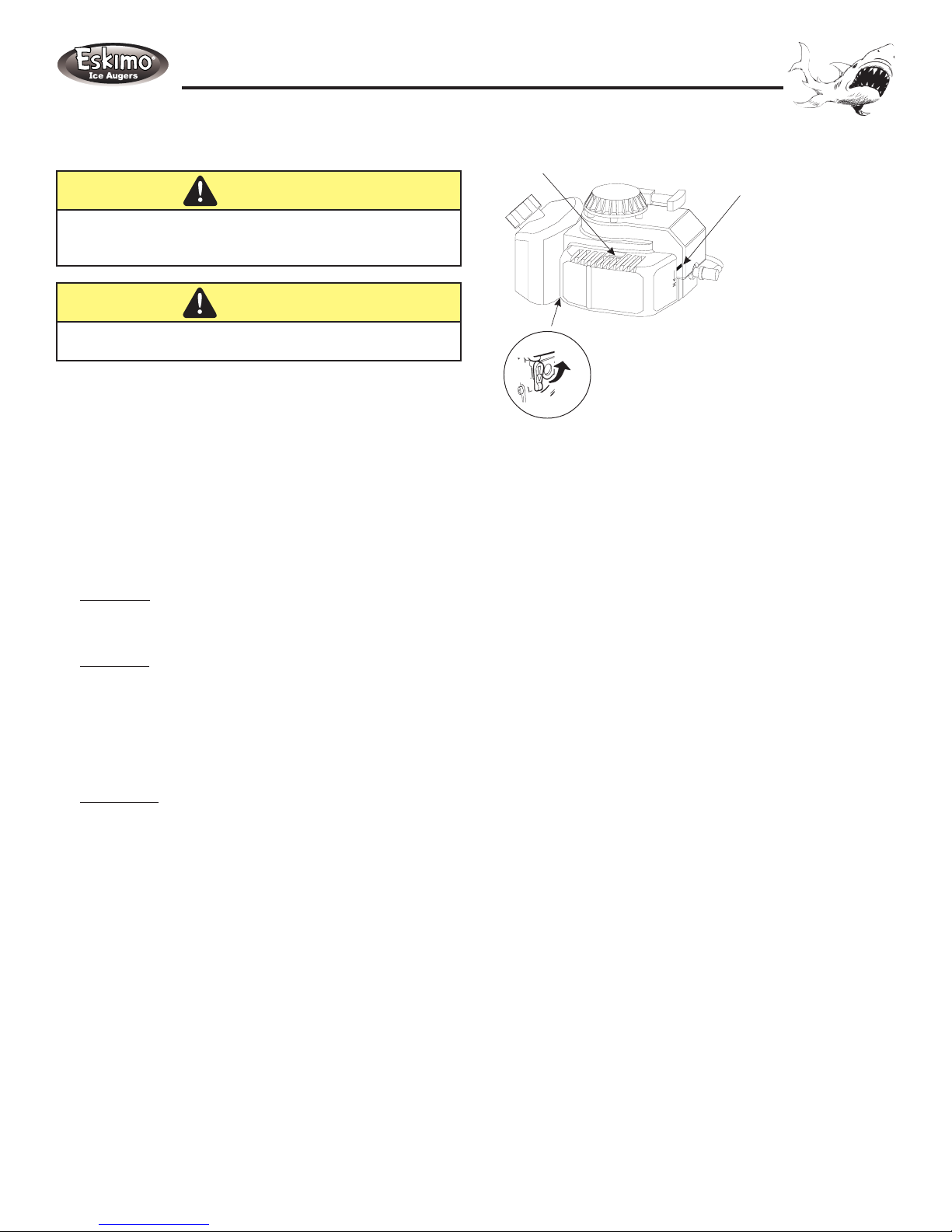

TO START:

1. Open fuel shut-off valve located between gas tank and

carburetor.

2. Be sure spark plug wire is attached to spark plug.

3. Flip the rocker switch to the on position.

4. Remove debris from air vent on fuel cap.

5. Priming:

First start - Starting new engine for first time, or after

running out of gas, or after extended storage: Prime 8-

10 times.

Cold start - Starting engine after it has been sitting or

brief storage, and fuel is in the tank: Push top of primer

1 time for above 55°, 3 times below 55°with full

choke.

6. Move red choke lever to full choke position if engine

is cold.

Warm start - Starting engine after it has been stopped

after running, but did not run out of fuel and has not

cooled completely: DO NOT USE PRIMER.

7. Grasp starter handle and pull rope out slowly, until it

pulls slightly harder. Then pull rope with a rapid full

arm stroke. Let rope return to starter slowly.

8. Move choke lever to half choke position (midway

between off and full).

9. Pull recoil starter until engine runs.

NOTE: If engine fails to start after 5-6 pulls, push

primer 1 time and pull starter rope again.

10. Run engine 30 to 45 seconds at full throttle on half

choke position until engine warms up.

11. Move choke lever to off position.

TO STOP:

1. Flip the rocker switch to the off position.

2. Close fuel shut-off valve.

3. Disconnect spark plug wire from spark plug and keep it

away from spark plug.

OPERATIONOPERATION

OPERATION

Do not hold throttle lever wide open while starting.

Loss of control of auger could result.

CAUTION

primer

choke up =

off

(run)

choke in middle =

half

choke

(warm up)

choke down =

full

choke

(cold engine

start)

OFFOFF

OFF

ONON

fuel shut-off valve

When priming, choke must be in the off position.

CAUTION

Page 7

MAINTENANCE AND STMAINTENANCE AND ST

MAINTENANCE AND STORAGE SAFETYORAGE SAFETY

ORAGE SAFETYORAGE SAFETY

ORAGE SAFETY

1. Always allow muffler to cool before filling fuel tank.

2. When storing for over 1 month, use gas stabilizer in

fuel.

3. Keep all screws, nuts, and bolts tight.

4. Close fuel shut-off valve located between gas tank and

carburetor.

5. Do not fill gas tank indoors or when engine is running

or is hot.

6. The gear case has 4 oz. of grease installed at the

factory. It is recommended that once a year the gear

case be split and the grease level checked. Add grease

only if level of grease is below top of the gears. DO

NOT OVERFILL.

7. For cold weather operation, store the unit in a cool

environment. Transferring the unit from a warm to a

cold place can cause the build up of harmful

condensation.

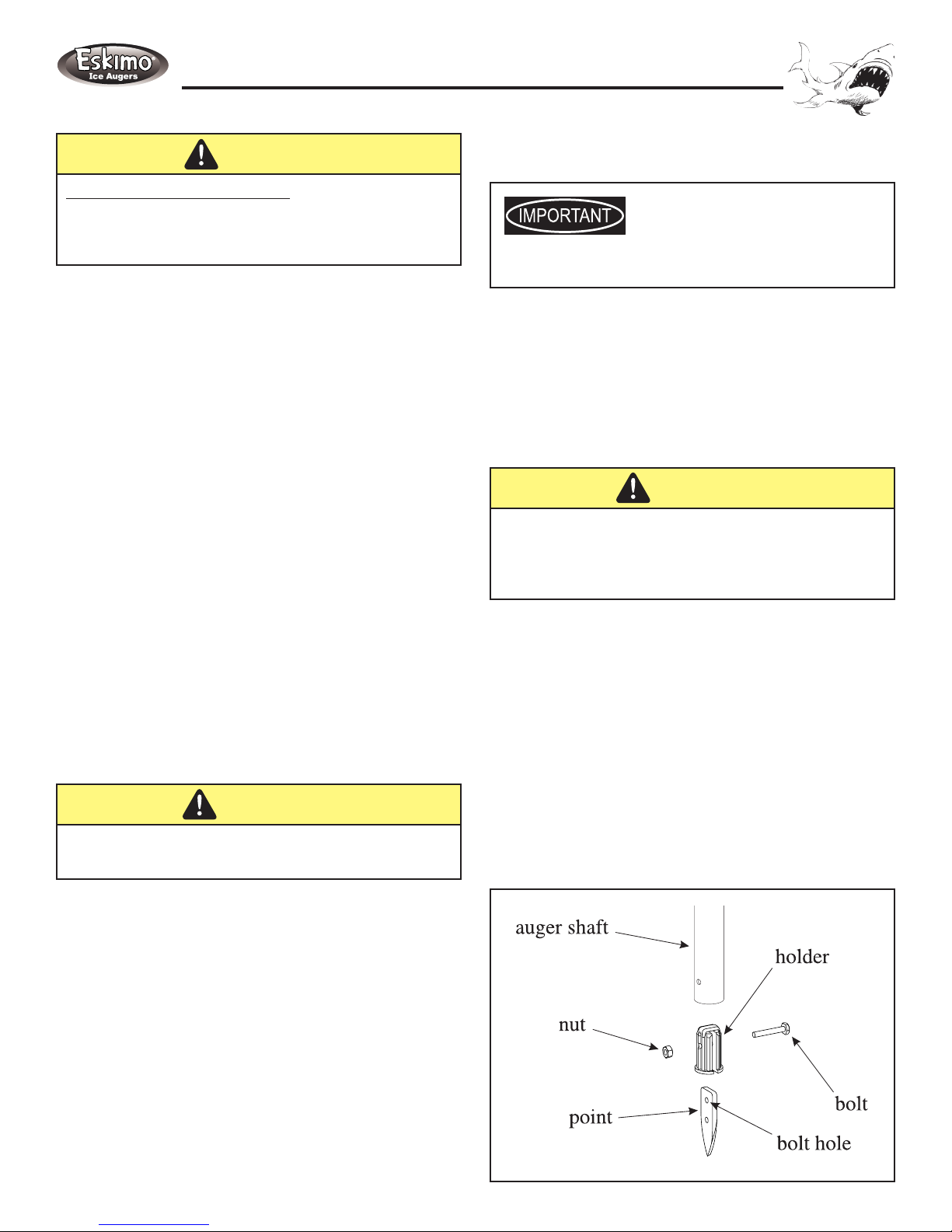

ICE POINT REPLACEMENTICE POINT REPLACEMENT

ICE POINT REPLACEMENT

1. Remove both blades.

2. Remove nut and retaining bolt from point.

3. Using a locking pliers, grasp point and pull out. If

holder doesn’t come out with the point, remove with

pliers.

4. With locking pliers, push in new point and holder

aligning bolt hole in point with holes in auger shaft.

DO NOT DAMAGE END OF POINT.

NOTE: When installing holder in auger shaft,

edges of holder may shave off.

5. Insert retaining bolt and tighten with nut.

6. Replace the blades and blade protector.

ENGINE MAINTENANCEENGINE MAINTENANCE

ENGINE MAINTENANCE

1. Check air cleaner.

2. Keep engine and parts clean. Check recoil housing area,

linkage, springs and controls, muffler area, cooling fins,

and spark plug.

STST

STORAGEORAGE

ORAGEORAGE

ORAGE

Follow the steps below to prepare your auger for storage.

1. Run with gas stabilizer in fuel. Screen in carburetor will

glaze shut if gas stabilizer is not used before storage.

2. Drain the fuel tank. Run the engine until it stops.

3. Remove spark plug, pour one-half ounce of clean

engine oil into cylinder. Pull starter handle slowly

several times to distribute oil. Replace spark plug.

4. Clean entire auger.

5. Store your auger in a clean, dry building that is

inaccessible to children.

MAINTENANCE AND STMAINTENANCE AND ST

MAINTENANCE AND STORAGEORAGE

ORAGEORAGE

ORAGE

To prevent accidental starting:

Engine must be turned off and cool, and spark plug

wire must be removed from spark plug before

checking and adjusting engine or equipment.

CAUTION

Do not store auger in an unventilated area where fuel

fumes may reach flame, sparks, pilot lights or an

ignited object. Drain fuel outdoors away from any

ignition sources. Use only approved fuel containers.

CAUTION

Engine can overheat and become damaged if debris

blocks the cooling fins or recoil housing.

Auger blades and point are extremely sharp. Use

caution when removing & replacing.

CAUTION

Page 8

SERVICESERVICE

SERVICE, TROUBLESHOO, TROUBLESHOO

, TROUBLESHOO, TROUBLESHOO

, TROUBLESHOOTING AND REPTING AND REP

TING AND REPTING AND REP

TING AND REPAIRAIR

AIRAIR

AIR

SERVICE INFORMATIONSERVICE INFORMATION

SERVICE INFORMATION

At Ardisam, we build quality and durability into the design

of our products; but no amount of careful design by us,

and careful maintenance by you, can guarantee a repair-

free life for your auger. Most repairs will be minor, and

easily fixed by following the suggestions in the

troubleshooting guide in this section. The guide will help

you pinpoint the causes of common problems and identify

remedies.

For more complicated repairs, you may want to rely on

your retailer or an authorized mechanic (contact your

retailer for a list of authorized mechanics in your area). A

parts catalog is included in this section.

We will always be glad to answer any questions you have,

or help you find suitable assistance. To order parts or

inquire about warranty, call or write us at the address

found in the next column under the section ordering repair

parts or check out our website - www.ardisam.com

IN CASE OF A SERVICE PROBLEM, DO NOT SEND

UNIT BACK TO RETAILER. CONTACT ARDISAM, INC.

AT 1-800-345-6007.

ORDERING REPORDERING REP

ORDERING REPAIR PARTSAIR PARTS

AIR PARTSAIR PARTS

AIR PARTS

Parts can be obtained from the store where your auger was

purchased or direct from the factory. To order from the

factory, call or write to:

Please include the following information with your order:

1. Part numbers

2. Part description

3. Quantity

4. Model number and serial number

ARDISAM

Page 9

TROUBLESHOOTROUBLESHOO

TROUBLESHOOTINGTING

TINGTING

TING

SERVICESERVICE

SERVICE, TROUBLESHOO, TROUBLESHOO

, TROUBLESHOO, TROUBLESHOO

, TROUBLESHOOTING AND REPTING AND REP

TING AND REPTING AND REP

TING AND REPAIRAIR

AIRAIR

AIR

Practice safety at all times. Engine must

be turned off and allowed to cool, and

spark plug wire must be disconnected

before attempting any maintenance or

repair.

CAUTION

Problem Possible cause Remedy/Action

Engine will not start

Engine runs rough, floods during operation

Engine is hard to start

Engine misses or lacks power

Auger turns at idle

Auger turns, but has no power

Auger jumps on ice

Auger cuts slowly

Engine runs, then quits

1. Flip switch to on position

2. Connect spark plug wire to spark plug

3. Open fuel shut-off valve

4. When priming, choke must be in the off

position

1. Clean or replace air cleaner

2. Turn off choke

3. Call factory

4. When priming, choke must be in the off

position

1. Drain old fuel and replace with fresh. Use

gas stabilizer at end of season

2. Make sure spark wire is securely attached

to spark plug

3. Clean carburetor, use gas stabilizer, new

gas can

4. When priming, choke must be in the off

position

1. Remove and clean

2. Clean or replace

3. Call factory

4. Replace spark plug and adjust gap

1. Adjust idle speed lower

2. Replace both springs

1. Turn off choke after engine is running

2. Call factory

3. Call factory

4. Replace clutch shoes and springs

5. Call factory

1. Buy new blades, or have blades sharpened

at factory

1. Buy new blades, or have blades sharpened

at factory

2. File point

1. Check self venting gas cap

2. Clean screen, use gas stabilizer, clean gas

can

3. Open fuel shut-off valve

1. Power switch off

2. Spark plug wire disconnected

3. Fuel shut-off valve closed

4. Choke in on position

1. Dirty air cleaner

2. Choke partially engaged

3. Carburetor out of adjustment

4. Choke in on position

1. Stale fuel

2. Spark plug wire loose

3. Dirty carburetor

4. Choke in on position

1. Clogged fuel tank

2. Clogged air cleaner

3. Improper carburetor adjustment

4. Spark plug dirty, improper gap, or wrong

type

1. Idle speed too high

2. Broken clutch spring

1. Choke on

2. Carburetor out of adjustment

3. Broken transmission

4. Worn clutch shoes

5. Worn engine lower seal

1. Blades damaged or sharpened incorrectly

1. Dull blades

2. Damaged point

1. Gas cap not venting

2. Screen in carburetor plugged

3. Fuel shut-off valve closed between gas tank

and carburetor

Page 10

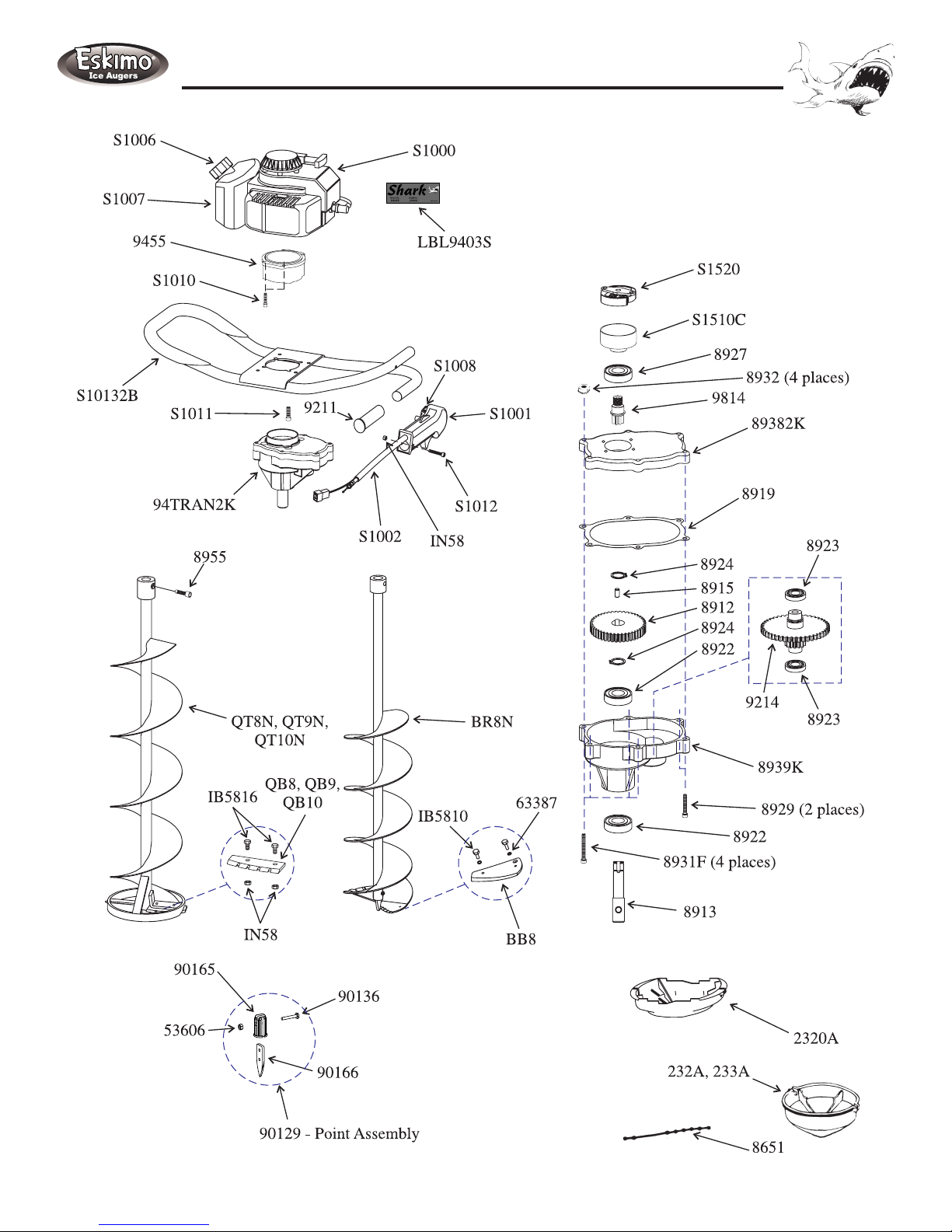

SHARK PSHARK P

SHARK PARTS MODEL 9403SARTS MODEL 9403S

ARTS MODEL 9403SARTS MODEL 9403S

ARTS MODEL 9403S

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Eskimo Matériel de pêche

Eskimo

Eskimo 11608 Manuel utilisateur

Eskimo

Eskimo Z71Q10 Manuel utilisateur

Eskimo

Eskimo 30610 Manuel utilisateur

Eskimo

Eskimo WIDE1 INFERNO Manuel utilisateur

Eskimo

Eskimo HC40Q8 Manuel utilisateur

Eskimo

Eskimo Fatfish Series Guide de configuration rapide

Eskimo

Eskimo StingRay S33 Manuel utilisateur

Eskimo

Eskimo Grizzly 26500 Manuel utilisateur

Eskimo

Eskimo F1 ROCKET Manuel utilisateur

Eskimo

Eskimo QuickFlip 2 Manuel utilisateur

Eskimo

Eskimo QuickFlip 1 Manuel utilisateur

Eskimo

Eskimo FatFish 6120i Manuel utilisateur

Eskimo

Eskimo M43Q10 Manuel de la liste des pièces

Eskimo

Eskimo 35000 Manuel utilisateur

Eskimo

Eskimo QUICKFISH 4 Guide de configuration rapide

Eskimo

Eskimo STINGRAY Manuel utilisateur

Eskimo

Eskimo Mako M43 Manuel utilisateur

Eskimo

Eskimo HC40Q8 Manuel utilisateur

Manuels Matériel de pêche populaires d'autres marques

Kongsberg

Kongsberg Simrad SY50 Manuel utilisateur

Cannon

Cannon Magnum 5 ST Manuel utilisateur

Jiffy

Jiffy Pro4 Lite Manuel utilisateur

Fishmaster

Fishmaster Pro Series Guide de démarrage rapide

MIVARDI

MIVARDI Carp Scout XL Manuel utilisateur

FLAJZAR

FLAJZAR FISHTRON CatFish TX3 Manuel d'exploitation et d'entretien

Milwaukee

Milwaukee 2873-20 Manuel utilisateur

VEXILAR

VEXILAR FL-8SLT Manuel utilisateur

Fishmaster

Fishmaster Casting Platform Guide de démarrage rapide

Marcum Technologies

Marcum Technologies PanCam Manuel utilisateur

Harmony

Harmony SlideTrax 8023061 Manuel utilisateur

Quantum

Quantum Baitcast Reel Manuel utilisateur

K-Drill

K-Drill Ice Auger Manuel utilisateur

FISHING SPECIALTIES

FISHING SPECIALTIES Bowducer Manuel utilisateur

Fox

Fox Receiver Manuel utilisateur

Abu Garcia

Abu Garcia REVO MGX Manuel utilisateur

Daiwa

Daiwa TanacomBull 1000 Manuel utilisateur

Sealey

Sealey HP01 Manuel utilisateur
