ASSEMBLY AND ADJUSTMENT

LIFT-WB Model LIFT-WB-SLV

FREE-STANDING BASE

LIFT-WB Rev A 3/17

PLEASE REVIEW these instructions before beginning the assembly and adjustment procedures. Check that

all the parts and tools listed below were provided with your order. Contact your supplier if any materials are

your satisfaction.

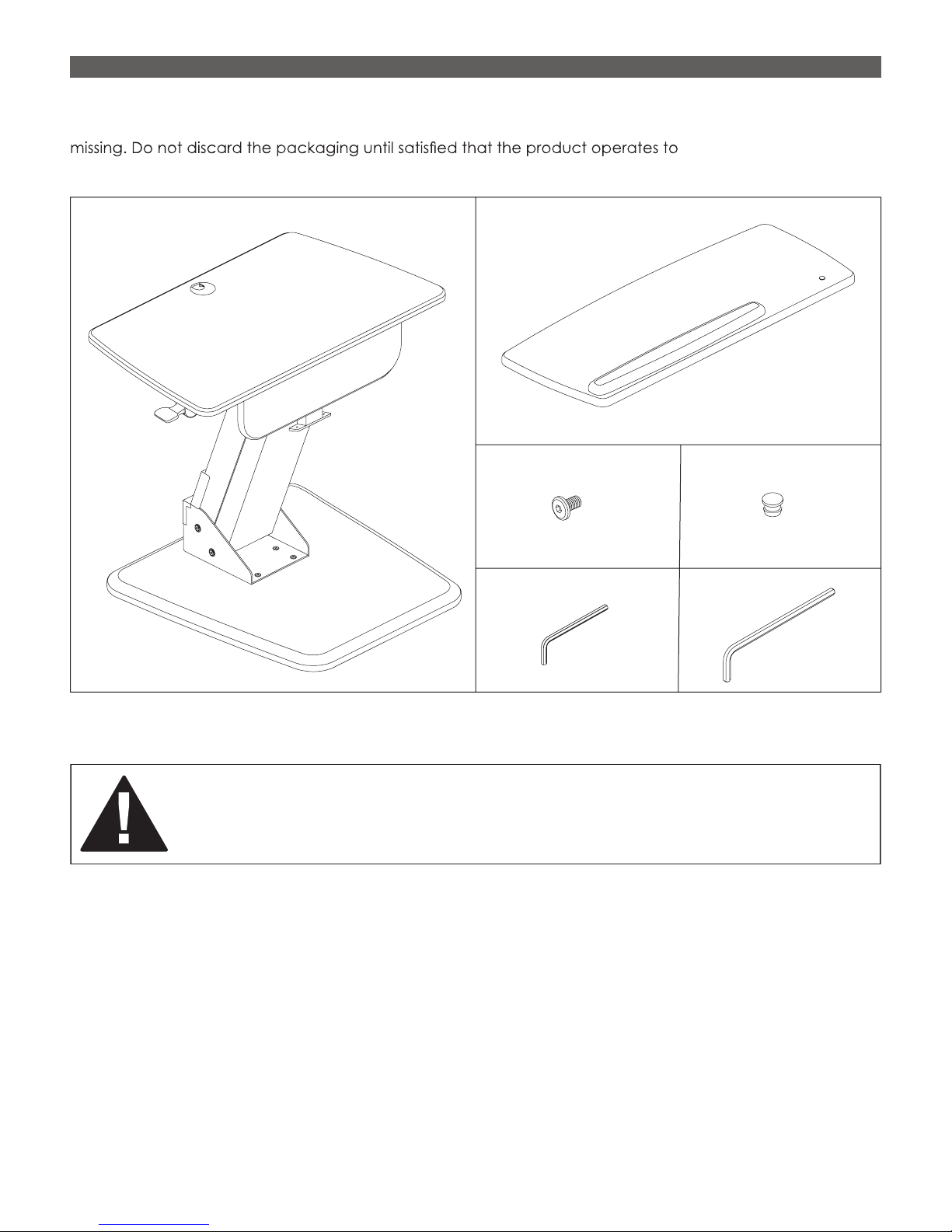

LIFT-WB PARTS AND TOOLS

Main Assembly (1) Keyboard Platform (1)

M6x8mm Screw (2) Keyboard Hole Plug (2)

4mm Allen Key (1) 6mm Allen Key (1)

PARTS AND TOOLS PROVIDED

CAUTION:

Hand-tighten screws only. Do not use power tools.

WARNING: When you first squeeze the paddle lever to operate this product, there is

no load on the unit (weight of monitor, keyboard, etc.). Firmly hold the top platform

to control the rate of movement. Take appropriate precautions to avoid pinching or

otherwise injuring yourself.

Attach Paddle

Holes for the activating paddle are pre-drilled into the top platform on both the left and right sides. You

may attach the paddle on either side, depending on user preference.

• Use the 4mm Allen key to fasten the paddle to the top platform.

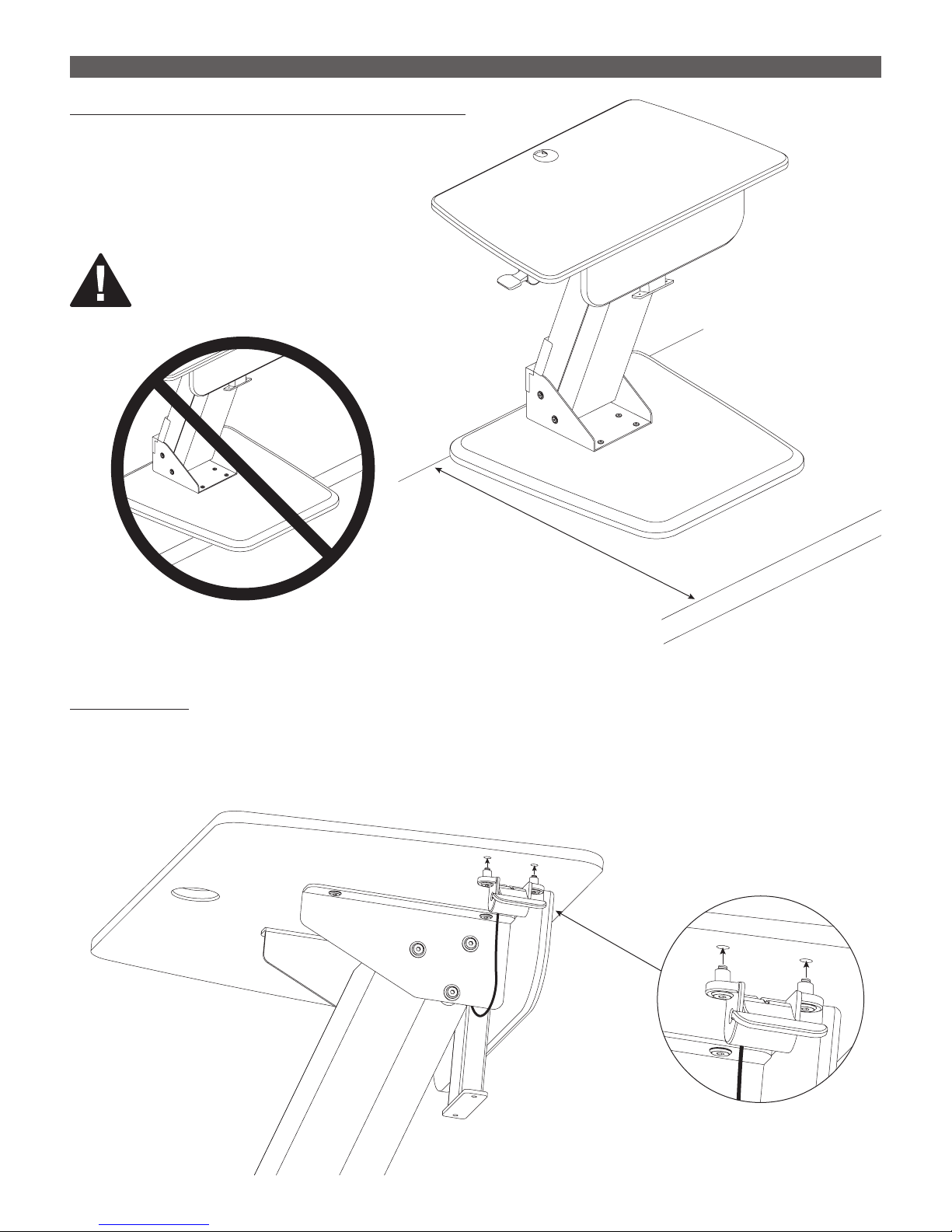

Position the Main Assembly on the Work Surface

• The work surface must be a minimum of

24" in depth.

WARNING: Do not allow the base

to hang over the edge of the work

surface!

ASSEMBLY LIFT-WB

24"

Minimum

Paddle

Top Platform

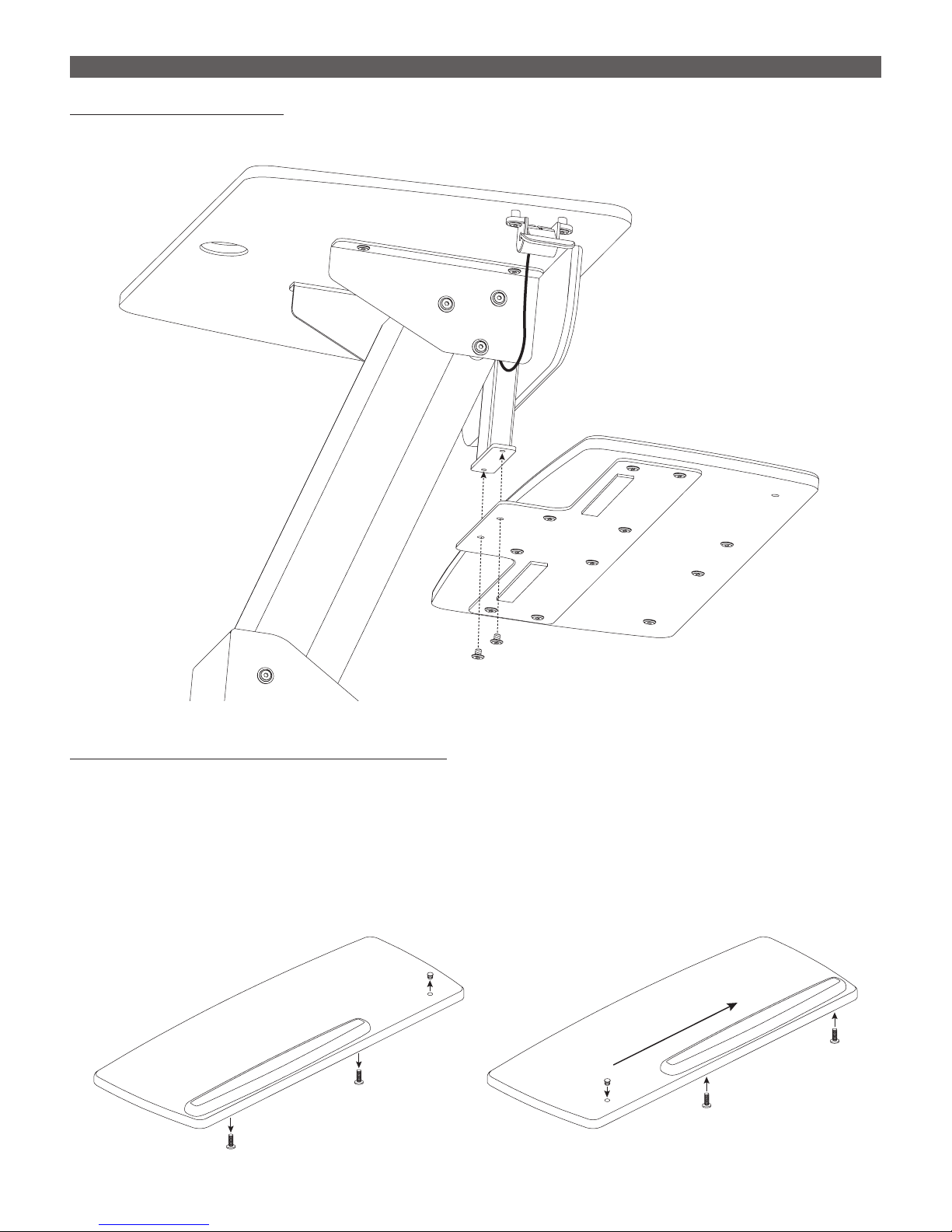

Attach Keyboard Platform

• Using the 4mm Allen key, attach the keypad with the M6x8 screws, as shown. Tighten securely.

Change Side of Keyboard Wristpad, If Desired

By default, the keyboard wristpad is on the left side for a right-side mouse. If desired, it may be changed to

the right side for a left-side mouse.

• Using the 4mm Allen key, remove the screws holding the wristpad from the underside of the keyboard

platform. Remove the plug from the far right-side hole.

• Re-install the screws to attach the wristpad to the right side of the keyboard platform. Use one of the new

plugs provided to conceal the exposed left-side hole.

LIFT-WB ASSEMBLY

Keyboard Platform

M6x8 Screws

Right-Side Mouse Left-Side Mouse

ADJUSTMENT LIFT-WB

Test Operation

• Place the monitor and other equipment that will be used with this

product on the top platform and keyboard platform.

• Depress the paddle lever. Raise and lower the unit through its full range of

movement.

• Position the unit so the support beam is at a 45° angle. If necessary, make

product.

45°

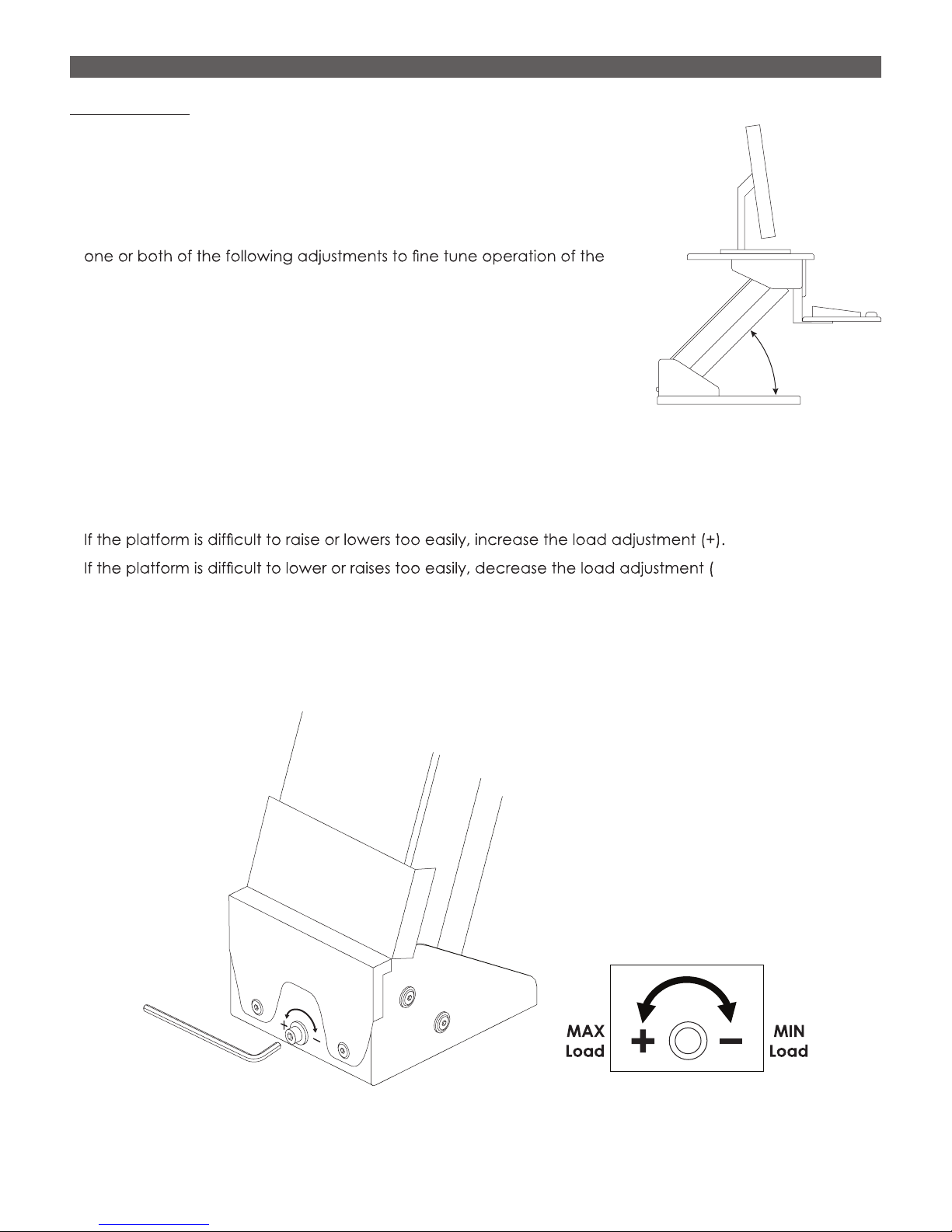

If Necessary, Adjust for Load Weight

This adjustment can be used to maximize ease of operation. When operating this product, the platform

should move easily to any position and hold that position.

•

–

• Use the 6mm Allen key to turn the adjusting screw — counterclockwise to increase load, clockwise to

decrease it.

• Test operation and re-adjust as necessary.

CAUTION: Do not overtighten the MAX (+) adjustment.

6mm Allen Key
