User guide
Windsensor / Windmill Pro 200
with pulse output and heating
Performance characteristics
Private and professional applications
weather station
Heating for winter operation
Robust connection cable 3m
Lacquering grey hammer finish lacquer
Stainless steel ball bearings and
screws
Typical fields of application
Protection of awnings, roller shutters
and slats from gusts of wind
Mounting on 50mm mast
(antenna mast)
Wall or roof bracket
flat roof mast
1 Product description
With the professional wind sensor Pro 200, the current wind speed can be recorded and, e.g. in gusts of wind, the
information for retracting an awning or raising roller shutters or blinds / slats can be provided via the system
control.
The wind sensor Pro 200 is an optimal environmental sensor for recording the wind speed for weather recording
in weather stations.
All metal parts of the Pro 200 wind sensor, such as bearings and screws, are made of weather-resistant stainless
steel and are durable over a long period of time. This makes them suitable for many years of continuous use in
professional Smart Home operation or building automation.
Via the sensor interface (S0 interface) impulses are output depending on the wind speed. 4 pulses are output per
revolution. 4 pulses correspond to a speed of 1m/s.
The Pro 200 wind sensor has a pulse output and is intended for connection to the 1-Wire S0 counter module (Art.
No. 11211) or comparable counter inputs.The sensor is weatherproof and has an approx. 3 meter long
connection cable. A mounting bracket, wall bracket or pole for roof mounting (vertical) are available as
accessories.
The energy-saving heating of the wind sensor ensures operation even in winter during snowfall, rain and frost.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA-Automation or E-Service GmbH. Errors and technical modification subject to change. ESERA-Automation, E-Service GmbH 2019
www.esera.de 20020 V1.0 R1.0 Manual Page 2 of 4
2 Technical data
Measuring range 0 - 50m/s
Output signal Sensor 4 pulses / 1 m/s
Electrical data - Heating: 24 V AC or DC ca. 25mA
- Pulse output (normally open contact) max. 24VAC/DC 10mA
Connecting cables ca. 3m cable, 4-strands
Evaluation Pulse output for 1-Wire S0 counter 11211
Dimensions ca. 210 mm x 80mm (height x width)
Windmill Ø 160 mm
Accessories Mast bracket, wall bracket, mast for flat roof
Scope of delivery Windsensor without mounting bracket
3 Ambient conditions
Protection system: IP65
Protection class: III
Temperature,Operation: -40°C to +125°C
4 Conformity
EN 50090-2-2, EN 61000-4-2 ESD, EN 61000-4-3 HF, EN 61000-4-4 Burst, EN 61000-4-5 Surge,
EN 61000-6-1 Interference immunity, EN 61000-6-3 Interference radiation, RoHS
5 Wiring diagram
The connection cable has numbers printed on it. The assignment of the number cable is:
1 + 2 Pulse output
3 + 4 Heater 24V AC/DC +/-10% approx. 60mA
Art. No. 20020
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA-Automation or E-Service GmbH. Errors and technical modification subject to change. ESERA-Automation, E-Service GmbH 2019
www.esera.de 20020 V1.0 R1.0 Manual Page 3 of 4

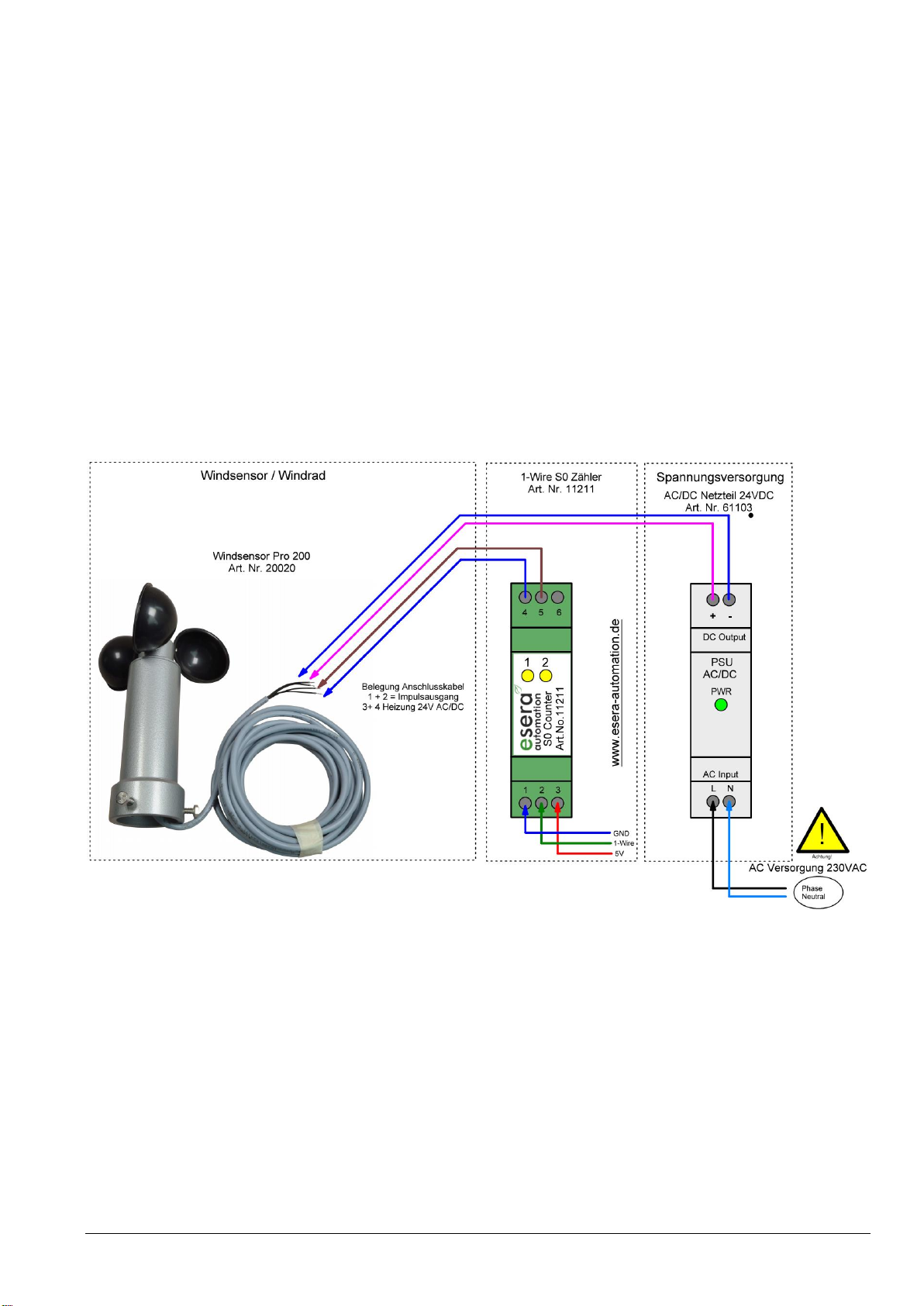

6 Connection example 1-Wire System and 1-Wire Controller / 1-Wire Gateway
7 Software / Evaluation
The wind sensor delivers 4 pulses per revolution. To calculate the wind speed, the pulses are usually counted for
a period of e.g. 1 minute, in our example by the ESERA 1-Wire S0 counter 11211 and then divided by the factor 4
(4 pulses = 1m/s). The result is the wind speed in m/s.
To get to Km/h, the value m/s is multiplied by 3600 and then divided by 1000.
Formula:
Counter reading new - Counter reading old = Delta
Wind speed: m/s = delta / factor (4), Km/h = m/s x 3600 / 1000
8 Operating conditions
The sensor may only be operated at the specified voltages and ambient conditions. The operating position of the
device is vertical. The sensor is designed for continuous outdoor operation.
Due to the heating inside the sensor, the housing heats up. Do not operate the sensor in an
environment in which flammable gases, vapors or dusts are present or may be present.
9 Disposal instructions
Do not dispose of the device in domestic waste! Electronic devices are to be disposed of
according to the Directive on waste electrical and electronic equipment (WEEE) on local
authorities and collection points for waste electronic equipment!
10 Safety instructions
When using products that come into contact with electrical voltage, the valid VDE regulations must be observed, especially
VDE 0100, VDE 0550/0551, VDE 0700, VDE 0711 and VDE 0860
All final or wiring work must be carried out with the power turned off.
Before opening the device, always unplug or make sure that the unit is disconnected from the mains.
Components, modules or devices may only be put into service if they are mounted in a contact proof housing.
During installation they must not have power applied.
Tools may only be used on devices, components or assemblies when it is certain that the devices are
disconnected from the power supply and electrical charges stored in the components inside the device have been
discharged.
Live cables or wires to which the device or an assembly is connected, must always be tested for insulation faults
or breaks.
If an error is detected in the supply line, the device must be immediately taken out of operation until the faulty
cable has been replaced.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA-Automation or E-Service GmbH. Errors and technical modification subject to change. ESERA-Automation, E-Service GmbH 2019
www.esera.de 20020 V1.0 R1.0 Manual Page 4 of 4
When using components or modules it is absolutely necessary to comply with the requirements set out in the
accompanying description specifications for electrical quantities.
If the available description is not clear to the non-commercial end-user what the applicable electrical
characteristics for a part or assembly are, how to connect an external circuit, which external components or
additional devices can be connected or which values these external components may have, a qualified electrician
must be consulted.
It must be examined generally before the commissioning of a device, whether this device or module is basically
suitable for the application in which it is to be used.
In case of doubt, consultation with experts or the manufacturer of the components used is absolutely necessary.
For operational and connection errors outside of our control, we assume no liability of any kind for any resulting
damage.
Kits should be returned without their housing when not functional with an exact error description and the
accompanying instructions. Without an error description it is not possible to repair. For time-consuming assembly
or disassembly of cases charges will be invoiced.
During installation and handling of components which later have mains potential on their parts, the relevant VDE
regulations must be observed.
Devices that are to be operated at a voltage greater than 35 VDC / 12mA, may only be connected by a qualified
electrician and put into operation.
Commissioning may only be realized if the circuit is built into a contact proof housing.
If measurements with an open housing are unavoidable, for safety reasons an isolating transformer must be
installed upstream or a suitable power supply can be used.
After installing the required tests according to DGUV / regulation 3 (German statutory accident insurance,
https://en.wikipedia.org/wiki/German_Statutory_Accident_Insurance) must be carried out.
11 Warranty
ESERA-Automation (E-SERVICE GmbH) guarantees that the goods sold at the time of transfer of risk to be free from
material and workmanship defects and have the contractually assured characteristics. The statutory warranty period of two
years begins from date of invoice. The warranty does not extend to the normal operational wear and normal wear and tear.
Customer claims for damages, for example, for non-performance, fault in contracting, breach of secondary contractual
obligations, consequential damages, damages resulting from unauthorized usage and other legal grounds are excluded.
Excepting to this, ESERA-Automation accepts liability for the absence of a guaranteed quality resulting from intent or gross
negligence. Claims made under the Product Liability Act are not affected.
If defects occur for which the ESERA-Automation is responsible, and in the case of replacement goods, the replacement is
faulty, the buyer has the right to have the original purchase price refunded or a reduction of the purchase price.
ESERA-Automation accepts liability neither for the constant and uninterrupted availability of the ESERA-Automation or for
technical or electronic errors in the online offer.
We develop our products further and we reserve the right to make changes and improvements to any of the products
described in this documentation without prior notice. If you need documentation or information about older product
