1.0 Introduction
The ETS-Lindgren Model 3109 Biconical Antenna is designed to operate over
the 20 MHz to 300 MHz frequency range for generating high levels of
electromagnetic (EM) fields. The ability to handle high power levels over a
broadband makes the Model 3109 excellent for use in radiated susceptibility
testing.
The assembly design of the Model 3109 provides for easy storage and
portability. The standard biconical elements are made from welded aluminum.
The 4-to-1 ratio balun network is fabricated from TFE thermoplastics and
specially machined brass and aluminum support and contact parts. The bifilar
inductors of the balun are wound in precision machined cuts to provide high
barrier insulation between windings while simultaneously giving good coupling
between bifilar windings.
The balun acts as base on the Model 3109 and is configured to accept an
ETS-Lindgren tripod or most other tripods. For information on tripods, see
Tripod Options on page 10. For the variety of mounting options available for the
Model 3109, see Mounting Instructions on page 21.
The Model 3109 is individually calibrated at 1 m per SAE ARP 958 and 3 m and
10 m per ANSI C63.5. Actual factors and a signed Certificate of Calibration
Conformance are included.
Because slight variations in testing environments can affect the field
characteristics around an antenna, it is recommended that a field probe be used
to accurately determine the field strength in the region under test.
8 Error! No text of specified style in
document. ets-lindgren.com
Application
The Model 3109 provides a broad frequency and a high input power, making it
ideal for IEC 61000-4-3 testing. The antenna uses a modified Guanella balun for
impedance transformation and matching, and it is constructed of much heavier
materials so that maximum continuous input power can reach 2 kW. While this
antenna typically has a high VSWR at frequencies below 70 MHz, it is still
capable of generating high field strength with acceptable input power in this
region of the band. The optional extended elements markedly improve
performance in this region.
Optional Items
Note: For part number and ordering information, see
Model Numbers on page 13.
P
ORTABLE
E
LEMENTS
Collapsible folding elements are available, making the Model 3109 portable and
ideal for field use. Both the standard rigid and optional folding elements attach to
the balun using screw mounts. This makes changing between the two types of
elements quick and easy.
E
XTENDED
P
ORTABLE
E
LEMENTS
An extended version of the portable element is available. These folding elements
are twice as long as the standard elements. The longer elements enable you to
generate high fields at low frequencies with reduced applied power.
ets-lindgren.com Error! No text of specified style in
document. 9
DIN CONNECTOR

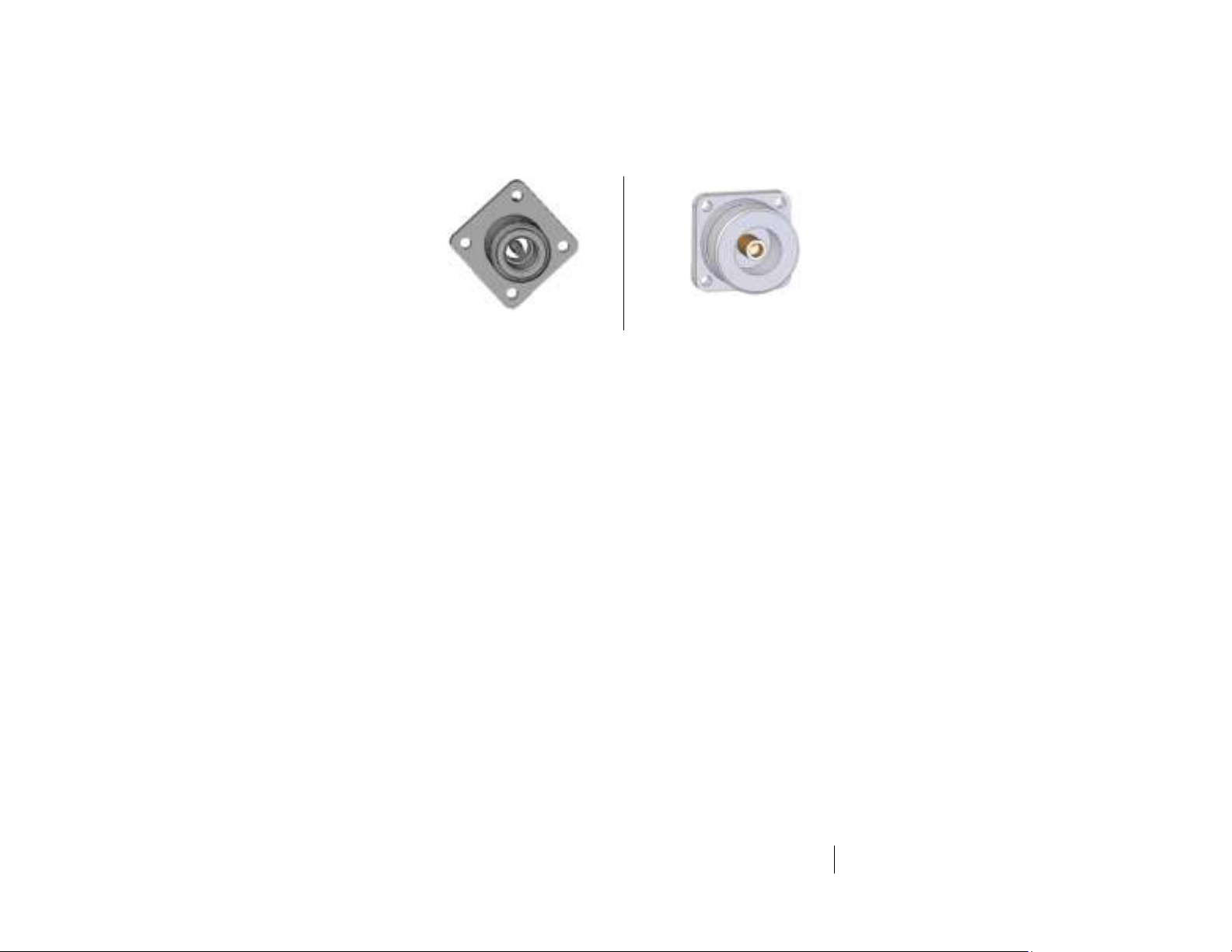

The standard connector for the Model 3109 is a Type N. As an alternative, the
Model 3109 may be ordered with a 7/16 DIN connector.
Type N Connector (Standard)
7/16 DIN Connector (Optional)
CARRYING CASES
Carrying cases for biconical antennas and portable elements are available.
Contact ETS-Lindgren for ordering information.
10 Error! No text of specified style in
document. ets-lindgren.com
TRIPOD OPTIONS
ETS-Lindgren offers the following non-metallic, non-reflective tripods for use at
both indoor and outdoor EMC test sites. Contact ETS-Lindgren for ordering
information.
4-TR Tripod—Constructed of linen
phenolic and Delrin®, designed with an
adjustable center post for precise height
adjustments. Maximum height is 2.0 m
(80.0 in), and minimum height is 94 cm
(37.0 in). This tripod can support up to
an 11.8 kg (26.0 lb) load.
7-TR Tripod—Constructed of PVC and
fiberglass components, providing
increased stability for physically large
antennas. The unique design allows for
quick assembly, disassembly, and
convenient storage. Allows several
different configurations, including options
for manual or pneumatic polarization.
Quick height adjustment and locking
wheels provide ease of use during
testing. Maximum height is 2.17 m
(85.8 in), with a minimum height of 0.8 m
(31.8 in). This tripod can support a
13.5 kg (30 lb) load.
