ESAB Origo Feed 30 Manuel utilisateur

Valid for serial no. 6380349 301 132 070426

Feed 30

Feed 30w

Origo







Instruction manual

ENGLISH

-- 2 --

TOCe

1 SAFE Y 4...........................................................

2 IN RODUC ION 6...................................................

2.1 Equipment 6................................................................

3 ECHNICALDA A 6.................................................

4 INS ALLA ION 7....................................................

5 OPERA ION 8.......................................................

5.1 Connectionandcontroldevices .............................................

5.2 Functionexplanation 10.......................................................

5.3 Wirefeedpressure 11........................................................

5.4 Changing/loadingwire 11....................................................

5.5 Flux--coredwireswelding 11..................................................

5.6 Aluminiumwirewelding 12....................................................

6 MAIN ENANCE 12....................................................

6.1 Inspectionandcleaning 12....................................................

7 FAUL RACING 13...................................................

8 ORDERINGOFSPAREPAR S 13......................................

DIAGRAM 14............................................................

WEARCOMPONEN S 16.................................................

ACCESSORIES 18.......................................................

-- 3 --

document

-- 4 --

OF30e

DECLARA ION OF CONFORMI Y

ESAB Welding Equipment AB, S--695 1 Laxå, Sweden, declares that Wire feed unit OrigoTM Feed

30w from serial number 63 onwards, conforms to standard EN 60974--5, in accordance with the re-

quirements of directive (73/23/EEC) and appendix (93/6 /EEC) and standard EN 60974--10 in accord-

ance with the requirements of directive ( 9/336/EEC) and appendix (93/6 /EEC).

--------------------------------------------------------------------------------------------------------------------------------------

Kent Eimbrodt

Global Director Equipment and Automation

ESAB AB

695 1 LAXÅ

SWEDEN Tel: + 46 5 4 1000 Fax: + 46 5 4 411924

Laxå 2007--04--23

1 SAFE Y

Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety precautions

must meet the requirements that apply to this type of welding equipment. The following recommen-

dations should be observed in addition to the standard regulations that apply to the workplace.

All work must be carried out by trained personnel well--acquainted with the operation of the welding

equipment. Incorrect operation of the equipment may lead to hazardous situations which can result

in injury to the operator and damage to the equipment.

1. Anyone who uses the welding equipment must be familiar with:

Sits operation

Slocation of emergency stops

Sits function

Srelevant safety precautions

Swelding

2. The operator must ensure that:

Sno unauthorised person is stationed within the working area of the equipment when it is

started up.

Sno--one is unprotected when the arc is struck

3. The workplace must:

Sbe suitable for the purpose

Sbe free from draughts

4. Personal safety equipment

SAlways wear recommended personal safety equipment, such as safety glasses, flame--proof

clothing, safety gloves.

SDo not wear loose--fitting items, such as scarves, bracelets, rings, etc., which could become

trapped or cause burns.

5. General precautions

SMake sure the return cable is connected securely.

SWork on high voltage equipment may only be carried out by a qualified electrician.

SAppropriate fire extinquishing equipment must be clearly marked and close at hand.

SLubrication and maintenance must not be carried out on the equipment during operation.

-- 5 --

OF30e

WARNING

READ AND UNDERS AND HE INS RUC ION MANUAL BEFORE INS ALLING OR OPERA ING.

ARC WELDING AND CU ING CAN BE INJURIOUS O YOURSELF AND O HERS. AKE PRECAU-

IONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFE Y PRAC ICES WHICH SHOULD BE

BASED ON MANUFAC URERS’ HAZARD DA A.

ELEC RIC SHOCK -- Can kill

SInstall and earth the welding unit in accordance with applicable standards.

SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

SInsulate yourself from earth and the workpiece.

SEnsure your working stance is safe.

FUMES AND GASES -- Can be dangerous to health

SKeep your head out of the fumes.

SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone

and the general area.

ARC RAYS -- Can injure eyes and burn skin.

SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective

clothing.

SProtect bystanders with suitable screens or curtains.

FIRE HAZARD

SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.

NOISE -- Excessive noise can damage hearing

SProtect your ears. Use earmuffs or other hearing protection.

SWarn bystanders of the risk.

MALFUNC ION -- Call for expert assistance in the event of malfunction.

PRO EC YOURSELF AND O HERS!

WARNING!

Read and understand the instruction manual

before installing or operating.

Do not use the power source for thawing frozen pipes.

WARNING!

his product is solely intended for arc welding.

Do not dispose of electrical equipment together with normal waste!

In observance of European Directive 2002/96/EC on Waste Electrical and Electronic

Equipment and its implementation in accordance with national law, electrical equipment

that has reached the end of its life must be collected separately and returned to an

environmentally compatible recycling facility. As the owner of the equipment, you should

get information on approved collection systems from our local representative.

By applying this European Directive you will improve the environment and human health!

-- 6 --

OF30e

2 IN RODUC ION

The OrigoTM Feed 30, Feed 30w wire feed unit is intended for MIG/MAG welding

together with step controlled welding power sources, with solid steel, stainless steel,

aluminium wire and flux--cored wires.

ESAB’s accessories for the product can be found on page 18.

2.1 Equipment

The wire feed unit is supplied with:

SMarathon PAC bracket

SReel adaptors

SInstruction manual

3 ECHNICAL DA A

Origo M Feed 30, Feed 30w

Power supply 42V, 1∼

∼∼

∼50/60 Hz

Power requirement 420 VA

Welding current @60% duty cycle 500 A

Settings data

Wire feed speed 1,5--25 m/min

Burnback time 0,0--0,7 sec

Spot welding time 0,2--5,0 sec

Welding gun connection EURO

Wire dimension range 0, --1,6 (Fe,SS);

1,0--1,6 ( Al);

1,0--1,6 (FCW)

Shielding gas All types for MIG/MAG -- max 5 bar

Max diam. / weight of wire bobin 300 mm / 1 kg

Dimensions lxwxh 700x255x420

Weight 14, kg (Feed 30)

with cooling liquid system 15,0 kg (Feed 30w)

Operating temperature --10 to +40oC

Enclosure class IP 23 (wire bobbin -- IP 2X)

Application classification

Duty cycle

The duty cycle refers to the time as a percentage of a ten--minute period that you can weld at a cer-

tain load without overloading.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Equipment marked IP23 is designed for indoor and outdoor use.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Apparatus marked IP2X are intended for indoor use.

-- 7 --

OF30e

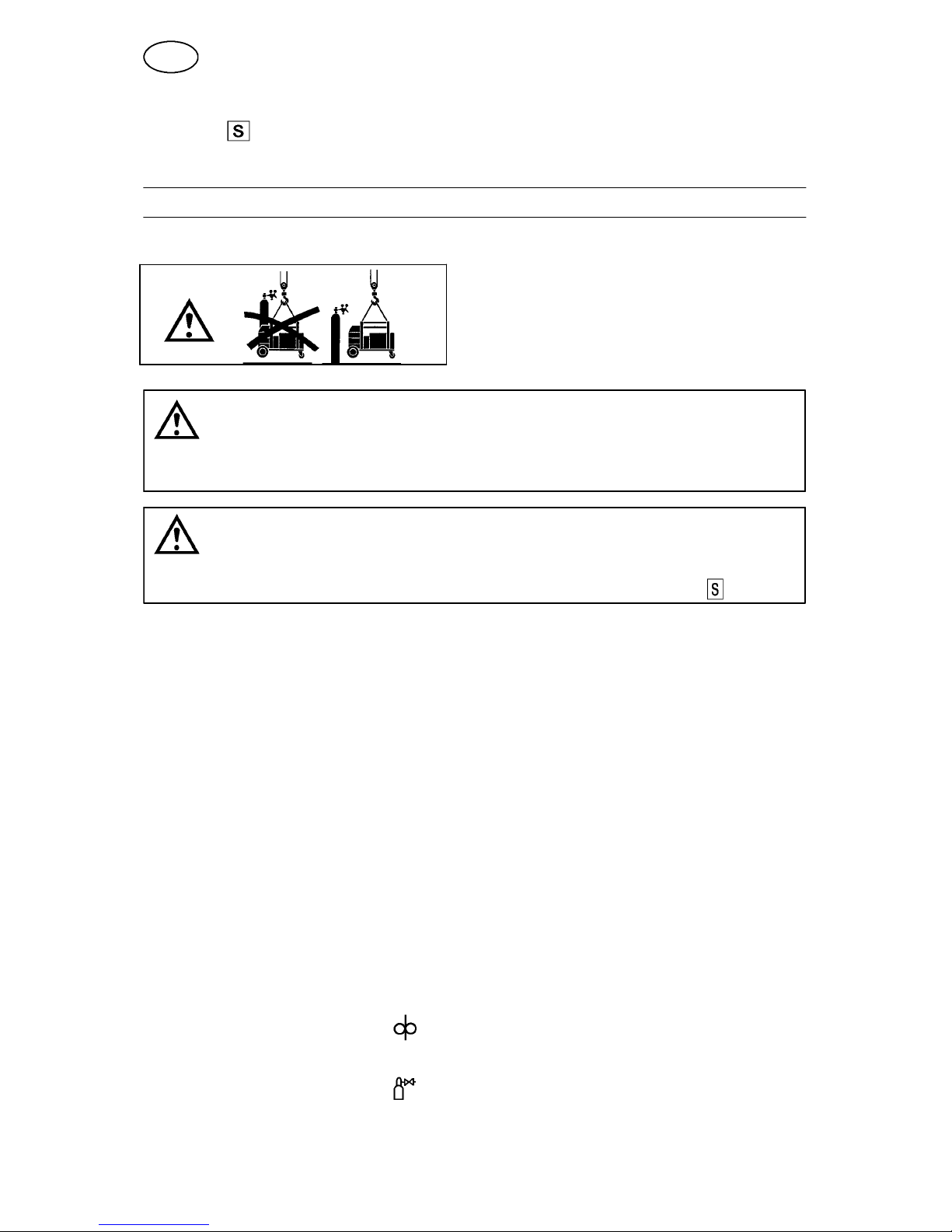

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

4 INS ALLA ION

The installation must be executed by a professional.

WARNING!

This product is intended for industrial use. In a domestic environment this product may cause radio

interference. It is the user’s responsibility to take adequate precautions.

WARNING!

When welding in an environment with increased electrical danger, only power sources intended

for this environment may be used. These power sources are marked with the symbol .

a. Connect the wire feeder with the welding rectifier. Temporary keep the

current cable disconnected.

b. Connect the wire feeder to gas regulator by means of gas hose.

Attention: Use gas heater only for pure CO2.

c. Connect a welding torch. If it is liquid--cooled, connect its hoses to

appropriate connectors, turning aside an arm of the pump switch (ELP).

Hoses and appropriate connectors are marked in red and blue.

d. Install the bobbin with electrode wire.

e. Input the wire between the rolls and further to the torch connector, at least

for 20cm inside. Type of the rolls should match the side and the type of used

electrode wire. Take in account, that for convenience, marking on the side of

the rolls corresponds the size of the groove on the opposite side.

f. Close the rolls and adjust an optimal radial pressure by means of knobs.

Setting recommendation is placed on the inner side of the cover.

g. Set braking force of the wire bobbin by means the bolt placed inside the

bobbin holder.

Attention! Keep attention during replacement of the bobbin. Don’t use gloves

while installing the bobbin and inputting the wire into the torch.

h. Set mode selector (2) in position (inching). Press the torch switch and let

the wire go through the torch up to its appearance out of the torch.

i. Set mode selector (2) in position (gas purge). Press the torch switch and

adjust the gas flow.

-- 8 --

OF30e

j. Connect current cables. Set voltage in the welding rectifier. Switch the

rectifier on. The machine is ready for welding.

The wire feeder is factory -- equipped with insulating feet that allow to put the feeder

on top of power source or directly on the ground.

Feeder can optionally be equipped with accessory wheel set (see page 1 ).

5 OPERA ION

General safety regulations for the handling of the equipment can be found on

page 4. Read through before you start using the equipment

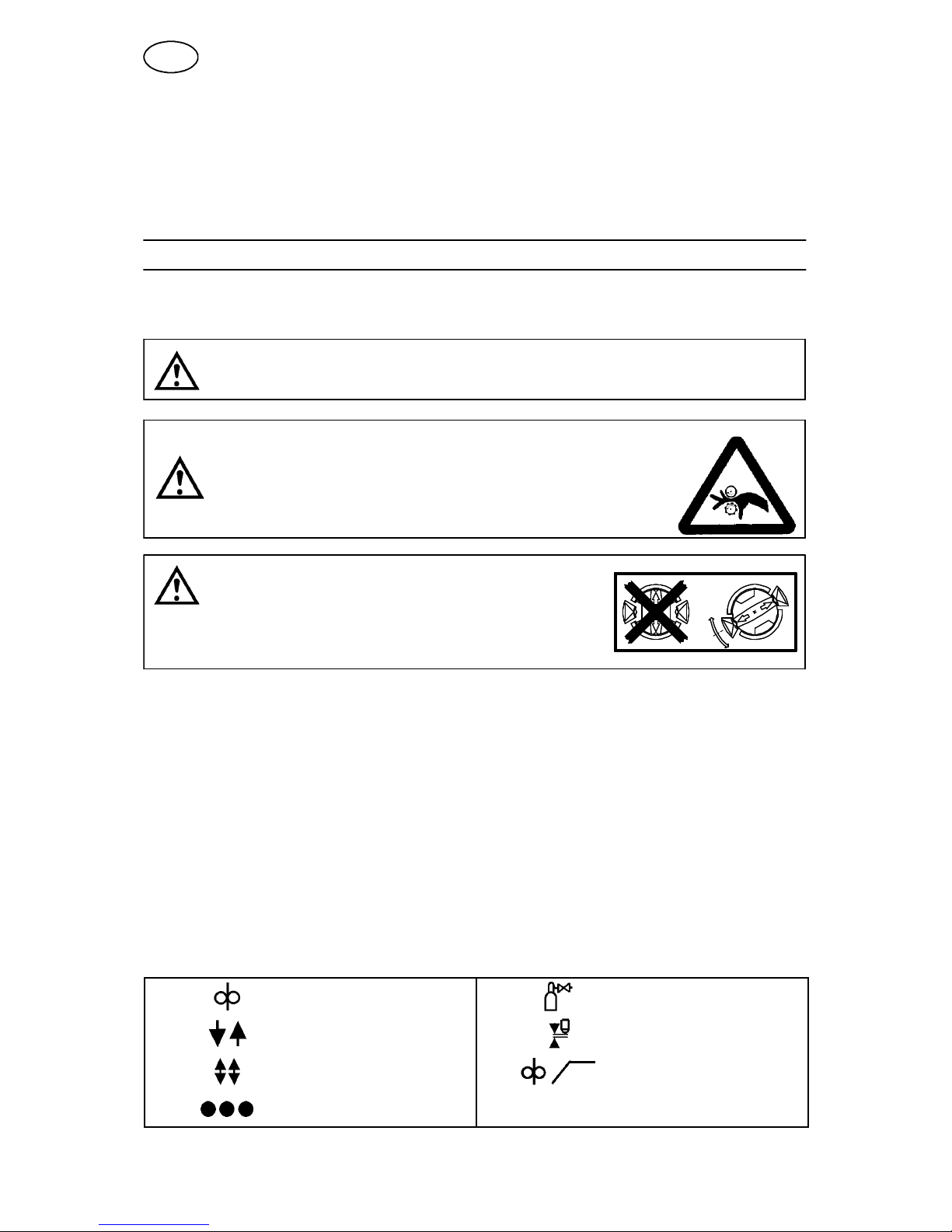

WARNING!

Assure that the side panels are closed during operation.

WARNING!

Rotating parts can cause injury, take great care.

To prevent the reel sliding off the hub: Lock the reel in place by turning

the red knob as shown on the warning label attached next to the hub.

WARNING!

When moving the equipment use intended handle. NOTE Never pull on the gun.

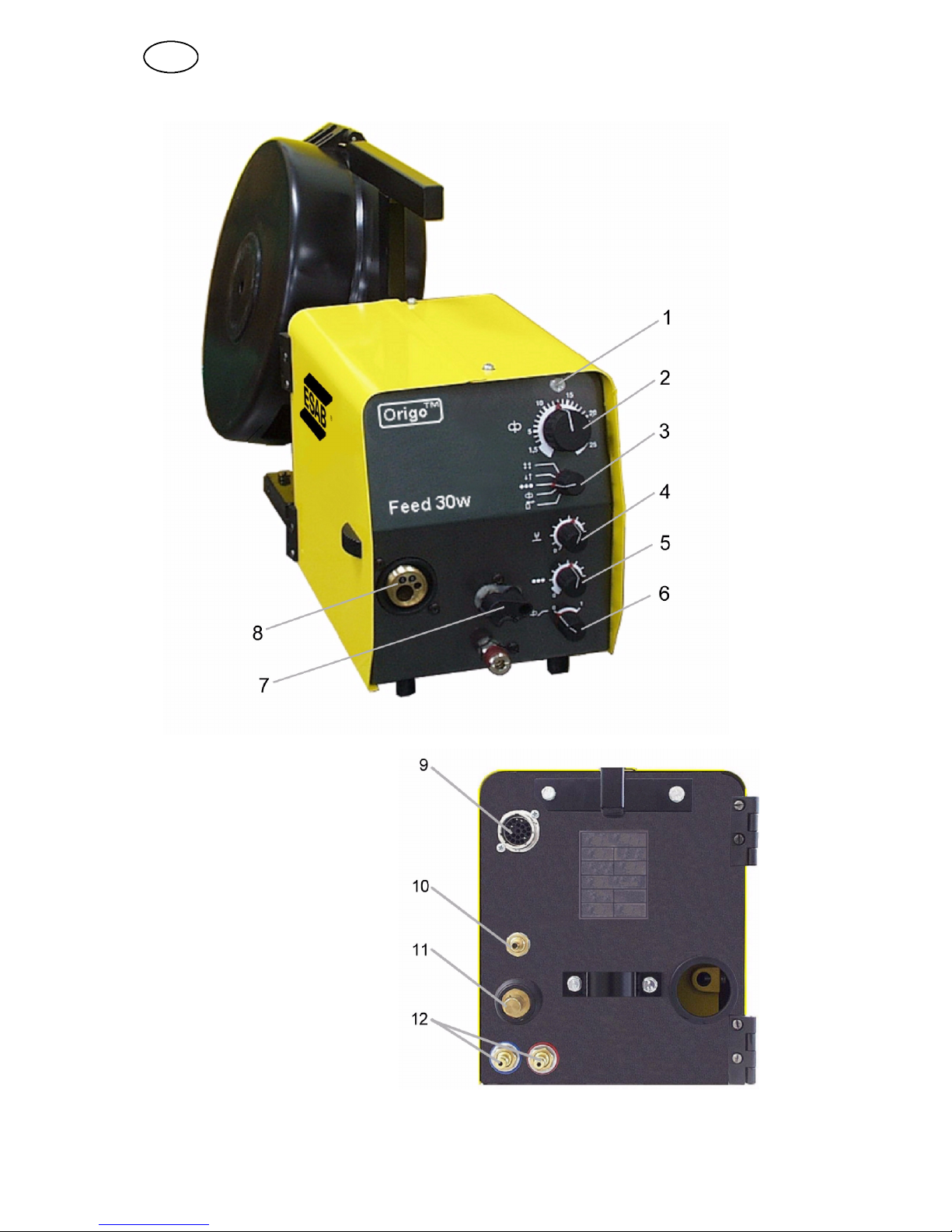

5.1 Connection and control devices

1Power ON indicator 7Cooling liquid connectors with pump switch

(Feed 30w)

2Wire feeder speed knob 8Torch connector

3Mode selector (see table below) 9Control cable terminal

4Burn--back time knob 10 Gas inlet

5Spot welding time knob 11 Current terminal (from power source)

6Creep speed knob 12 Cooling liquid connectors (Feed 30w)

Symbols explanation:

wire feeding / inching gas purge

2--stroke burn--back

4--stroke creep speed

spot welding / spot

welding time

-- 9 --

OF30e

-- 10 --

OF30e

5.2 Function explanation

5.2.1 2--stroke mode

Set the 2--stroke mode by means of the knob (3). Set required wire speed by means

of the knob (2). The creep speed option can be set by means of the knob (6). If

creep speed is chosen the wire speed before the actual start of welding is reduced

by two. The creep speed is not recommended for speed setting close to the minimal.

The burn--back time should set by means of the knob (4). This setting should be

chosen experimentally, starting from the lowest values.

Pressing the torch switch opens the gas valve and then switching the power source

on and feeding the wire. Releasing the torch switch stops the wire feeding. After

delay proportional to burn--back time setting the power is switched off. Eventually

the gas is cut off too.

5.2.2 4--stroke mode

Set the 4--stroke mode by means of the knob (3). Other settings as for 2--stroke

mode.

This mode could be described as follows:

1. switch pressed -- gas starts to flow,

2. switch released -- power source is switched and wire is fed, the actual start of

welding,

3. switched pressed again -- stop of welding, gas remains flowing,

4. switch released -- cut off the gas.

5.2.3 Burnback time

Burnback time is a delay between the time when the wire starts to brake until the

time when the power source switches off the welding voltage. Too short burnback

time results in a long wire stickout after completion of welding, with a risk of the wire

being caught in the weld pool. Too long a burnback time results in a shorter stickout,

with increased risk of the arc striking back to the contact tip.

5.2.4 Creep start

Creep start means that the wire is fed at reduced speed within 1 sec after welding

torch trigger is pressed, and then the speed increases to the set speed.

5.2.5 Inching and gas purge modes

Set the required mode by means of the knob (3). Inching or gas purge is started by

means of the torch switch.

5.2.6 Wire feed speed

This sets the required feed speed of the filler wire in m/minute.

5.2.7 Spot welding

Set the spot welding mode by means of the knob (3). Set the required time of the

spot welding by means of the knob (5). Other settings as for previously described

modes. The control sequence is similar to 2--stroke mode sequence. The difference

is that the welding is stopped automatically after particular time. The torch switch

must be pressed up to the end of welding. Releasing the torch switch enables the

next spot welding cycle.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ESAB Système de soudage

ESAB

ESAB HandyPlasma 550 Guide de configuration

ESAB

ESAB Origo M13y YardFeed 200 Manuel utilisateur

ESAB

ESAB Retrofit Aristo Mig 4004i WeldCloud Manuel utilisateur

ESAB

ESAB OrigoFeed 30-2 Manuel utilisateur

ESAB

ESAB AristoMig U500 Manuel utilisateur

ESAB

ESAB BOMBARDIER SVI-450i Manuel utilisateur

ESAB

ESAB Aristo U6 Manuel utilisateur

ESAB

ESAB PKB 250 Manuel utilisateur

ESAB

ESAB Aristo W82 Manuel utilisateur

ESAB

ESAB Fabricator EM 401i Manuel utilisateur

ESAB

ESAB Aristo Mig 3001i Manuel utilisateur

ESAB

ESAB Caddy Tig 1500i VRD Manuel utilisateur

ESAB

ESAB CoolMidi 1800 Manuel utilisateur

ESAB

ESAB Versotrac EWT 1000 Manuel utilisateur

ESAB

ESAB Fabricator EM 400i Manuel utilisateur

ESAB

ESAB Origo Tig 4300iw AC/DC Manuel utilisateur

ESAB

ESAB Origo Arc 650c Manuel utilisateur

ESAB

ESAB Origo Mig C170 3ph Manuel utilisateur

ESAB

ESAB ESABMig C420 Manuel utilisateur

ESAB

ESAB Ruffian ES 150G EDW Manuel utilisateur

ESAB

ESAB ESP-101 Manuel utilisateur

ESAB

ESAB Origo Arc 406 Manuel utilisateur

ESAB

ESAB ESABMig 405 Manuel utilisateur

ESAB

ESAB Aristo RobustFeed U6 Manuel utilisateur

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuel utilisateur
