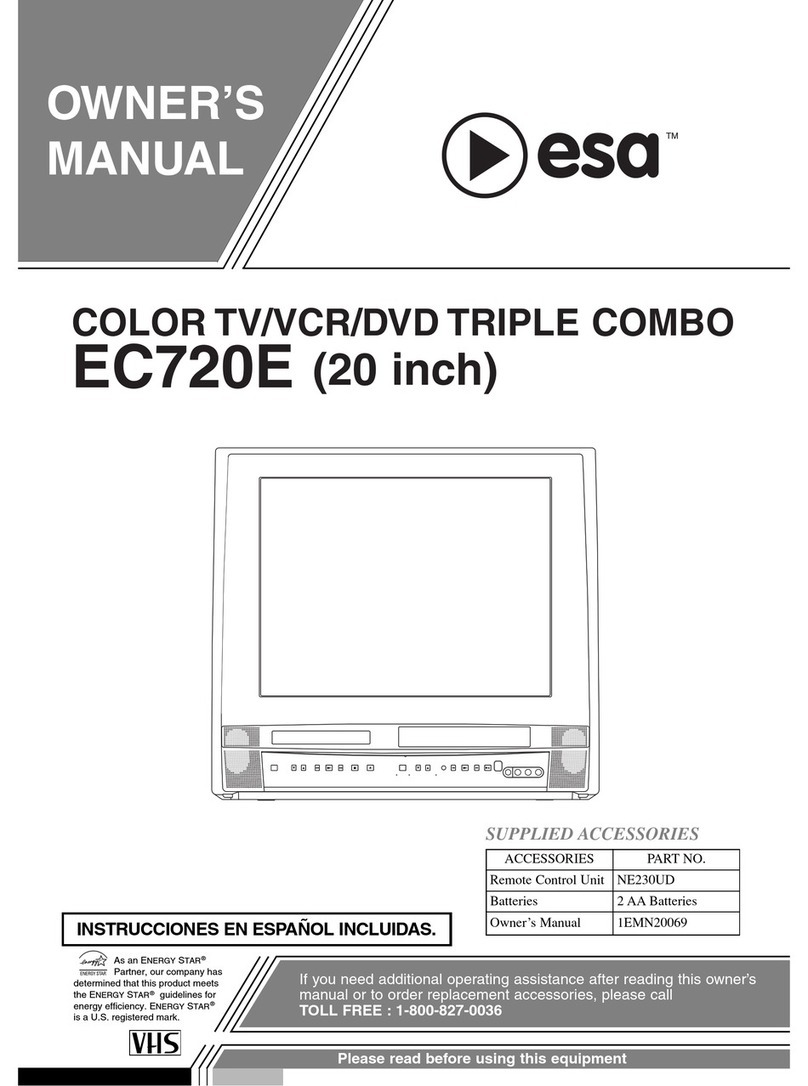

COLOR TV/VCR/DVD TRIPLE COMBO

RSEC720E (20 inch)

OWNER’S

MANUAL

As an ENERGY STAR

Partner, our company has

determined that this product meets

the ENERGY STAR guidelines for

energy efficiency. ENERGY STAR

is a U.S. registered mark.

If you need additional operating assistance after reading this owner’s

manual or to order replacement accessories, please call

TOLL FREE : 1-800-968-3429

Please read before using this equipment

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

SUPPLIED ACCESSORIES

Batteries

Remote Control Unit

ACCESSORIES

2 AA Batteries

NE230UD

PART NO.

Owner’s Manual 1EMN20069

1.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions

should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the

operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions

should be followed.

5.Cleaning-Unplug TV/VCR/DVD from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use

a damp cloth for cleaning.

EXCEPTION: Aproduct that is meant for uninterrupted

service and, that for some specific reason, such as the possi-

bility of the loss of an authorization code for a CATV con-

verter, is not intended to be unplugged by the user for clean-

ing or any other purpose, may exclude the reference to

unplugging the appliance in the cleaning description other-

wise required in item 5.

6.Attachments-Do not use attachments not recommended by

the TV/VCR/DVD manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/VCR/DVD near

water-for example, near a bath tub, wash bowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool,

and the like.

8.Accessories-Do not place this TV/VCR/DVD on an unstable

cart, stand, tripod, bracket, or table. The TV/VCR/DVD may

fall, causing serious injury to someone, and serious damage

to the appliance. Use only with a cart, stand, tripod, bracket,

or table recommended by the manufacturer, or sold with the

TV/VCR/DVD. Any mounting of

the appliance should follow the

manufacturer’s instructions and

should use a mounting accessory

recommended by the manufacturer.

An appliance and cart combination

should be moved with care.Quick

stops, excessive force, and uneven

surfaces may cause the appliance

and cart combination to overturn.

AMEUBLES- Cet appareil ne doit

être placé que sur un meuble (avec

ou sans roulettes) recommandé par

le fabricant. Si vous l’installez sur

un meuble à roulettes, déplacez les

deux ensembles avec précaution.

Un arrêt brusque, l’utilisation

d’une force excessive et des sur-

faces irrégulières risquent de désta-

biliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back

or bottom are provided for ventilation and to ensure reliable

operation of the TV/VCR/DVD and to protect it from over-

heating, and these openings must not be blocked or cov-

ered. The openings should never be blocked by placing the

TV/VCR/DVD on a bed, sofa, rug, or other similar surface.

This TV/VCR/DVD should never be placed near or over a

radiator or heat register. This TV/VCR/DVD should not be

placed in a built-in installation such as a bookcase or rack

unless proper ventilation is provided or the manufacturer’s

instructions have been adhered to.

10.Power Sources-This TV/VCR/DVD should be operated

only from the type of power source indicated on the mark-

ing label. If you are not sure of the type of power supply to

your home, consult your appliance dealer or local power

company. For TV/VCR/DVDs intended to operate from

battery power, or other sources, refer to the operating

instructions.

11.Grounding or Polarization-This TV/VCR/DVD is

equipped with a polarized alternating-current line plug(a

plug having one blade wider than the other). This plug will

fit into the power outlet only one way. This is a safety fea-

ture. If you are unable to insert the plug fully into the out-

let, try reversing the plug. If the plug should still fail to fit,

contact your electrician to replace your obsolete outlet. Do

not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be

routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying par-

ticular attention to cords at plugs, convenience receptacles,

and the point where they exit from the appliance.

- 2 - EN

1B15

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSON-

NEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DAN-

GEROUS VOLTAGE CONSTITUTING A

RISK OF ELECTRIC SHOCK IS PRESENT

WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE

APPLIANCE.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

PORTABLE CART WARNING

S3126A

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

- 3 - EN

1B15

13.Outdoor Antenna grounding-If an outside antenna or

cable system is connected to the TV/VCR/DVD, be sure

the antenna or cable system is grounded so as to provide

some protection against voltage surges and built-up static

charges. Article 810 of the National Electrical Code,

ANSI/NFPA No. 70, provides information with respect to

proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of antenna-discharge

unit, connection to grounding electrodes, and requirements

for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/VCR/DVD

receiver during a lightning storm, or when it is left unat-

tended and unused for long periods of time, unplug it from

the wall outlet and disconnect the antenna or cable system.

This will prevent damage to the TV/VCR/DVD due to

lightning and power-line surges.

15.Power Lines-An outside antenna system should not be

located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into

such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep from

touching such power lines or circuits as contact with them

might be fatal.

16.Overloading-Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind

into this TV/VCR/DVD through openings as they may

touch dangerous voltage points or short out parts that could

result in a fire or electric shock. Never spill liquid of any

kind on the TV/VCR/DVD.

18.Servicing-Do not attempt to service this TV/VCR/DVD

yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

19.Damage Requiring Service-Unplug this TV/VCR/DVD

from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the

TV/VCR/DVD.

c. If the TV/VCR/DVD has been exposed to rain or water.

d. If the TV/VCR/DVD does not operate normally by follow-

ing the operating instructions. Adjust only those controls

that are covered by the operating instructions, as improper

adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the TV/VCR/DVD to its normal operation.

e. If the TV/VCR/DVD has been dropped or damaged in any

way.

f. When the TV/VCR/DVD exhibits a distinct change in per-

formance-this indicates a need for service.

20.Replacement Parts-When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer that have the same character-

istics as the original part. Unauthorized substitutions may

result in fire, electric shock, injury to persons or other haz-

ards.

21.Safety Check-Upon completion of any service or repairs to

this TV/VCR/DVD, ask the service technician to perform

routine safety checks to determine that the TV/VCR/DVD

is in proper operating condition.

22.Heat-This TV/VCR/DVD product should be situated away

from heat sources such as radiators, heat registers, stoves,

or other products (including amplifiers) that produce heat.

GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

S2898A

WIRE

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

ELECTRODE SYSTEM

(NEC ART 250, PART H)

SERVICE

EQUIPMENT

CLAMP

ANTENNA

LEAD IN

ANTENNA

POWER SERVICE GROUNDING

GROUND

ELECTRIC

FIGURE A

- 4 - EN

1B15

RADIO-TV INTERFERENCE

This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be deter-

mined by turning the equipment off and on, the

user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment

and receiver.

3) Connect the equipment into an outlet on a cir-

cuit different from that to which the receiver is

connected.

4) Consult the dealer or an experienced radio/TV

technician for help.

FCC WARNING- This equipment may gener-

ate or use radio frequency energy. Changes or

modifications to this equipment may cause

harmful interference unless the modifications

are expressly approved in the instruction man-

ual. The user could lose the authority to oper-

ate this equipment if an unauthorized change

or modification is made.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public perfor-

mance and lending of discs are prohibited.

This product incorporates copyright protection tech-

nology that is protected by method claims of certain

U.S. patents and other intellectual property rights

owned by Macrovision Corporation and other rights

owners. Use of this copyright protection technology

must be authorized by Macrovision Corporation,

and is intended for home and other limited viewing

uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

LASER SAFETY

This unit employs a laser. Only a qualified service

person should remove the cover or attempt to ser-

vice this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUST-

MENTS OR PERFORMANCE OF PROCE-

DURES OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN AND INTERLOCK

DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK

MECHANISM.

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la classe B est con-

forme à la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS

ÉLECTRIQUES, INTRODUIRE LA LAME LA

PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE

ET POUSSER JUSQU’AU FOND.

PRECAUTIONS

- 5 - EN

1C29

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

LOCATION

For safe operation and satisfactory performance of

your TV/VCR/DVD, keep the following in mind

when selecting a place for its installation:

•Shield it from direct sunlight and keep it away from

sources of intense heat.

•Avoid dusty or humid places.

•Avoid places with insufficient ventilation for proper

heat dissipation. Do not block the ventilation holes at

the top or bottom of the unit. Do not place the unit

on a carpet because this will block the ventilation

holes.

•Install unit in a horizontal position.

•Avoid locations subject to strong vibration.

•Do not place the TV/VCR/DVD near strong magnetic

fields.

•Avoid moving TV/VCR/DVD to locations where

temperature differences are extreme.

•Do not handle the power cord with wet hands.

•Do not pull on the power cord when disconnecting

it from an AC wall outlet. Grasp it by the plug.

•If by accident, water is spilled on your unit, unplug

the power cord immediately and take the unit to our

Authorized Service Center for servicing.

•Do not put your fingers or objects into the

TV/VCR/DVD disc loading tray.

•Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit

when it is moved from a cold place to a warm place

or after heating a cold room or under conditions of

high humidity. If a DVD is played in a TV/VCR/

DVD which has moisture, it may damage the DVD

and TV/VCR/DVD. Therefore when the condensation

occurs inside the unit, turn the POWER on and allow

at least 2 hours for the unit to dry out.

The serial number of this product may be found on the back of the unit. No other TV/VCR/DVD has the same

serial number as yours. You should record the number and other vital information here and retain this book as

a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

The following symbols below appear in some head-

ings and notes in this manual, with the following

meanings

: Description refers to TV/VCR operation (in the

TV/VCR mode).

: Description refers to playback of DVD video discs

(in the DVD mode).

: Description refers to playback of audio CDs

(in the DVD mode).

: Description refers to playback of MP3 discs

(in the DVD mode).

: Description refers to the items to be set by the

QUICK mode (in the DVD mode).

QUICK

MP3

DVD-V

TV/VCR

SYMBOLS USED IN THIS MANUAL

ANOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in

accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regula-

tions concerning chemical wastes.

- 6 - EN

1C29

TABLE OF CONTENTS

CIMPORTANT SAFEGUARDS . . . . .2

CPRECAUTIONS . . . . . . . . . . . . . . . .4

LOCATION . . . . . . . . . . . . . . . . . . .5

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE .5

WARNING . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS

MANUAL . . . . . . . . . . . . . . . . . . . . .5

CTABLE OF CONTENTS . . . . . . . . . .6

CFEATURES . . . . . . . . . . . . . . . . . . . .7

COPERATING CONTROLS AND

FUNCTIONS . . . . . . . . . . . . . . . . . . .9

CPREPARATION FOR USE . . . . . . .11

ANTENNA/CABLE

CONNECTION . . . . . . . . . . . . . . . .11

CONNECTING TO EXTERNAL

INPUT JACKS . . . . . . . . . . . . . . . .12

INSTALLING THE BATTERIES . .12

EXTERNAL INPUT MODE . . . . . .12

CONNECTING TO A STEREO

AMPLIFIER EQUIPPED WITH DIGI-

TAL INPUT JACKS SUCH AS MD

DECK OR DAT DECK (for DVD) .13

CONNECTING TO A DOLBY

DIGITAL DECODER (for DVD) . .14

TV/VCR SECTION

CSET UP FOR USE . . . . . . . . . . . . .15

SELECTING THE LANGUAGE . .15

CLOCK SET UP

(AUTO / MANUAL) . . . . . . . . . . . .15

DAYLIGHT-SAVING TIME . . . . . .17

CHANNEL SET UP . . . . . . . . . . . .18

DELETING (OR ADDING)

CHANNEL(S) . . . . . . . . . . . . . . . . .18

CTV OPERATION . . . . . . . . . . . . . . .19

WATCHING A TV PROGRAM . . .19

DEGAUSSING . . . . . . . . . . . . . . . .19

PICTURE CONTROL . . . . . . . . . . .19

CLOSED CAPTION SYSTEM . . . .20

V-CHIP SET UP . . . . . . . . . . . . . . .21

CMTS(Multi-Channel Television

sound)SYSTEM . . . . . . . . . . . . . . . .23

CHECKING THE SELECTED

MTS MODE . . . . . . . . . . . . . . . . . .23

MTS RECORDING/MONITOR

MODE . . . . . . . . . . . . . . . . . . . . . .23

SELECTING THE MTS SYSTEM .24

CVIDEO CASSETTE . . . . . . . . . . . . .25

CPLAYBACK . . . . . . . . . . . . . . . . . . .26

NORMAL PLAYBACK . . . . . . . . .26

TRACKING ADJUSTMENT . . . . .26

SLOW MOTION . . . . . . . . . . . . . .26

STILL PICTURE . . . . . . . . . . . . . .26

VERTICAL HOLD CONTROL . . .26

CSPECIAL PLAYBACK . . . . . . . . . .27

RENTAL PLAYBACK . . . . . . . . . .27

AUTO REPEAT PLAYBACK . . . . .27

CSEARCH . . . . . . . . . . . . . . . . . . . . .28

ZERO RETURN . . . . . . . . . . . . . . .28

PICTURE SEARCH . . . . . . . . . . . .28

TIME SEARCH . . . . . . . . . . . . . . .28

INDEX SEARCH . . . . . . . . . . . . . .29

CSPECIAL FEATURES . . . . . . . . . .29

REAL TIME TAPE COUNTER . . .29

AUTO REWIND-EJECT . . . . . . . .29

CRECORDING . . . . . . . . . . . . . . . . .30

NORMAL RECORDING . . . . . . . .30

SKIPPING UNWANTED SCENES

DURING RECORDING . . . . . . . . .30

OTR (One Touch Recording) . . . . . .31

COPYING A VIDEO CASSETTE

(Requires a VCR or camcorder) . . .31

CTIMER . . . . . . . . . . . . . . . . . . . . . .32

AUTOMATIC

TIMER RECORDING . . . . . . . . . .32

TIMER PROGRAM EXTENSION .33

HINTS FOR AUTOMATIC TIMER

RECORDING . . . . . . . . . . . . . . . . .34

AUTO RETURN . . . . . . . . . . . . . . .34

SLEEP TIMER . . . . . . . . . . . . . . . .34

CON SCREEN DISPLAY . . . . . . . . .35

CCABLE CHANNEL

DESIGNATIONS . . . . . . . . . . . . . .35

DVD SECTION

CABOUT THE DISCS . . . . . . . . . . . .36

PLAYABLE DISCS . . . . . . . . . . . .36

DISC TYPES . . . . . . . . . . . . . . . . .36

CPLAYING A DISC . . . . . . . . . . . . . .37

BASIC PLAYBACK . . . . . . . . . . . .37

GENERAL FEATURES . . . . . . . . .37

DISC MENU . . . . . . . . . . . . . . . . .37

TITLE MENU . . . . . . . . . . . . . . . . .37

RESUME . . . . . . . . . . . . . . . . . . . .38

PAUSE . . . . . . . . . . . . . . . . . . . . . .38

STEP BY STEP PLAYBACK . . . . .38

FAST FORWARD/REVERSE

SEARCH . . . . . . . . . . . . . . . . . . . .38

SLOW FORWARD / SLOW

REVERSE . . . . . . . . . . . . . . . . . . . .38

CSEARCH FUNCTION . . . . . . . . . . .39

TRACK SEARCH . . . . . . . . . . . . .39

TITLE / CHAPTER SEARCH . . . .39

TIME SEARCH . . . . . . . . . . . . . . .39

MARKER SETUP SCREEN . . . . . .39

SPECIAL PLAYBACK FUNCTION . . .40

REPEAT . . . . . . . . . . . . . . . . . . . . .40

PROGRAM . . . . . . . . . . . . . . . . . . .40

RANDOM PLAYBACK . . . . . . . . .40

CPLAYING A MP3 DISC . . . . . . . . . .41

MP3 PLAYBACK . . . . . . . . . . . . . .41

REPEAT . . . . . . . . . . . . . . . . . . . . .41

PROGRAM . . . . . . . . . . . . . . . . . . .41

RANDOM PLAYBACK . . . . . . . . .41

CCHANGING THE SETTINGS . . . .42

SUBTITLE LANGUAGE . . . . . . . .42

AUDIO LANGUAGE . . . . . . . . . . .42

STEREO SOUND MODE . . . . . . . .42

CAMERA ANGLE . . . . . . . . . . . . .42

BLACK LEVEL SETTING . . . . . . .42

VIRTUAL SURROUND . . . . . . . . .42

THE ON-SCREEN INFORMATION . . .43

CCHANGING THE DVD SETUP

ITEMS . . . . . . . . . . . . . . . . . . . . . . .44

LANGUAGE SETTING . . . . . . . . .44

DISPLAY SETTING . . . . . . . . . . . .45

AUDIO SETTINGS . . . . . . . . . . . .45

PARENTAL CONTROL . . . . . . . . .46

INITIALIZE . . . . . . . . . . . . . . . . . .46

CTROUBLESHOOTING GUIDE . . .47

CMAINTENANCE . . . . . . . . . . . . . . .50

DISC HANDLING . . . . . . . . . . . . .50

CSPECIFICATIONS . . . . . . . . . . . . .51

CESPAÑOL . . . . . . . . . . . . . . . . . . . .52

CWARRANTY . . . . . . . . . . .Back Cover

- 7 - EN

1C29

•Hi-Fi system–The Hi-Fi stereo recording system

offers you excellent sound quality with a dynamic

range of 80dB, frequency response from 20Hz to

20kHz and 0.005% wow and flutter.

•Rotary 4-head Record/Playback System–Four

video heads ensure excellent picture quality and

special effects playback.

•Index Search–Fast-forwards to start of next

recording.

•Slow Motion–View recorded program at slower

than normal speed.

•Infrared remote control

•Trilingual on screen TV/VCR setup display

selectable in English, Spanish or French

•Real time counter–This shows the elapsed record-

ing or playback time in hours, minutes and sec-

onds. The “–” indication will appear when the tape

is rewound further than the tape counter position

“0:00:00”.

•181 channel capability PLL frequency synthesiz-

er tuner with direct station call–(A converter may

be necessary to view scrambled cable channels.)

•Auto Clock Setting–Allows you to set the clock

function from a PBS broadcast station.

•Closed caption system–You may view specially

labeled (cc) TV programs, movies, news, prere-

corded tapes, etc. with either a dialogue caption or

text display added to the program.

•Auto power on and off system–Automatically

turns on the TV/VCR/DVD when you insert the

cassette, turns off after auto-rewind and ejects

when the beginning of the tape is reached.

•Auto rewind when the end of a tape is

reached–This function doesn’t occur when using

timer recording.

•Smooth mode change–TV/VCR mode and DVD

mode automatically changes without control.

•2 Step picture search operation–You can view a

video program at high speed or super high speed in

either a forward or reverse direction in LP and SLP

mode. For SP mode only high speed is available.

•

Three different playback tape speeds : SP/LP/SLP

•Two different recording tape speeds : SP/SLP

•Auto Head Cleaner–Automatically cleans video

heads as you insert or remove a cassette.

•Zero Return–The tape returns to counter of

0:00:00 by rewinding or fast forwarding.

•Still–“Freeze” the picture at any time, for close

viewing of a particular scene.

•Digital Auto Tracking (DTR)–Automatically

adjusts the tracking for each tape you play.

•Rental play mode–Improves playback picture

quality from worn tapes, such as rental tapes.

•Auto repeat–Allows you to repeat the playing of a

tape indefinitely without pressing the PLAY button.

•Time search–Lets you set the TV/VCR/DVD to

advance the tape by entering the desired playback

time you want to skip.

•OTR (One Touch Recording)–Instant timed

recording from 30 to 480 minutes is possible at the

push of the REC/OTR button.

•1 Year, 8 events (including Daily and Weekly

Timer Recording)–The built-in timer allows you to

record up to 8 programs at different times on dif-

ferent channels up to 1 year in advance. The Daily

timer allows recordings to be made of daily broad-

casts and the Weekly timer allows recording to be

made once a week up to the end of the tape.

•Auto return–After timer recording is finished, the

TV/VCR/DVD can return to the beginning of the

recording.

•Sleep timer–

Allows you to have the TV/VCR/DVD

automatically turn off at a desired time.

•Timer Program Extension–Allows you to shift the

time schedule for automatic timer recording.

•V-CHIP–Enables parents to prevent their children

from watching inappropriate material on TV.

FEATURES

TV/VCR Mode

- 8 - EN

1C29

¡Dolby Digital sound

This TV/VCR/DVD can handle Dolby Digital sur-

round sound having 5.1 channels when connected to

a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still

pictures, fast forward/reverse, slow motion and step

frames.

¡Random playback for audio CD and MP3

This unit can shuffle the order of tracks to play them

in random order.

¡Program playback for audio CD and MP3

You can program the order of tracks to play them in

any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language,

if available on a DVD.

¡Screen saver/Auto power-off functions

The screen saver program starts when there is no

input from the unit for 5 minutes in the stop mode.

When the screen saver program is activated for 15

minutes, the power automatically turns off.

¡Subtitles in a desired language

You can select a desired language for the display

subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc

contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound

mode, if different languages and modes are available

on a disc.

¡Parental lock

You can set the control level to limit playback of

discs which may not be suitable for children.

¡Automatic detection of discs

This unit automatically detects if the loaded disc is

DVD, audio CD or MP3 on disc.

¡Playback MP3 disc

¡On-screen display

Information about the current operation can be dis-

played on a TV screen, allowing you to confirm the

currently active functions (such as program play-

back), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time

¡Repeat

Chapter / Title / Track / Group / All / A-B

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which

the play was stopped.

¡Virtual Surround

¡Bit rate indication

¡DRC (Dynamic range control)

You can control the range of sound volume.

NOTE:

•We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

a universal remote control.

If you decide to use a universal remote control with this TV/VCR/DVD, please be aware that the code num-

ber given may not operate this TV/VCR/DVD. In this case, please call the manufacturer of the universal

remote control.

DVD Mode

- 9 - EN

1C29

OPERATING CONTROLS AND FUNCTIONS

5.STOP Button

[TV/VCR P.26 / DVD P.37]

Stops operation of the disc. (or front panel)

Stops operation of the disc or tape contents.

(remote control)

6.OPEN/CLOSE Button

[DVD P.37]

Press to insert discs into or remove them from the tray.

7.Disc loading tray

8.DVD Indicator

Lights up during DVD mode.

9.SELECT Button

Press to change to TV/VCR mode, external input

mode or DVD mode.

10.TV/VCR Indicator

Lights up during TV/VCR mode.

11. CHANNEL (CH.) K/LButtons

Press to select memorized channel.

12. Recording Indicator

Flashes during recording. Lights up in the Stand-

by mode for Timer Recording.

13. REC/OTR Button (Front Panel)

[TV/VCR P.30, 31]

Press to start manual recording. Press repeatedly

to start One Touch Recording.

RECORD Button (Remote Control)

[TV/VCR P.30]

Press to start manual recording.

14. REW Button (for TV/VCR)

[TV/VCR P.26]

Press to rewind the tape, or to view the picture rapidly

in reverse during playback mode. (Rewind Search)

15. F.FWD Button (for TV/VCR)

[TV/VCR P.26]

Press to rapidly advance the tape, or to view the

picture rapidly in forward during playback mode.

(Forward Search)

16. STOP/EJECT Button

[TV/VCR P.28]

Press to stop the tape motion. Press in the Stop

mode to remove tape from the unit.

17. Remote sensor window

18. HEADPHONE Jack

To connect headphone (not supplied) for personal

listening.

19. VIDEO input Jack

Connect to the video output jack of a video

camera or VCR.

- REMOTE CONTROL - [Fig. 2]

1.POWER Button

[TV/VCR P.15 / DVD P.37]

Press to turn the power on and off.

2.VOLUME (VOL.) X/YButtons

Press to control the volume level for the DVD and TV.

3.SKIP Buttons (for DVD)

[P.38]

Press once to skip chapters or tracks to a desired

point.

Press and hold to change forward or reverse play-

back speed.

4.PLAY Button

[TV/VCR P.26 / DVD P.37]

Starts playback of the disc or tape contents.

- TV/VCR/DVD FRONT PANEL - [Fig.1]

124 5 6 1071514983 3 41213 212019181711 16

DVD buttonsDVD buttons TV/VCR buttonsTV/VCR buttons

DVD

SEARCH TV/VCR

PAUSE

PLAY

STOP

ENTER

RECORD

DISC

RETURNTITLESETUP

REPEATSEARCH MODE

CLEAR

MODE ANGLESUBTITLEAUDIO

DISPLAY

SPEED C.RESET

POWER PICTURE SELECTSLEEP

CH.

VOL.

MUTEV.SURR

123

456

789

0+10

+100

(DVD) 3

(TV/VCR) 14

3 (DVD)

15 (TV/VCR)

- 10 - EN

1C29

46 48

ANT.

AUDIO OUT

COAXIAL

20. AUDIO L/R input Jacks

Connect to the audio output jacks of a video

camera or VCR.

21. Cassette compartment

22. PICTURE Button

Press to adjust the picture.

23. Number Buttons

TV/VCR Mode:

[P.15]

Press two digits to directly access the desired

channel.

Remember to press a "0" before a single digit

channel.

+100 Button–

Press to select cable channels which are equal or

greater than number 100.

DVD Mode:

Press to enter the desired number.

+10 Button–

Press to enter the desired numbers which are

equal or greater than number 10.

24. PAUSE Button

[TV/VCR P.26 / DVD P.38]

Pauses the current disc or tape operation.

25. SPEED Button

[TV/VCR P.30]

Press to choose the desired recording speed:

SP/SLP.

26. C.RESET Button

[TV/VCR P.28]

Press to reset counter to 0:00:00.

Press to cancel a setting of timer program. (See

page 33.)

27. DISPLAY Button

TV/VCR Mode:

Display the counter or the current channel number

and current time on the TV screen.

DVD Mode:

[P.43]

Displays the current status on the TV screen for

checking purposes.

28. SETUP Button

[TV/VCR P.15] [DVD P.44-46]

Press to enter or exit the TV menu or DVD setup

mode.

29. TITLE Button

[DVD P.37]

Displays the title menu.

30. CLEAR Button

Resets a setting.

31. MODE Button

[DVD P.41]

Activates program playback or random playback mode.

32. SEARCH MODE Button

[DVD P.39]

Press to locate a desired point.

33. AUDIO Button

[DVD P.42]

Press to select a desired audio language or sound

mode.

34. SUBTITLE Button

[DVD P.42]

Press to select a desired subtitle language.

35. REPEAT Button

[DVD P.42]

Repeats playback of the current disc, title, chapter,

group or track.

36. ANGLE Button (DVD mode)

[DVD P.42]

Press to change the camera angle to see the

sequence being played back from a different angle

(if available).

37. A-B REPEAT Button

[DVD P.40]

Repeats playback of a selected section.

38. RETURN Button

Returns to the previous operation in the DVD

setup mode.

39. ENTER Button

Press to accept a setting.

40. Arrow Buttons

TV/VCR Mode:

Press to select a setting mode from the menu on

the TV screen.

Press to select or adjust from a particular menu.

DVD Mode:

Use when making settings while watching the

display on a TV screen.

41. DISC MENU Button

[DVD P.37]

Displays the menus in the DVD.

42. V. SURR (VIRTUAL SURROUND) Button

[DVD P.42]

Sets virtual surround on/off.

43. MUTE Button

Mutes the sound. Press it again to resume sound.

44. SLEEP Button

[TV/VCR P.34]

Sets the Sleep Timer.

45. SELECT Button

Press to switch TV/VCR and DVD mode. You can

see the mode (TV/VCR or DVD) on the front

panel indicator.

- TV/VCR/DVD REAR PANEL - [Fig.3]

Table des matières

Autres manuels ESA Combinaison téléviseur/magnétoscope

ESA

ESA EC720E Manuel utilisateur

Manuels Combinaison téléviseur/magnétoscope populaires d'autres marques

RCA

RCA T25062 Manuel utilisateur

Sony

Sony KV-13VM40 User (English, Espa& Manuel utilisateur

Sony

Sony TRINITRON KV-VF21M70 Manuel utilisateur

Panasonic

Panasonic Omnivision VHS PV-C2540 Manuel utilisateur

FUNAI

FUNAI F3813C Manuel utilisateur

Sylvania

Sylvania 6309CC Manuel utilisateur

RCA

RCA TV/VCR COMBINATION Manuel utilisateur

Symphonic

Symphonic SSC099 Manuel utilisateur

Philips

Philips Combi 14 PV 172 Manuel utilisateur

Magnavox

Magnavox MGTD204 Manuel utilisateur

Symphonic

Symphonic SC309C Manuel utilisateur

Sylvania

Sylvania SRC2213X Manuel utilisateur

Sylvania

Sylvania SRC19AC Manuel utilisateur

Philips

Philips 14PV320 Manuel utilisateur

RCA

RCA T25208 Manuel utilisateur

Sylvania

Sylvania 6724FDF Manuel utilisateur

Sylvania

Sylvania SY20C6144-A Manuel utilisateur

Sylvania

Sylvania 6727FDE Manuel utilisateur
