Erreka MAGIC Mode d'emploi

MAGIC

Quick installation and programming guide English

WARNING

This quick guide is a summary of the complete installation manual. The manual contains safety warnings and

other explanations which must be taken into account. The installation manual can be downloaded by going

to the "Downloads" section of Erreka website:

http://www.erreka-automation.com

E248A

*4 x 1mm2

(max. 20m)

2 x 0,75mm2

(max. 20m)

3 x 1,5mm2

(max. 30m)

2 x 0,5mm2

(max. 20m)

RG-58/U

2 x 0,5mm2

(max. 20m)

Rx: 4 x 0,5mm2 /

Tx: 2 x 0,5mm2

(max. 30m)

Elements of the complete installation

Electrical wiring

A: Main power supply

B: LUMI flashing light

C: Photocells (Rx/Tx)

D: Pushbutton/key switch

E: Operator *:

motor: 4x1mm2

brake: 2x1mm2

encoder: shielded cable 2x0.5mm2

F: LUMI built-in antenna

G: Electrolock

VERY IMPORTANT:

The TC closing limit switch and the TA

opening limit switches must be installed

in all cases.

*NOTE: the electrical installation of the operator can be

done correctly and straightforwardly using the cable with

AYCY8 code, which ERREKA can supply by metre. This cable

has the characteristics 4x1mm2+2x1mm2+ ((2x0.5mm2))

and was developed specifically for this use.

The electrolock is obligatory for operators without lock

(MA210 and MA250). For operators with lock, the

electrolock must be used for gate leaf lengths of over

1.8m.

MST-042/00

A244A1

Unlocked (only for models with brake)

Unlocked for manual operation:

•Insert the key in the lock for unlocking and turn

approximately 120º towards the side of the wall.

Lock for motorised operation:

•Turn the key again 120º away from the wall to

lock.

M248D1

M248A1

130mm

96mm

78mm

174mm

670mm

57mm

85mm

110mm

Assembly levels

For safety: A>25mm (B>45mm)

Frame dimensions

A: frame exterior: 100 mm

B: frame interior:

•aluminium gates: ERREKA

profile 100x100x5;

•iron gates: 100x100x4

profile

M248C

Template to make the orifices

1 Holes for upper profile cover

attachment

2 Holes for lock

3 Motor attachment holes

4 Holes for lower profile cover

attachment

M248B1

46mm

9,5mm

General levels

P248G1

P248A1 P248C1

P248B1

P248F

P248D1

P248I1

Assembly

10 With the seal (T) in place, position

the upper cover (10) so that its slot

coincides with the protrusion on

the frame (R).

11 With the seals (S) in place, position

the top stud (11) and the plate

support (12).

12 Position the angle piece (13),

respecting the height levels.

13 Tighten the gland (14).

14 Place the attachment screws and

washers (15).

15 Install the water guard (16).

1 Position the base plate (1),

respecting the height levels. 2 Using the template provided,

make 4 boreholes (2) to secure the

operator with a 10.5 mm drill bit.

3 Make the 6.5-mm holes (3).

4 Only operators with lock: drill the

21-mm holes (4).

5 Make the three holes (5) to fix the

upper cover. Use a 6.5 mm drill bit. 6 Insert the operator and fit its

screws (6) without tightening

them. In iron frames, insert the

P plate between the operator

and the frame.

7 Install the caps (7) to stop

water coming in.

8 Mount the lower cover (8).

9 Insert the bushing (9) in the

operator shaft and tighten the

screws (6).

Position the assembly (M) on the

base plate (1), ensuring the drag

wheel is correctly coupled.

P248H1

P248J1

P246Z

ENCODER1 ENCODER2

P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23

GND

V+

SNG1

SNG2

GND

V+

SNG1

SNG2

-FT

(Tes )

AUX

24 Vdc

ST1

FT1

P1 P2 P3

ST2

FT2

P4 P5 P6

STOP

P7 P8

WARNING

LIGHT

P10

24V

P11

P12

LOCK

Lamp.

G9 G10

G7 G8

Cour esy

Ligh

G1 G2 G3

MOTOR1

G4 G5 G6

MOTOR2

CN13

POWER - 230V

P24 P25

EDGE

ST1

FT1

P1 P2 P3

ST2

FT2

P4 P5 P6

STOP

P7 P8

WARNING

LIGHT

P10

24V

P11

P12

LOCK

ST1

V+

GND

SGN1

POWER - 230V

VIVO-M203:

230V, 50Hz

VIVO-M203M:

125V, 60Hz

ST2

EPS1

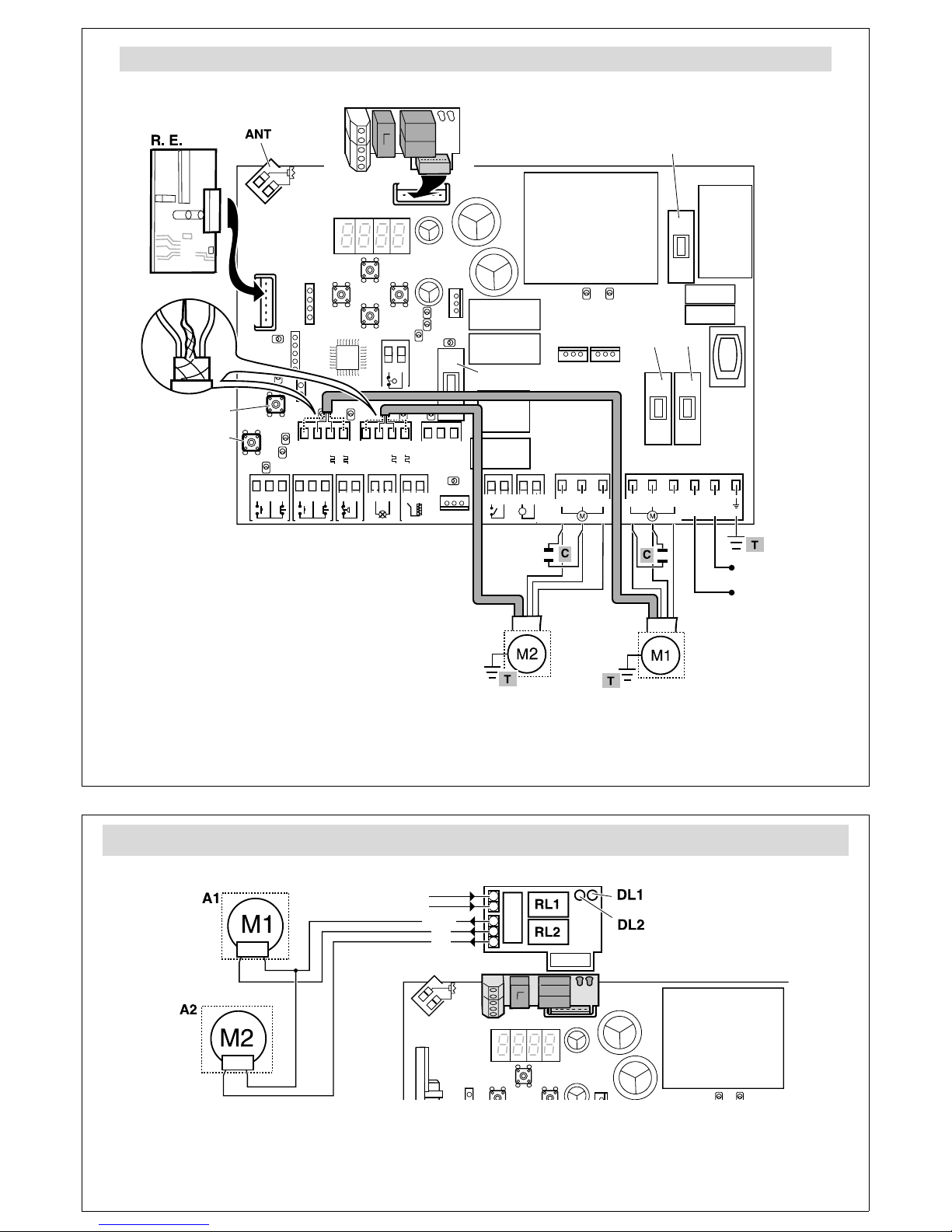

Electrical connections, control board VIVO-M203

M1 and M2 motor connection:

G4/G1: brown cable

G5/G2: black cable

G6/G3: grey cable

C: capacitor; MA210/ MA210F /MAS210F: 5μF; MA250/ MA250F /MAS250F: 8μF

Encoder connection (if available):

V+: red cable

GND: mesh

SGN1: blue cable

Check the control board instructions to connect the other

components and carry out programming.

EPS1

COM

FR2

FR1

P249Y

M203: 230V/50Hz

Brake cabling by way of EPS1 (VIVO-M203, parameter Ab01)

DL1: Red LED, FR1 activation

DL2: Green LED, FR2 activation

COM: Orange cable (models with encoder)

white cable (models without encoder)

L1, L2: purple cable (models with encoder)

red cable (models without encoder)
