Ericsson GH198 Manuel utilisateur

Digital Handheld Telephone

for GSM

Ericsson

GH198

User’s Manual

This manual is published by Ericsson Mobile Communications AB,

without any warranty. Improvements and changes to this manual neces-

sitated by typographical errors, inaccuracies of current information, or

improvements to programs and/or equipment, may be made by

Ericsson Mobile Communications AB, at any time and without notice.

Such changes will, however, be incorporated into new editions of this

manual.

©Ericsson Mobile Communications AB, 1993.

INNOVATRON PATENTS

SAFETY AND PRECAUTIONS

●Switch off your cellular telephone when in an aircraft.

The use of cellular telephones in an aircraft may be dan-

gerous to the operation of the aircraft, disrupt the cellular

network and is illegal. Failure to observe this instruction

may lead to suspension or denial of cellular telephone

services to the offender, or legal action, or both.

●Users are advised to switch off the cellular telephone

when at a refuelling point.

●Users are reminded of the need to observe restrictions on

the use of radio equipment in fuel depots, chemical

plants, or where blasting operations are in progress.

●A hand-held microphone or telephone handset should not

be used by the driver while the vehicle is moving, except

in an emergency. You should only speak into a fixed,

neck slung or clipped-on microphone when it would not

distract your attention from the road. Do not stop on the

hard shoulder of a motorway to answer or make a call,

however urgent.

●There may be a hazard associated with using your GSM

telephone close to personal medical electronic devices,

such as hearing aids and pacemakers.

●Operation of your GSM telephone close to other elec-

tronic equipment, such as televisions, radios and per-

sonal computers may cause interference.

●Use only Basic Charger 4213 and AC/DC Converter

4214, Rapid Charger 4219, or Multi Charger 4221 and

AC/DC Converter 4222 with this telephone. Other usage

will invalidate any approval given to this telephone and

may be dangerous.

APPROVED for connection to

telecommunication systems specified

in the instructions for use subject

to the condition set out in them.

S/1208/4/P/502763

iii

CONTENTS

Introduction 1

Basic Operation 6

Making the Phone Ready for Use 6

Attaching the Battery 6

Unfolding the Antenna 6

Turning the Phone On 6

Entering a Phone Number 8

Making a Call 8

Last Number Recall 9

International Calls 9

Emergency calls 10

Receiving a Call 10

Unanswered Calls 10

Call Time Meter 10

Audible Call Timer 11

Volume Control 11

Microphone Mute 11

Scratch Pad 11

Key Lock 11

Turning the Phone Off 11

Details on the Display and Keys 12

Display 12

Alphanumeric Field 12

Numeric Field 12

Status Indicators 12

Keypad 14

Illumination 17

Audible Signals 17

Ringing Signal 17

Alarm Signal 18

Error Signal 18

Confirmation Click 18

Visual Signals 18

Storing Numbers 19

Storing a Number (and Name) 19

Memory Protection 20

Memory Full 20

Erasing a Stored Number (and Name) 21

Recalling Numbers 22

Numeric and Alphabetic Mode 22

Recalling a Number Using Numeric

Mode 22

Scrolling through the Memory 22

Alternative Method for Recalling

a Number 22

Speed Calling 23

Recalling a Number Using Alphabetic Mode 23

Scrolling through the Memory 23

Reviewing the First Digits if a Recalled Number Contains More

than 10 Digits 23

Appending Digits to a Recalled Number 24

Replacing the Last Digits of a Recalled Number 24

Dialling Memory and Scratch Pad 25

Dialling Memory 25

Recalling the Last Six Numbers Called 25

Scratch Pad 25

Storing a Number 25

Recalling a Number 26

DTMF Signalling 27

Sending DTMF Signals 27

Sending a Code 27

Pre-programmed DTMF Signalling 27

Special Functions 29

Accessing a Special Function 30

Using Method 1 30

Using Method 2 30

Using a Combination of the Two Methods 31

Leaving a Special Function 31

Changing a Setting 31

Storing a New Setting 31

0. Ringing Signal Volume 32

1. Key Clicks, Silent Keypad or DTMF Signals 32

2. Call Forwarding 32

3. Call Barring 34

4. Automatic Re-try 36

5. Back Light 37

6. Current Network 37

7. Available Networks 37

8. Network Selection Mode 38

9. Automatic Network Selection 38

10. List of ‘‘Preferred’’ Networks 39

11. Last Call Time 40

12. Total Call Time 40

13. Minute Minder 40

14. PIN 41

15. Any Key 42

16. Language Selection 42

17. Area Code 42

18. Battery Discharge 43

19. Battery Voltage 43

20. Phone Lock 44

Batteries and Recharging 46

Batteries 46

Battery Meter 46

Low Battery Alarm 46

Care and Maintenance 47

Inserting and Removing a Standard or Slimline Battery 48

Inserting and Removing a High-Capacity Battery 49

Recharging 50

Basic Charger 51

Accessories 53

Hands-Free Vehicle Kit 53

Portable Hands Free 54

Vehicle Power Adaptor and Rapid Charger 55

Multi Charger 57

Problems You Can Solve 60

Phone Does Not Come On 60

INSERT SIM Is Displayed 60

The SERV Indicator Does Not Come On

or the Message NO NETW (No Network) Is Displayed 60

The SERV Indicator Flashes 60

Received Signal Is Weak 60

Flashing Red Indicator Light -- Alarm Signal Sounds 60

Steady Red Indicator Light 61

Changing Your Password 61

Messages 61

Inserting the SIM 62

Introduction

This digital handheld cellular telephone is designed for use

on a GSM (Global System for Mobile communications)

network.

The GSM standard is the result of many years of

collaboration between the telecommunications authorities of

different European countries. This unique cooperation will

result in GSM networks being installed all over Europe as

well as in countries all over the world. This will allow you to

use your phone wherever you travel, for business or

pleasure.

The phone is small and light and simple to use. After you

have turned it on, you can use it in much the same way as

any other telephone.

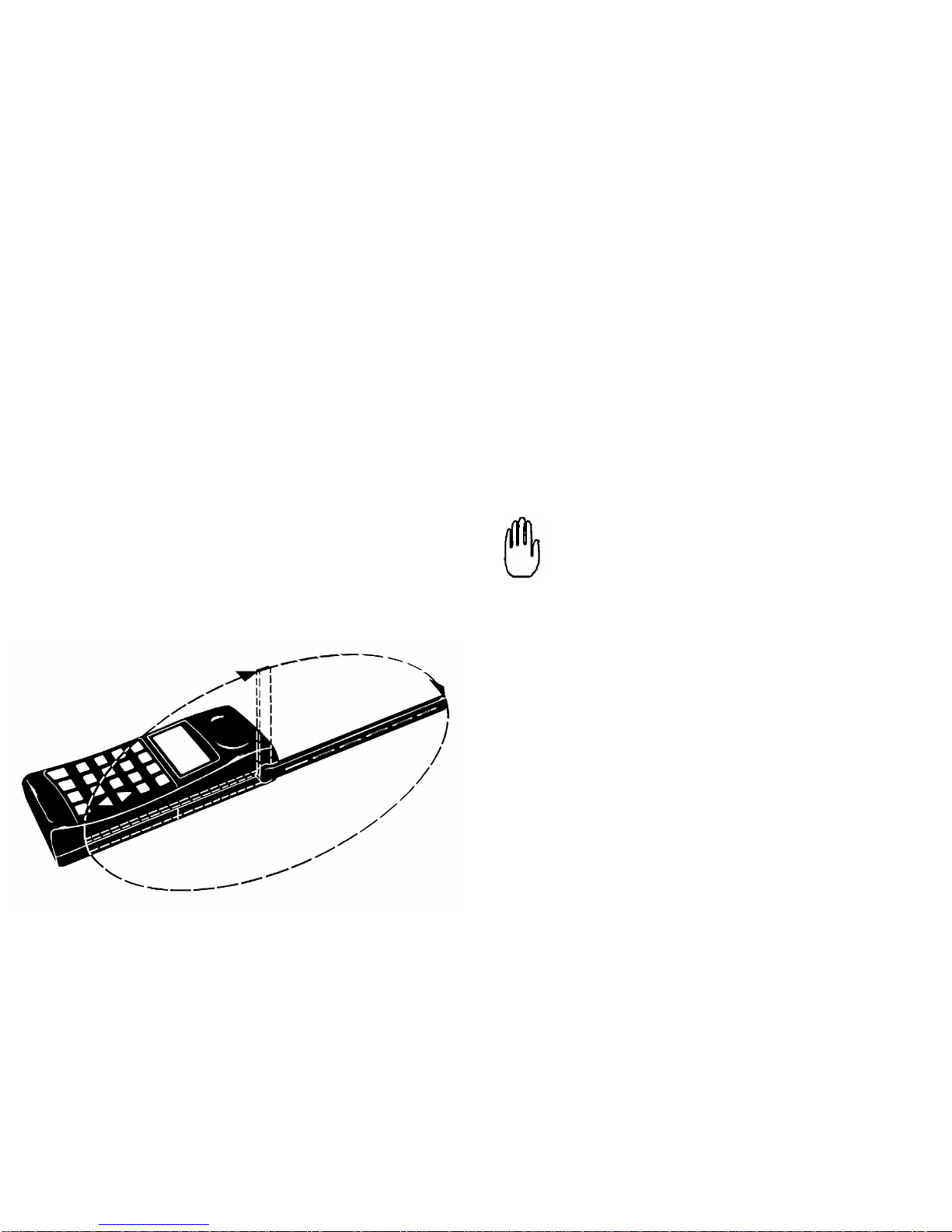

The phone has an antenna which can be unfolded so that it

points directly upwards and, when not in use, can be folded

down completely.

Before holding the phone to your ear, ensure that

the antenna is unfolded completely.

About this manual

This manual is provided to help you use your phone. Keep

it handy to

answer questions you may have.

The next chapter, Basic Operation, describes the most

essential operations: Turning the phone ON/OFF,

making calls and answering calls.

Having learnt to perform these operations, you should read

the third chapter, Details on the Display and Keys, to learn

more about the display, with its status indicators, and the

functions of the various keys. The phone’s aud-

ible and visual signals are dealt with, too.

Then you can go on to read about the more advanced

functions, such as storing phone numbers and

accompanying names in memory, recalling phone numbers

from memory, DTMF signalling, and using the Special

Functions of the phone.

You should pay particular attention to the chapterBatteries

and Recharg-

ing because correct care will prolong the life of a battery

and also the length of time between recharging.

The Problems You Can Solve chapter at the end of the

manual could save the cost of unnecessary service.It lists

some simple things to be checkedbefore calling for service

personnel.

Introduction

Overview

Introduction

Key functions

Introduction

SIM -- Subscriber Identity Module

Your SIM must be inserted. If not, you cannot use the

phone.

The SIM contains your personal data, such as your

subscriber number, your ‘‘home’’ network and services you

have subscribed to.

It also comprises a memory where you can store frequently

used phone numbers. Refer to the chapterStoring

Numbers.

PIN -- Personal Identification Number

Your SIM is protected by a unique 4- to 8-digit PIN.

Special Function No. 14 allows you to decide whether or

not this PIN must be entered each time the phone is turned

ON.

This is called PIN Check. Refer to the chapter Special

Functions.

Electronic lock

Special Function No. 20, Phone Lock allows you to enable

an electronic lock to protect against unauthorized use of the

phone in the event of a theft. Refer to the chapterSpecial

Functions.

Observe the following!

When you turn the phone ON for the first time, all texts in

the display will be in English.

Special Function No. 16 allows you to select a language

other than English. Refer to the chapterSpecial Functions.

Some of the functions described in this manual are

optional, and you may not have access to them.

Additional information

You should also read the operating

instructions from your network operator about coverage

areas and features as call barring and call forwarding.

SIM

Introduction

Table des matières
