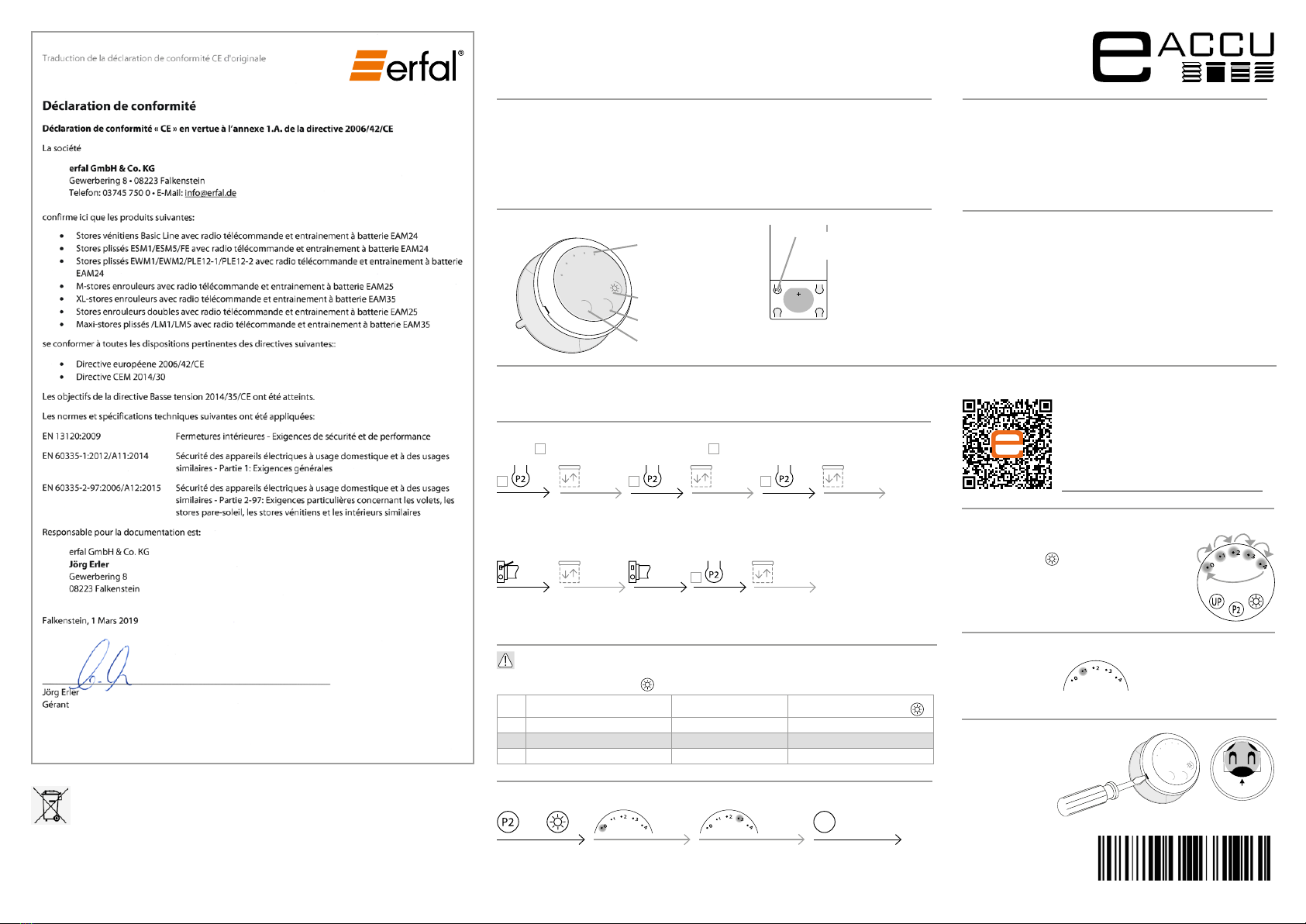

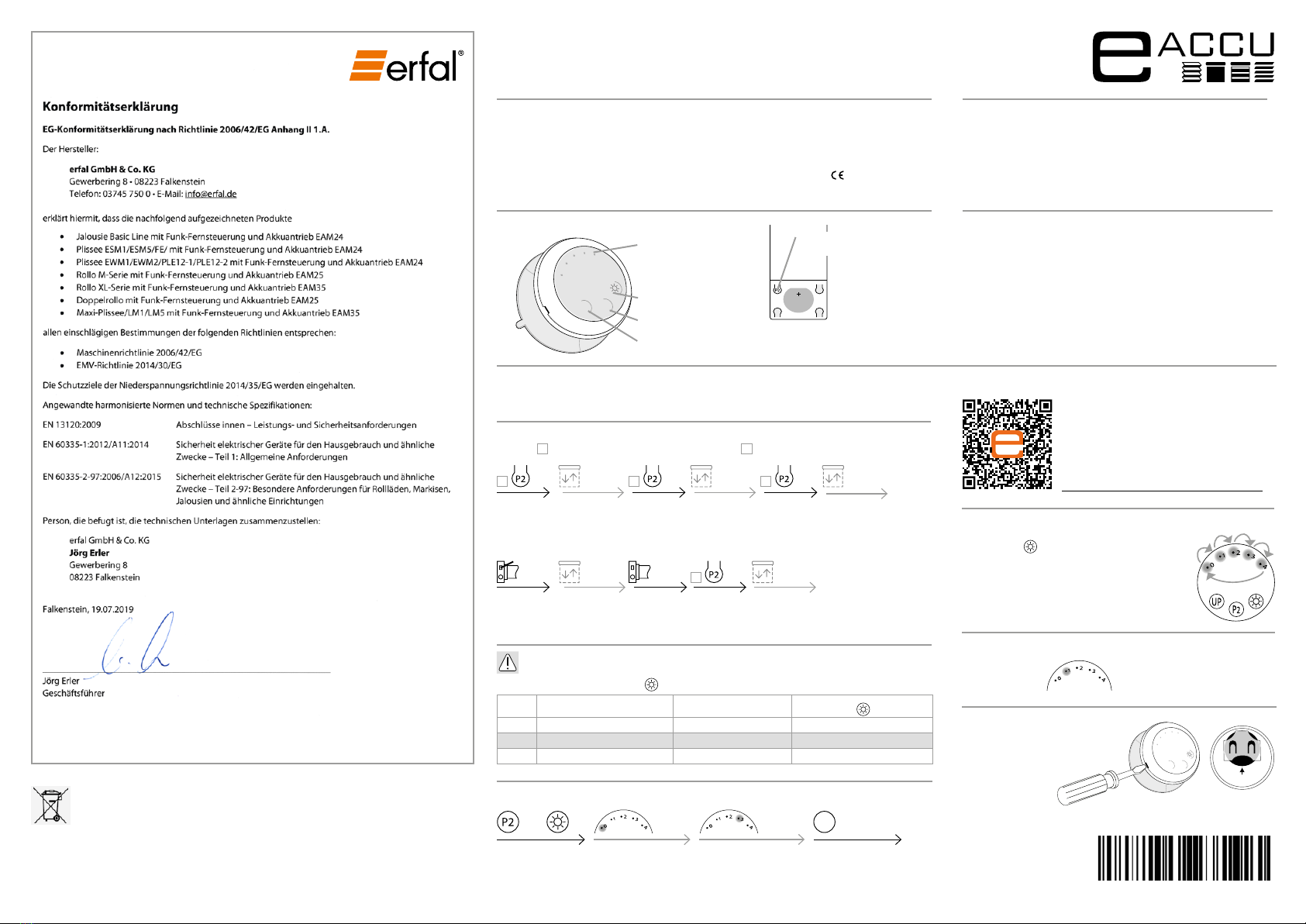

Electric accessories – Programming instructions | EN
Subject to technical change. 07 / 2019
Overview
Programming button P2
Light sensitivity
http://bit.ly/eACCU-Bedienungsanleitungen
Product description
Wireless light sensor for EAM-range
Programming instructions Programming videos
Watch online:
04046046536147
AAB
Press P2
for 1s
1x run up and
down
Press P2
for 1s
1x run up and
down
Press P2
for 1s
2x run up and
down
CR2032
Light levels
Back
remote control
Programming
button P2
B
Press P1
for 2s
1x run up and
down
Release
P1
Press P2
for 1s
2x run up and
down
Name: Wirless light sensor
for the EAM-range
Colour: White
Diametre: Ø 43 mm
Depth: 20 mm incl. suction cup
Radio frequency: 433,00-433,92 MHz
Instructies
• The plastic stripe has to been removed before the rst usage
• The wireless range is up to 30 m.
• Please ensure an unobstructed view to the outside
• Attention: Pay attention to the correct battery type during the
exchange - risk of explosion if disregarded!
• Only suitable for dry and protected interiors.
Up
Operating principle
The light sensor meters permanently the current light intensity.
A down drive command will be sent, if the threshold value (1 - 4) is
exceeded for more than 2 minutes. A up drive command will be sent if
the metered light intensity will fall below the threshold value for more
than 15 minutes. The sun protection product will move up with a tip
on the “UP” button. Further, the automatic for a sequence is deactiva-
ted. The automatic will be reactivated after a exceeding of the thres-
hold value for 15 minutes and afterwards a 2-minute exceeding .
Transmission power: 10 Milliwatt
Number of motors: max. 20
Protection class: IP20
Temperature range: -10° - 55° Celsius
Voltage: Button cell CR2032 3V
Comformity: CE
Adjusting of the light level / light sensitivity
Showing of low battery level
Battery exchange
Adjust the desired light level
by tipping .
LED is blinking ten
times all two minutes
Configuring remote control
Advice: Ais the programmed remote control, Bis the light sensor which has to be programmed.
Alternative: Programming with motor
0 = o
1 = high15 KLux)
2 = medium (30 KLux)
Open the ap with a screwdri-
ver, exchange the battery and
close the ap again.
Advice: No automatic command will
send when you have a low battery.
3 = low (45 KLux)
4 = very low (60 KLux)
For interior sun protection: Programming of mode 2:
Programmation: Press for at least 5s until the LED blinks 5 times.
Mode Light value exceeded
for 2 minutes Light value undercut
for 15 minutes Mode-test: press
1 Blind drives DOWN no reaction LED glows, no blinking
2 Blind drives DOWN Blind drives UP LED glows + 2x blinkings
3 Blind moves to the sensor Blind drives UP LED glows + 3x blinkings
Light test
+
P2 + Sun symbol
Press for 3s
Light level 0 blinks short-
ly, the light test is started
afterwards
current radiation will be
shown according to the
light levels
push any button to
leave the test mode
Make your contribution to environmentally friendly recycling!
According to the Electrical and Electronic Equipment Law and the Battery Law
(EletroG,BattG),erfalisobligatedtotakebackcontrols,drives,otherelectricalaccessories,
usedbatteriesaswellasaccumulatorsfreeofchargeandtorecyclethemproperly.Costu-
mersarelegallyrequiredtodisposeusedappliancesandusedbatteriesatdesignatedcollectionpoints.
The delivery should always be in discharged state and protected against short circuits.
