INSTRUCTIONS MANUAL
5
Then, create a small hole in the car using a power drill. Line up your hole
so it is directly behind where your camera’s power cable will go.
NOTE:The hole doesn't have to be very big, just large enough for
the cable. (It is about a 1⁄8 or 1⁄4 inch hole)
NOTE: Ensure that there are no obstructions between the
license plate mount and the rear wiring chamber and you're not
drilling into anything you shouldn't be.
NOTE: If you come across any obstructions, try to remove them. If
you can’t, see if you can make a hole nearby.
4.2.3 Power the camera
Power the camera by a red and black wire.
(red wire to positive power of reversing light, black to ground or
negative power).
Note: Camera is connected to the reverse lights and channel 2, and the monitor automatically
lights up when reversing. (When not reversing, the screen enters standby mode, and there is no
need to turn off the monitor power).

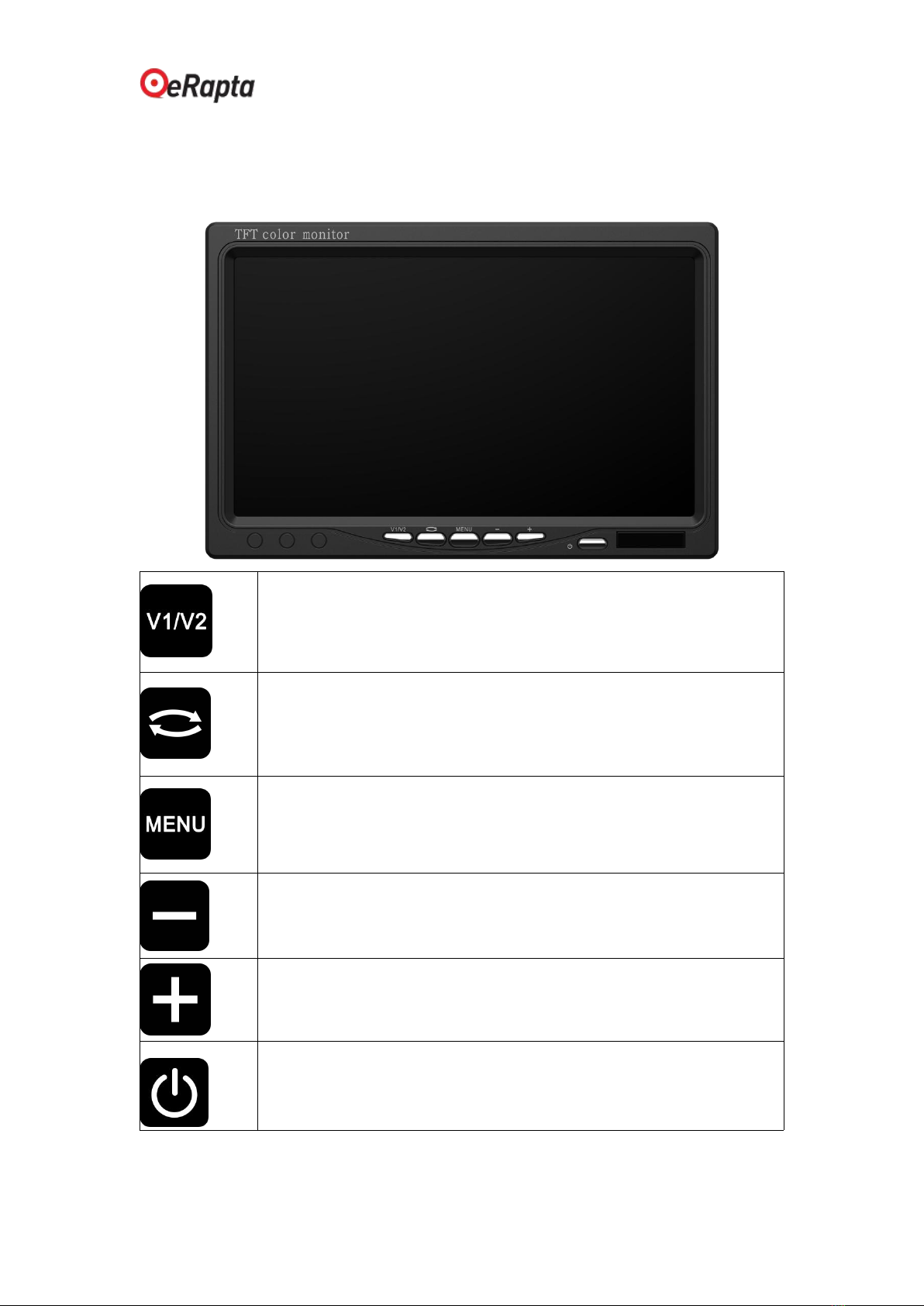

4.3 Installation of the Monitor
4.3.1 Mount two antennas to the monitor.
4.3.2 Mount the bracket. Aim the suction cup at the screw holes
and press down firmly, then tighten the screw.When sucking press
the suction cup base tightly and pull the handle down.
4.3.3 Power the monitor.
(1) Insert the adapter into the jack of the monitor. Power the
monitor by the car cigarette lighter.
(2) If you don't want to use the car charger, you can power monitor
by hard wiring, connect the power cable to the adapter from the
monitor,Then attach the red wire to the car reversing switch and the
black wire to the ground.
