Equalizer Terminator TSK710 Manuel utilisateur

Windshield Repair System

Part# TSK710

User Guide

WARRANTY INFORMATION

Equalizer® Terminator® is warranted for 30 days to be free of

factory defects from the date of purchase. Warranty does not apply

to abuse, misuse, normal wear and tear, to accessories or damage.

Equalizer® will replace, at our option, any defective part.

TSK710 • Equalizer® Terminator® Windshield Repair Kit

If you feel your product is covered under warranty

send the entire kit to:

Equalizer®

Attention: Customer Service

2611 Oakmont Drive

Round Rock, TX 78665

Equalizer® reserves the right to refuse, at our expense, any product

which has not been properly used or maintained as specied in the

User Guide.

If you have any questions about your tool call us at 512.388.7715,

fax us at 512.388.4188, or email sales@equalizer.com.

Thank you for your purchase of the Equalizer® Terminator®!

Equalizer® is committed to manufacturing quality tools and

products. Equalizer® has tested and demonstrated the

Equalizer® RockStar® Roadie™ on various breaks. This guide is meant to give

basic procedures on the use of this product.

For technical support and tips please contact us

for assistance at 512.388.7715.

To watch Instructional Videos go to equalizer.com/videos or

scan the QR code below:

Always wear safety gloves and safety glasses

when using Equalizer® products.

Inspection and Assessment:

1. Examine the damaged area from the inside and outside of the

vehicle. Look for hidden cracks, moisture, contamination or

previous repair attempts.

2. Determine if the damage is within the scope of your technical

experience to repair.

3. Assess to make sure that the windshield is at the appropriate

temperature. Ideal temperature is between 65°F to 85°F plus or

minus 5°F.

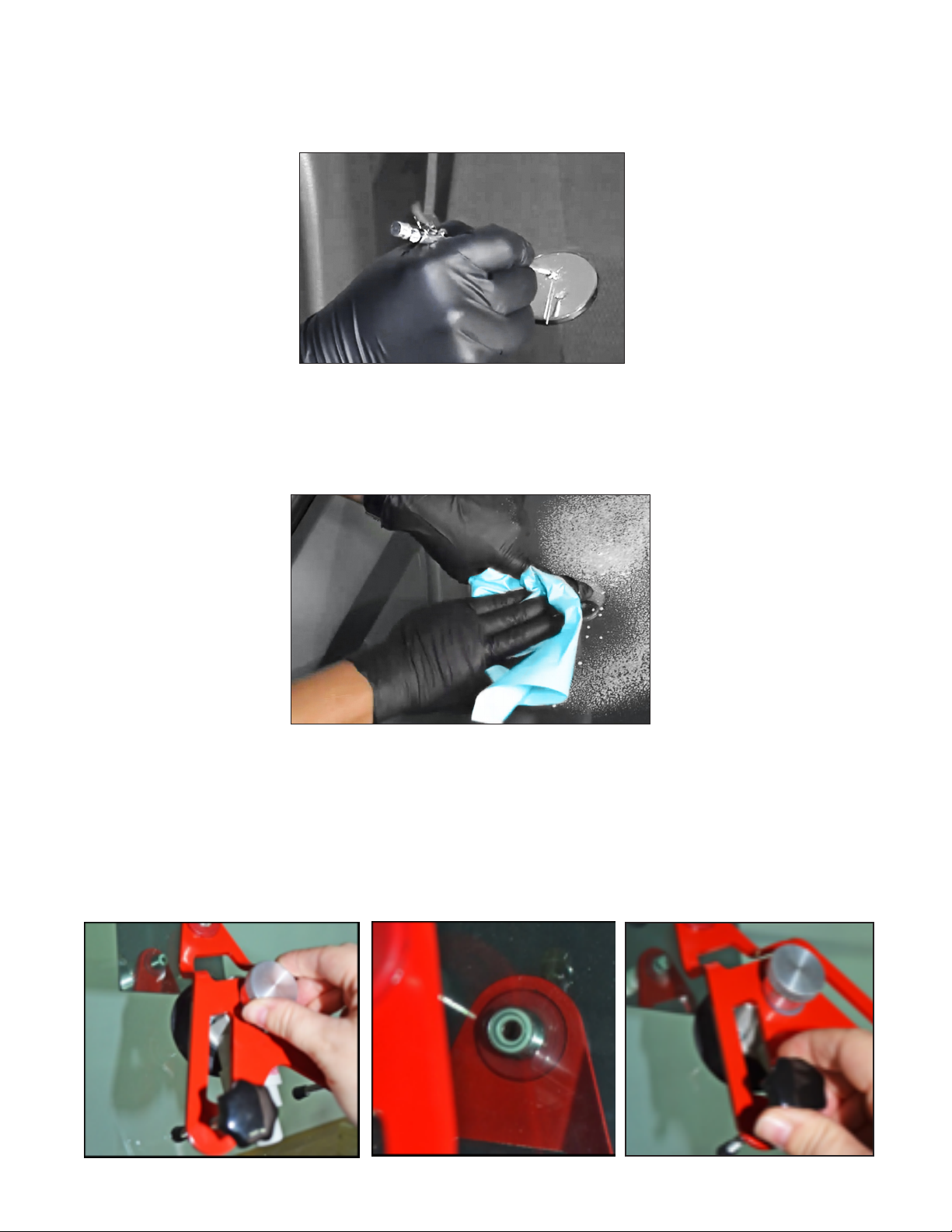

Install the mirrow inside the car to serve as a guide during the re-

pair. Using the probe, remove broken glass debris from the chip.

Use a clean dry paper towel to wipe debris away.

Clean around the damaged area with water or glass cleaner. Be sure

to place a nitrile glove-covered nger over the rock chip in order to

keep from contaminating the break. Wipe dry with the paper towel.

Install the bridge onto the glass so that the injector tip o-ring is over

the rock chip. Pump the vacuum cup to secure to the glass. Screw

the injector down until the o-ring makes contact with the surface of

the glass. Adjust the bridge posts until the o-ring has a at look to its

appearance.

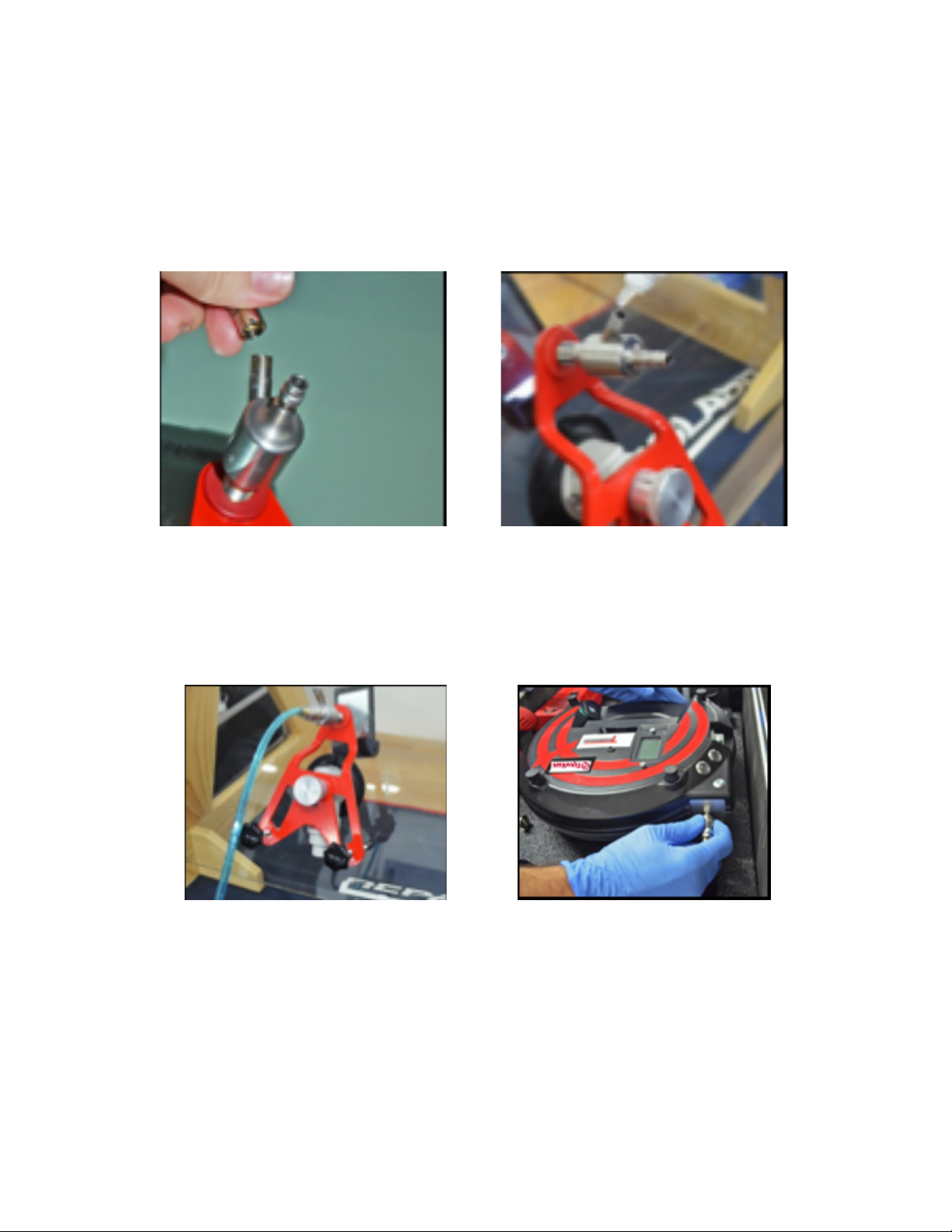

Unscrew the nozzle of the injector and apply 3-5 drops of resin in the cham-

ber.

*Always make sure to use the right resin for the job. If the temperature of

the work area is warm or the job is at high altitude; always use a thicker res-

in. If the temperature of the work area is cool or at sea level use a thinner

resin.

Connect the hose onto the chamber, then connect the hose onto the right

side of the terminator machine.

Switch the terminator on by pressing the white button on top of the

machine. [Select your program with the button menu.]

Several programs available:

a) Stars-break and combo- Duration: 12 min 30

b) Bull-eyes and half bull-eyes

Duration: 8 min 30

c) Express nish program: for every types - Duration: 2 min 35

Once you selected a program press “START”.

The machine automatically purges at the end of the repair and warns you at

the end of the program with a sound and displays “END”

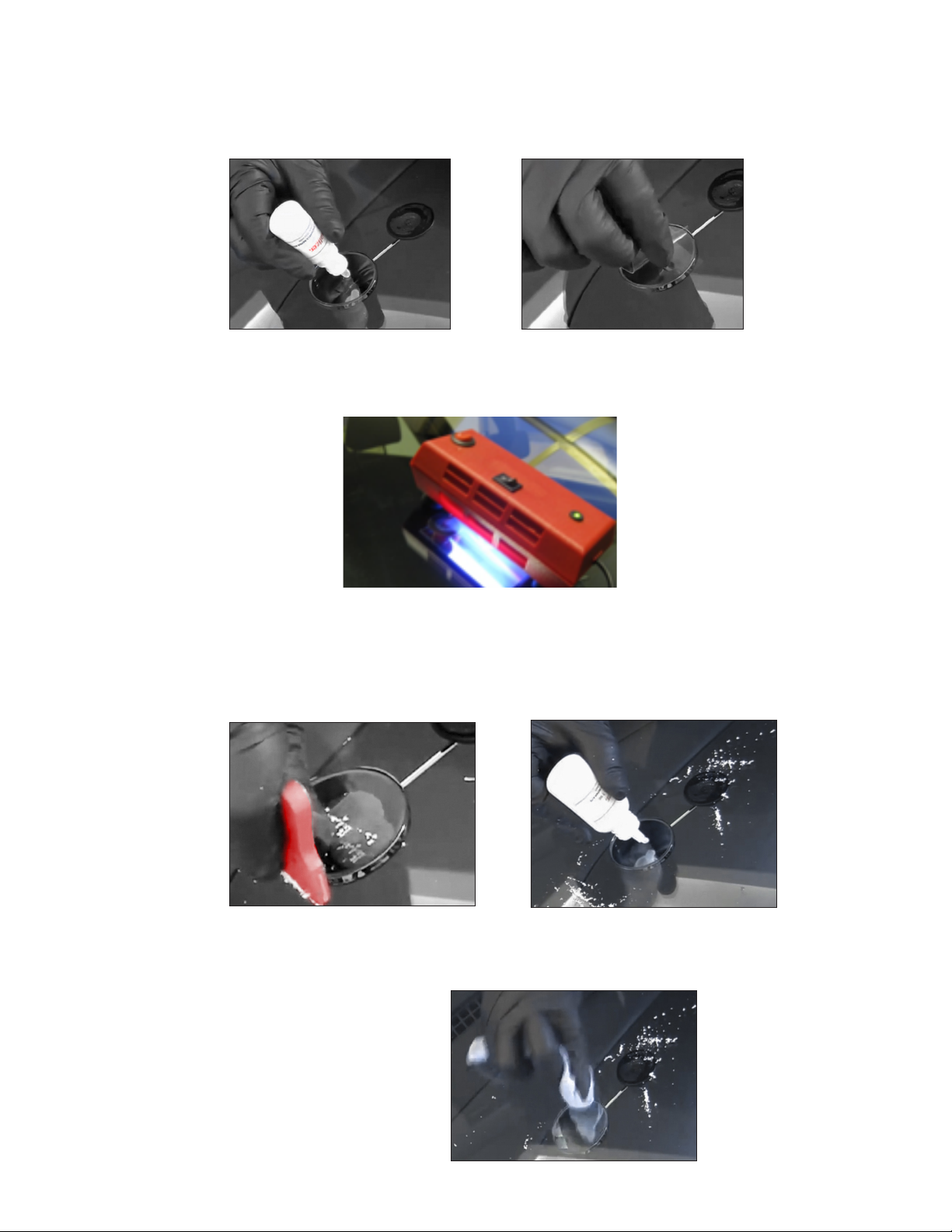

Remove the injection bridge

Wipe the excess of resin from the pit with a clean cloth.

Apply a drop of pit ller resin. Place a mylar square cure sheet onto the pit ller

resin. Be sure to gently place the cure sheet in a download laying motion and let

gravity do the rest.

Place the UV lamp over the break, power on and let cure for 50 seconds. *UV

lamp will ash when curing and turn off when complete.

Remove the UV lamp and mylar square. Using a new razor blade, scrape the new

resin in a back and forth motion at a 90 degree angle until the resin is even and

level with the glass. *Spray water or glass cleaner over the repair to make remov-

ing resin easier.

Apply a drop of pit polish over the repair and using a clean, dry paper towel buff

vigorously until the pit resin is shiny.

Battery and Charger

You can charge the battery of the TERMINATOR® directly by connecting it

to a power outlet. The charge of the battery can be done with the power

on or power off.

Charge the unit once the last lling charge remain.

Function of the charger:

Green LED light : Charged

Red LED Stable : Under charge

Red LED Flashing : Charging problem

Charging time: 1 hour 30 minutes

Cleaning and Maintenance

Clean the hose on the side where the resin has been injected, then, with a

cleaning solution to remove the excess of resin from the other side.

Clean the suction cups (UV lamp, inspection glass and if necessary the

injection bridge with water and dry towel.

Always storage resins in their original packaging, protected from UV light.

2611 Oakmont Drive • Round Rock • Texas • 78665

Toll Free USA & Canada: 800.334.1334

International: 512.388.7715 • Fax: 512.388.4188

Email: sales@equalizer.com

www.equalizer.com

VCB1454VPO1455 AVL209

VAF1471

VAL1472

VPF1452

VPL1453

VMR1450

VML1451

VTR1448

VTL1449 TRR652

TRO653

DL1093 BNG418

BNL820

MS492

VPT1489

RB497

VUV1447

Additional Accessories
