Epson C6500P Manuel utilisateur

USER MANUAL

Roll to roll system

for EPSON C6500P

this product is certified:

The Roll to Roll system specically designed for Epson C6500P color label printer can handle

rolls up to 220mm (8.66”) media wide and having an outside diameter up to 250mm (10”). Both

Unwinder and Rewinder are equipped with a xed 3” core holder. An external power supply

100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the

speed and sense of rotation auto adjustment.

LABEL UNWINDER INSTALLATION

STEP 1

Place carefully the printer into the lock guides.

STEP 2

On the back side, place and screw the

unwinder to the printer plate.

Do not tighten the knobs until the unwinder will

be properly aligned to the printer.

STEP 3

Remove the additional support and the outer

disk.

Now Load both roll of media and outer disk

onto the core holder.

If you do not have the printer

plate (JPL-6500P), place and

align the unwinder behind the

printer and than follow the

instructions from STEP 3.

STEP 5

Keeping the media underneath the tension

arm, turn on the unwinder and feed the media

into the printer.

Please look at printer’s user manual and

follow the detailed procedure on how to

load the media into the printer.

STEP 6

Once the media is loaded into the printer, slide

left and right the unwinder to nd the correct

alignment between the two units and tighten

the knobs.

Complete the roll to roll system with the Label Rewinder Installation

STEP 7

Behind the unwinder (A), place and screw

the additional plate “B” (equipped with the

rewinder).

Than screw the rewinder (C) to this plate

extension.

Do not tighten the knobs until the rewinder will

be properly aligned to the printer.

B CA

STEP 4

Tighten the core through the knob and install

the additional support.

STEP 10

Keeping the printed media underneath the

tension arm, stick the end on the cardboard

core.

Tighten the knob.

STEP 9

Remove the additional support and the outer

disk. Load the empty cardboard core onto the

core holder.

Slide in the outer disk onto the core holder and

keep it close to the media edge.

STEP 11

Install the additional support.

STEP 8

Pull the printed media underneath both printer

and label unwinder.

STEP 12

Once the media is loaded on the rewinder,

slide left and right the rewinder to nd the

correct alignment between the two units and

tighten the knobs.

LABEL REWINDER ONLY INSTALLATION

STEP 1

Place carefully the printer into the lock guides.

ATTENTION.

The unit is equipped with an

extension plate as default, for this

conguration it is not required to be

used.

STEP 3

Remove the additional support and the outer

disk.

Load the empty cardboard core onto the core

holder.

Slide in the outer disk onto the core holder and

keep it close to the media edge.

If you do not have the printer plate (JPL-6500P), place and align the rewinder behind the

printer and than follow the instructions from STEP 3.

STEP 3

On the back side, place and screw the

rewinder to the printer plate.

Do not tighten the knobs until the rewinder will

be properly aligned to the printer.

STEP 4

Pull the printed media underneath the printer

and under the tension arm.

STEP 6

Tighten the core through the knob.

STEP 5

Stick the end on the cardboard core.

Tighten the knob and install the additional

support.

STEP 7

Once the media is loaded into the printer, slide

left and right the unwinder to nd the correct

alignment between the two units and tighten

the knobs.

Label unwinder

ON-OFF

Push this button to turn On or O󰀨 the unit.

INCREASE SPEED

Push this button to increase the rotation speed.

DECREASE SPEED

Push this button to decrease the rotation speed.

FUNCTIONING

ON-OFF

Push this button to turn On or O󰀨 the unit.

INCREASE SPEED

Push this button to increase the rotation speed.

DECREASE SPEED

Push this button to decrease the rotation speed.

LABEL FACE-OUT

Turn the unit o󰀨. Keep pushed “FACE OUT” button and

push “ON-OFF” until it beeps and the unit starts to rotate.

LABEL FACE-IN

Turn the unit o󰀨. Keep pushed “FACE IN” button and push

“ON-OFF” until it beeps and the unit starts to rotate.

LABEL REWINDER MODE

Turn the unit o󰀨. Keep “ON-OFF” button pushed until both

LEDs will be blinking, than push “Label Rewinder” button.

Once the programming procedure will be completed, turn

ON the unit and it is ready to work.

BACKING PAPER REWINDER

Turn the unit o󰀨. Keep “ON-OFF” button pushed until both

LEDs will be blinking, than push “Backing Paper Rewinder”

button. Once the programming procedure will be completed,

turn ON the unit and it is ready to work.

Backing paper can be rewinded face out only.

Label rewinder

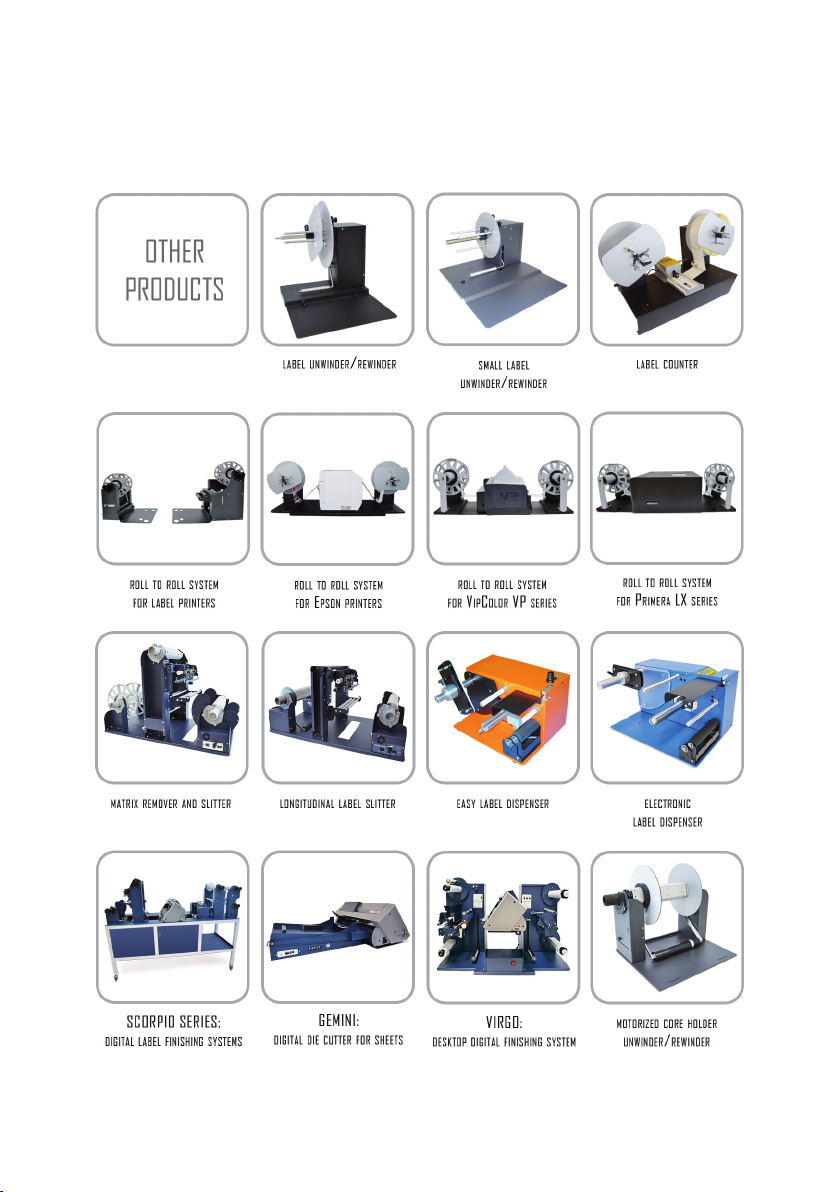

smart solutions for the labeling industry

Label rewinder, label unwinder, electronic label dispenser and more...

- FOR MORE INFO CONTACT YOUR RESELLER -
