Basic Guide

Contents

Introduction

Where to Find

Information

The latest version of the following manuals are available

on the Epson support website.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

❏Start Here (paper):

Provides you with information on setting up the

product and installing the software.

❏Basic Guide (paper):

Provides you with basic information when you are

using the product without a computer.

❏User’s Guide (PDF):

Provides you with detailed operating, safety, and

troubleshooting instructions. See this guide when

using this product with a computer, or when using

advanced features such as 2 sided copying.

To view the PDF manual, you need Adobe Acrobat

Reader 5.0 or later, or Adobe Reader.

❏Network Guide (HTML):

Provides network administrators with information

on both the printer driver and network settings.

❏Help (on the product display):

Provides basic operating and troubleshooting

instructions on the product’s LCD screen. Select the

Help menu on the control panel.

Caution, Important and

Note

Caution, Important and Note in this manual are

indicated as below and have the following meaning.

Caution

must be followed carefully to avoid bodily injury.

Important

must be observed to avoid damage to your

equipment.

Note

contain useful tips and restrictions on product operation.

Using Epson Connect

Service

Using Epson Connect and other companies’ services,

you can easily print directly from your smartphone,

tablet PC or laptop, anytime and practically anywhere

even across the globe! For more information about

printing and other services, visit the following URL;

https://www.epsonconnect.com/ (Epson Connect

portal site)

http://www.epsonconnect.eu/ (Europe only)

You can view the Epson Connect guide by

double-clicking the shortcut icon on the desktop.

Safety Instructions

Read and follow these instructions to ensure safe use of

this product. Make sure you keep this guide for future

reference. Also, be sure to follow all warnings and

instructions marked on the product.

Basic Guide

Introduction

❏Use only the power cord supplied with the product

and do not use the cord with any other equipment.

Useofothercordswiththisproductortheuseofthe

supplied power cord with other equipment may

result in fire or electric shock.

❏BesureyourACpowercordmeetstherelevantlocal

safety standard.

❏Never disassemble, modify, or attempt to repair the

power cord, plug, printer unit, scanner unit, or

options by yourself, except as specifically explained

in the product’s guides.

❏Unplug the product and refer servicing to qualified

service personnel under the following conditions:

The power cord or plug is damaged; liquid has

entered the product; the product has been dropped

or the casing damaged; the product does not

operate normally or exhibits a distinct change in

performance. Do not adjust controls that are not

covered by the operating instructions.

❏Place the product near a wall outlet where the plug

can be easily unplugged.

❏Do not place or store the product outdoors, near

excessive dirt or dust, water, heat sources, or in

locations subject to shocks, vibrations, high

temperature or humidity.

❏Take care not to spill liquid on the product and not

to handle the product with wet hands.

❏Keep this product at least 22 cm away from cardiac

pacemakers. Radio waves from this product may

adversely affect the operation of cardiac

pacemakers.

❏If the LCD screen is damaged, contact your dealer.

If the liquid crystal solution gets on your hands,

wash them thoroughly with soap and water. If the

liquid crystal solution gets into your eyes, flush

them immediately with water. If discomfort or

vision problems remain after a thorough flushing,

see a doctor immediately.

Note:

The following provides safety instructions for ink

cartridges.

&“Replacing Ink Cartridges” on page 15

Control Panel Overview

Note:

❏Control panel design varies depending on location.

❏Although the control panel design and what displayed on the LCD screen such as menu names and option names may

differ from your actual product, the method of operation is the same.

English

Basic Guide

Control Panel Overview

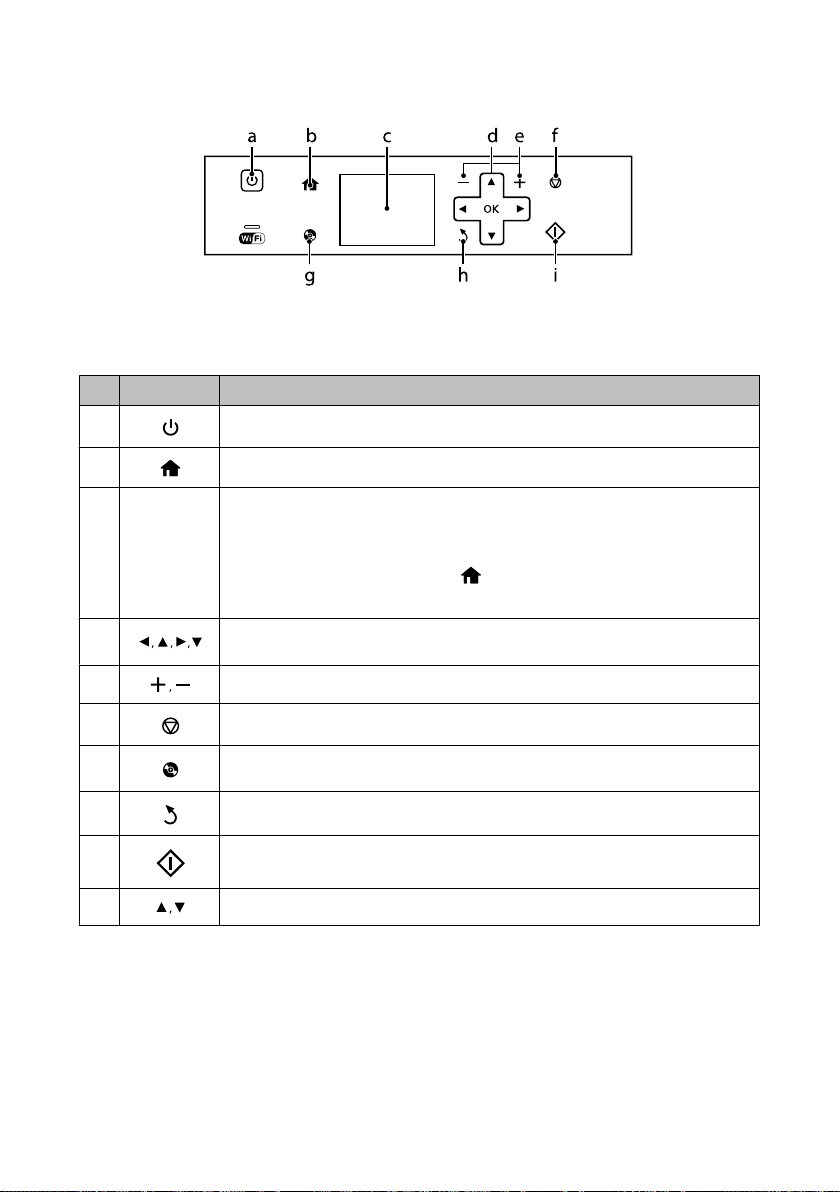

Button and LCD

Buttons Function

aTurns the product on or off.

bDisplays the Home menu.

LCD screen displays menus.

If your product has a touch panel, you can scroll the screen by swiping the LCD screen.

Try swiping a bit harder if the touch panel is slow to respond.

Menus are displayed depending on the action you perform, such as inserting a memory card.

If the menu you want is not displayed, press . To disable automatic menu selection, turn off each

item in the Auto Selection Mode menu.

Setup > Guide Functions > Auto Selection Mode*

dPress l, u, r, dto select menus. Press OK to confirm the setting you have selected and go to next

screen.

eSets the number of copies and prints.

fStops the current operation or initializes the current settings.

gPress to display the CD/DVD label menu.

The product prepares CD/DVD label printing.

hCancels/returns to the previous menu.

iStarts copying/printing/scanning.

jScrolls the screen.

* Auto Selection Mode is not available for the XP-600 Series.

Basic Guide

Control Panel Overview

Lights

Lights Function

On when the product is on.

Flashes when the product is receiving data, printing/copying/scanning, replacing an ink cartridge, charging

ink, or cleaning the print head.

Flashes slowly when the product is in sleep mode.

Stays on while the printer is connected to a network. Flashes while network settings are being adjusted

(green: Wi-Fi/orange: Ethernet).

Note:

See the Help on the control panel for more information on the icons displayed on the LCD screen.

Paper and Media

Handling

Selecting Paper

The product automatically adjusts itself for the type of

paper you select in your print settings. That is why the

paper type setting is so important. It tells your product

what kind of paper you are using and adjusts the ink

coverage accordingly. The table below lists the settings

you should choose for your paper.

For this paper LCD paper type

Plain paper* Plain Paper

Epson Bright White Ink Jet

Paper*

Plain Paper

Epson Ultra Glossy Photo

Paper

Ultra Glossy

Epson Premium Glossy Photo

Paper

Prem. Glossy

Epson Premium Semigloss

Photo Paper

Prem. Glossy

Epson Glossy Photo Paper Glossy

Epson Photo Paper Photo Paper

Epson Photo Quality Ink Jet

Paper

Matte

Epson Matte Paper–

Heavyweight

Matte

Epson Double-Sided Matte

Paper

Matte

Epson Photo Stickers Photo Sticker

* You can perform 2-sided printing with this paper.

Loading Paper

Into the paper cassette

Note:

❏Although the instructions in this section are based

on cassette 2, the method of operation is the same for

cassette 1.

❏The available paper type, size and loading capacity

differs between cassette 1 and 2. See the PDF User’s

Guide for more information.

❏For instructions on loading envelopes or a Photo

Stickers sheet, see the User’s Guide PDF.

English

Basic Guide

Paper and Media Handling

Open the front cover.

Note:

If the output tray has been ejected, close it before pulling

out the paper cassette.

Pull out the paper cassette.

Slide the edge guides to the sides of the paper

cassette.

Note:

When using Legal-size paper, remove the CD/DVD tray,

and then extend cassette 2 as shown in the illustration.

Slide the edge guide to adjust to thepaper sizeyou

will use.

Load paper toward the edge guide with printable

side face-down, and check that the paper is not

sticking out from the end of the cassette.

Note:

❏Fan and align the edges of the paper before loading.

❏For plain paper, do not load paper above the line just

under the arrow mark inside the edge guide.

For Epson special media, make sure the number of

sheets is less than the limit specified for the media.

❏When you select Cassette 1>Cassette 2 as the Paper

Source, load the same size and type of paper in both

cassettes.

Basic Guide

Paper and Media Handling

Slide the edge guides to the edges of the paper.

Keep the cassette flat and insert it back into the

product carefully and slowly.

Note:

❏Leave enough space in front of the product for the

paper to be fully ejected.

❏Do not remove or insert the paper cassette while the

product is operating.

❏For the XP-600 Series only, you need to pull out the

output tray manually. Also make sure the control

panel is raised.

Into the rear paper feed slot

Note:

❏The rear paper feed slot is not available for the

XP-600 Series.

❏Even though you can print on paper with a thickness

of 0.05 to 0.6 mm, some hard paper may not be fed

correctly even if the thickness is within this range.

Send your print job to the product (from your

computer, or by using the control panel).

Note:

Before sending your print job, you cannot load paper into

the rear paper feed slot.

Open the rear paper feed slot cover and then pull

out the paper support.

Slide the edge guide.

Load a single sheet of paper with the printable

side face-up at the center of the rear paper feed

slot, and then set the edge guide. The printable

side is often whiter or brighter than the other

side.

English

Basic Guide

Paper and Media Handling

Note:

Insert the paper so that the leading edge is approximately

5 cm from the groove in the edge guides.

Press x.

Note:

The paper ejects automatically after a certain period of

time.

Loading a CD/DVD

Important:

❏Do not insert the CD/DVD tray while the

product is operating. Otherwise, your product

maybedamagedorthesurface of the CD/DVD

may become dirty or scratched.

❏When ejecting/inserting the CD/DVD tray,

make sure nothing is placed on the output tray.

Note:

You can also print on a Blu-ray Disc

™

Press on the control panel, and then select

Load CD/DVD.

Raise the panel as far as it will go.

Note:

If the output tray has been ejected, close the tray and the

front cover.

Remove the CD/DVD tray from the product.

Place a CD/DVD on the CD/DVD tray with the

printable side face-up, and then insert the tray

into the product. Make sure that the umarks on

the tray and the dmarks on the product match,

so that the line on the tray aligns with the

product.

Press Done on the LCD screen.

Note:

The CD/DVD tray ejects automatically after a certain

period of time.

Basic Guide

Paper and Media Handling

Autres manuels pour XP-600 series

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Epson Imprimante tout-en-un

Epson

Epson CX6400 - Stylus Color Inkjet Manuel utilisateur

Epson

Epson AcuLaser CX11N Mode d’emploi

Epson

Epson Stylus SX440W Instructions de montage

Epson

Epson NX400 - Stylus Color Inkjet Manuel utilisateur

Epson

Epson CX5200 - Stylus Color Inkjet Mode d’emploi

Epson

Epson WorkForce WF-3530 Manuel utilisateur

Epson

Epson RX620 - Stylus Photo Color Inkjet Manuel utilisateur

Epson

Epson WorkForce WF-3520 Mode d’emploi

Epson

Epson Artisan 800 - All-in-One Printer Guide de l'utilisateur

Epson

Epson XP-410 Instructions d'installation

Epson

Epson NX400 - Stylus Color Inkjet Mode d’emploi

Epson

Epson XP-600 series Mode d’emploi

Epson

Epson Expression Home XP-4150 Series Manuel utilisateur

Epson

Epson Stylus CX5800 Mode d’emploi

Epson

Epson ET-4810 Series Manuel utilisateur

Epson

Epson WorkForce Pro WP-4530 Manuel utilisateur

Epson

Epson L3150 Series Mode d’emploi

Epson

Epson CX4400 - Stylus Color Inkjet Mode d’emploi

Epson

Epson Stylus TX430W Mode d’emploi

Epson

Epson Stylus SX420W Series Manuel utilisateur

Epson

Epson WF-6530 Manuel utilisateur

Epson

Epson Stylus CX4600 Manuel de l'opérateur

Epson

Epson WorkForce 630 Manuel utilisateur

Epson

Epson WF-C869R Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur

Copystar

Copystar CS 4551ci Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 4650EN Manuel utilisateur

Brother

Brother MFC-9840CDW Manuel utilisateur
